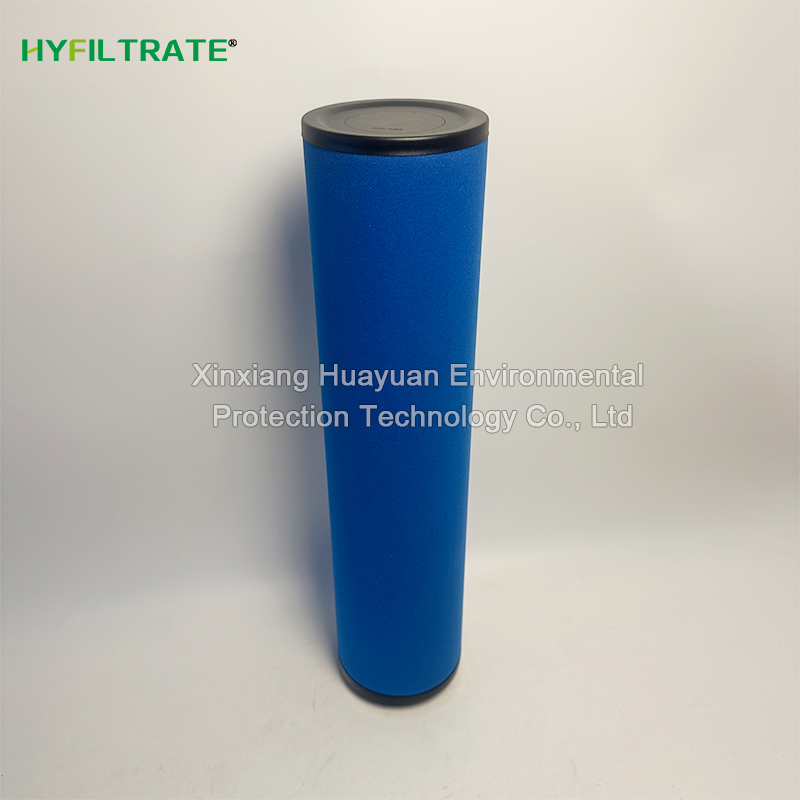

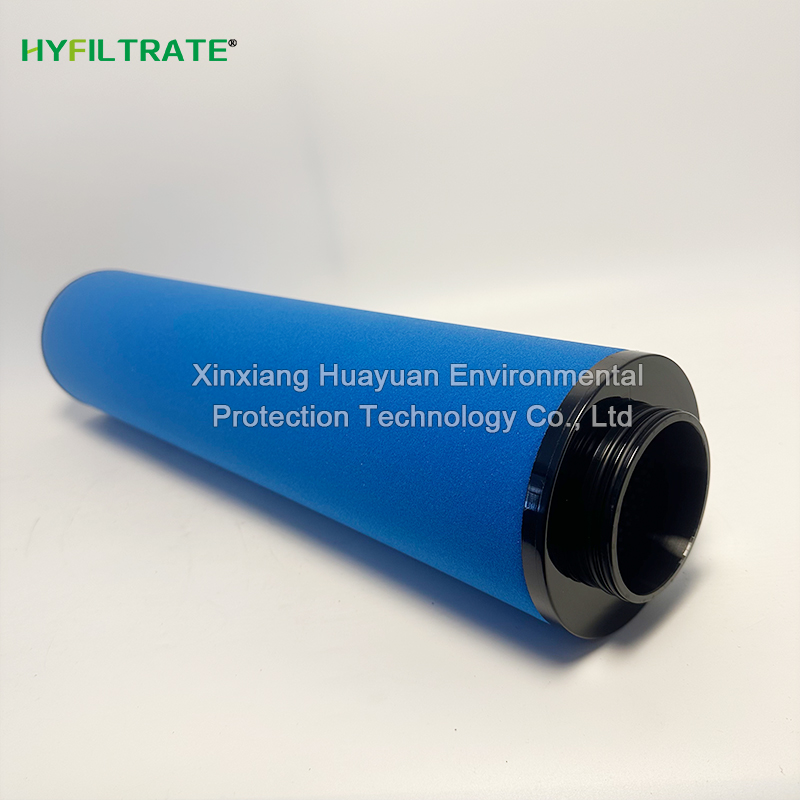

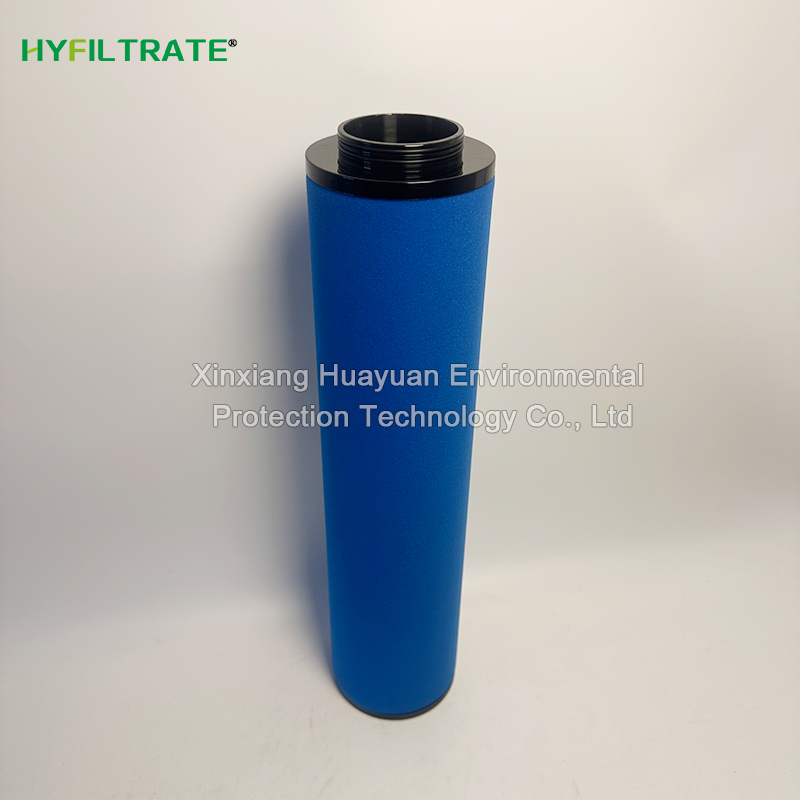

Replace Atlas Copco PD 425 air compressor precision filter element-Huayuan Environmental Protection Technology Co., Ltd.

Replacing the Precision filter element of Atlas Copco PD 425 air compressor, it can deeply purify on the basis of DD primary filtration, remove small oil and water mist, adapt to high demand gas scenarios such as laser cutting, spraying, medicine, precision instruments, food processing, etc., and protect the molecular sieve, solenoid valve, cylinder, and laser lens of the back-end dryer from oil and moisture erosion and damage. And the stainless steel inner cylinder resists the impact of air flow pulsation, and the epoxy seal prevents gas short circuit bypass flow; Long term dry wet alternation working conditions will not result in filter material cracking, delamination, or damage, and the failure rate of the entire gas source system is lower.

Applicable locations:

Spray painting processing industry: Automated spray painting production line air source water and oil removal unit

Laser processing industry: laser cutting and welding equipment, process gas source purification device

In the field of electronic manufacturing: clean room gas supply, component blowing and purification system

General Machinery Industry: Air Compressor Aftertreatment, CNC Equipment Pneumatic Air Source Device

Other scene packaging equipment gas supply, laboratory precision instrument gas source processing system

Instructions for replacing filter element:

1) Same shell universal filter element (completely universal in external dimensions): DD 425, UD 425, QD 425

Tip: Different types of filter materials, functions, and accuracies have differences and cannot be interchanged arbitrarily.

2) Alternative model: ACPD425, with consistent external dimensions, structural parameters, and filtration indicators, available for selection reference.

3) Important reminder for replacement selection: The outer diameter, total length, and bottom end structure must match; Fiberglass aggregated filter material cannot be cleaned or regenerated; It is recommended to configure a pre filter element in the front-end to extend its service life.

Packaging and Transportation:

Packaging: Internally packaged in plastic bags, externally packaged in cardboard boxes

Transportation: pallets or wooden boxes

Specific requirements can be based on the customer's specific needs

Related models:

PD 425、DD 425、UD 425、QD 425、PD 310

PD 520、DD 310、UD 310、QD 310、PD 260

PD 620、DD 520、UD 520、QD 520、PD 190

Technical data

Replace Atlas Copco PD 425 air compressor precision filter element

Product type: Compressed air condensing precision filter cartridge

Filter material configuration: multi-layer gradient porous glass fiber composite medium, with airflow flowing from the outside to the inside

Filtration level: Efficient coagulation, effectively capturing solid particles, condensed water, and oil mist aerosols

Can withstand maximum pressure difference: 16 bar, resistant to deformation and damage of filter materials caused by high-speed airflow erosion

Sealing material: Polyurethane integrated sealing end cap, resistant to oil and gas corrosion

Suitable working range: 1.5 ℃~+66 ℃

Supporting structure: High strength internal support skeleton, stable pleated filter layer

Suitable fluids: industrial process gas sources such as compressed air and dry nitrogen

Why choose HYFILTRATE?

1. High quality filtration materials: We strictly select high-quality materials such as glass fiber and stainless steel metal mesh to ensure filtration efficiency and long service life.

2. Compliant with industry standards: The product meets user needs, is compatible with most hydraulic systems, and has excellent quality.

3. Customizable: We can provide customized solutions based on your various models and brands, as well as replacement requirements under different working conditions.

4. Cost effectiveness: The factory directly supplies, crosses intermediaries, and reduces procurement costs while maintaining excellent quality.
