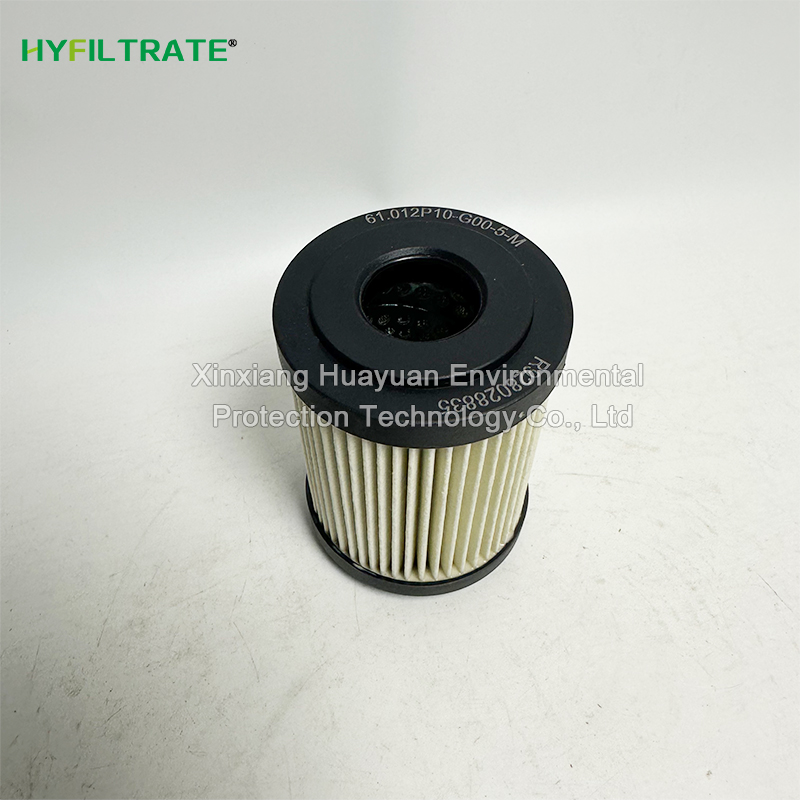

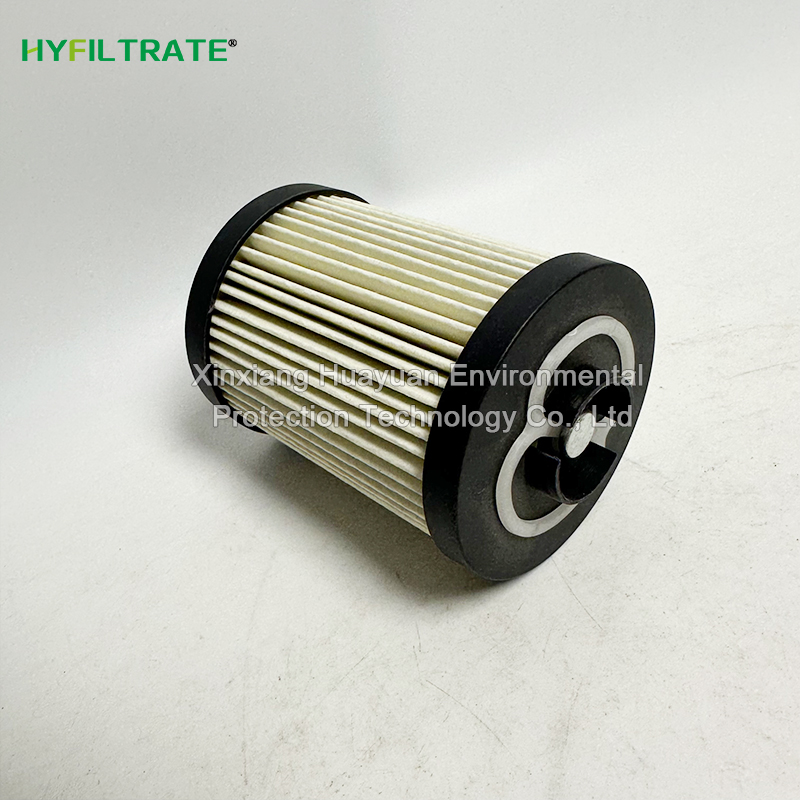

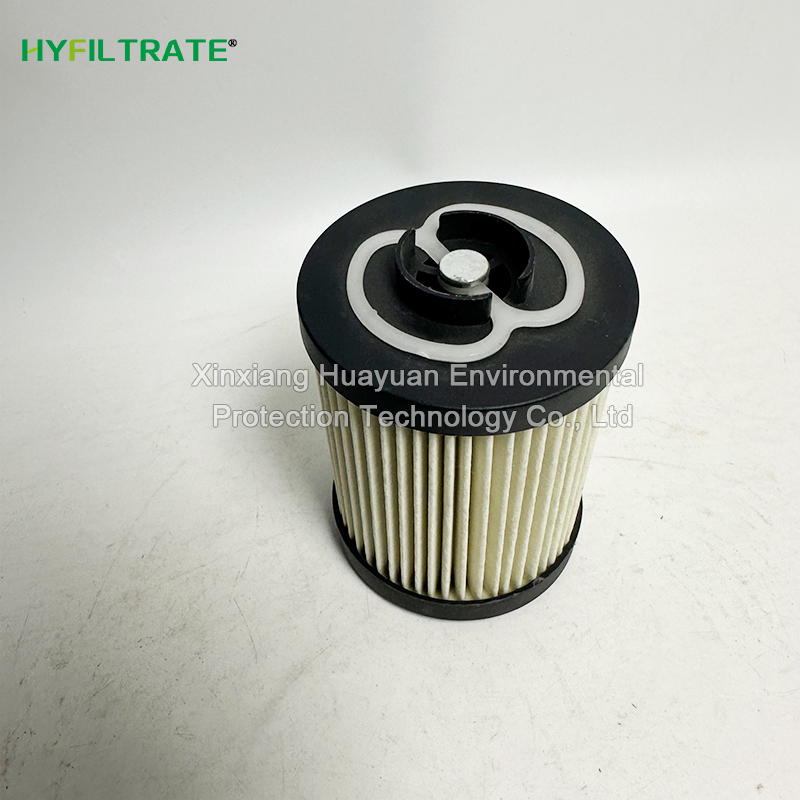

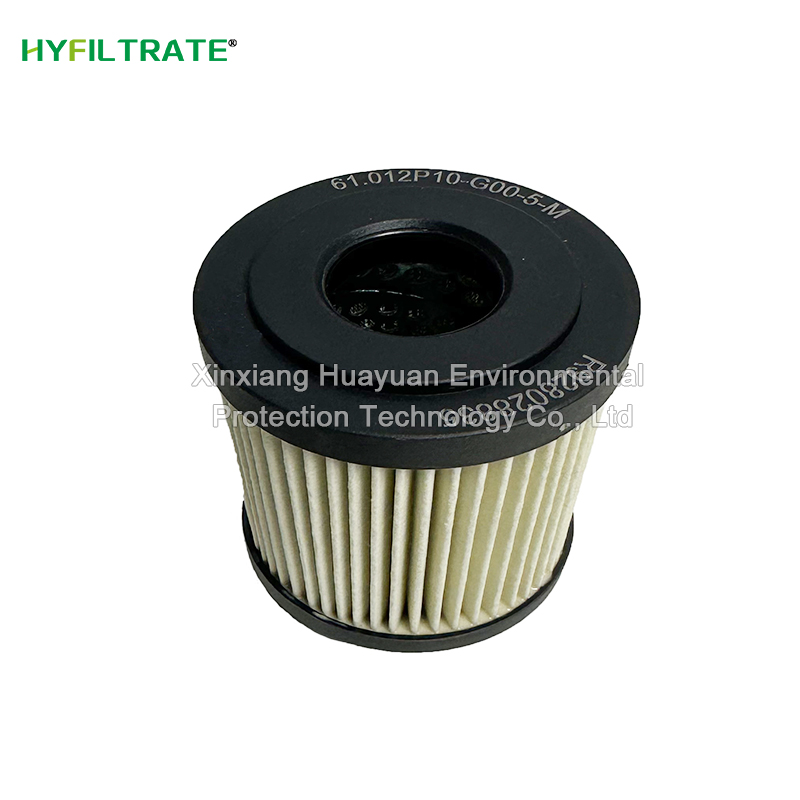

Replace Rexroth R928028835 61 012 P10-G00-5-M hydraulic oil filter element

The replacement Rexroth R928028835 61 012 P10-G00-5-M Hydraulic oil filter element has sufficient dirt holding capacity, stably maintains the cleanliness index of the medium, and reduces the risk of abrasive wear on the valve group and power components. The folded arrangement evenly distributes fluid load and effectively controls the initial operating pressure difference. The double-layer metal casing strengthens the structural strength and reduces the deformation of the filter material caused by pressure fluctuations. The sealing performance of the end cap adhesive is stable, reducing the probability of unfiltered media bypass. It is easy to disassemble and maintain, and is suitable for long-term uninterrupted circulation filtration conditions in production lines.

Applicable locations:

Mining engineering machinery: excavation equipment, hydraulic main control oil purification unit for mining vehicles

Injection molding equipment: pressure pipeline filtration device for large hydraulic injection molding machines

Metallurgical auxiliary unit: hydraulic actuator medium protection filtration unit

Wind power generation equipment: yaw, brake hydraulic drive circuit purification device

In other scenarios, medium-sized hydraulic power stations and hydraulic test benches have precision filtration circuits

Instructions for replacing filter element:

1) Same shell universal filter element (universal external dimensions): 61 012 P06-G00-5-M, 61 012 P16-G00-5-M

Tip: There are differences in filtering accuracy and they cannot be interchanged arbitrarily.

2) Alternative model: HX270 × 10BN/HC, with consistent external dimensions, structural parameters, and filtration indicators, available for selection reference.

3) Important reminder for replacement selection: The outer diameter, total length, and positioning inner hole size must match; Fiberglass filter material cannot be washed and regenerated; Continuously monitor changes in pressure differential and promptly identify internal sources of pollution in the system.

Packaging and Transportation:

Packaging: Internally packaged in plastic bags, externally packaged in cardboard boxes

Transportation: pallets or wooden boxes

Specific requirements can be based on the customer's specific needs

Related models:

61 012 P10-G00-5-M、61 012 P06-G00-5-M、61 012 P16-G00-5-M、61 012 P25-G00-5-M、61 012 P03-G00-5-M

61 008 P10-G00-5-M、61 016 P10-G00-5-M、61 012 P10-G00-0-M、61 012 P10-G00-5-V、61 012 H10-G00-5-M

61 012 P10-G05-5-M、61 012 P10-G00-5-B、61 012 P10-G00-5-S、61 012 PWR10-G00-5-M、61 012 P10-G00-5A
