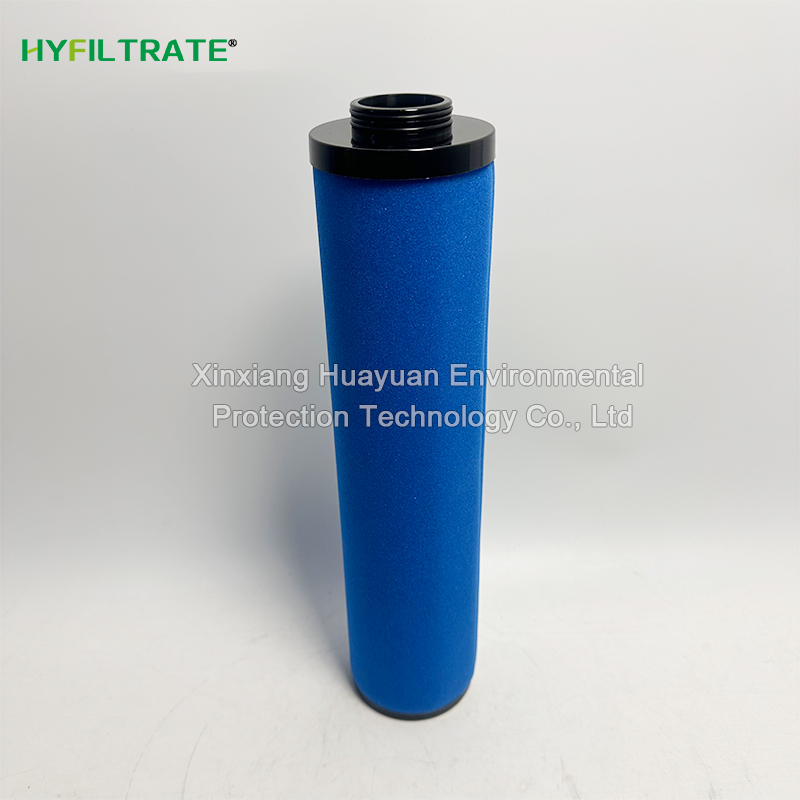

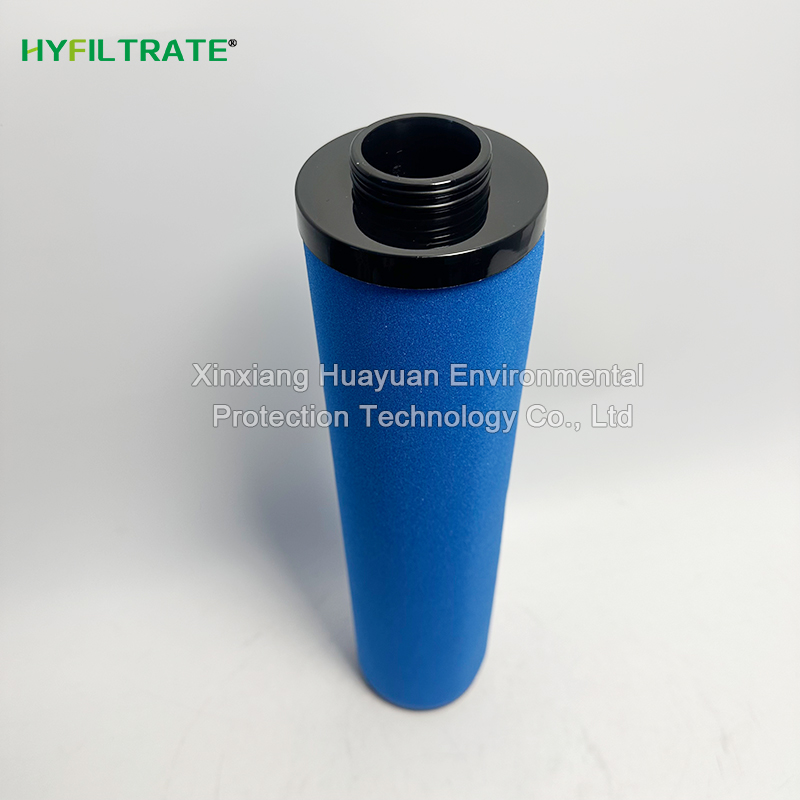

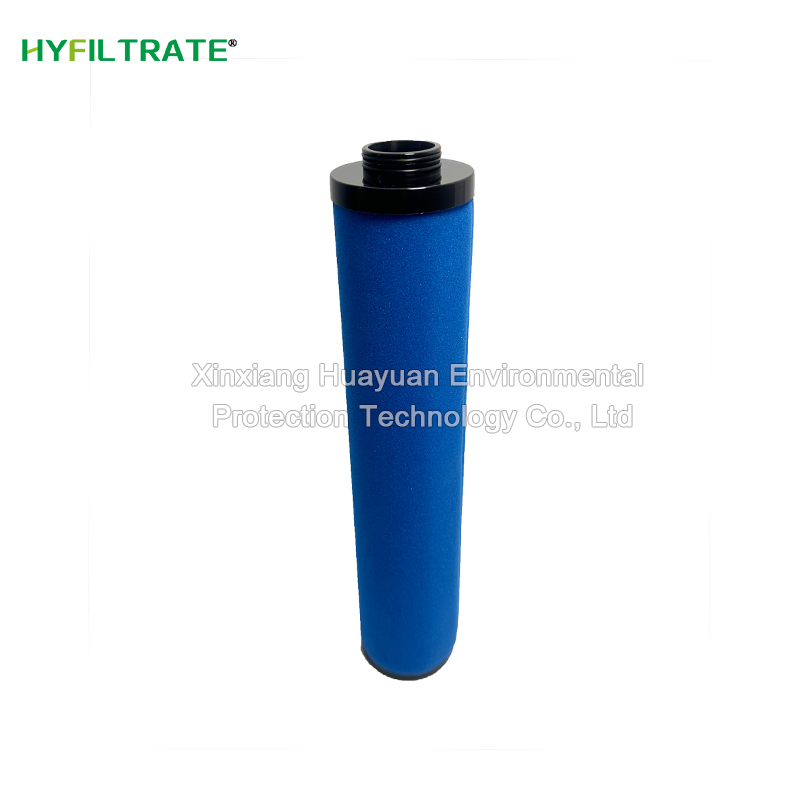

Replace Atlas Copco DD/PDP210+ precision filter cartridge-Huayuan Environmental Protection Technology Co., Ltd.

Replacing Atlas Copco DD/PDP210+Precision filter element, a double-layer media division is used to achieve oil-water and dust classification filtration. The coagulation layer can collect small oil mist droplets for self reflux, and the dust removal layer blocks dry particles, reducing the load on the back-end adsorption filter element. The skeleton structure disperses airflow impact, maintains low pressure loss during long-term operation, and reduces system energy consumption. The double sealing ring sealing structure is reliable, avoiding unfiltered air bypass. The integrated push in structure is easy to disassemble and assemble, suitable for long-term continuous gas supply conditions.

Applicable locations:

Food and beverage production line: filling and blowing process, compressed air purification unit

Pharmaceutical manufacturing workshop: drug packaging, packaging air source filtration device

Automated spraying production line: surface treatment, clean air source protection unit

Electronic processing plant area: component blowing and pneumatic execution gas supply system

Centralized air compressor station and rubber precision molding gas source circuit in other scenarios

Instructions for replacing filter element:

1) Same shell universal filter element (universal external dimensions): DD170+/PDP170+, DD310+/PDP310+

Tip: There is a difference between flow capacity and filter material grade, and they cannot be interchanged arbitrarily.

2) Alternative model: JML-210+, with consistent external dimensions, structural parameters, and filtration indicators, available for selection reference.

3) Important reminder for replacement selection: The outer diameter, total length, and inner hole size must match; Glass fiber filter material cannot be regenerated and cleaned after saturation; Suggest synchronously checking the working status of the automatic drain.

Packaging and Transportation:

Packaging: Internally packaged in plastic bags, externally packaged in cardboard boxes

Transportation: pallets or wooden boxes

Specific requirements can be based on the customer's specific needs

Related models:

DD210+、PDP210+、DD170+、PDP170+、DD310+

PDP310+、DD130+、PDP130+、DD210-G、PDP210-V

DD210A、PDP210L、DD210P、PDP210S、DD/PDP250+

Technical data

Replace Atlas Copco DD/PDP210+ precision filter cartridge

Product type: Compressed air pipeline multi-stage purification filter cartridge

Filter material configuration: DD uses multi-layer borosilicate glass fiber cohesive medium; PDP adopts wrinkled fiberglass dry dust removal medium, with airflow flowing from the outside to the inside

Filtering index: DD grade 0.1 μ m, residual oil mist ≤ 0.08mg/m ³; PDP grade 1 μ m solid particles with particle interception efficiency of 99.92%

Allowable maximum pressure difference: 0.035MPa, suitable for air compressor load fluctuation and gas supply conditions

Sealing material: Double channel heat-resistant rubber sealing ring, to prevent air flow short circuit

Working temperature range: 1 ℃ to+50 ℃

Supporting structure: Stainless steel perforated inner frame, evenly distributed airflow, and protective filter layer from erosion and damage

Fluid adaptation: Compressed air

Why choose HYFILTRATE?

1. High quality filtration materials: We strictly select high-quality materials such as glass fiber and stainless steel metal mesh to ensure filtration efficiency and long service life.

2. Compliant with industry standards: The product meets user needs, is compatible with most hydraulic systems, and has excellent quality.

3. Customizable: We can provide customized solutions based on your various models and brands, as well as replacement requirements under different working conditions.

4. Cost effectiveness: The factory directly supplies, crosses intermediaries, and reduces procurement costs while maintaining excellent quality.
