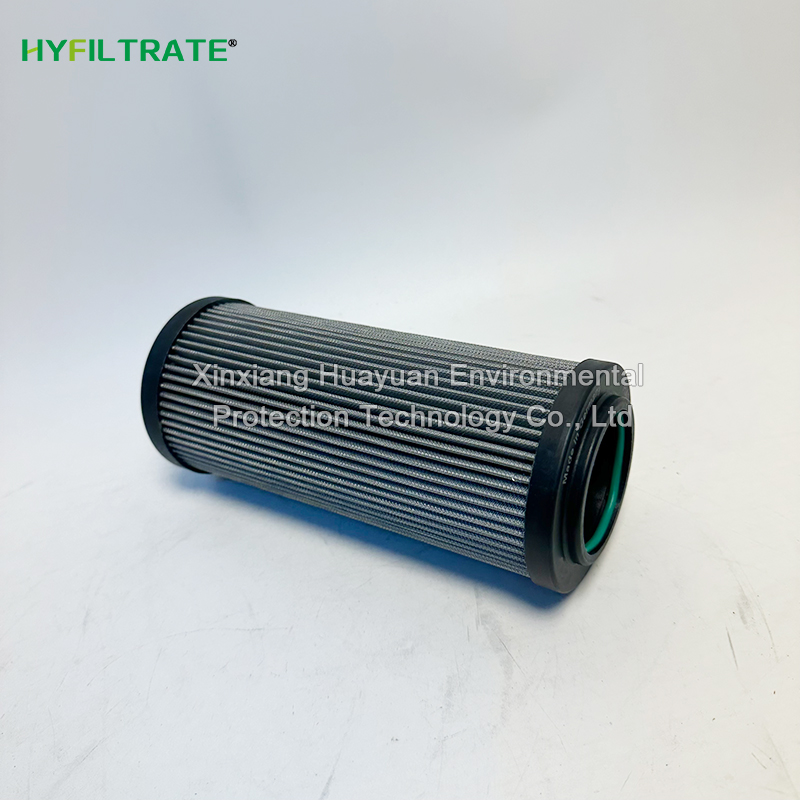

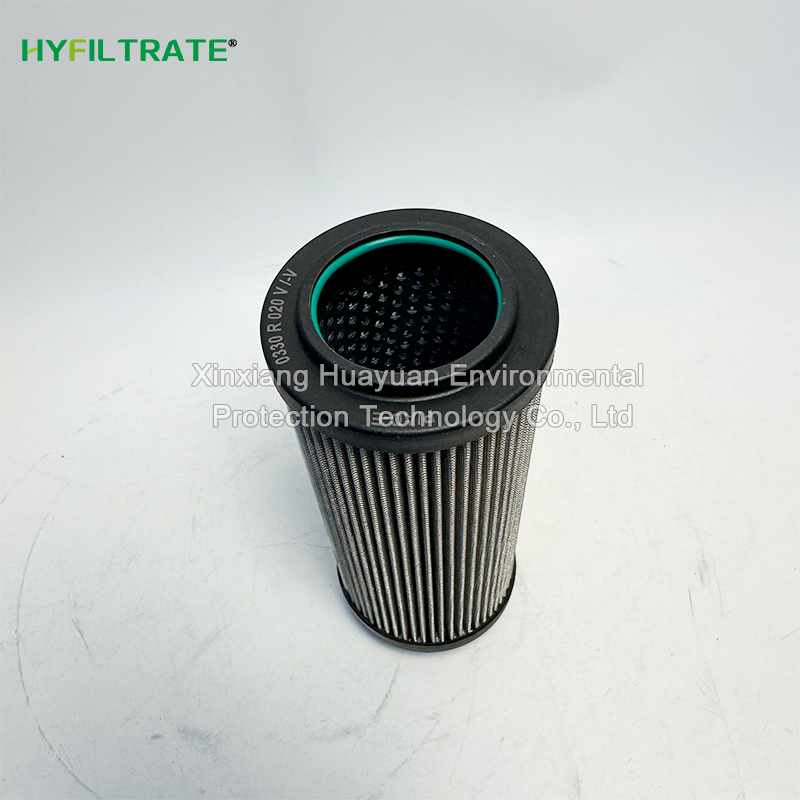

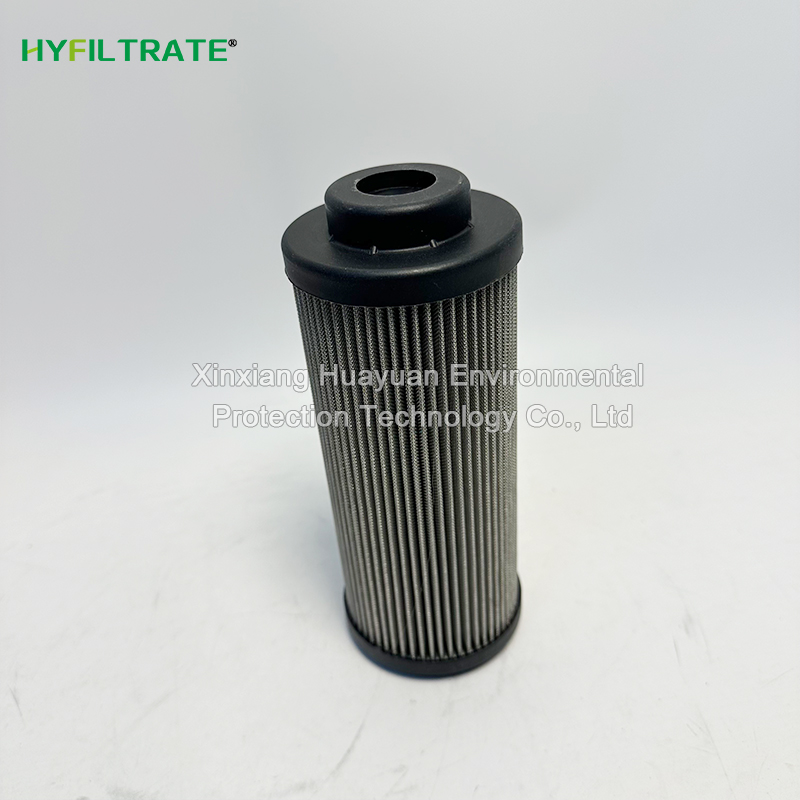

Replacing the HYDAC 0330 R 020 V/- V P/AD-E hydraulic oil filter element with a
Model: 0330 R 020 V/- V P/AD-E
Filtration Accuracy: 20 μm
Brand: HYFILTRATE
Material: metal fiber
Outer diameter: 95 mm
High: 195 mm
Replacing the HYDAC 0330 R 020 V/- V P/AD-E Hydraulic oil filter element with a disposable fiberglass filter element, it is suitable for high dust and heavy load conditions such as mining and steel rolling. With clean water and ultrasonic cleaning, the flux can be restored without the need to frequently purchase new filters, saving downtime and replacement time. Its three-dimensional porous structure provides a large storage space for pollutants, with a capacity more than twice that of ordinary plain metal mesh filters, and significantly longer replacement/cleaning cycles.
Replace HYDAC 0330 R 020 V/- V P/AD-E hydraulic oil filter element
Filter material: 316L stainless steel alloy sintered fiber
Accuracy: 20 μ m absolute accuracy, β ₂₀ ≥ 100
Features: Anti static integrated metal material, no static adsorption blocking holes; Can be cleaned with ultrasonic waves and reused 8-12 times
Operating temperature: -25 ℃~+110 ℃
Suitable media: mineral anti-wear hydraulic oil, gear lubricating oil, water ethylene glycol refractory oil, water containing emulsion cutting fluid
Not compatible: Phosphate ester EH fireproof and fire-resistant oil
