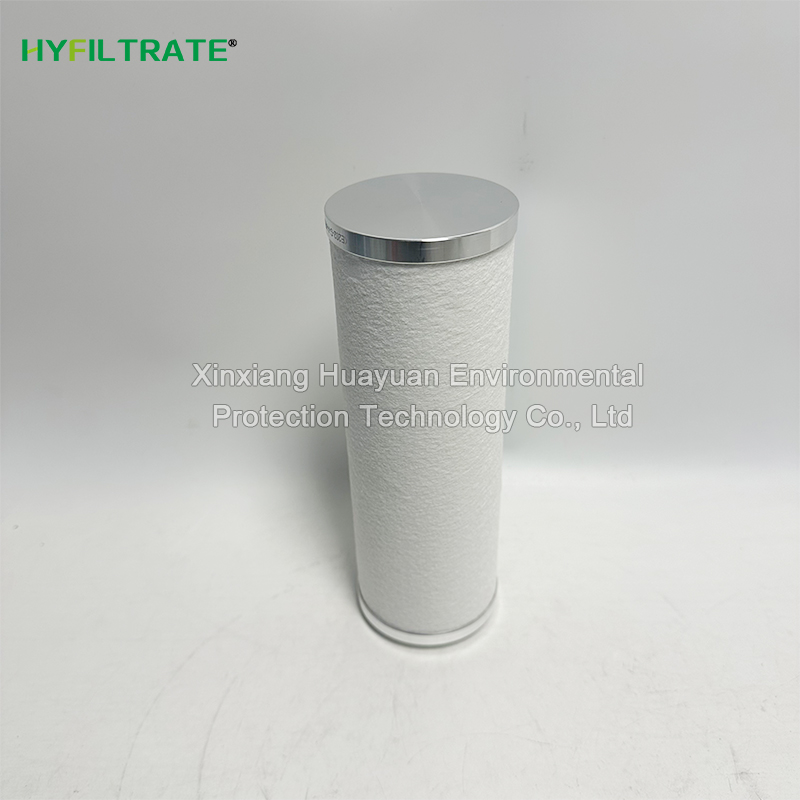

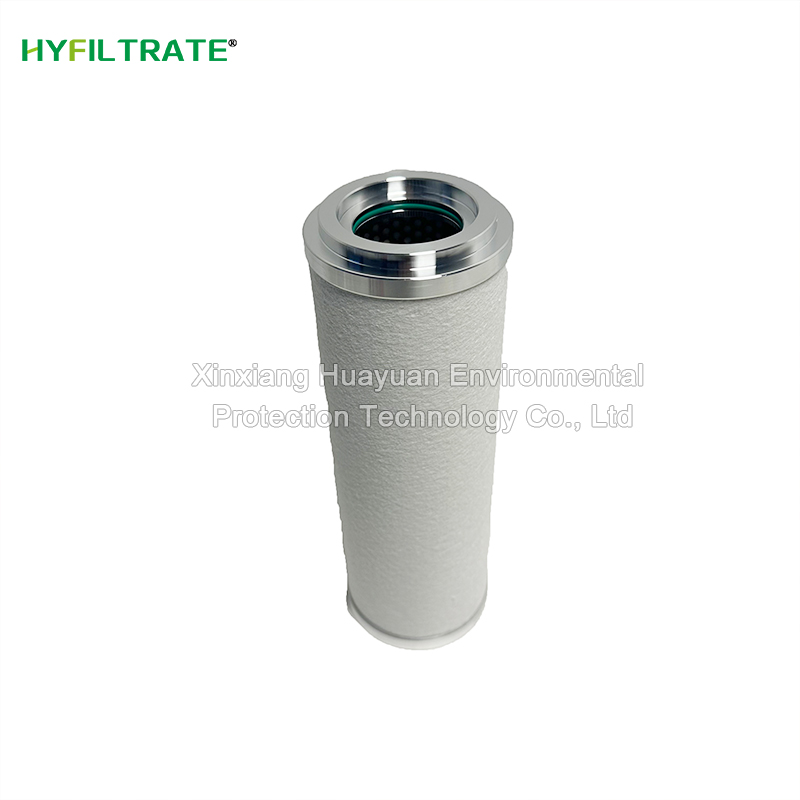

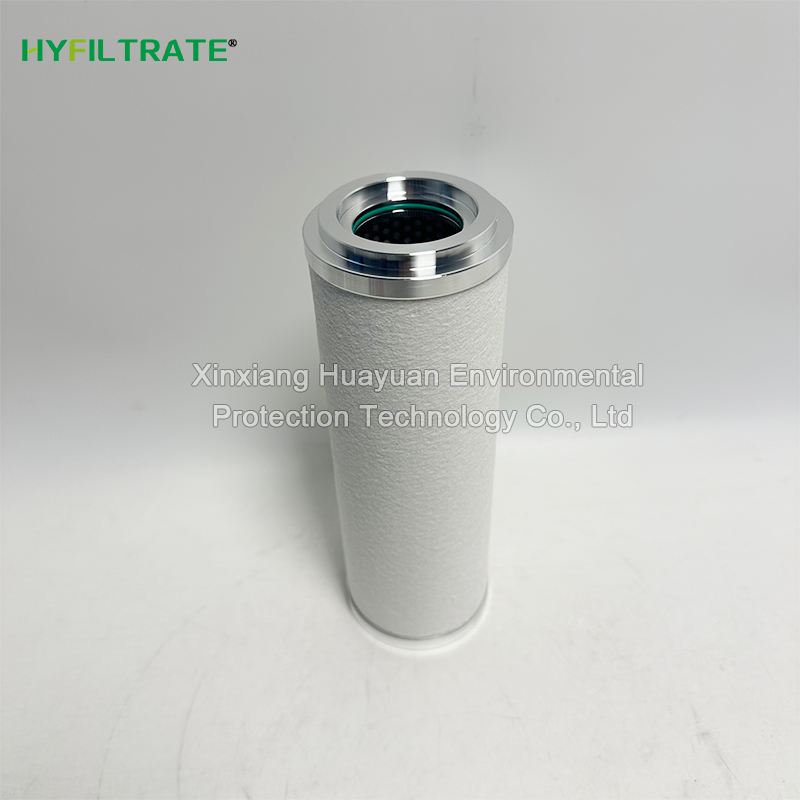

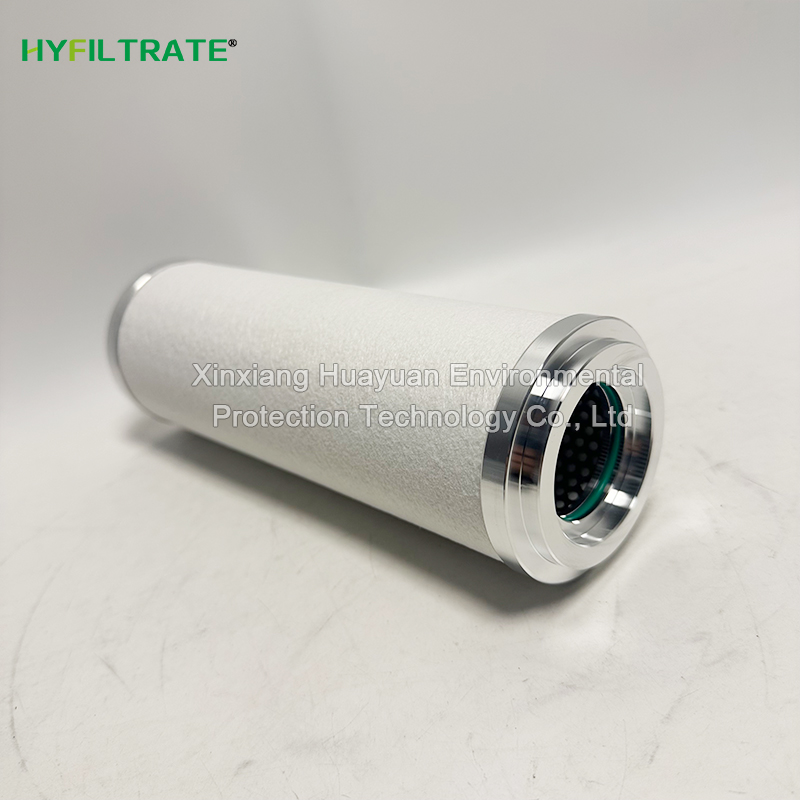

XE202-G-A-NEB-XP air compressor filter element

Description:

XE202-G-A-NEB-XP air compressor filter element belongs to the fine agglomeration

Model: XE202-G-A-NEB-XP

Brand: Hyfiltrate

Filtration accuracy: 0.1μm

Size: standard size

Share With:

XE202-G-A-NEB-XP Air Compressor Filter element belongs to the fine agglomeration filter element, using multi-layer composite borosilicate ultrafine glass fiber mixed filter material, deep gradient filtration structure, solid particle retention efficiency ≥ 99.99%, can intercept rust, dust, and pipeline micro impurities; At the same time, it aggregates oil mist and liquid water droplets in compressed air, and the residual oil mist content in the exhaust is ≤ 0.1mg/m ³. Its 0.1 μ m filtration accuracy far exceeds that of ordinary 1 μ m filters, meeting the high cleanliness gas standards for spraying, electronics, medicine, food and other industries.

Technical data

XE202-G-A-NEB-XP air compressor filter element

1.0.1 μ m fine grading filtration

2. Dry wet two-stage separation design

3. Double layer mesh protection filter material

4. Tolerant working temperature -20~120 ℃, standard pressure of 16 bar
