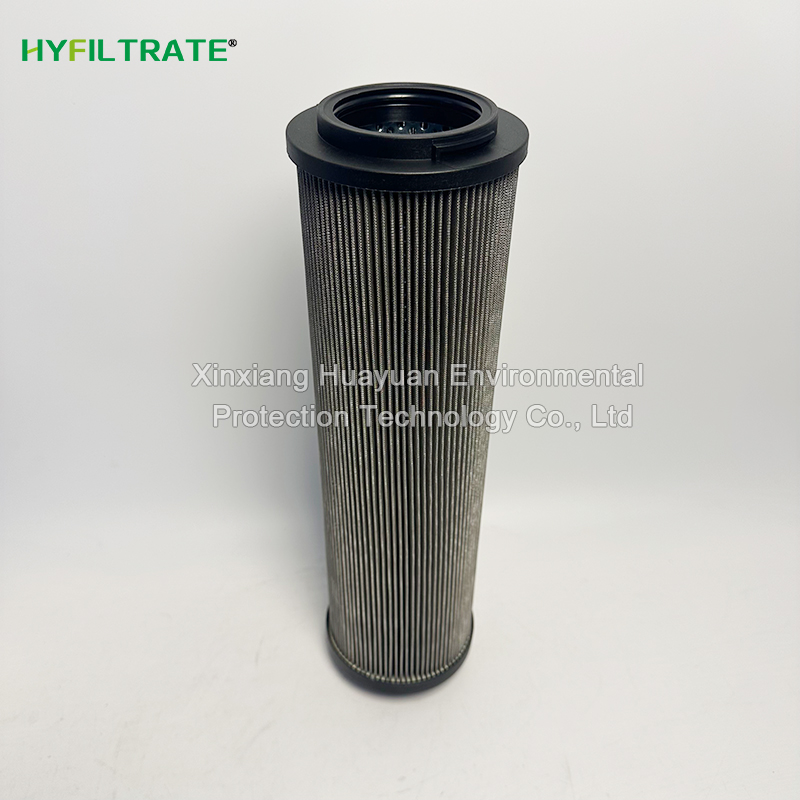

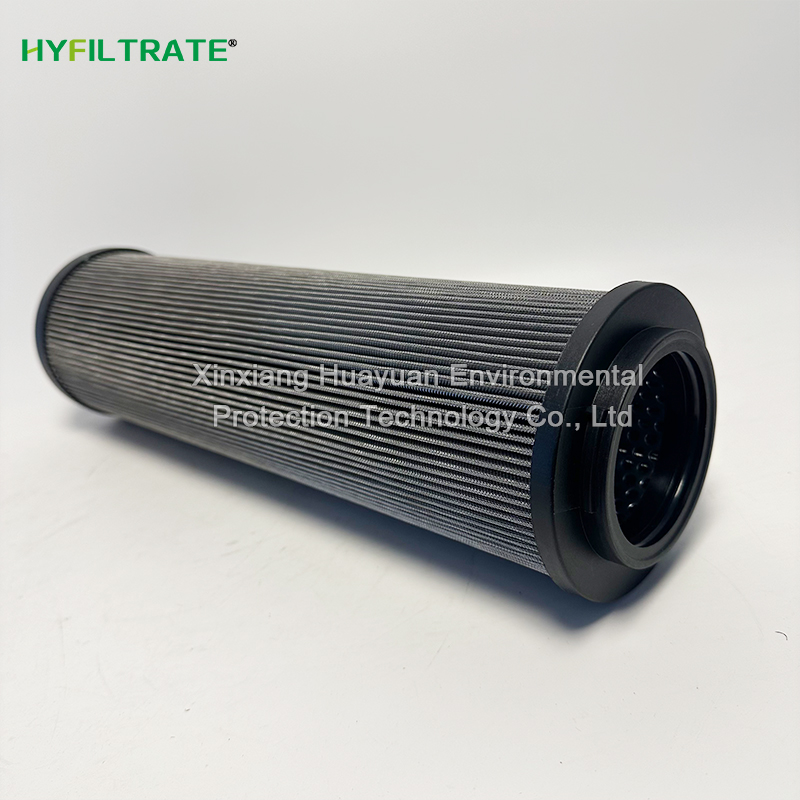

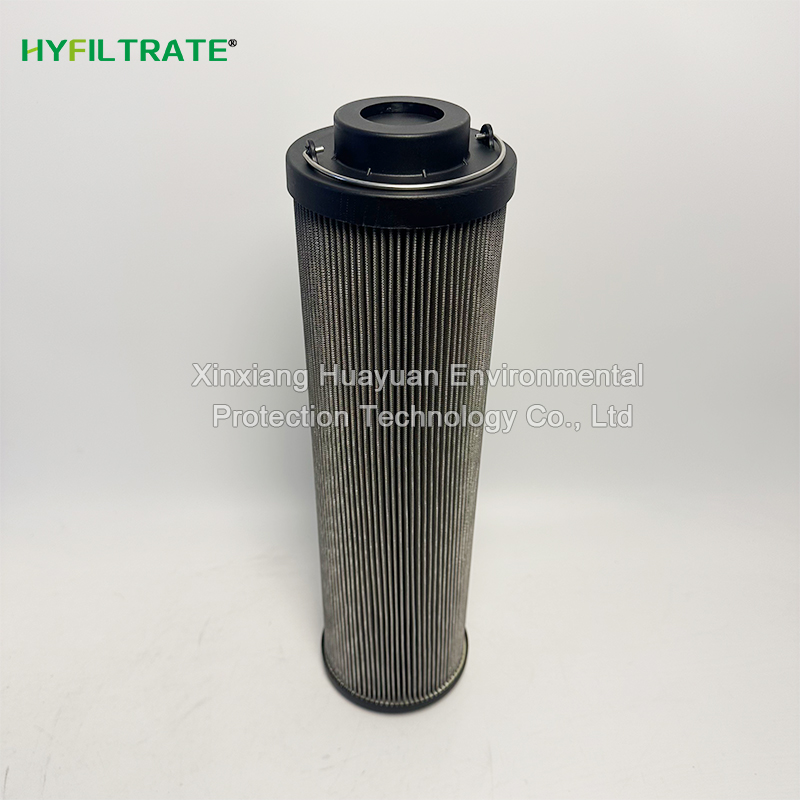

Replace EATON 337033 02.0850R.100G.30.HC.S.P hydraulic oil filter element

Description:: The Replace EATON 337033 02.0850R.100G.30.HC.S.P hydraulic oil filter element is

Share With:

The Replace EATON 337033 02.0850R.100G.30.HC.S.P Hydraulic oil filter element is primarily used for pre-coarse filtration in hydraulic systems, effectively intercepting large particles of rust, welding slag, and hard abrasive debris, thereby protecting downstream Precision filter elements and hydraulic components. The Metal Filter screen boasts high mechanical strength and can withstand high-flow impacts, eliminating the risk of fiber shedding that could contaminate the system. The built-in bypass valve prevents system blockage caused by filter element clogging, ensuring uninterrupted flow. The reinforced frame structure is durable and the standard installation dimensions facilitate convenient disassembly and assembly. It is suitable for harsh working conditions in the main return oil pipeline, reducing the load on downstream precision filter elements, extending the maintenance cycle of the entire filtration system, and minimizing equipment downtime due to malfunctions.

Applicable places:

Power industry: large-scale thin oil lubrication station, return oil filtration of wind power main hydraulic circuit

Metallurgical industry: high-flow hydraulic circulation system for rolling mills and continuous casting units

General industry: large hydraulic stations, die-casting equipment, complete production lines

Construction machinery: shield machines, large mining machines, hydraulic systems for lifting equipment

Other scenarios: ship hydraulic system, large lubricating oil station, hydraulic test bench

Packaging and Transportation:

Packaging: Internally packaged in plastic bags, externally packaged in cardboard boxes

Transportation: pallets or wooden boxes

Specific requirements can be based on the customer's specific needs

Related models:

02.0850R.100G.30.HC.S.P，01.NL250.25G.30.S1.P，01.NL40.10VG.HR.E.P，02.0165R.20VG.30.HC.S.P，02.1300R.25G.30.HC.S.P

01.E120.25VG.16.S.P，01.NL100.10VG.30.S1.P，01.NL630.10VG.HR.E.P，300176，300785

315394，324294，01.NR160.10VG.30.S.P，01.E210.10VG.16.S.P，02.0500R.6VG.30.HC.S.P

Technical data

Replace EATON 337033 02.0850R.100G.30.HC.S.P hydraulic oil filter element

Filter material: multi-layer stainless steel woven filter mesh; flow direction: from outside to inside

Filtration accuracy: 100μm; burst pressure resistance: 30bar

Seal: NBR (Nitrile Butadiene Rubber), optional V=FPM (Fluororubber)

Operating temperature: -20℃～+110℃

Support structure: Galvanized steel HC reinforced punching frame

Compatible medium: mineral hydraulic oil, lubricating oil, water-glycol medium
