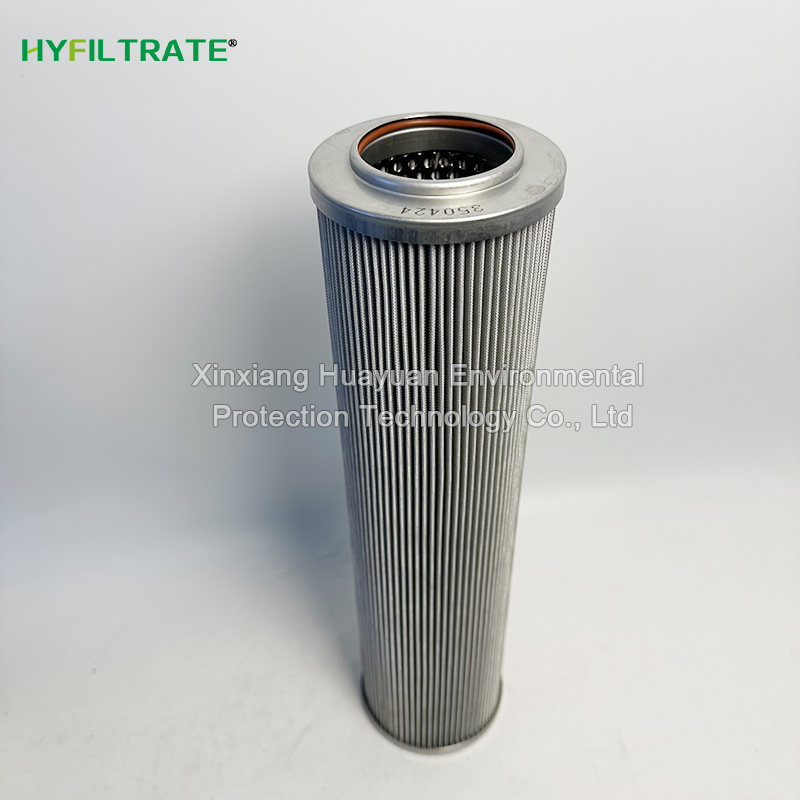

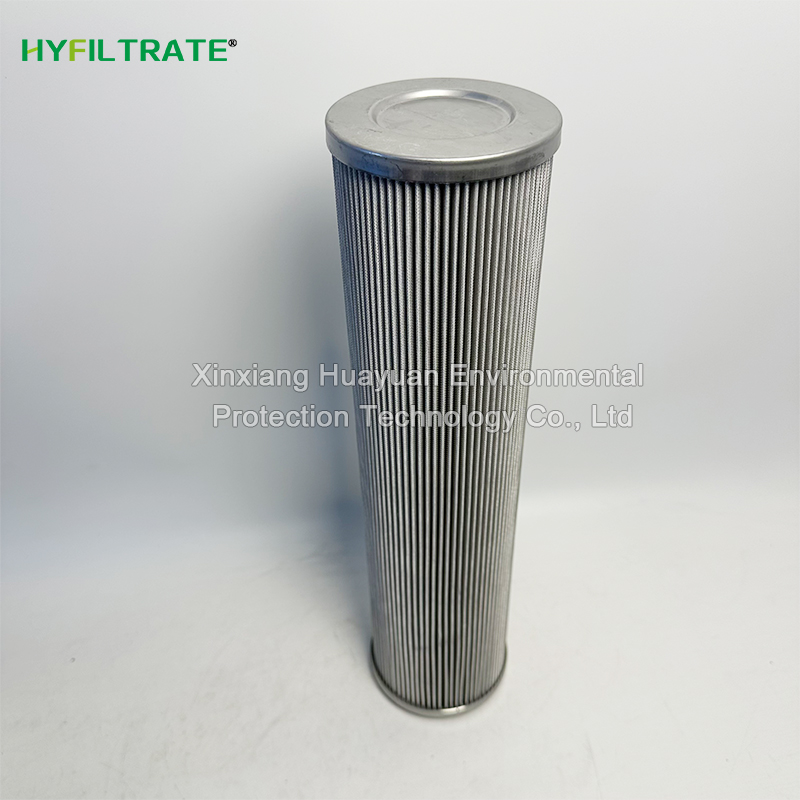

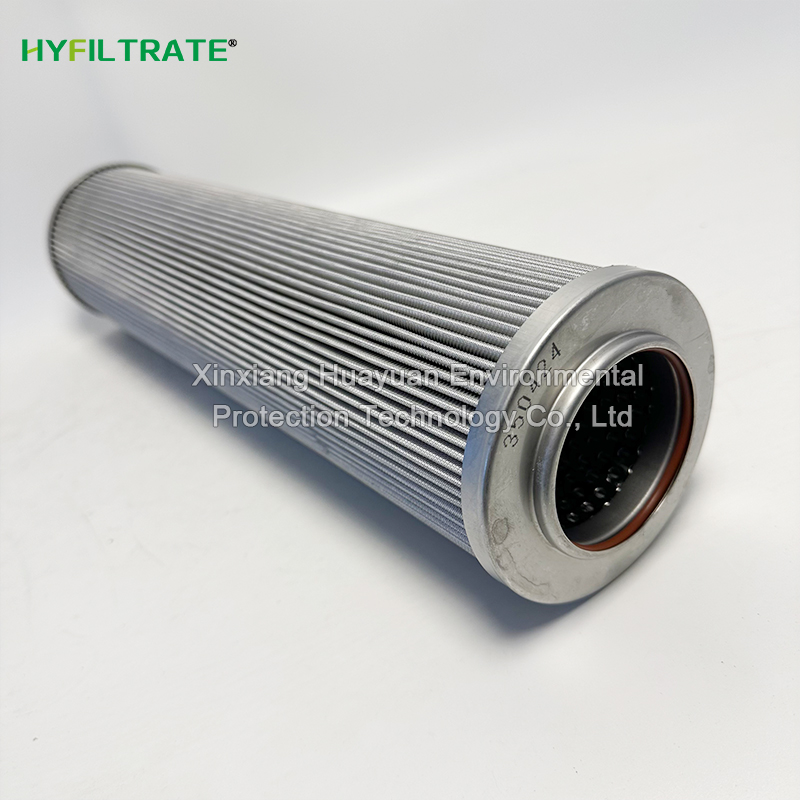

Replace EATON 350424 01.67284.10 API.30.E.V hydraulic oil filter element

Replacing EATON 350424 01.67284.10 API. 30. E.V Hydraulic oil filter element can achieve step-by-step interception of impurities, with sufficient dirt holding capacity, stable maintenance of medium cleanliness level, and effective protection of precision components such as servo valves and plunger pumps. High density wrinkles fully expand the filtration area and reduce the pressure difference during regular operation. The double-layer metal casing enhances its anti collapse ability and adapts to frequent pressure fluctuations. Fluororubber seals are temperature resistant and resistant to medium aging, reducing the risk of leakage. The overall structure is compact, easy to disassemble and maintain, suitable for long-term uninterrupted continuous operation of industrial equipment.

Applicable locations:

Power unit: turbine hydraulic actuator, lubricating oil purification unit

Metallurgical production line: high-pressure oil filtration device for plate rolling and extrusion forming

Heavy engineering machinery: shield tunneling equipment, main control hydraulic circuit for large mining vehicles

Petrochemical equipment: Hydraulic driven actuator medium precision filtration unit

Other scenarios include high flow hydraulic power stations and oil circuit protection for heavy lifting equipment in ports

Instructions for replacing filter element:

1) Same shell universal filter element (universal external dimensions): 01.67284.06API.30.E.V, 01.67284.16API.30.E.V

Tip: There are differences in filtering accuracy and they cannot be interchanged arbitrarily.

2) Alternative model: HX330 × 10BN/HC, with consistent external dimensions, structural parameters, and filtration indicators, available for selection reference.

3) Important reminder for replacement selection: The outer diameter, total length, and positioning inner hole size must match; Fiberglass filter material cannot be washed and regenerated; Continuously monitor changes in pressure differential and promptly identify internal sources of pollution in the system.

Packaging and Transportation:

Packaging: Internally packaged in plastic bags, externally packaged in cardboard boxes

Transportation: pallets or wooden boxes

Specific requirements can be based on the customer's specific needs

Related models:

01.67284.10API.30.E.V、01.67284.06API.30.E.V、01.67284.16API.30.E.V、01.67284.25API.30.E.V、01.67284.03API.30.E.V

01.67284.10VG.30.E.V、01.67284.10API.30.S.V、01.67284.10API.16.E.V、01.67284.10API.30.E.P、01.67284.10API.30.E.VA

01.45360.10API.30.E.V、01.89452.10API.30.E.V、01.67284.10API.30.B.V、01.67284.10API.30.E.S、01.67284.10API.30.E.A
