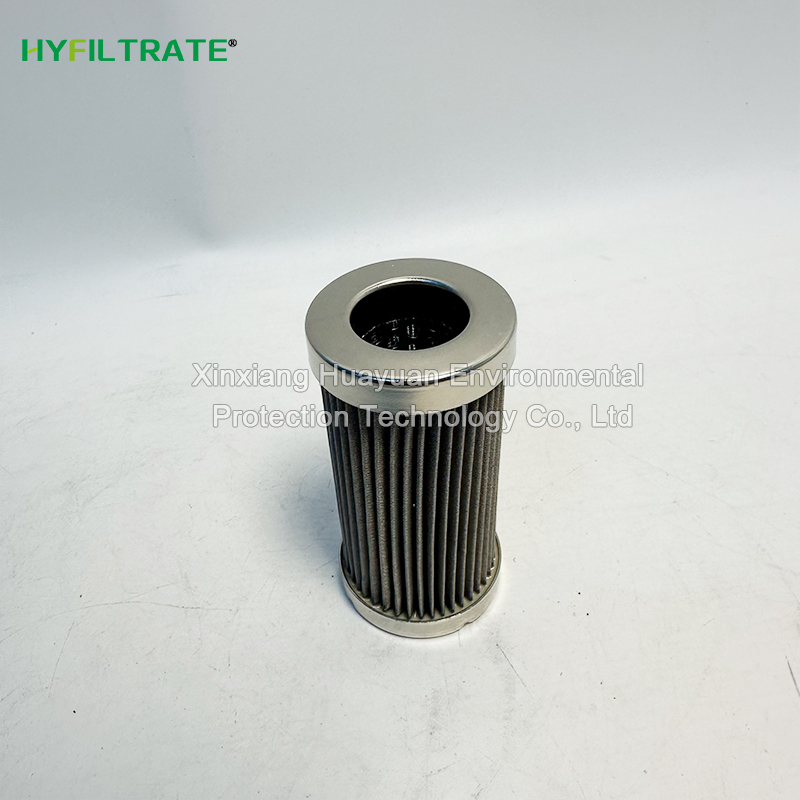

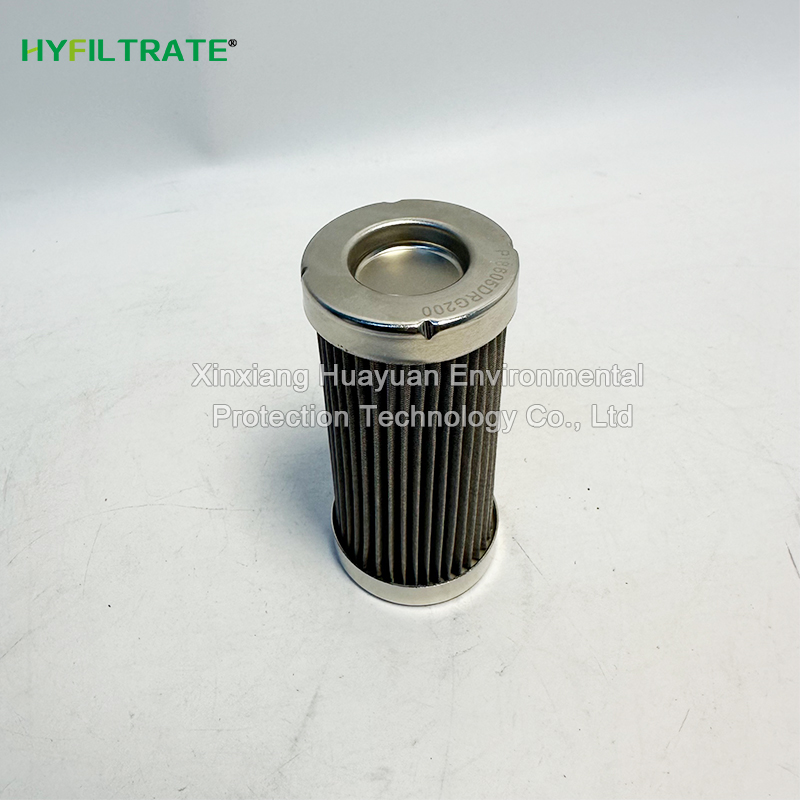

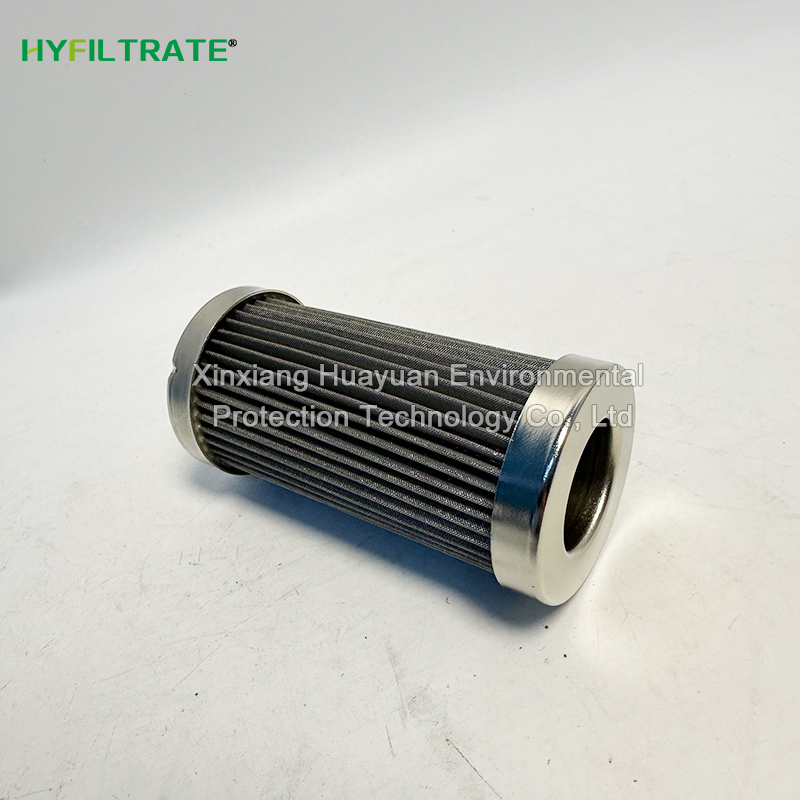

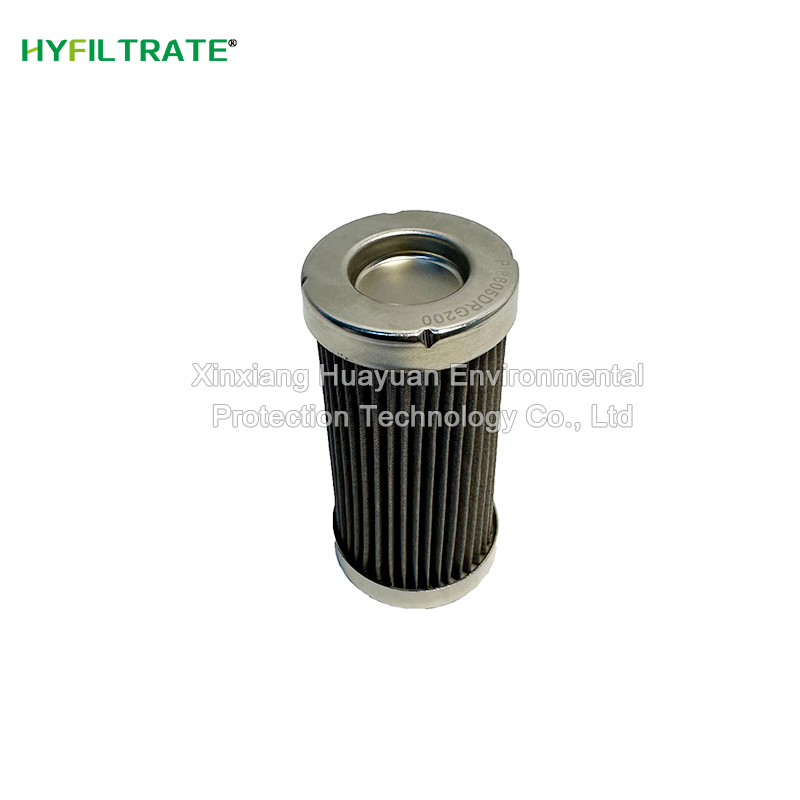

Replace the MAHLE PI8605 DRG 200 hydraulic oil filter element with a disposable
Model: PI8605 DRG 200
Filtration Accuracy: 200μm
Brand: Hyfiltrate
Material: stainless steel
Outer diameter: 47mm
High: 93mm
Replace the MAHLE PI8605 DRG 200 Hydraulic oil filter element with a disposable fiberglass filter element, which has impurities in metallurgy and engineering machinery under multiple working conditions. After cleaning, it can be reused, significantly reducing the frequency of filter element procurement. Adopting a fully metal braided structure, the filter screen will not puncture or tear under the accumulation of a large amount of hard impurities and flow pulse impact, preventing large impurities from penetrating and contaminating the oil tank and downstream precision components.
Replace MAHLE PI8605 DRG 200 hydraulic oil filter element
Filter material: multi-layer 304 stainless steel twill woven mesh
Accuracy: 200 μ m coarse filtration, β ₂₀₀ ≥ 3
Applicable working conditions: flushing of new equipment pipelines, pre protection of multi impurity hydraulic stations
Reuse method: Multiple cycles after high-pressure water washing and ultrasonic cleaning
Working temperature: -10 ℃~+120 ℃
Standard NBR nitrile seal: mineral hydraulic oil, gear oil, water containing emulsion cutting fluid
Optional FKM fluorine glue upgrade: compatible with water ethylene glycol and phosphate ester fire and fuel resistance
