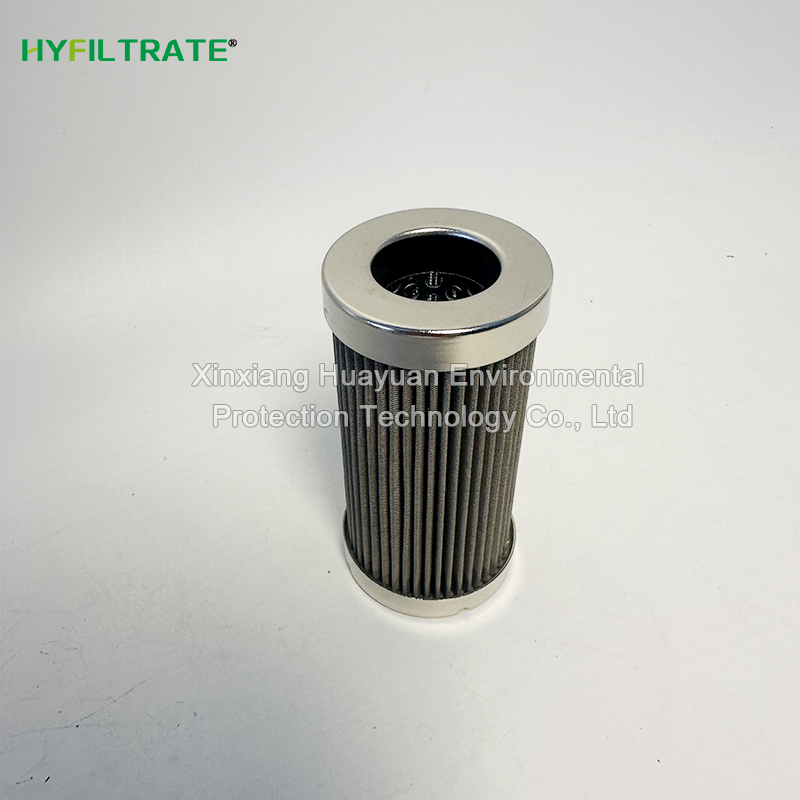

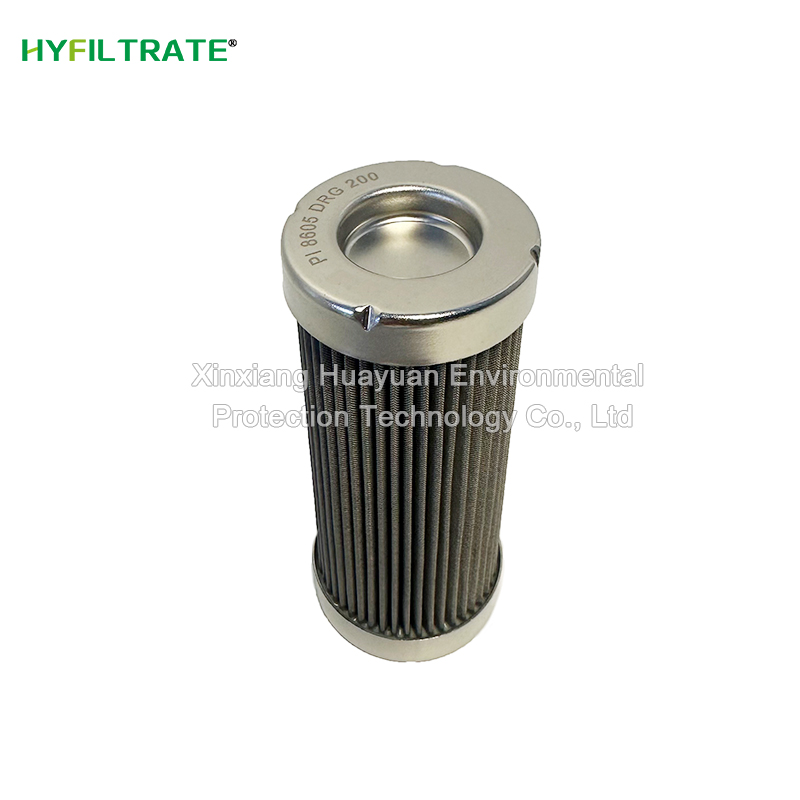

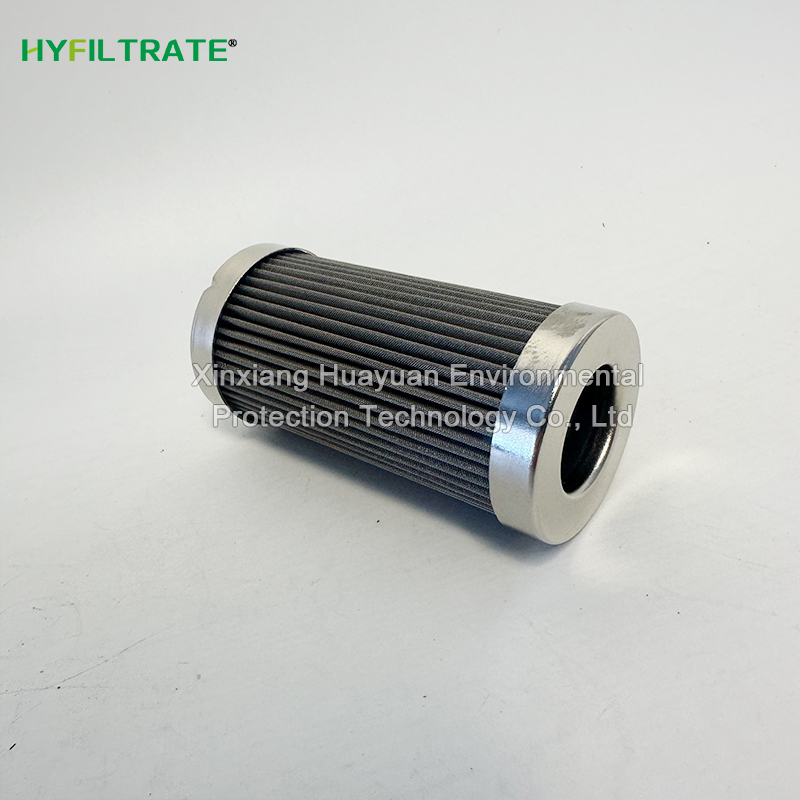

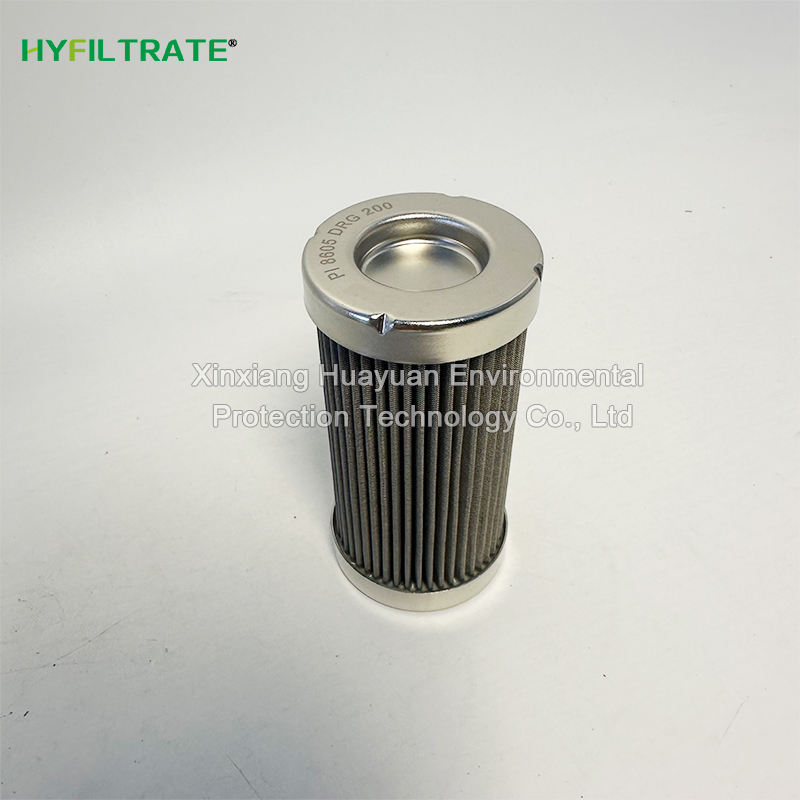

Replace MAHLE PI 8605 DRG 200 7.058.172.3 hydraulic oil filter element-Huayuan Environmental Protection Technology Co., Ltd.

Replacing the MAHLE PI 8605 DRG 200 7.058.172.3 Hydraulic oil filter element, it can intercept rust, welding slag, large metal debris, and gum clumps. It is installed at the oil suction port and the front end of the pipeline for coarse protection, greatly reducing the pollution load of the 10 μ m and 20 μ m fiberglass Precision filter elements at the back end, extending the service life of the entire set of precision filter elements, and reducing the overall cost of spare parts consumption. And it is different from disposable fiberglass filter cartridges. After blockage, ultrasonic cleaning and compressed air blowing can restore the filtering performance, which can be reused multiple times. The lubrication station of the power plant, the hydraulic system of the steel plant, and the engineering machinery do not need frequent procurement and replacement for long-term operation, and the operation and maintenance economy is extremely strong; There is no problem of glass fiber detachment, which will not cause secondary pollution of the oil circuit and scratch the pump body and valve flow channel.

Applicable locations:

Energy sector: lubricating oil station for wind turbines, pre coarse filtration for hydraulic systems

Metallurgical industry: lubrication circuit oil suction protection unit for steel rolling and continuous casting equipment

Engineering equipment: hydraulic oil suction pipeline filtration device for engineering machinery and mining equipment

Intelligent manufacturing: small and medium-sized hydraulic power stations, machine tool oil suction filters

Other scenarios include mobile hydraulic equipment, cooling and lubrication systems, and crude purification devices

Instructions for replacing filter element:

1) Same shell universal filter element (completely universal in external dimensions): PI 8605 DRG 100, PI 8605 MIC 25, PI 8605 SMX10

Tip: Different types of filter materials and precision may vary and cannot be interchanged arbitrarily.

2) Alternative model: ML8605W200, with consistent external dimensions, structural parameters, and filtering indicators, available for selection reference.

3) Important reminder for replacement selection: The outer diameter, total length, and positioning inner hole size must match; Metal Filters are suitable for pre coarse filtration; Regularly purge the dirt and investigate the source of system pollution when the pressure difference suddenly rises.

Packaging and Transportation:

Packaging: Internally packaged in plastic bags, externally packaged in cardboard boxes

Transportation: pallets or wooden boxes

Specific requirements can be based on the customer's specific needs

Related models:

PI 8605 DRG 200、PI 8605 DRG100、PI 8608 DRG200、PI 8608 DRG100、PI 8615 DRG200

PI 8615 DRG100、PI 8605 MIC25、PI 8605 SMX10、PI 8608 MIC25、PI 8608 SMX25

PI 8705 DRG200、PI 8708 DRG200、PI 8715 DRG100、PI 8605 DRG60、PI 8615 DRG60

Technical data

Replace MAHLE PI 8605 DRG 200 7.058.172.3 hydraulic oil filter element

Filter material: Stainless steel woven metal mesh filter material (washable, reusable), surface filtration structure

Filtration accuracy: Absolute filtration accuracy of 200 μ m (large aperture coarse filtration)

Temperature range: -10 ℃ to+120 ℃

Suitable media: mineral hydraulic oil, lubricating oil, water ethylene glycol, emulsion, high viscosity oil, cutting coolant; The standard seal is NBR nitrile rubber, and the fluorine rubber seal can be replaced for high temperature/special oil products

Characteristic differentiation: Metal filters belong to surface filtration, with precise filtering boundaries; Compared to fiberglass filter cartridges, the amount of dirt they can hold is relatively small, but they can be repeatedly cleaned and regenerated
