Replace MP STR0704SG2M250 hydraulic oil filter element-Huayuan Environmental Protection Technology Co., Ltd.

Replace MP STR0704SG2M250 Hydraulic oil filter element as the first line of protection at the front end of the hydraulic system, relying on stainless steel filter screen to efficiently intercept coarse impurities such as rust, welding slag, and large particle dust, and protect the hydraulic pump impeller from impact wear from the source. Equipped with a pressure differential bypass structure, it automatically opens the oil circuit when the filter element is clogged, ensuring continuous and stable oil supply. The filter structure is resistant to pressure and oil, not easily damaged or deformed, has excellent dirt holding capacity, and the pressure difference changes smoothly. Paired with a Precision filter element, it can form a complete graded filtration system. Standard thread installation and disassembly are simple, suitable for high and low temperature working conditions, effectively reducing oil pump failure rates, and cutting equipment maintenance and accessory replacement costs.

Applicable locations:

Industrial equipment: CNC machine tools, injection molding machines, die-casting equipment, various fixed hydraulic stations, gear lubrication systems

Engineering machinery: excavators, loaders, cranes, road machinery, mining equipment, oil tank suction circuits

Metallurgical power: hydraulic system of steel rolling equipment, fan gearbox, lubricating oil circuit for thermal power matching

General scenarios: ship hydraulic mechanisms, chemical hydraulic devices, mobile hydraulic power units

Related models:

STR0701SG2M250、STR0702SG2M250、STR0703SG2M250、STR0704SG1M60、STR0704BG2M90、STR0704SG2M250、STR1001SG1M90P01、STR1002SG1M90P01、STR1003SG1M250P01、STR1004SG1M90、STR1404BG1M90、STR1405SG2M60、STR1405SG2M90、STR1406SG2M60、STR2005SG2M250、STR1004BG1M90、HP0371A25AN、HP0371A06NA、HP0372M10AN、HP0372A25AV、

Technical data

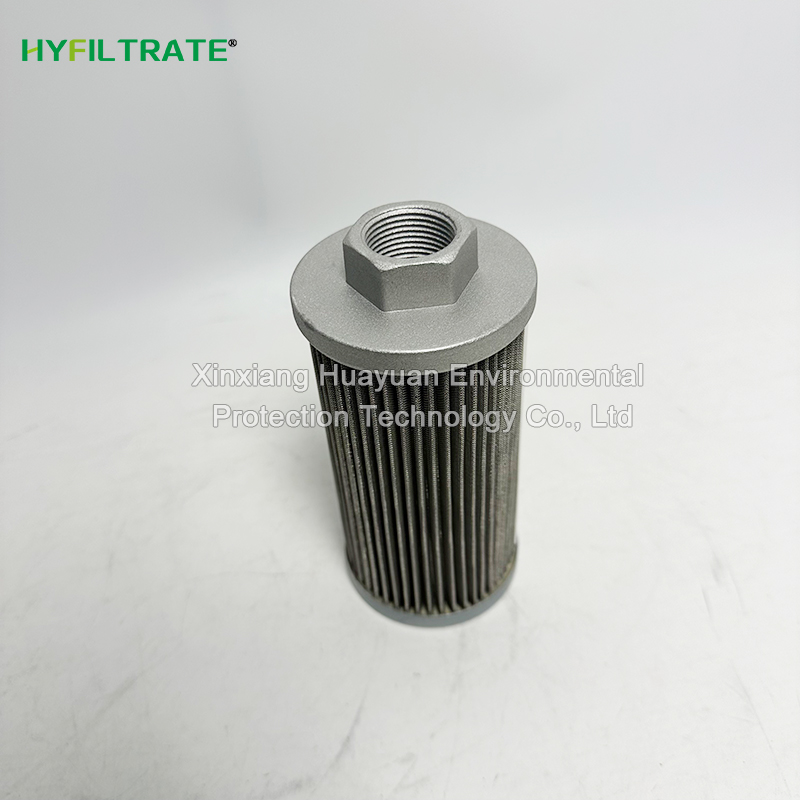

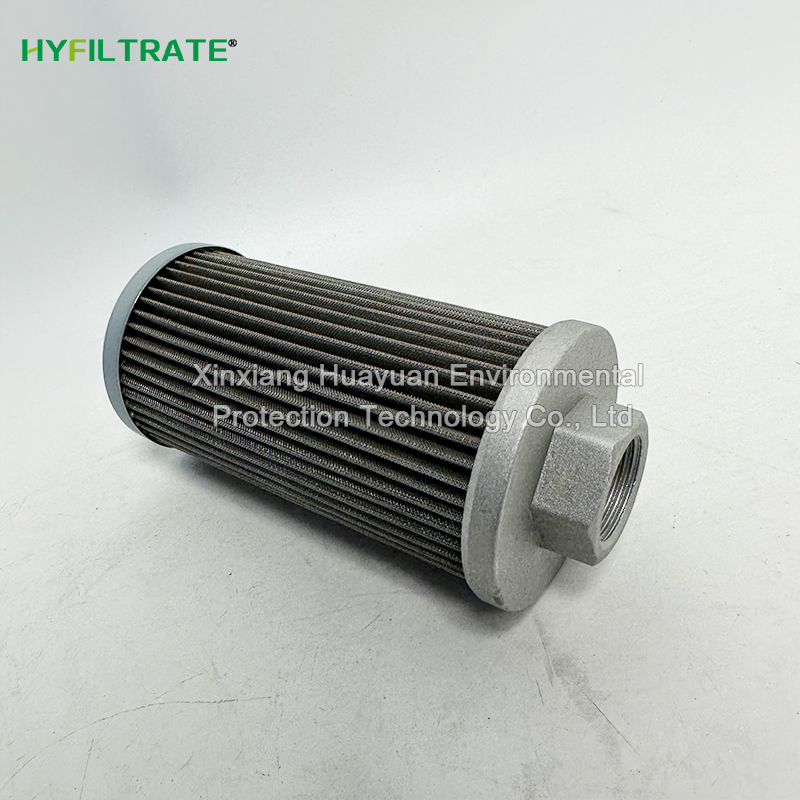

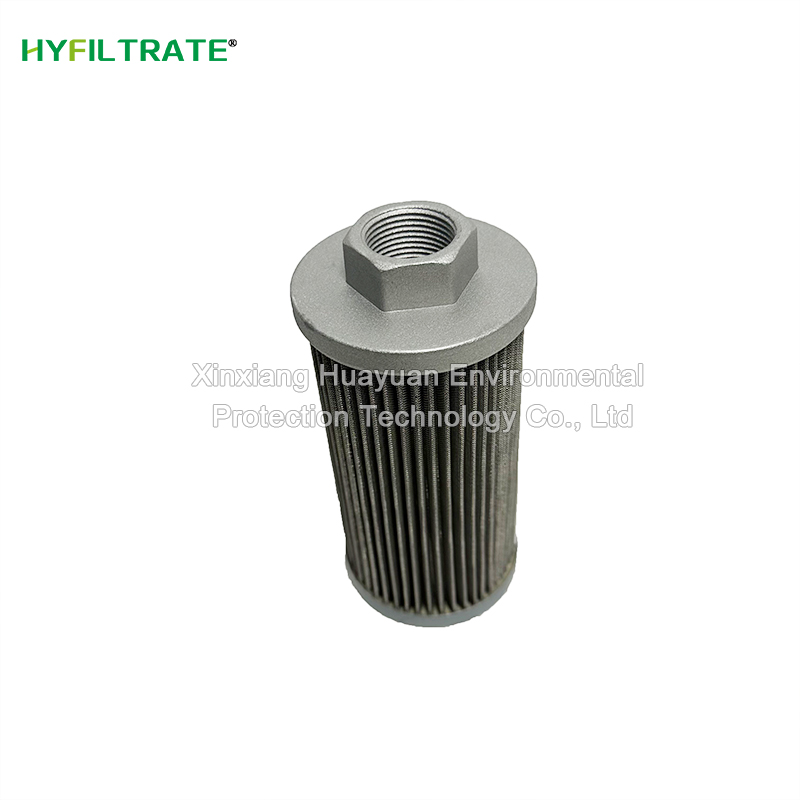

Replace MP STR0704SG2M250 hydraulic oil filter element

Filter material: 304 stainless steel plain weave metal mesh

Nominal accuracy: 250 μ m, capable of intercepting large solid impurities such as rust, welding slag, and rubber debris

Reuse feature: Can be cleaned and reused with clean water and ultrasonic waves, without the risk of fiber shedding

Core function: Protect the oil pump from wear caused by large particles and impurities, and prevent blade and gear strains

Ultimate tolerance pressure difference: about 0.8 bar (designed for suction negative pressure conditions, cannot withstand high pressure)

Working temperature range: -25 ℃~+110 ℃

Standard sealing: NBR nitrile rubber, compatible with mineral hydraulic oil, gear oil, water ethylene glycol flame retardant fuel

Why choose HYFILTRATE?

1. High quality filtration materials: We strictly select high-quality materials such as glass fiber and stainless steel metal mesh to ensure filtration efficiency and long service life.

2. Compliant with industry standards: The product meets user needs, is compatible with most hydraulic systems, and has excellent quality.

3. Customizable: We can provide customized solutions based on your various models and brands, as well as replacement requirements under different working conditions.

4. Cost effectiveness: The factory directly supplies, crosses intermediaries, and reduces procurement costs while maintaining excellent quality.
