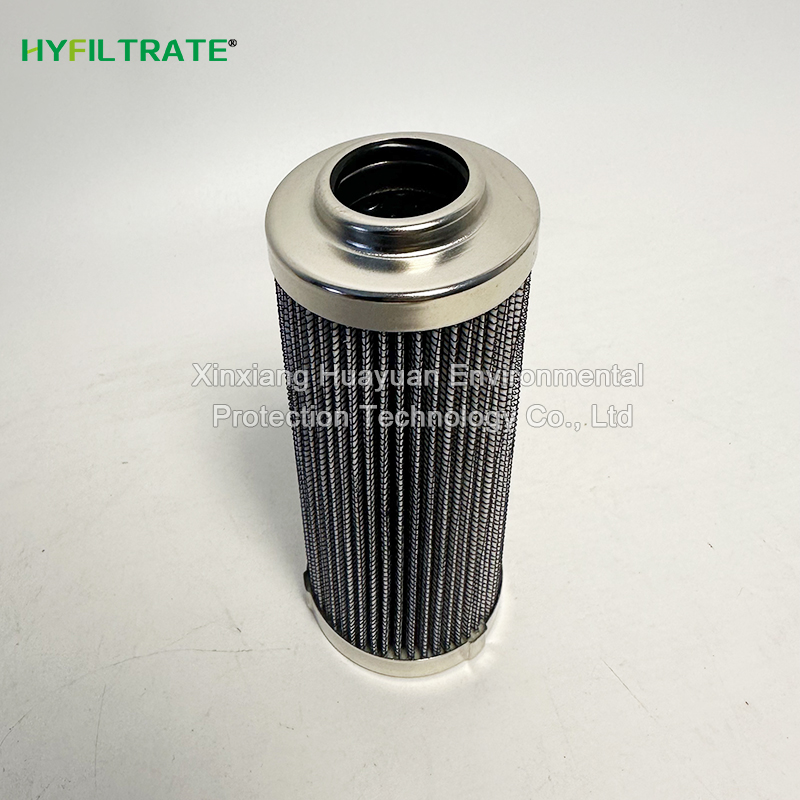

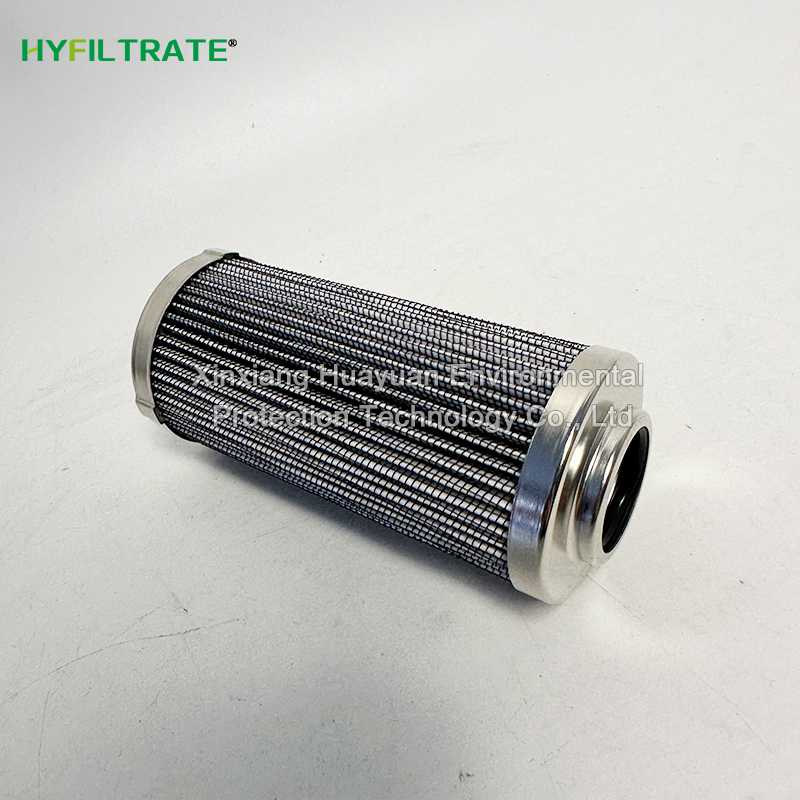

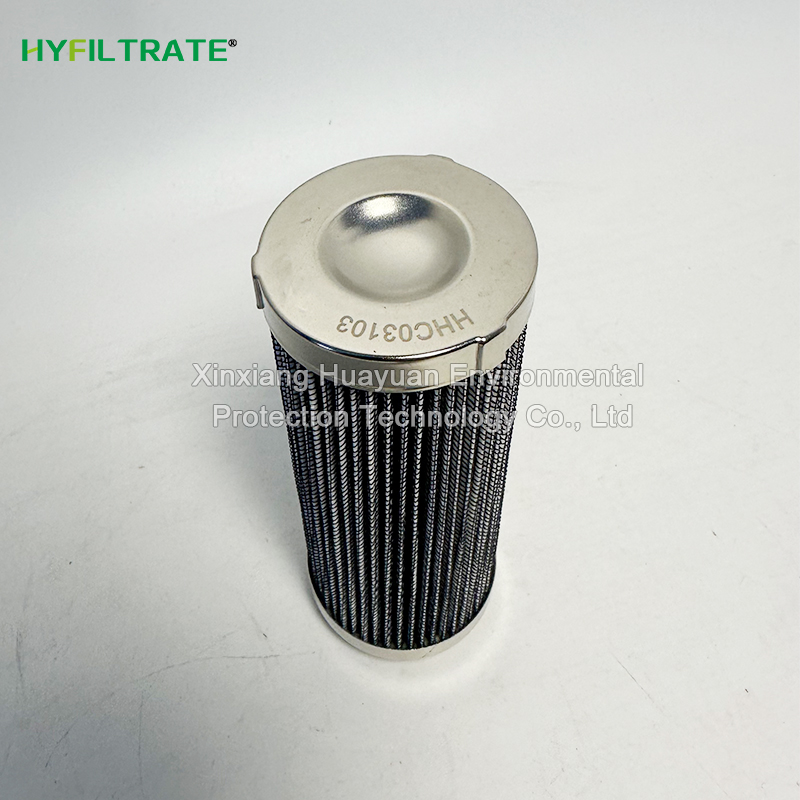

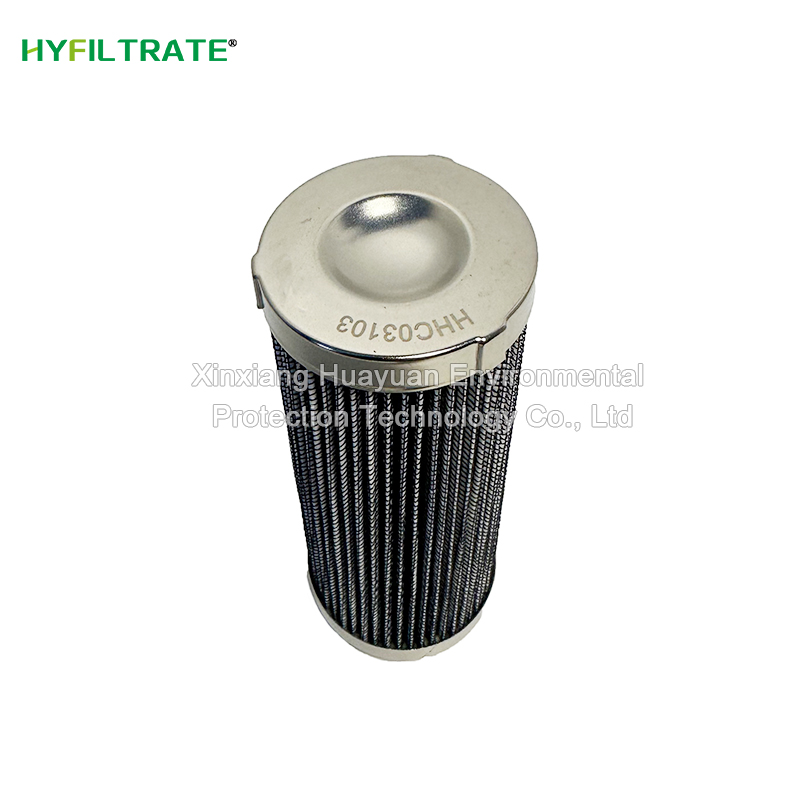

Replace IKRON HHC03103 hydraulic oil filter element

Description:: Replacing the IKRON HHC03103 hydraulic oil filter element, it can be matched wit

Share With:

Replacing the IKRON HHC03103 Hydraulic oil filter element, it can be matched with closed plunger pumps, high-pressure circuits of injection molding machines, and hydraulic main oil circuits of construction machinery. Under frequent pressure pulse impacts, the structure is stable, protecting expensive pumps and servo valves from the source. In the scenario of severe pressure fluctuations in mines and injection molding machines, the filter element will not be damaged after blockage, avoiding impurities from flowing back and contaminating the entire hydraulic oil tank.

Applicable locations:

Precision machine tools: machining centers, injection molding machines, die-casting equipment, high-pressure hydraulic circuits

Construction machinery: small hydraulic power units, on-board cranes, road machinery

Energy industry: wind power hydraulic system, small power plant lubrication oil circuit

General industry: hydraulic test bench, metallurgical auxiliary equipment, small hydraulic systems for ships

Related models:

HHC03103、HHC03207、HHC03401、HHC03402、HHC03423、HHC03430、

HHC03542、HHC03547、HHC03554、HHC03565、HHC03574、HHC01200、

HHC01211、HHC01215、HHC01198、HHC01225、HHC01227、HHC01907、

Technical data

Replace IKRON HHC03103 hydraulic oil filter element

Filter material: multi-layer gradient borosilicate micro glass fiber

Accuracy: 10 μ m, β ₁₀ ≥ 200, particle interception efficiency 99.5%

Optional anti-static fiberglass version to eliminate static electricity adsorption and sludge blockage

Working temperature: -20 ℃~+110 ℃

Adaptation: Mineral hydraulic oil, gear oil, water ethylene glycol, phosphate ester EH fire-resistant oil, high-temperature synthetic oil

Sealing advantages: Fluororubber is resistant to oil, high temperature, and chemical corrosion, and its versatility far exceeds that of NBR nitrile

Why choose HYFILTRATE?

1. High quality filtration materials: We strictly select high-quality materials such as glass fiber and stainless steel metal mesh to ensure filtration efficiency and long service life.

2. Compliant with industry standards: The product meets user needs, is compatible with most hydraulic systems, and has excellent quality.

3. Customizable: We can provide customized solutions based on your various models and brands, as well as replacement requirements under different working conditions.

4. Cost effectiveness: The factory directly supplies, crosses intermediaries, and reduces procurement costs while maintaining excellent quality.
