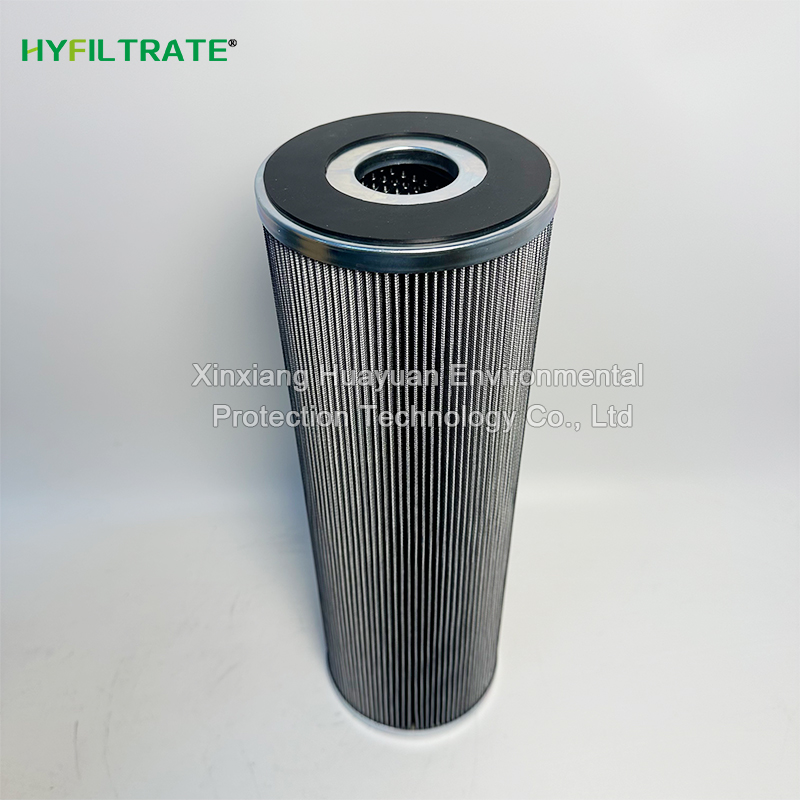

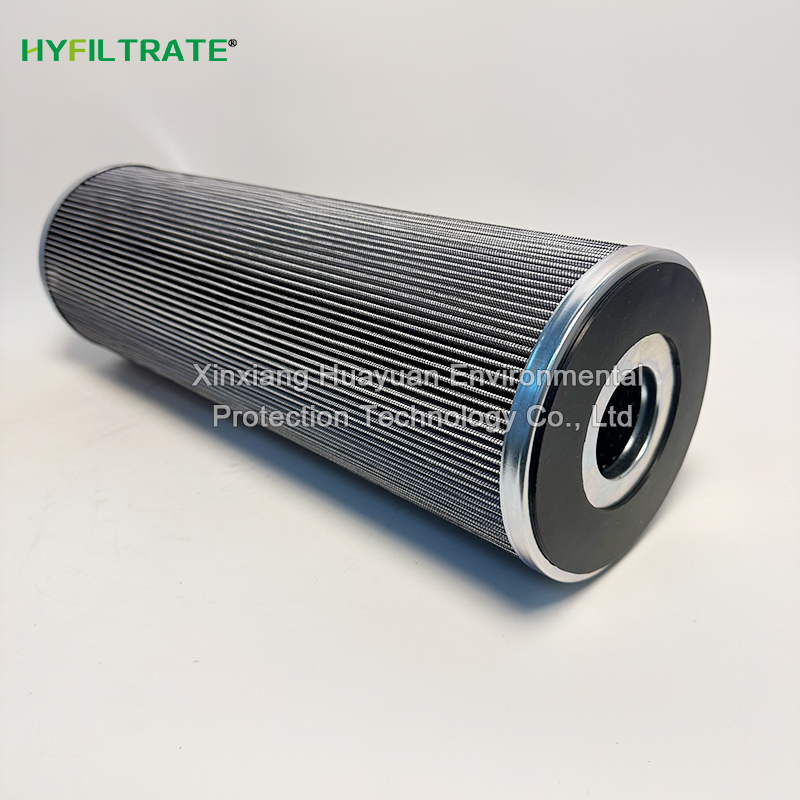

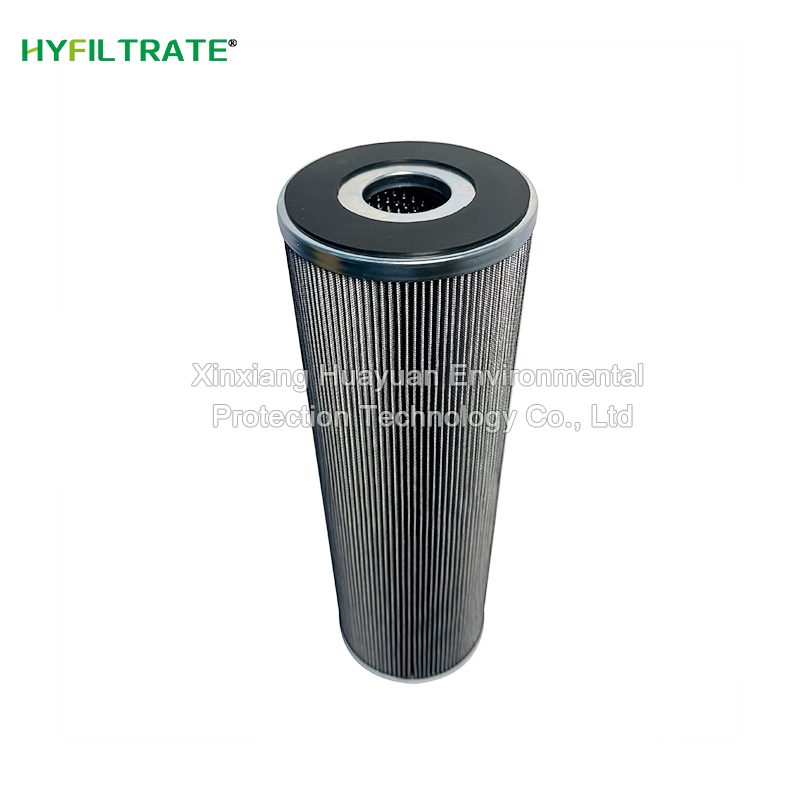

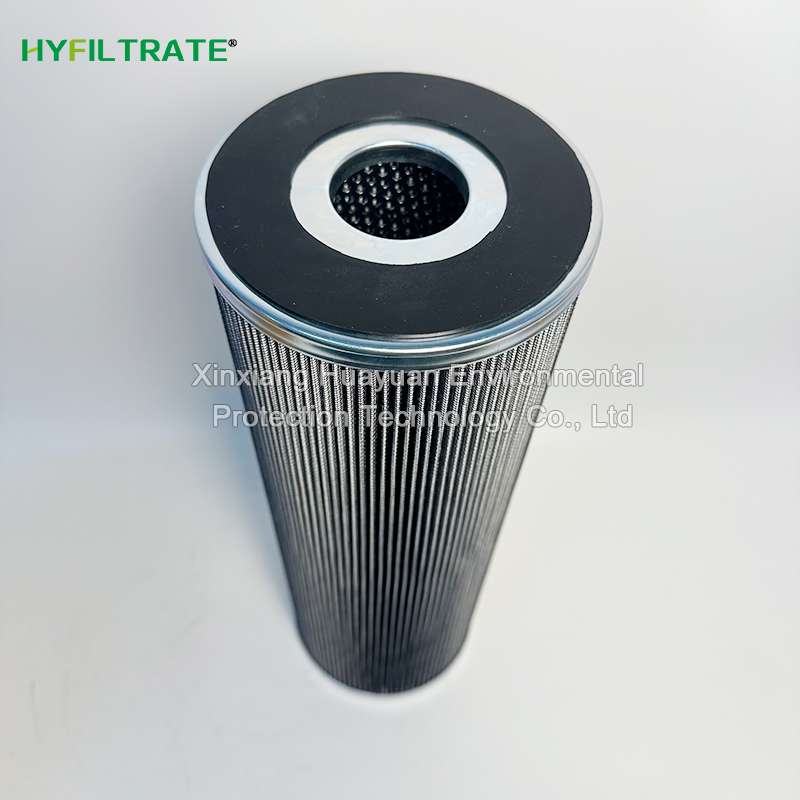

The filter element 150x50x455 hydraulic oil filter element can continuously capt
Model: 150x50x455
Filtration Accuracy: 60μm
Brand: HYFILTRATE
Material: stainless steel
Outer diameter: 150mm
High: 455mm
The filter element 150x50x455 Hydraulic oil filter element can continuously capture fine metal debris, oxide particles, and colloidal pollutants in the oil, maintain fluid cleanliness indicators for a long time, and effectively protect various precision valve groups and power components. The double-layer metal casing strengthens the overall structural rigidity, ensuring that the filter layer is not easily twisted or damaged under alternating pressure conditions. The regular cylindrical structure facilitates the layout inside the equipment, with sufficient circulation area and excellent pollutant holding capacity. It can effectively extend the maintenance cycle, reduce frequent shutdown and maintenance frequency, and ensure the continuous and stable operation of the entire fluid system.
Power industry: lubricating oil station for steam turbine units, hydraulic control system, oil purification device
Metallurgical industry: Circulating oil filtration system for complete sets of hot rolling and continuous casting equipment
In the field of construction machinery: main hydraulic circulation circuit for large shield tunneling and mining equipment
General Industry: Large scale centralized hydraulic workstations, heavy-duty die-casting production line oil circuits
Other scenarios include ship power lubrication systems, various large-scale fluid purification test devices
Packaging: Internally packaged in plastic bags, externally packaged in cardboard boxes
Transportation: pallets or wooden boxes
Specific requirements can be based on the customer's specific needs
150x50x455、150x50x400、150x50x500、140x45x420、140x45x480
160x55x455、160x55x520、130x40x380、130x40x440、120x35x360
120x35x410、170x60x460、170x60x530、180x65x470、180x65x540
Filter Element 150x50x455 hydraulic oil filter element
Filter material selection: multi-layer borosilicate glass fiber medium; Optional stainless steel woven filter version, fluid is filtered from the outside to the inside
Conventional filtration accuracy: 6 μ m/10 μ m (optional upon request), β≥200）
Maximum withstand pressure difference: 21 bar, capable of withstanding deformation risks caused by system pressure fluctuations
Sealing configuration: standard NBR nitrile rubber sealing ring, can be replaced with fluororubber as needed to adapt to special media
Stable operating temperature range: -25 ℃ to+110 ℃
Supporting structure: Double layered perforated metal casing inside and outside, fully stable folding filter layer in all directions
Adaptation form: Vertical cylindrical filter with built-in installation structure
Compatible fluids: mineral hydraulic oil, turbine oil, circulating lubricating oil, water ethylene glycol medium
1. High quality filtration materials: We strictly select high-quality materials such as glass fiber and stainless steel metal mesh to ensure filtration efficiency and long service life.
2. Compliant with industry standards: The product meets user needs, is compatible with most hydraulic systems, and has excellent quality.
3. Customizable: We can provide customized solutions based on your various models and brands, as well as replacement requirements under different working conditions.
4. Cost effectiveness: The factory directly supplies, crosses intermediaries, and reduces procurement costs while maintaining excellent quality.
