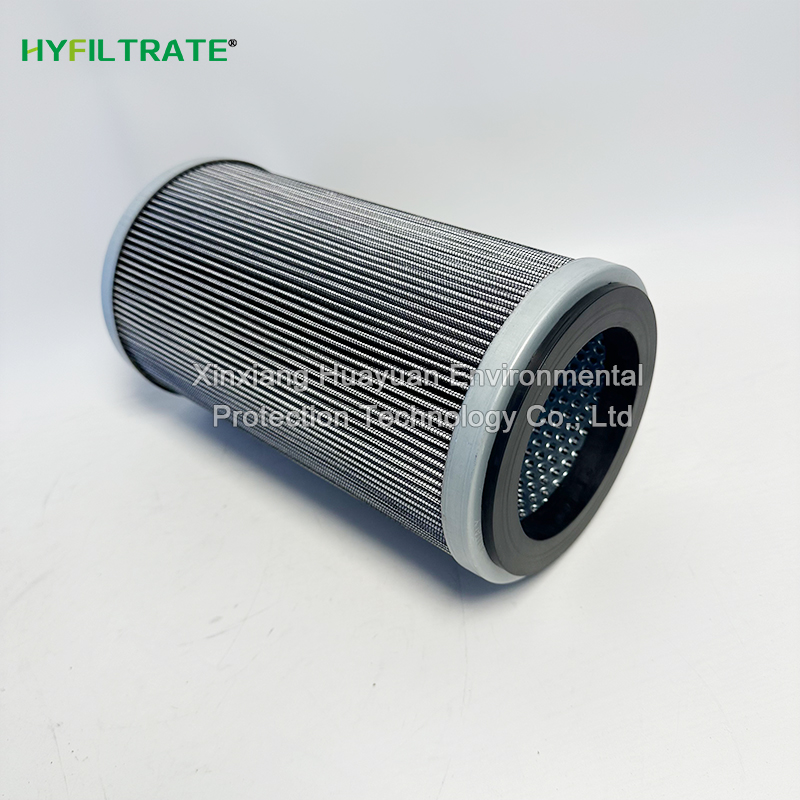

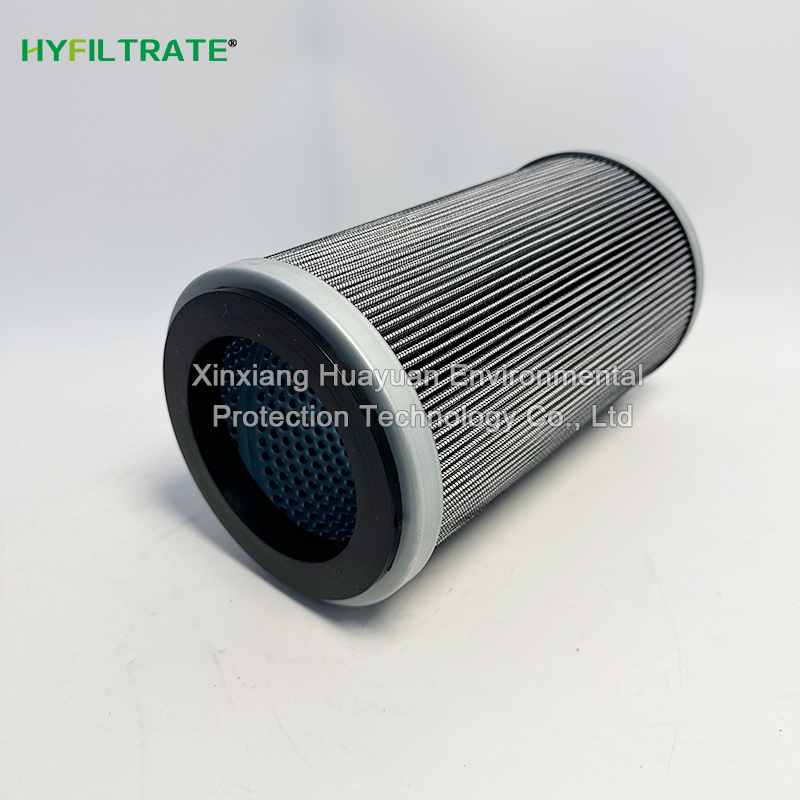

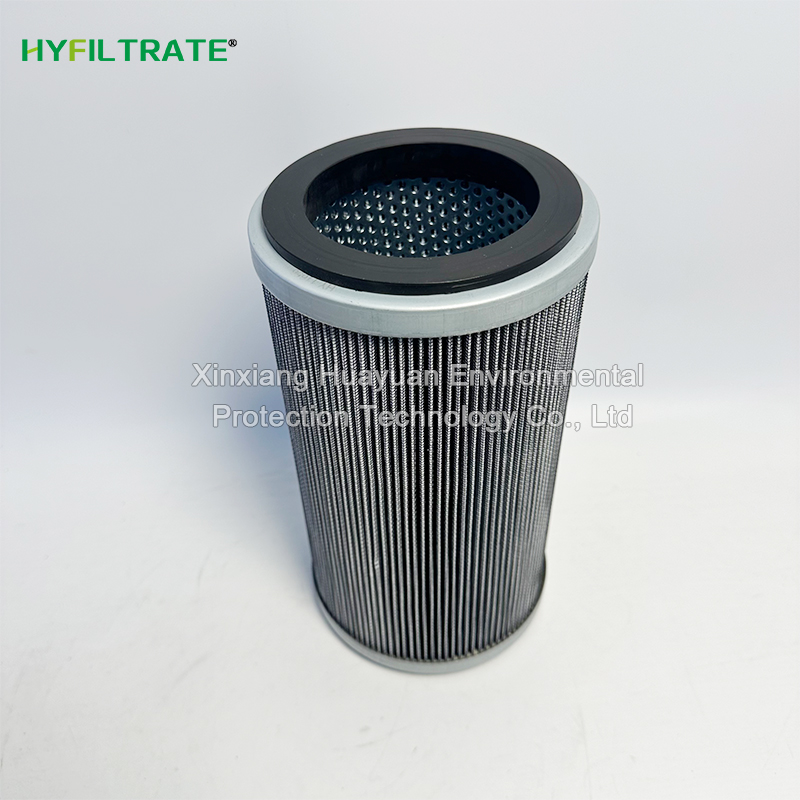

Replace SF-Filter HY11656 hydraulic oil filter element

Description:: Replace SF Filter HY11656 hydraulic oil filter element relies on gradient filter

Share With:

Replace SF Filter HY11656 Hydraulic oil filter element relies on gradient filter layer structure to capture fine impurities in the oil, continuously maintain the cleanliness level of the hydraulic system, and effectively reduce the risk of valve core wear and sticking. The double-layer steel support cylinder enhances the stability of the filter material and operates stably even in the face of frequent pressure fluctuations. Widely adaptable to metallurgical production lines, wind power hydraulic units, shield tunneling main control oil circuits, and precision machine tool equipment, stably extending the service life of various precision hydraulic components.

Applicable locations:

Power industry: hydraulic drive system for wind turbines, lubricating oil purification device

Metallurgical industry: High pressure hydraulic servo circuit in steel rolling and continuous casting equipment

Engineering machinery: shield tunneling equipment, mining machinery, large lifting equipment oil circuit

General industry: medium-sized hydraulic workstations, die-casting equipment, precision CNC machining equipment

Other scenarios include ship hydraulic systems and various industrial hydraulic test benches

Packaging and Transportation:

Packaging: Internally packaged in plastic bags, externally packaged in cardboard boxes

Transportation: pallets or wooden boxes

Specific requirements can be based on the customer's specific needs

Related models:

HY11656、HY11654、HY11658、HY11660、HY11662

HY11862、HY11864、HY11104、HY11860、HY11858

HY11870、HY11846、HY11848、HY11852、HY11854

Technical data

Replace SF Filter HY11656 hydraulic oil filter element

Filter material: multi-layer gradient pore size borosilicate glass fiber medium; Fluid permeation filtration from outside to inside

Filtering accuracy: 10 μ m, β value ≥ 200

Ultimate tolerance pressure difference: up to 21 bar, the filter cartridge is not easily wrinkled or damaged

Sealing material: NBR nitrile rubber, with basic fluid compatibility characteristics

Applicable working range: ambient temperature -25 ℃~+110 ℃

Supporting structure: double-layer perforated galvanized steel cylinder frame, buffering instantaneous pressure impact

Compatible media: mineral hydraulic oil, circulating lubricating oil, water ethylene glycol flame retardant medium

Why choose HYFILTRATE?

1. High quality filtration materials: We strictly select high-quality materials such as glass fiber and stainless steel metal mesh to ensure filtration efficiency and long service life.

2. Compliant with industry standards: The product meets user needs, is compatible with most hydraulic systems, and has excellent quality.

3. Customizable: We can provide customized solutions based on your various models and brands, as well as replacement requirements under different working conditions.

4. Cost effectiveness: The factory directly supplies, crosses intermediaries, and reduces procurement costs while maintaining excellent quality.
