Replace SF-Filter HY11864 hydraulic oil filter element

Description:: The Replace SF Filter HY11864 hydraulic oil filter element adopts a gradient den

Share With:

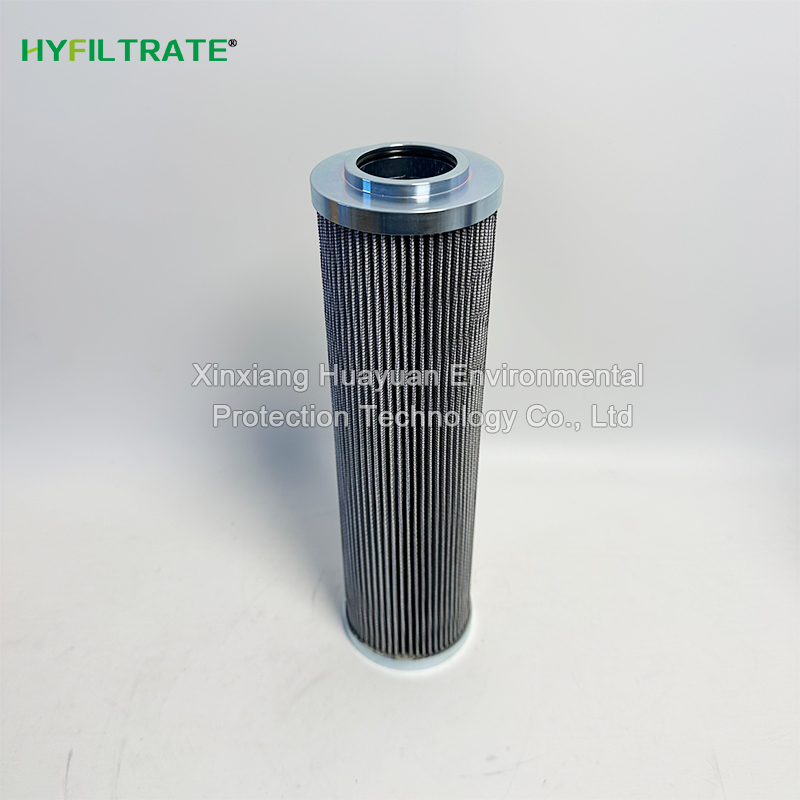

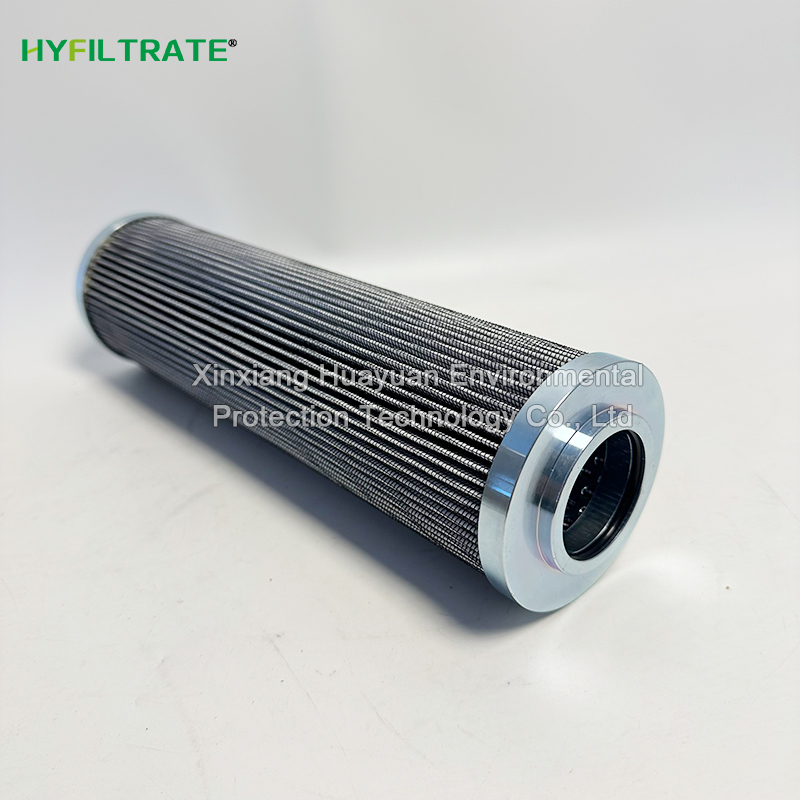

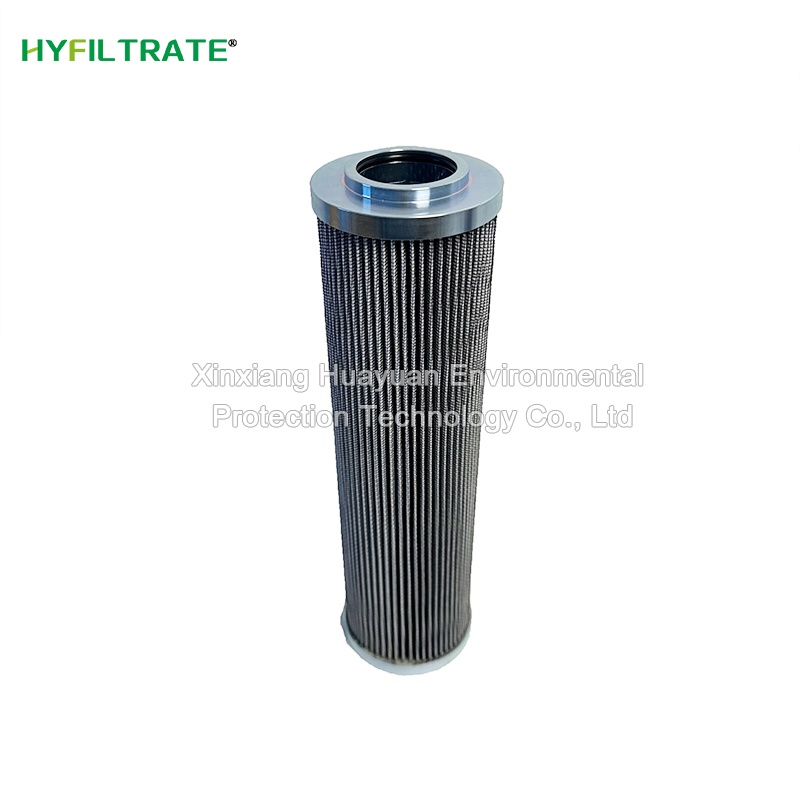

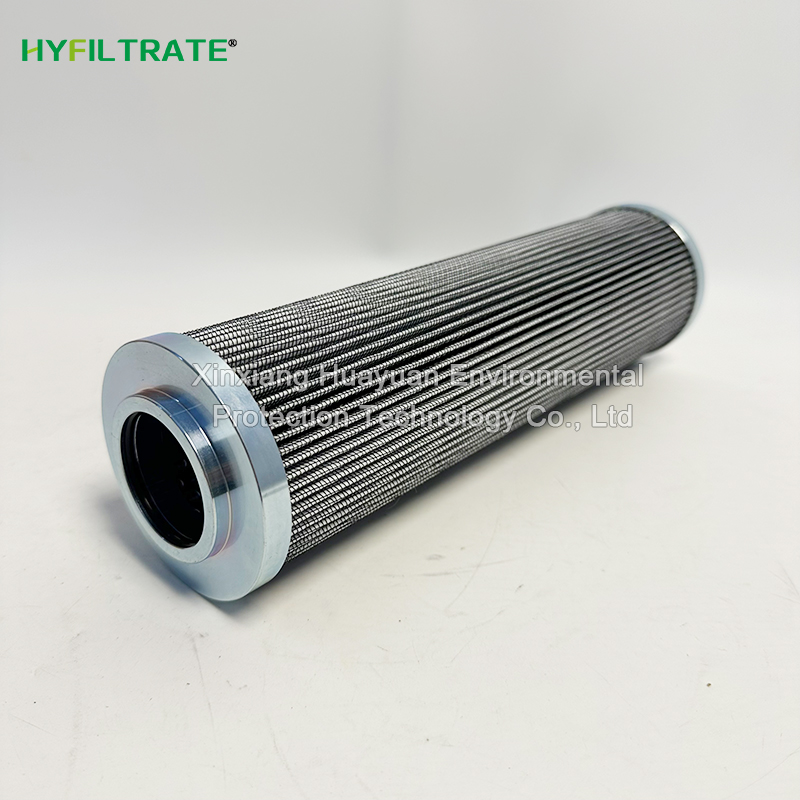

The Replace SF Filter HY11864 Hydraulic oil filter element adopts a gradient density fiberglass structure, which efficiently captures fine metal debris, rust particles, and colloidal impurities in the oil, meeting the strict oil cleanliness requirements of servo systems and effectively protecting high-precision components such as plunger pumps and servo valves. The steel support frame enhances the anti extrusion ability of the filter cartridge, with sufficient dirt holding capacity and a smooth increase in pressure difference. Easy to disassemble and assemble, widely used in metallurgy, wind power, shield tunneling, precision machine tool hydraulic systems, reducing valve core jamming faults and extending the service life of hydraulic components.

Applicable locations:

Power industry: wind power hydraulic system, lubricating oil purification device

Metallurgical industry: High pressure hydraulic servo circuit in rolling mills and continuous casting units

Construction machinery: shield tunneling equipment, mining machines, and main control oil circuits for large lifting equipment

General industry: large hydraulic stations, die-casting equipment, precision CNC machine tools

Other scenarios include ship hydraulic systems and industrial hydraulic servo test benches

Packaging and Transportation:

Packaging: Internally packaged in plastic bags, externally packaged in cardboard boxes

Transportation: pallets or wooden boxes

Specific requirements can be based on the customer's specific needs

Related models:

HY11864、HY11862、HY11860、HY11866、HY11868

HY11858、HY11870、HY11846、HY11848、HY11852

HY11854、HY11872、HY11874、HY11836、HY11838

Technical data

Replace SF Filter HY11864 hydraulic oil filter element

Filter material: multi-layer folded borosilicate glass fiber; Fluid flow direction: from outside to inside

Filtering accuracy: 6 μ m

Anti collapse pressure difference: 21 bar

Sealing element: NBR nitrile rubber

Working temperature: -25 ℃~+110 ℃

Supporting structure: Galvanized steel punching inner and outer supporting skeleton, resistant to pressure pulsation impact

Suitable media: mineral hydraulic oil, lubricating oil, water ethylene glycol medium

Why choose HYFILTRATE?

1. High quality filtration materials: We strictly select high-quality materials such as glass fiber and stainless steel metal mesh to ensure filtration efficiency and long service life.

2. Compliant with industry standards: The product meets user needs, is compatible with most hydraulic systems, and has excellent quality.

3. Customizable: We can provide customized solutions based on your various models and brands, as well as replacement requirements under different working conditions.

4. Cost effectiveness: The factory directly supplies, crosses intermediaries, and reduces procurement costs while maintaining excellent quality.
