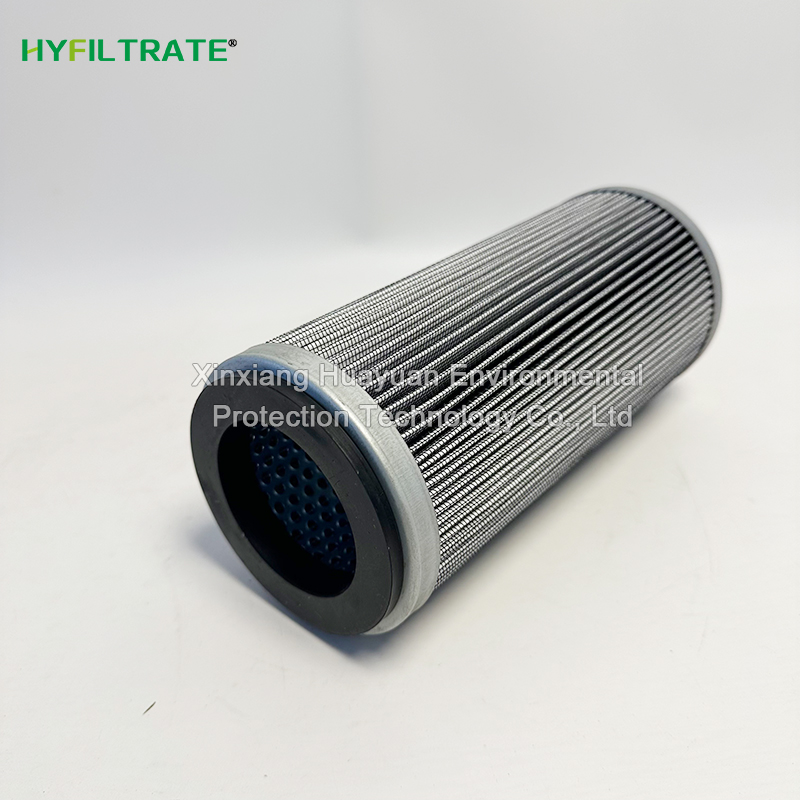

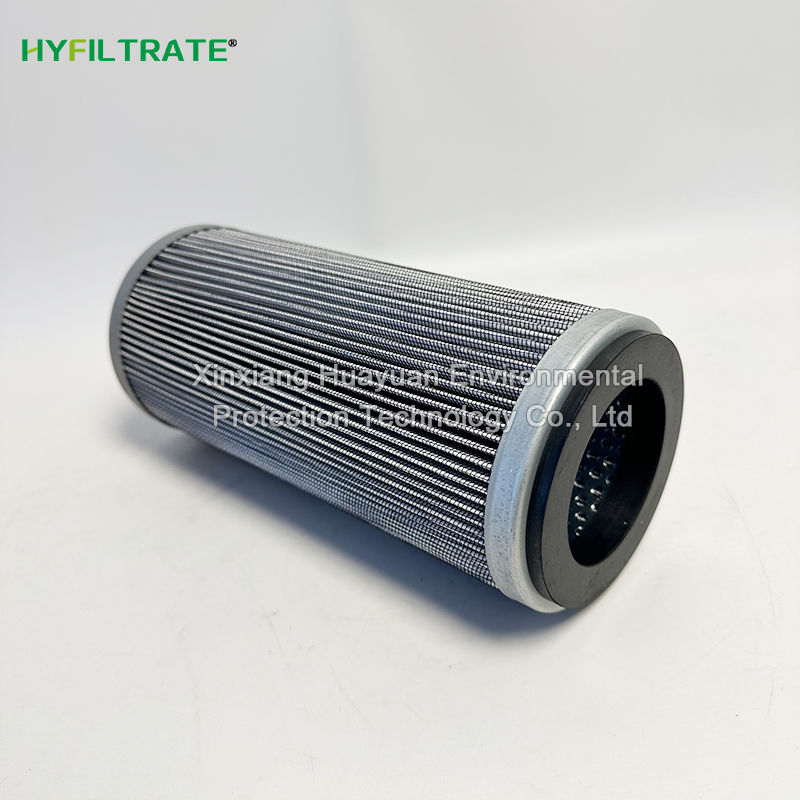

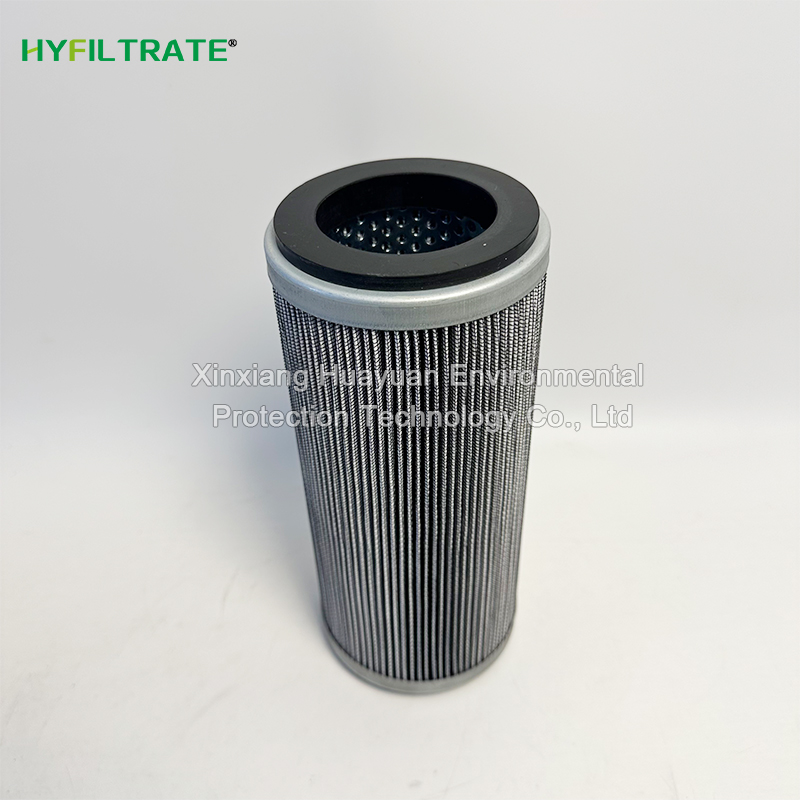

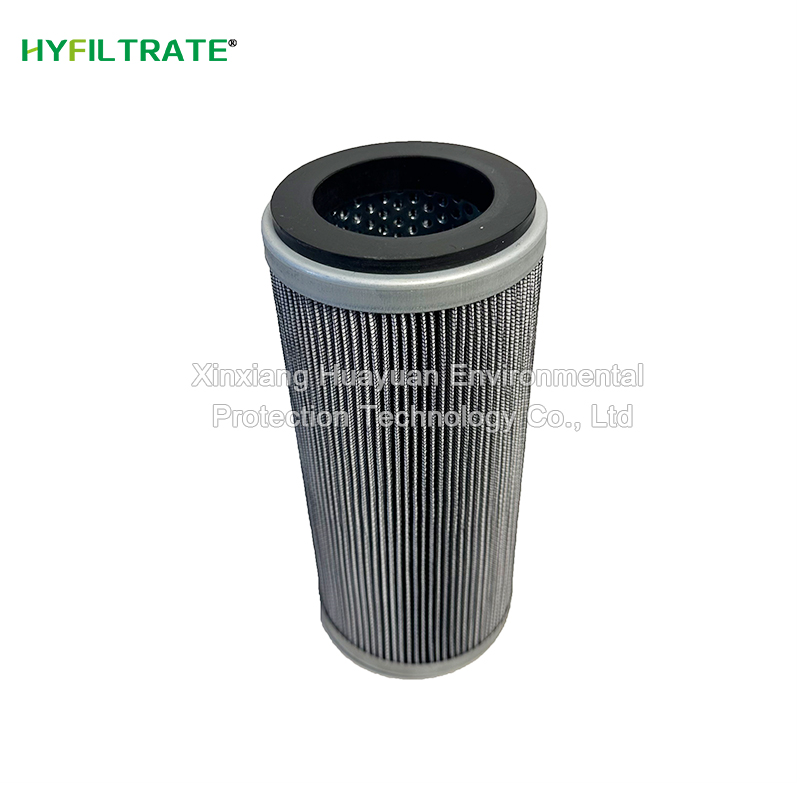

Replace SF-Filter HY11104 hydraulic oil filter element

Description:: Replace SF Filter HY11104 hydraulic oil filter element adopts a gradient density

Share With:

Replace SF Filter HY11104 Hydraulic oil filter element adopts a gradient density fiberglass structure, which efficiently captures metal debris, rust particles, and colloidal impurities in the oil, maintains the cleanliness of the hydraulic system oil, and protects precision hydraulic components such as plunger pumps and servo valves. The steel support skeleton enhances the structural strength, has sufficient pollutant carrying capacity, and the pressure difference rises smoothly. Easy to disassemble and assemble, widely used in small and medium-sized hydraulic stations, CNC machine tools, and automated hydraulic systems, reducing valve core sticking faults and extending the service life of hydraulic components.

Applicable locations:

General industry: small and medium-sized hydraulic stations, CNC machine tools, injection molding equipment

Hydraulic oil circuit for auxiliary control of construction machinery

Small hydraulic control system for wind turbine auxiliary equipment

Hydraulic and lubrication unit of automated production line

Mobile small equipment and hydraulic test bench filtration in other scenarios

Packaging and Transportation:

Packaging: Internally packaged in plastic bags, externally packaged in cardboard boxes

Transportation: pallets or wooden boxes

Specific requirements can be based on the customer's specific needs

Related models:

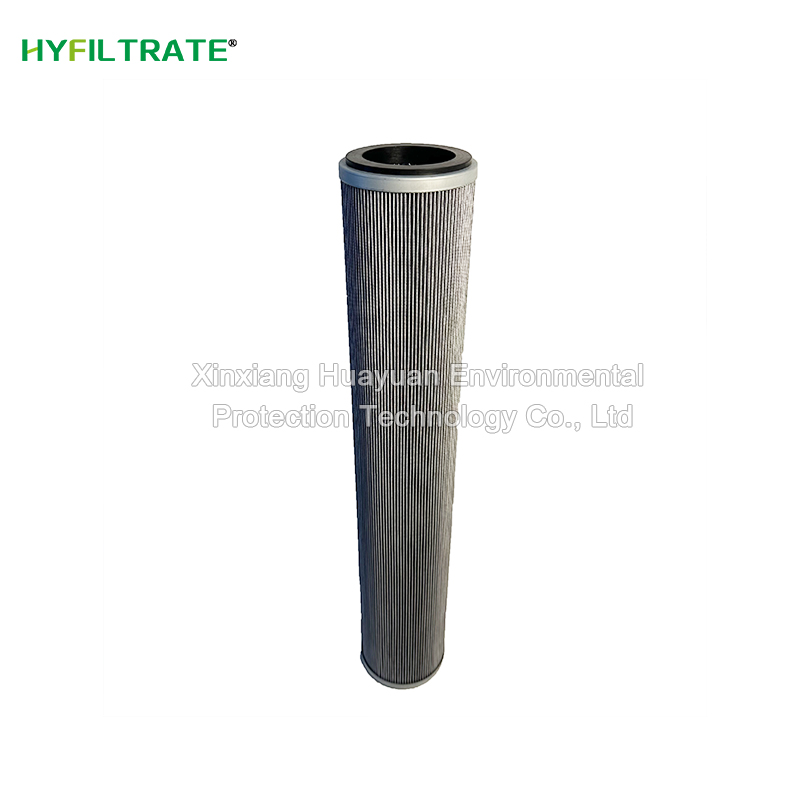

HY11104、HY11102、HY11106、HY11108、HY11110

HY11862、HY11860、HY11864、HY11858、HY11870

HY11846、HY11848、HY11852、HY11854、HY11872

Technical data

Replace SF Filter HY11104 hydraulic oil filter element

Filter material: multi-layer composite borosilicate glass fiber, disposable and non washable

Filtering accuracy: 10 μ m, β ₁₀ ≥ 200

Operating temperature: -20 ℃ to+100 ℃

Suitable media: mineral hydraulic oil, lubricating oil, water ethylene glycol flame retardant hydraulic fluid

Why choose HYFILTRATE?

1. High quality filtration materials: We strictly select high-quality materials such as glass fiber and stainless steel metal mesh to ensure filtration efficiency and long service life.

2. Compliant with industry standards: The product meets user needs, is compatible with most hydraulic systems, and has excellent quality.

3. Customizable: We can provide customized solutions based on your various models and brands, as well as replacement requirements under different working conditions.

4. Cost effectiveness: The factory directly supplies, crosses intermediaries, and reduces procurement costs while maintaining excellent quality.
