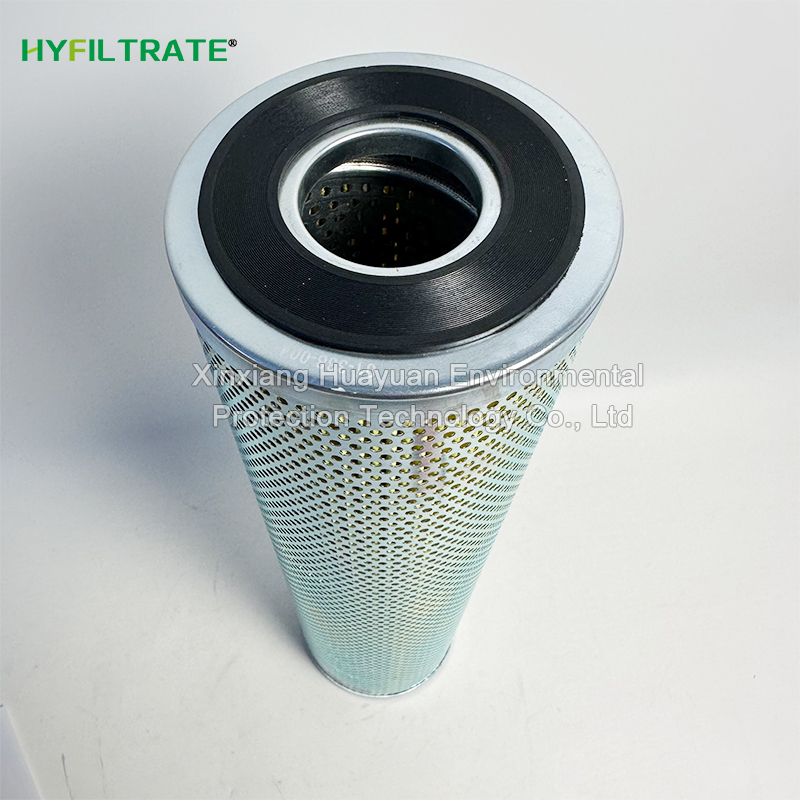

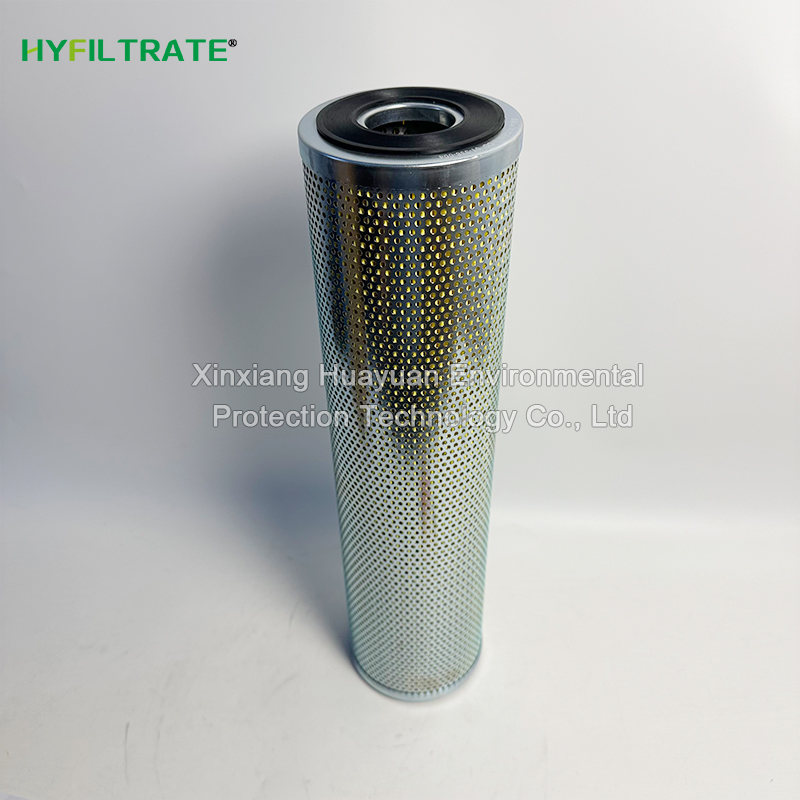

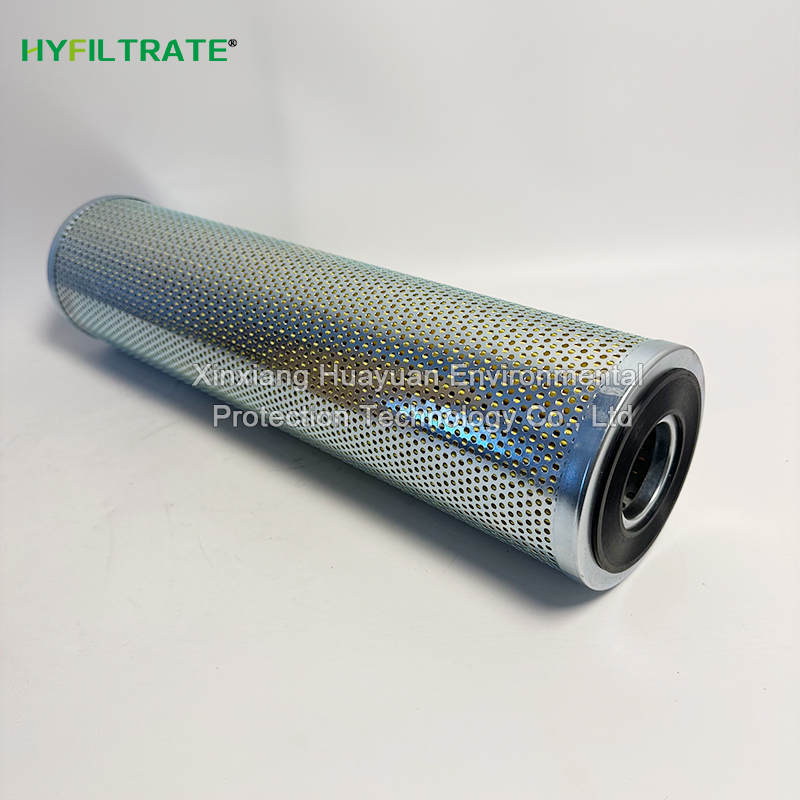

Replace Nugent Filters P/N 01-388-004 P0 # 253592 hydraulic oil filter element

Description:: Replace Nugent Filters P/N 01-388-004 P0 # 253592 hydraulic oil filter element i

Share With:

Replace Nugent Filters P/N 01-388-004 P0 # 253592 Hydraulic oil filter element is designed specifically for the fire-resistant oil system of power plant steam turbines. It efficiently captures metal debris, rust particles, and colloidal impurities in the oil, ensuring stable and clean operation of servo valves and solenoid valves, and avoiding unit protection actions caused by valve core jamming. Double layered stainless steel casing enhances impact resistance, with a large dirt holding capacity and long-term stable pressure difference; Excellent compatibility with phosphate ester and fire-resistant media. The standard universal cylinder structure is easy to disassemble and assemble, widely used in thermal power and gas turbine electro-hydraulic control systems, reducing the frequency of servo valve maintenance and ensuring long-term stable and safe operation of the unit.

Applicable locations:

Power industry: EH fire-resistant oil system for steam turbine, filtration of fire-resistant oil regeneration device

Power plant auxiliary equipment: turbine oil, lubricating oil purification and filtration system

Gas turbine power control hydraulic circuit

Large scale industrial hydraulic servo control system

Precision hydraulic test bench for other scenarios, oil purification device for large turbine units

Packaging and Transportation:

Packaging: Internally packaged in plastic bags, externally packaged in cardboard boxes

Transportation: pallets or wooden boxes

Specific requirements can be based on the customer's specific needs

Related models:

01-388-004、01-388-003、01-388-005、01-388-002、01-388-001

01-388-006、01-388-007、01-388-013、01-094-011、01-535-019

01-535-020、01-535-026、30-150-207、30-400-201、01-388-044

Technical data

Replace Nugent Filters P/N 01-388-004 P0 # 253592 hydraulic oil filter element

Filter Material Type: Impregnated Resin Thickened Cellulose Filter Paper (Folded Structure), Balancing Particle Interception and Mild Adsorption of Oil Colloids

Nominal accuracy: 10 μ m (nominal accuracy)

Rated flow rate: 20GPM (≈ 45.4 L/min, 40 ℃ fire-resistant fuel condition)

Structural skeleton: Whole body stainless steel punching support inner cylinder+steel end caps, resistant to compression and not easily deformed

Maximum allowable working temperature: 107 ℃

Suitable media: EH fire-resistant oil (phosphate ester medium) for power plants, lubricating oil for steam turbines, mineral hydraulic oil

Why choose HYFILTRATE?

1. High quality filtration materials: We strictly select high-quality materials such as glass fiber and stainless steel metal mesh to ensure filtration efficiency and long service life.

2. Compliant with industry standards: The product meets user needs, is compatible with most hydraulic systems, and has excellent quality.

3. Customizable: We can provide customized solutions based on your various models and brands, as well as replacement requirements under different working conditions.

4. Cost effectiveness: The factory directly supplies, crosses intermediaries, and reduces procurement costs while maintaining excellent quality.
