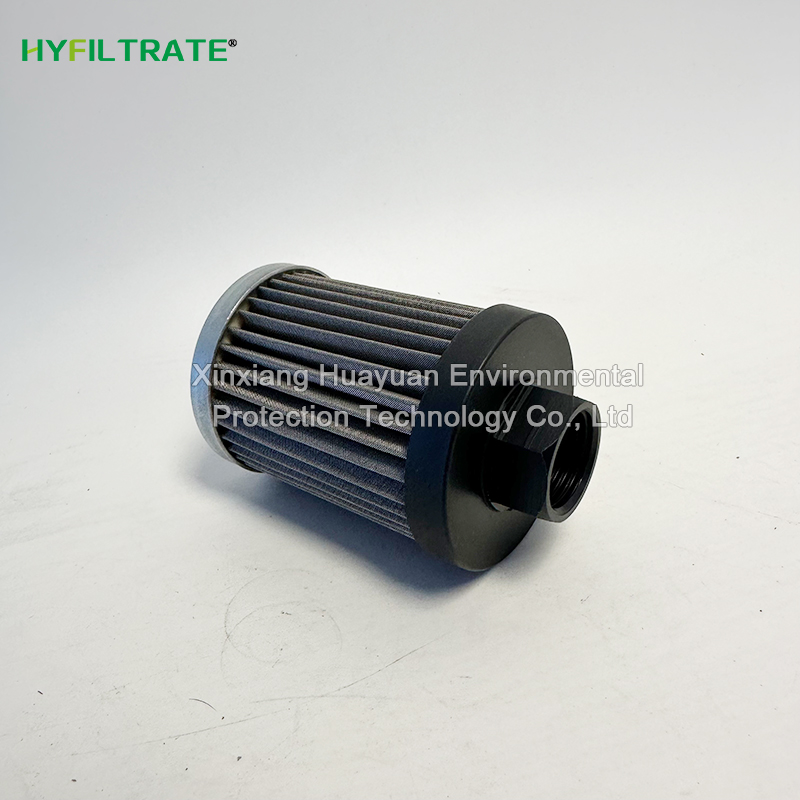

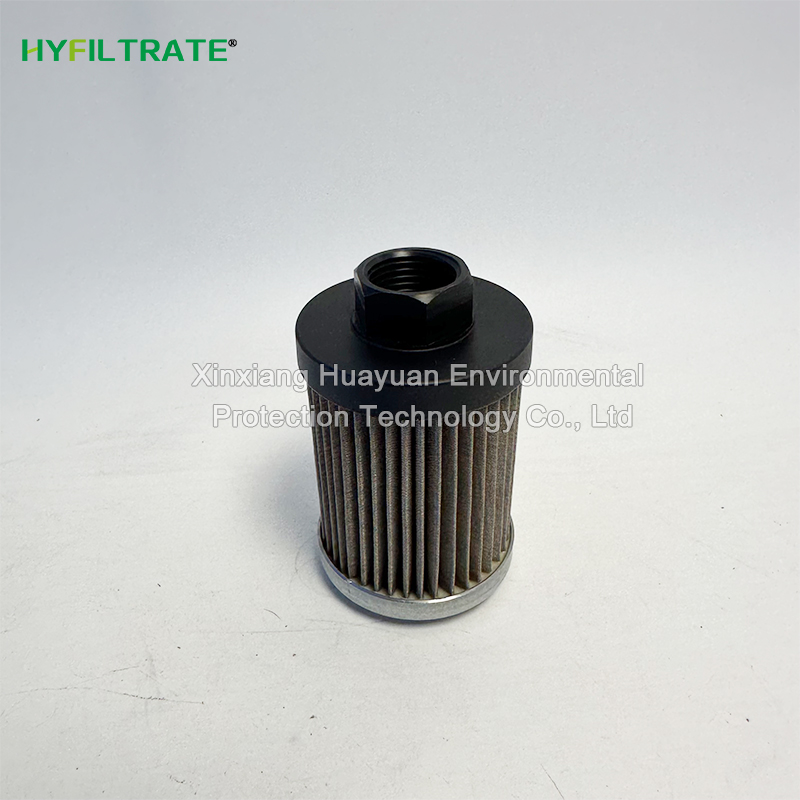

Replace IKRON HHB00065 HF410-10.060-AS-MS090-GC-A06 hydraulic oil filter element

Description:: Replace IKRON HHB00065 HF410-10.060-AS-MS090-GC-A06 hydraulic oil filter element

Share With:

Replace IKRON HHB00065 HF410-10.060-AS-MS090-GC-A06 Hydraulic oil filter element Installed at the suction port of the hydraulic pump, it intercepts large particles of impurities, welding slag, and rust debris in the oil tank, effectively protecting the hydraulic pump and preventing wear and tear of the plunger, blades, and pump body. The Metal Filter has low flow resistance to prevent cavitation caused by high oil absorption resistance; The built-in bypass valve ensures uninterrupted oil supply in case of extreme blockage. The filter can be repeatedly cleaned and used, reducing the input of consumables; The compact submerged structure saves space outside the fuel tank and is widely used in CNC machine tools, small and medium-sized hydraulic stations, and hydraulic systems of construction machinery, extending the service life of the main pump.

Applicable locations:

Precision machine tools: machining centers, injection molding machines, hydraulic pumps for small and medium-sized equipment, oil suction protection

General Industry: Small Hydraulic Stations, Automation Equipment Hydraulic Systems

Auxiliary hydraulic system of construction machinery

Wind power, small lubrication station oil absorption and filtration

Other scenarios: Mobile devices, general industrial hydraulic oil tanks with built-in filters

Packaging and Transportation:

Packaging: Internally packaged in plastic bags, externally packaged in cardboard boxes

Transportation: pallets or wooden boxes

Specific requirements can be based on the customer's specific needs

Related models:

HHB00065、HHB04020、HHB10020、HHB00010、HHB04005

HHB24044、HHB00025、HHB10045、HHB46040、HHB52038

HHB04015、HHB10032、HHB24050、HHB46065、HHB00030

Technical data

Replace IKRON HHB00065 HF410-10.060-AS-MS090-GC-A06 hydraulic oil filter element

Filter material: multi-layer galvanized steel wire woven filter screen; Oil flow direction: from bottom to top

Filtering accuracy: 90 μ m; No fiber shedding, supports low-pressure blowing, cleaning and regeneration

Maximum allowable pressure difference: 1.0 bar (low pressure condition of oil suction circuit)

Sealing element: NBR nitrile rubber

Working temperature: -30 ℃~+90 ℃

Supporting structure: Galvanized steel skeleton

Suitable media: anti-wear hydraulic oil, lubricating oil, water ethylene glycol medium

Why choose HYFILTRATE?

1. High quality filtration materials: We strictly select high-quality materials such as glass fiber and stainless steel metal mesh to ensure filtration efficiency and long service life.

2. Compliant with industry standards: The product meets user needs, is compatible with most hydraulic systems, and has excellent quality.

3. Customizable: We can provide customized solutions based on your various models and brands, as well as replacement requirements under different working conditions.

4. Cost effectiveness: The factory directly supplies, crosses intermediaries, and reduces procurement costs while maintaining excellent quality.
