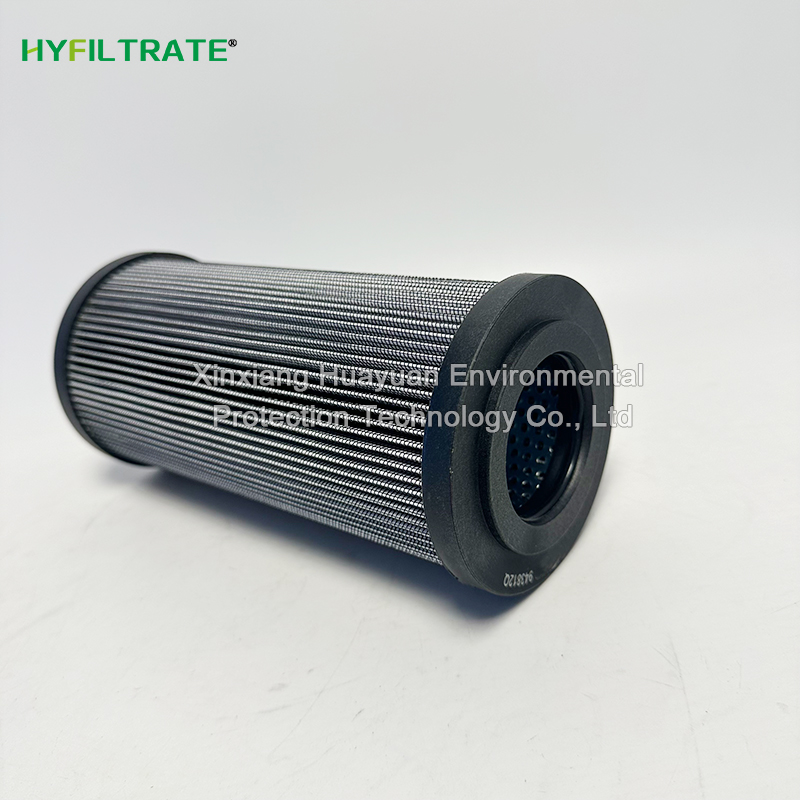

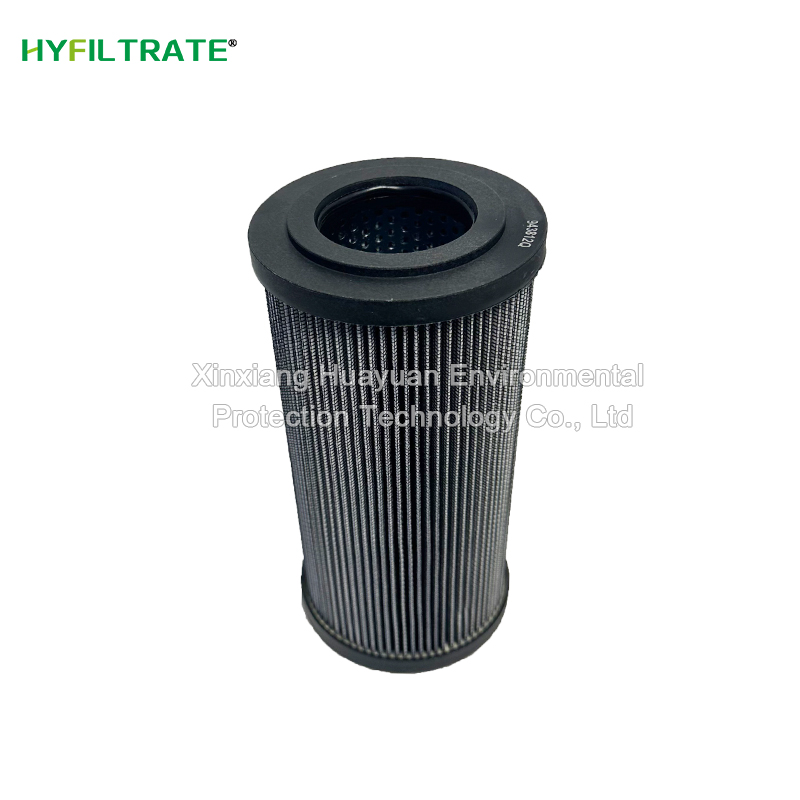

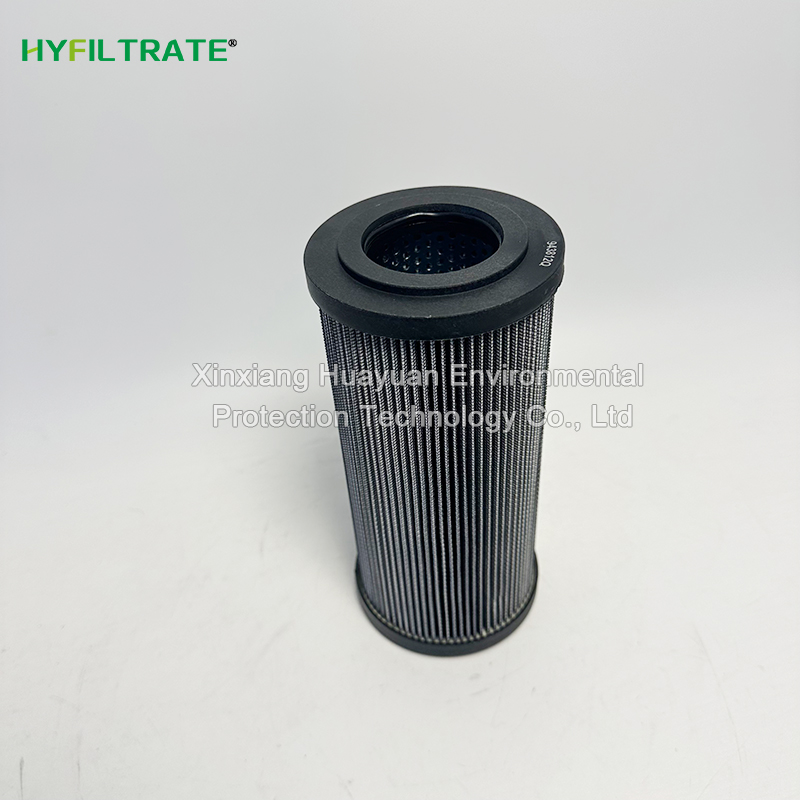

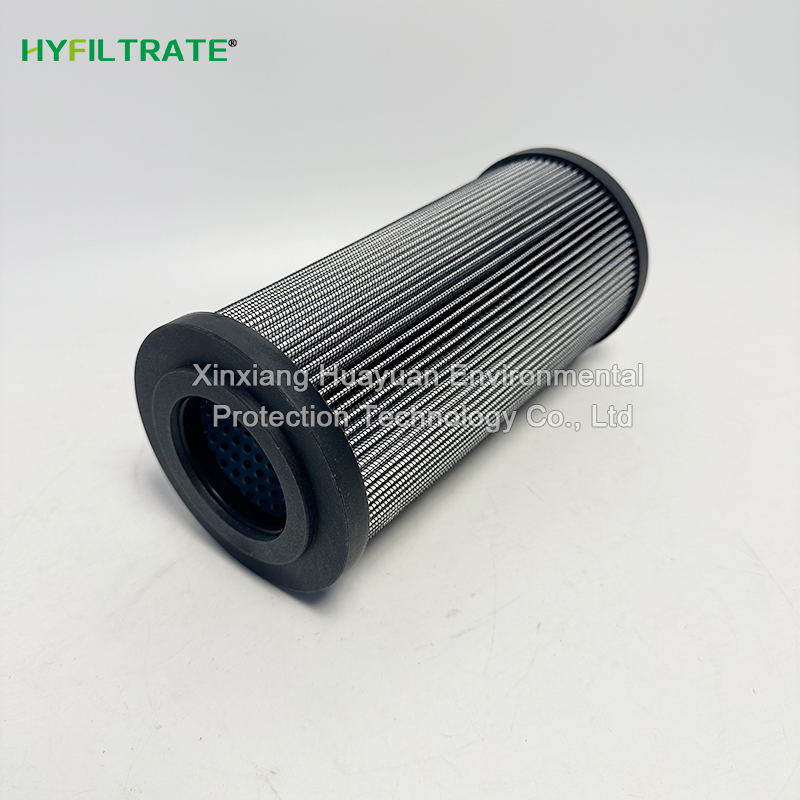

Replace Parker 943812Q hydraulic oil filter element

Description:: The Parker 943812Q hydraulic oil filter element is capable of efficiently filter

Share With:

The Parker 943812Q Hydraulic oil filter element is capable of efficiently filtering out metal debris, rust particles, and colloidal contaminants from the oil, stably maintaining the cleanliness of the oil tank and protecting the main pump, motor, and various hydraulic valves. The steel support frame resists high-flow impacts, ensuring that the filter layer is less prone to deformation. The large-area pleated filter material has ample dirt holding capacity, resulting in a gradual increase in pressure drop, effectively extending the maintenance interval. It exhibits excellent medium compatibility, is conveniently disassembled and assembled in standard original factory dimensions, continuously reduces wear on hydraulic components, minimizes unexpected equipment downtime, and controls long-term hydraulic system operation and maintenance as well as consumable input.

Applicable places:

Power industry: turbine thin oil lubrication station, large-scale hydraulic system for wind power

Metallurgical industry: large hydraulic oil return and circulation system for rolling mills and continuous casting equipment

General industry: large hydraulic stations, die-casting equipment, complete production line hydraulic systems

Engineering machinery: shield machines, large mining machines, hydraulic units for lifting equipment

Other scenarios: ship hydraulic system, large lubricating oil station, hydraulic test bench

Packaging and Transportation:

Packaging: Internally packaged in plastic bags, externally packaged in cardboard boxes

Transportation: pallets or wooden boxes

Specific requirements can be based on the customer's specific needs

Related models:

943812Q, 943810Q, 943814Q, 935192, 935194

933488Q, 937403Q, 937406Q, 944418Q, 944428Q

HF41L10VQ, HF41L20VQ, 932679Q, 931020Q, 927661

Technical data

Replace Parker 943812Q hydraulic oil filter element

Filter material: multi-layer gradient folded micro-glass fiber; flow direction: from outside to inside

Filtration accuracy: 10μm absolute accuracy

Collapse resistance pressure difference: 10 bar

Standard seal: NBR (nitrile rubber), with FPM (fluoroelastomer) as an option

Operating temperature: -25℃～+107℃

Support structure: Epoxy-coated steel internal and external support framework

Compatible medium: mineral hydraulic oil, lubricating oil, water-glycol medium

Why choose HYFILTRATE?

1. High quality filtration materials: We strictly select high-quality materials such as glass fiber and stainless steel metal mesh to ensure filtration efficiency and long service life.

2. Compliant with industry standards: The product meets user needs, is compatible with most hydraulic systems, and has excellent quality.

3. Customizable: We can provide customized solutions based on your various models and brands, as well as replacement requirements under different working conditions.

4. Cost effectiveness: The factory directly supplies, crosses intermediaries, and reduces procurement costs while maintaining excellent quality.
