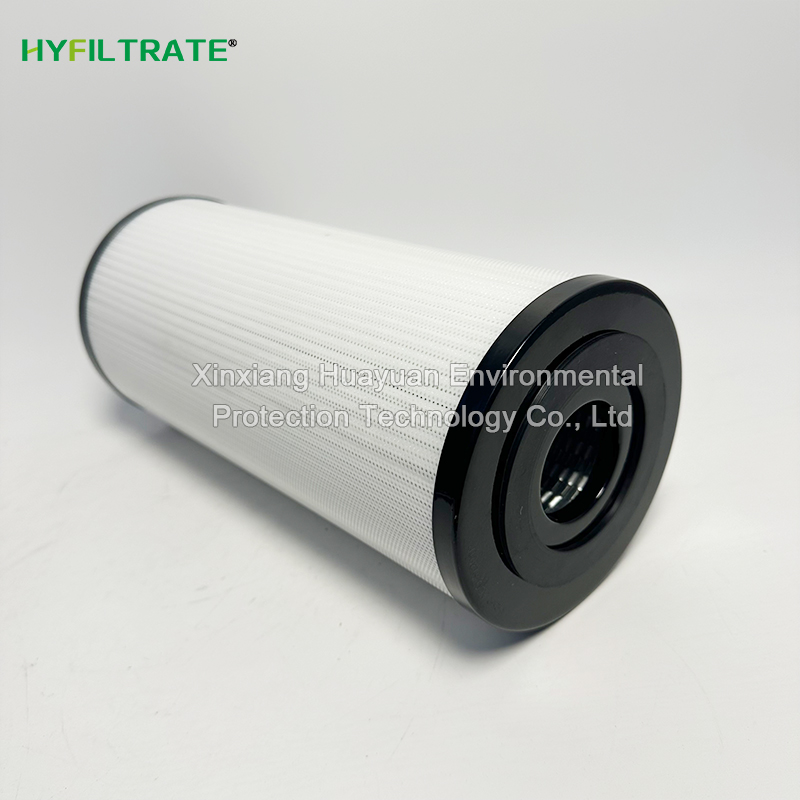

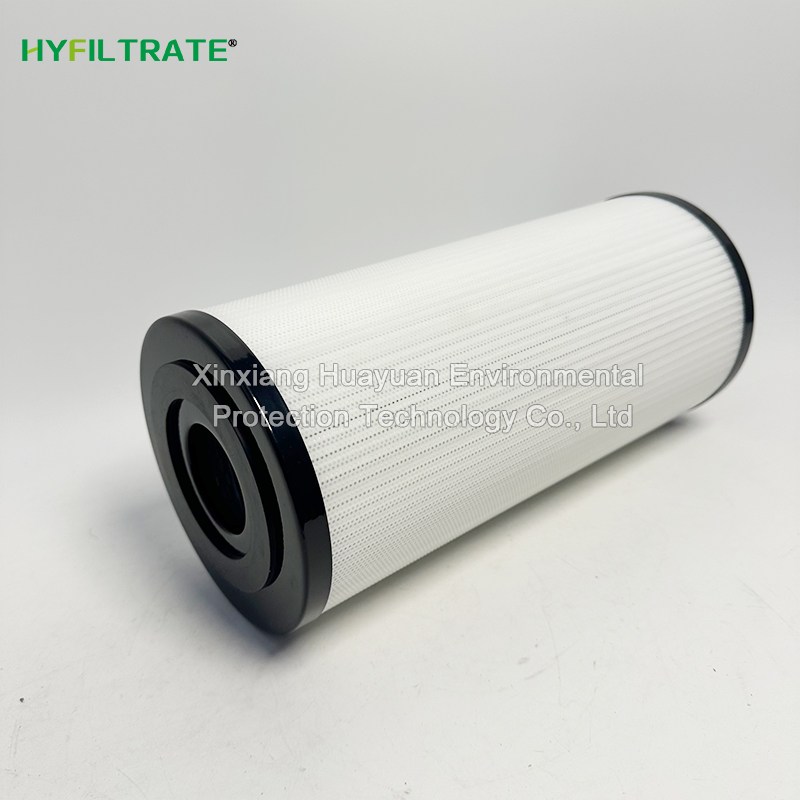

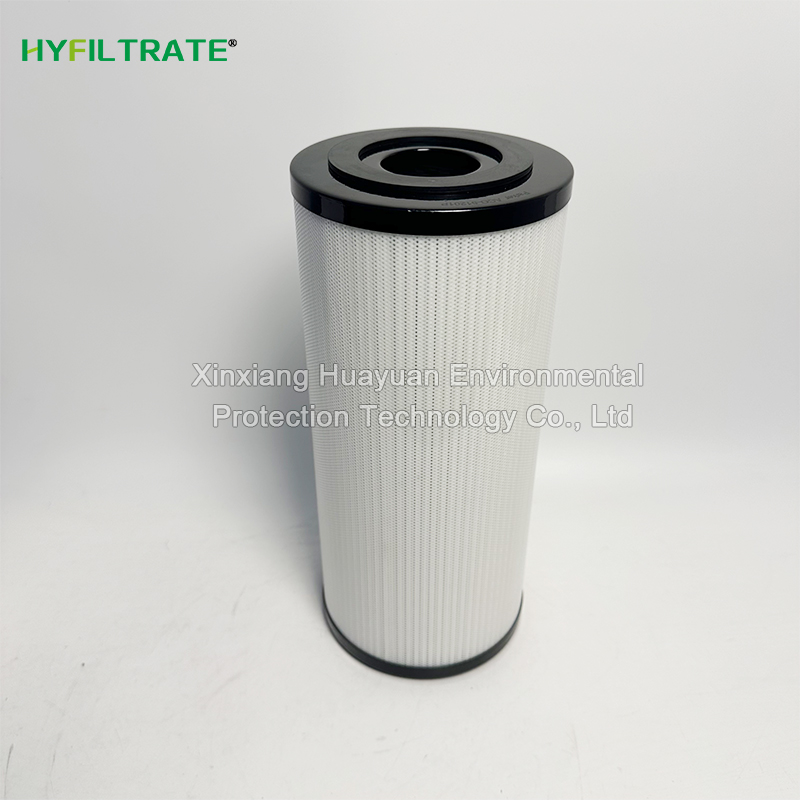

Replace Parker ACO-51201P oil filter element-Huayuan Environmental Protection Technology Co., Ltd.

Replacing the Parker ACO-51201P oil filter can capture free water and emulsified water in fuel and chemically lock in moisture; The outer fiberglass layer efficiently intercepts solid impurities such as rust and gum, ensuring the quality of aviation fuel and preventing engine failure caused by moisture. The large pleated filter structure has a high pollutant holding capacity, and when the moisture is saturated, the filter material expands and the pressure difference increases, providing a visual prompt for replacement. Widely used in airport refueling pipelines and refueling truck fuel supply systems, effectively avoiding water hammer risks and meeting aviation fuel supply quality standards.

Applicable locations:

Aviation fuel supply industry: airport apron pipelines, aviation refueling truck filtration units

Navigation station: small airport aviation coal conveying and purification device

Oil storage and transportation: monitoring and filtering of the export pipeline of aviation kerosene storage tanks

Aviation maintenance plant: fuel filling pipeline system

Precision purification device for aviation fuel transfer pump station in other scenarios

Instructions for replacing filter element:

1) Same shell universal filter element (universal external dimensions): ACO-51205P, ACO-51210P

Tip: There are differences in flow rate and water absorption capacity, and they cannot be interchanged at will.

2) Alternative model: VEL51201P, with consistent external dimensions, structural parameters, and performance indicators, available for selection reference.

3) Important reminder for replacement selection: The outer diameter, total length, and inner diameter dimensions must match; After the water absorbing medium is saturated, it cannot be cleaned and regenerated; It is strictly prohibited to use it in fuel conditions containing FSII anti icing additives.

Packaging and Transportation:

Packaging: Internally packaged in plastic bags, externally packaged in cardboard boxes

Transportation: pallets or wooden boxes

Specific requirements can be based on the customer's specific needs

Related models:

ACO-51201P、ACO-51205P、ACO-51210P

ACO-21001P、ACO-31001P、ACO-61401P

ACO-51201R

Technical data

Replace Parker ACO-51201P oil filter element

Product type: Fuel coalescing water absorbing filter cartridge

Filter material configuration: multi-layer composite medium

Outer layer: fiberglass filter layer, precision 0.5 μ m; Inner layer: High water absorbing polymer composite substrate, locking in free and emulsified moisture

Fluid flow direction: from outside to inside

Purification index: effluent content ≤ 5ppm, solid particle filtration efficiency ≥ 98%

Ultimate tolerance pressure difference: 75psi; Suggest changing the pressure difference to 25psi (1.72bar)

Suitable working range: 2 ℃~+71.1 ℃

Supporting structure: High strength punched metal skeleton, protecting the pleated filter layer

Suitable fluids: Jet-A1 aviation kerosene, aviation gasoline (prohibit the use of aviation fuel with added FSII anti icing agent)

Why choose HYFILTRATE?

1. High quality filtration materials: We strictly select high-quality materials such as glass fiber and stainless steel metal mesh to ensure filtration efficiency and long service life.

2. Compliant with industry standards: The product meets user needs, is compatible with most hydraulic systems, and has excellent quality.

3. Customizable: We can provide customized solutions based on your various models and brands, as well as replacement requirements under different working conditions.

4. Cost effectiveness: The factory directly supplies, crosses intermediaries, and reduces procurement costs while maintaining excellent quality.
