The core structure of the 10 inch 5um wire wound filter element is made up of te
Model: 10-inch 5um
Size: Standard size
Outer diameter: 110mm
Inside diameter: 30mm
Material: Polypropylene thread
The core structure of the 10 inch 5um wire wound filter element is made up of textile fiber threads, which are precisely wound around a porous skeleton at a specific density to form a gradient filter layer that can intercept impurities of different particle sizes step by step. This design allows the 5um Precision filter element to effectively trap small particles while also maintaining a high pollutant holding capacity and a longer service life.

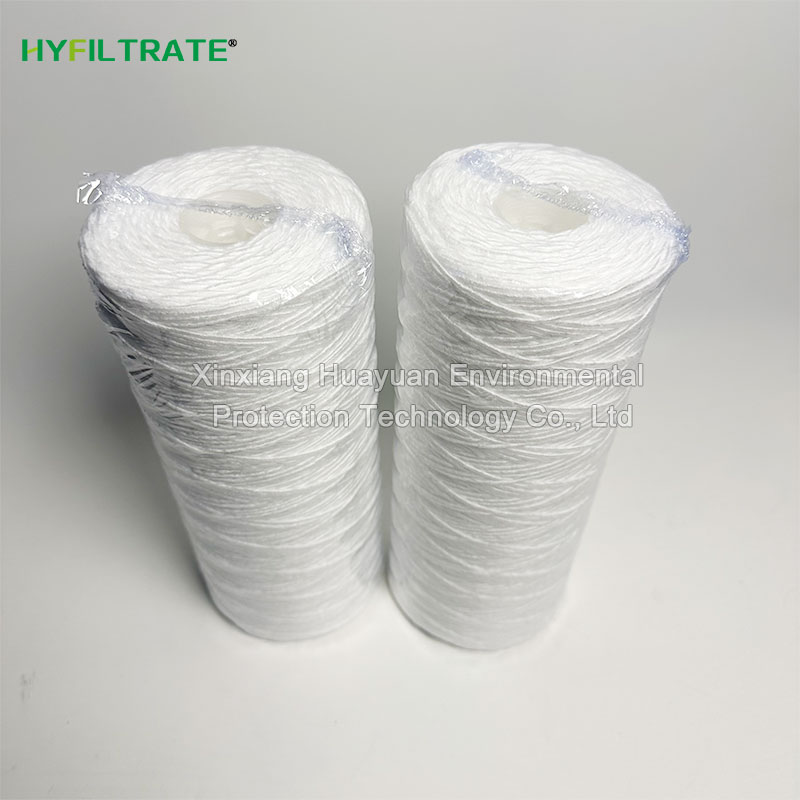

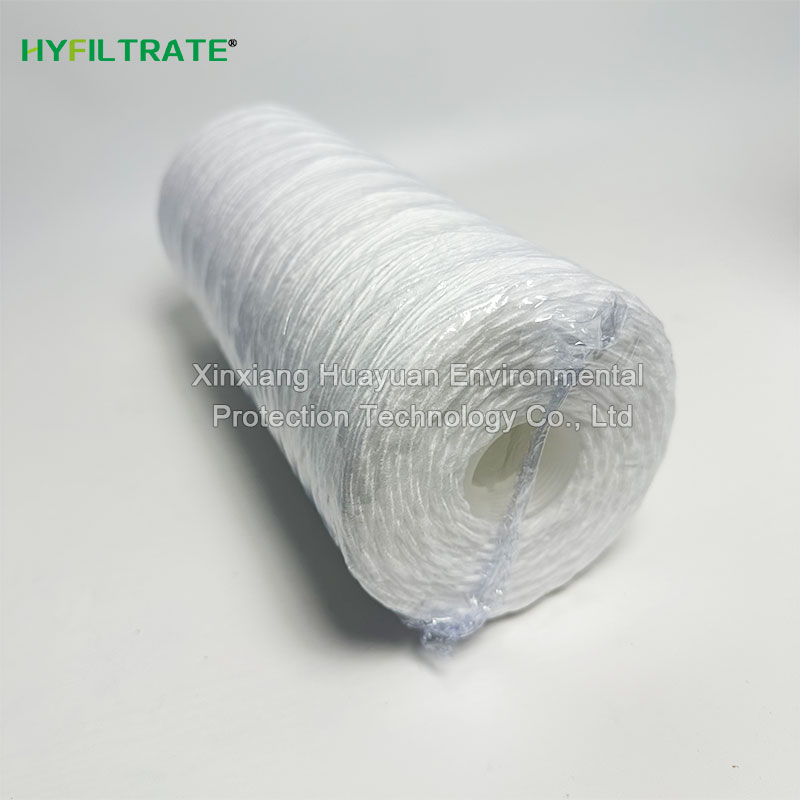

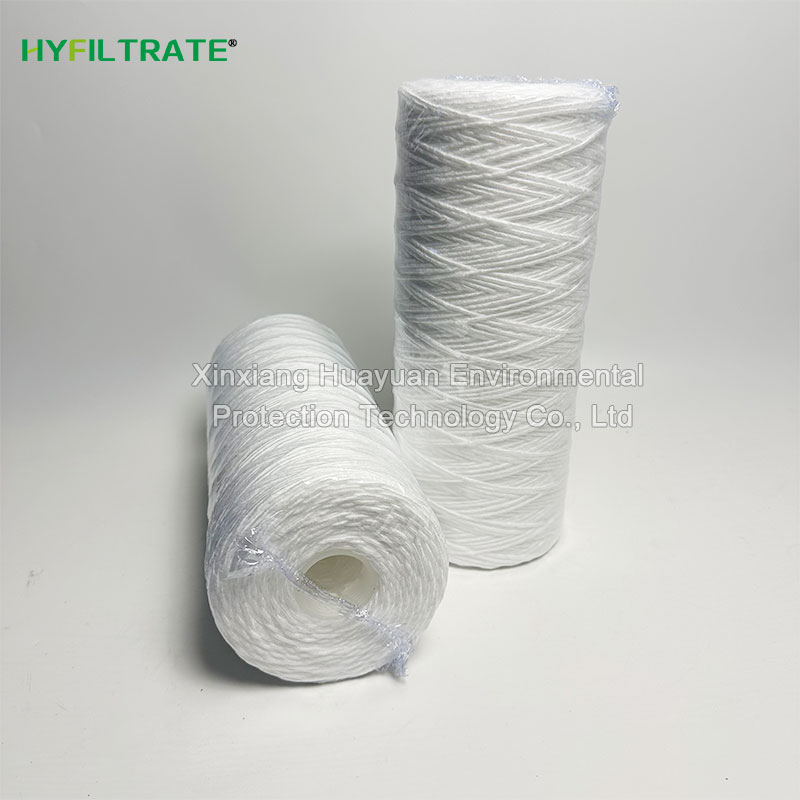

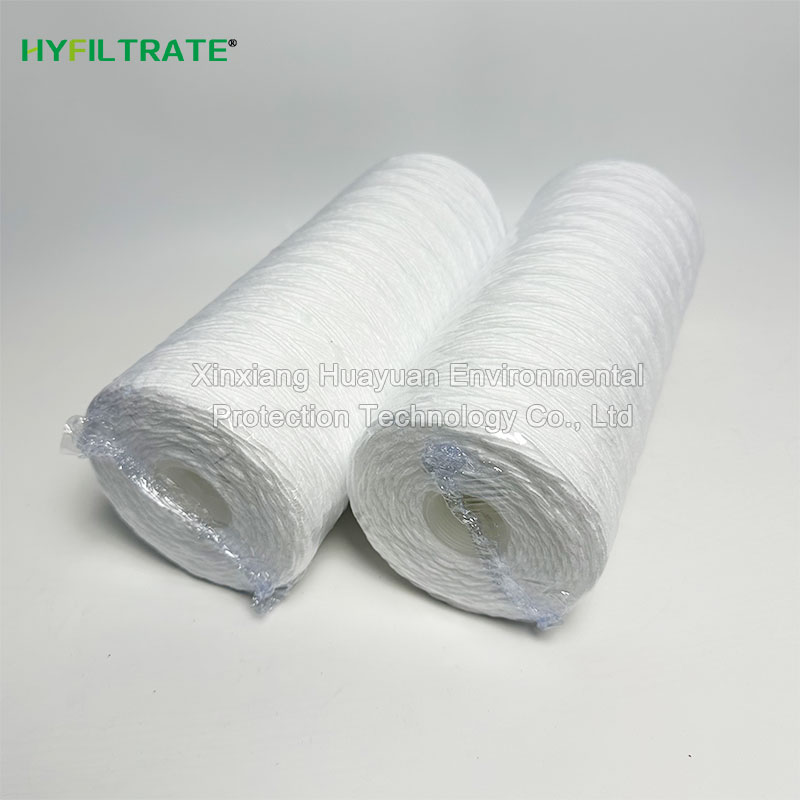

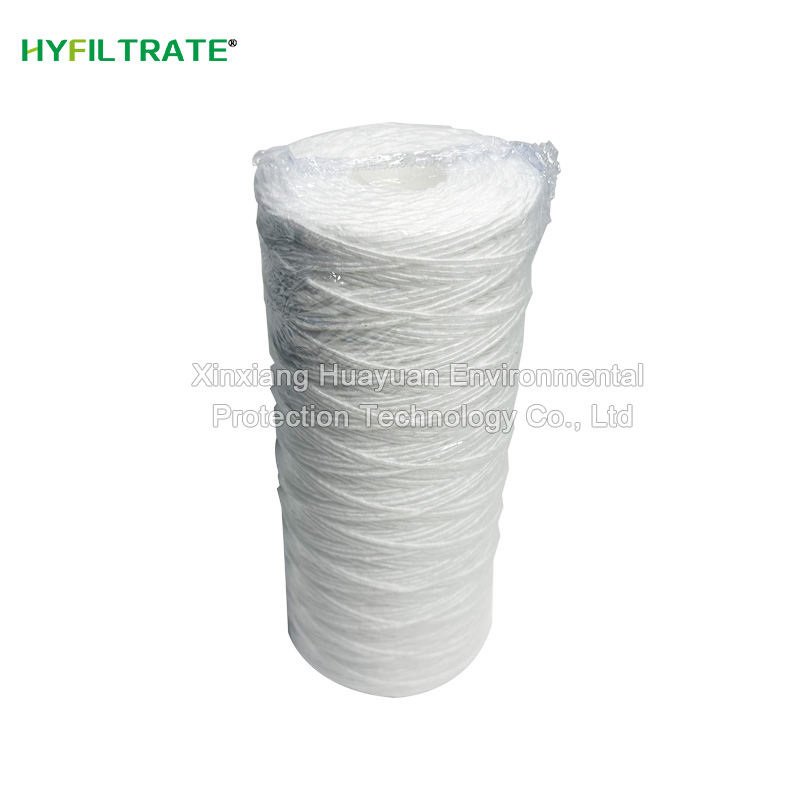

10-inch 5um wire-wound filter element
Filtering accuracy: The filtering accuracy is 5um. Through the gradient arrangement of fiber layers, the filter element can achieve a multi-layer filtering mechanism with gradually decreasing pore size from the outside to the inside, and the removal rate of suspended solids can reach over 95%,
Pollutant carrying capacity: The three-dimensional winding method of textile fibers endows the filter element with an extraordinary pollutant carrying capacity. The dirt retention capacity of a 10 inch wire wound filter can reach 15-20 grams, which is 3-5 times that of flat filter paper.
