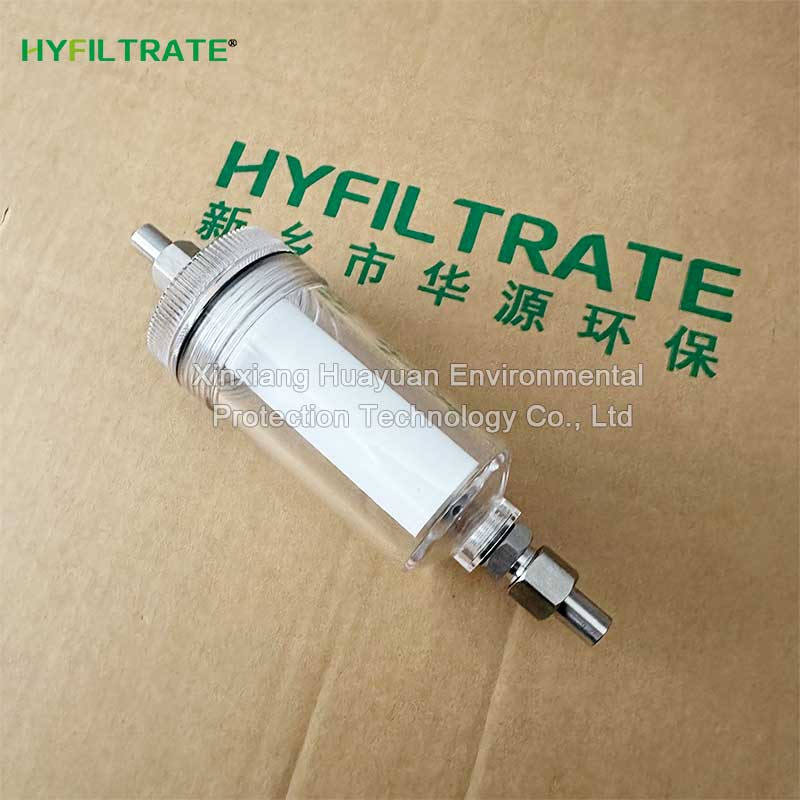

TZ216-3 water sample filter

Technical data

TZ216-3 water sample filter

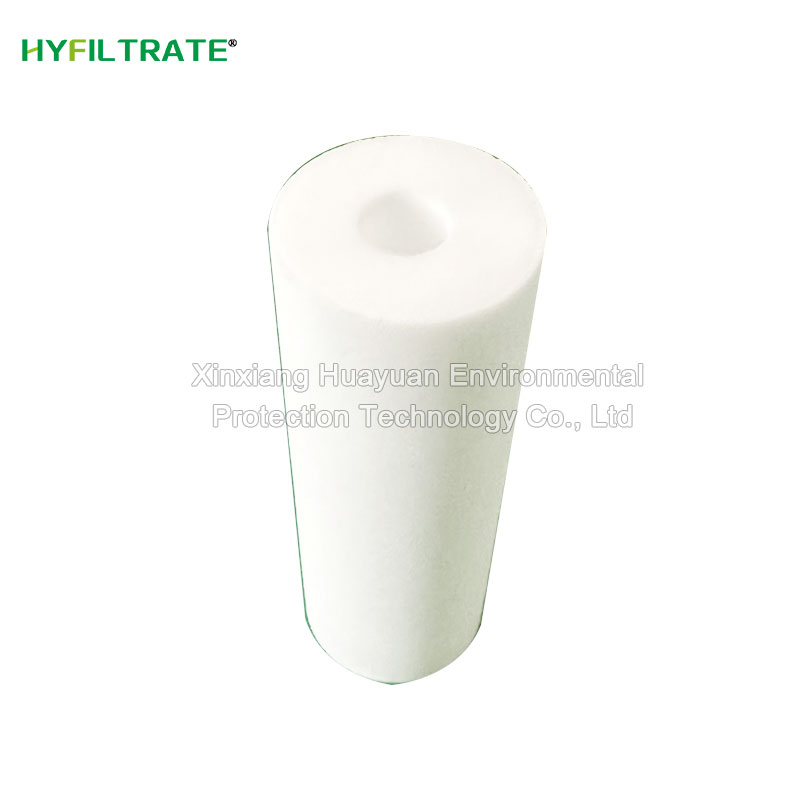

Filter cartridge configuration: 1. Using multi-layer composite filter materials, including polypropylene (PP) melt blown layer, activated carbon adsorption layer, and 0.45 μ m microporous filter membrane, it can intercept particles of different sizes in stages. 2. The lifespan of the filter element can reach 5000L.

Shell material: The main body is made of 316L stainless steel, which has strong corrosion resistance and is suitable for acidic and alkaline environments (pH 2-12). The working pressure range is 0.1-0.6MPa.

Filtering accuracy: The standard accuracy is 1 μ m, and the particle retention rate is ≥ 99.9%.

Working temperature range: 4-80 ℃, can withstand short-term high-temperature sterilization.
