The stainless steel plate and frame filter element is made of 316L stainless ste
Model: 845x845
Size: Standard size
Brand: HYFILTRATE
Material: Stainless steel
Origin: China

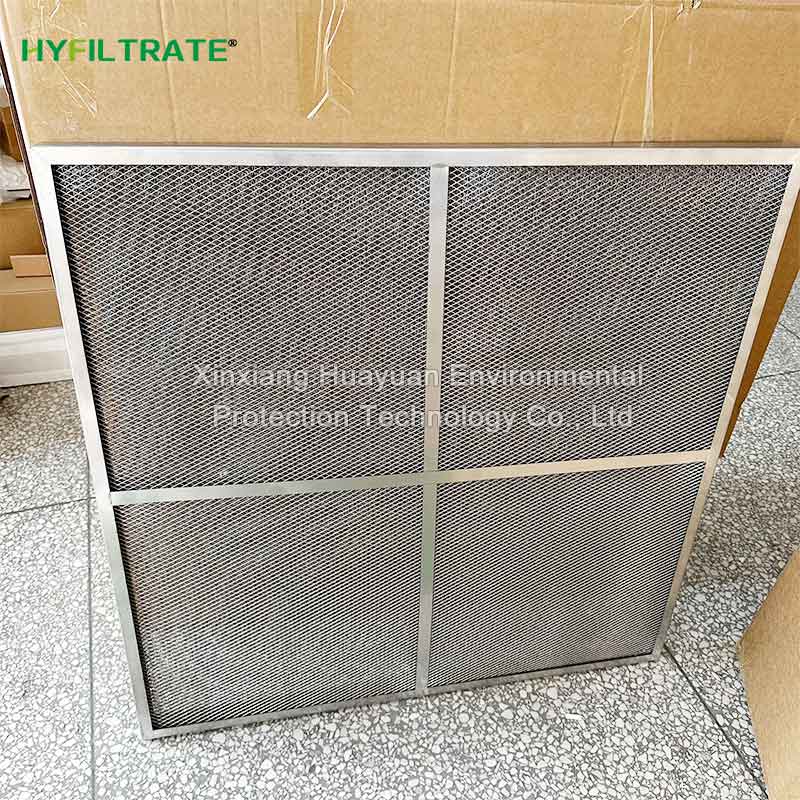

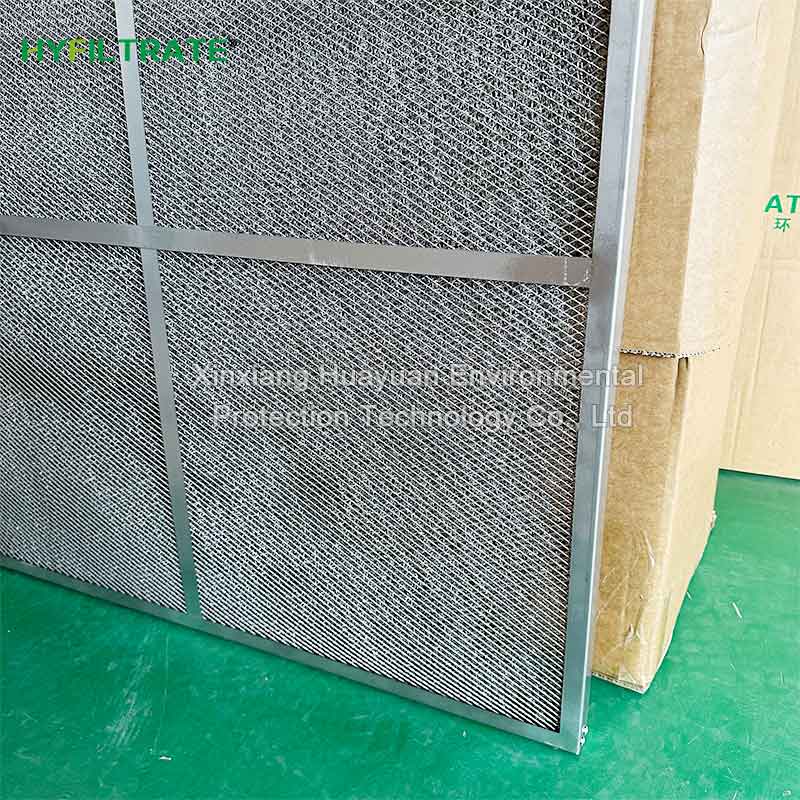

The stainless steel plate and frame filter element is made of 316L stainless steel material, which has excellent corrosion resistance. Adding molybdenum element can withstand the corrosion of chloride and acidic media. The rigid structure of the Metal Filter element enables it to withstand a working pressure of 0.3-0.6MPa, and when used in conjunction with a support mesh in a plate and frame filter, it can resist the risk of deformation during the pressure filtration process.
Stainless steel plate and frame filter element
Adopting a double-layer structure of "coarse filtration+fine filtration", the specially designed V-shaped corrugated structure increases the effective filtration area by 40% and reduces pressure drop by 15% -20%.
The temperature resistance range is between -40 ℃ and 400 ℃ (instantaneous peak 450 ℃), suitable for high-temperature scenarios such as boiler dust removal.
