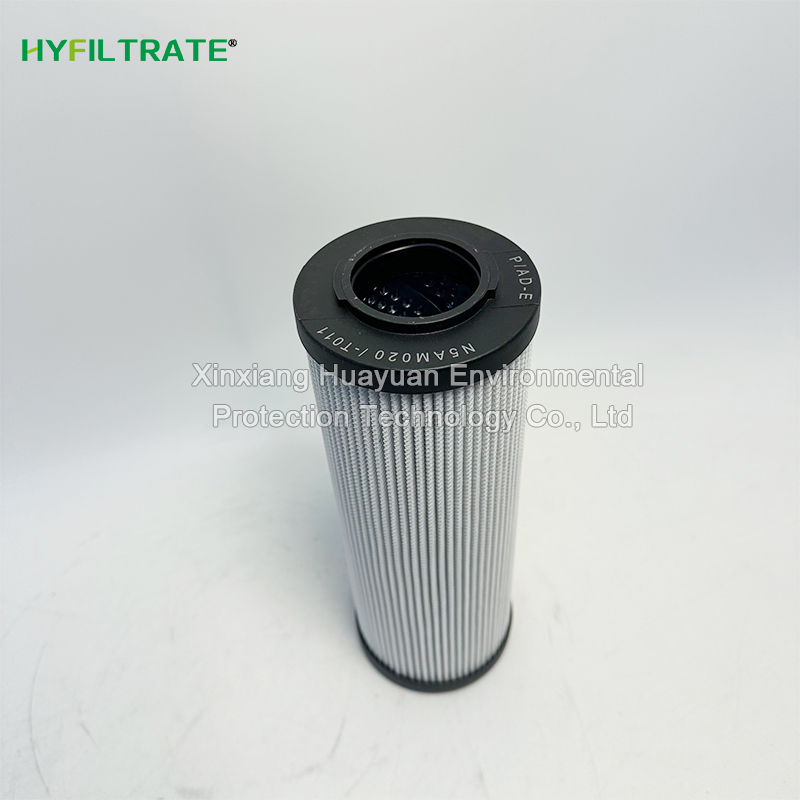

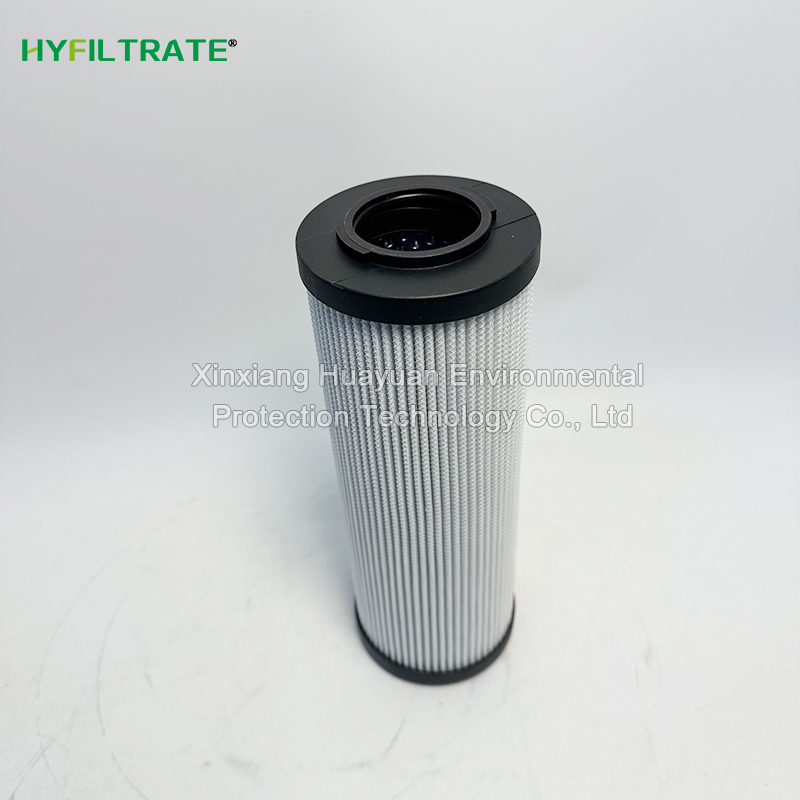

Replace HYDAC N5AM020/- T011 P/AD-E hydraulic oil filter element

Description:

Replacing HYDAC N5AM020/- T011 P/AD-E hydraulic oil filter cartridges with dispo

Model: N5AM020/- T011 P/AD-E

Filtration Accuracy: 20 μm

Brand: HYFILTRATE

Material: metal fiber

Outer diameter: 95 mm

High: 264 mm

Share With:

Replacing HYDAC N5AM020/- T011 P/AD-E Hydraulic oil filter cartridges with disposable fiberglass filter cartridges, power plants and heavy industry lubrication systems have more oil sludge impurities, which can be cleaned and reused, significantly reducing filter cartridge procurement and downtime. And the metal fiber body exports fluid static electricity, metal dust and oil fume mist will not accumulate static electricity, and the durability of damp and wet car rooms is extremely strong

Technical data

Replace HYDAC N5AM020/- T011 P/AD-E hydraulic oil filter element

Filter material: 316L stainless steel sintered alloy fiber+water locking layer

Accuracy: 20 μ m, β ₂₀ ≥ 100, solid particle interception efficiency of over 99%

Additional function: Irreversible locking of free moisture in the oil, moisture will not be released due to pressure reflux, long-term reduction of oil moisture content

Reusability: Clean with clean water and ultrasonic waves 8-12 times to restore flux, significantly reducing consumable costs

Anti static: The metal as a whole is naturally conductive, and there is no static adsorption or dust blockage problem

Working temperature: -25 ℃~+110 ℃

Adaptation: Mineral hydraulic oil, gear lubricating oil, water ethylene glycol refractory fuel

Prohibited: Phosphate ester EH fireproof and fire-resistant oil
