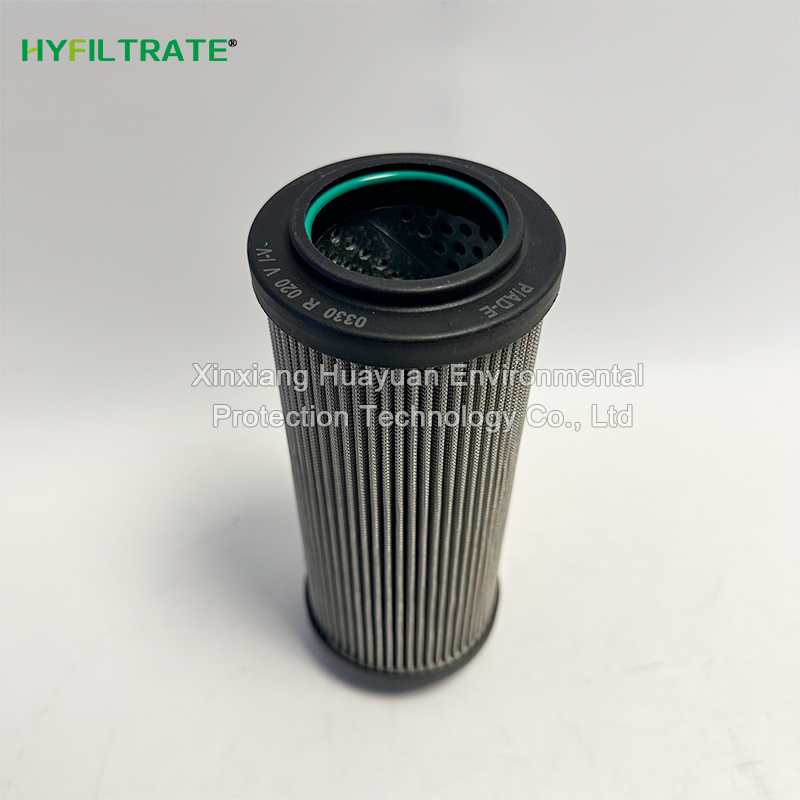

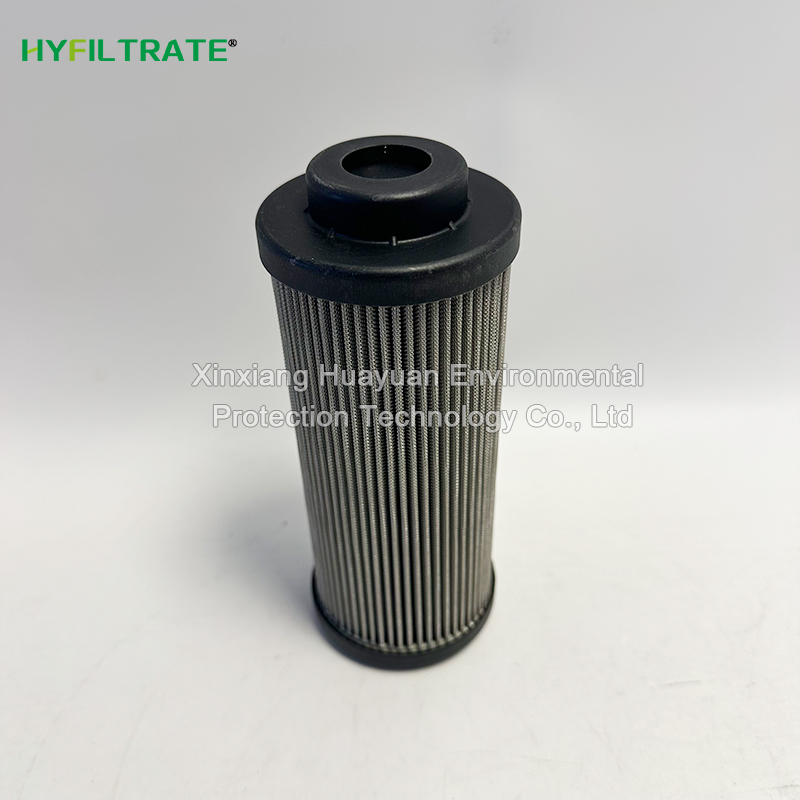

Replace HYDAC 313921 0330 R 020 V/- V hydraulic oil filter element

Description:: Replacing HYDAC 313921 0330 R 020 V/- V P/AD-E hydraulic oil filter element, it

Share With:

Replacing HYDAC 313921 0330 R 020 V/- V P/AD-E Hydraulic oil filter element, it can intercept all worn metal particles, rust, sealant residue, and oil sludge impurities in the system, serving as the last filtering barrier of the system, continuously purifying all return oil, and protecting the overall life of the oil pump and valve group. Fiberglass comes with anti-static treatment, which greatly reduces the static adsorption and accumulation speed of colloids and impurities, and the pressure difference rises smoothly. And the filter element comes with an integrated bypass structure, which ensures that the oil circuit will not be cut off during low-temperature cold start or when the filter element is clogged and saturated. The equipment does not need to be shut down for maintenance, and is suitable for 24-hour unmanned continuous operation of power plants, metallurgy, and engineering machinery to avoid system overload and pipeline pressure rise faults.

Applicable locations:

Power industry: turbine oil lubrication station, wind power gearbox, power plant hydraulic control system

Metallurgical industry: hydraulic return oil circulation system for rolling mills and continuous casting equipment

General industry: large and medium-sized hydraulic stations, injection molding machines, die-casting equipment, CNC machine tools

Construction machinery: mining equipment, lifting machinery, mobile hydraulic units

Other scenarios: Ship hydraulic system, hydraulic test bench, rubber and plastic machinery return oil filtration

Related models:

0330R020V/-V、0330R010V/-V、0330R020ON/-V、0240R010ON/-V、0500R020V/-V

0660R010ON/-V、0850R020V/-V、1300R010ON/-V、2600R0 20V/-V、0160R020V/-V

0330D010ON/-V、0950R010BN4HC/-V、0330R040AM/-V、0500R050W/HC/-V、1300R200W/HC/-V

Technical data

Replace HYDAC 313921 0330 R 020 V/- V P/AD-E hydraulic oil filter element

Filtering accuracy: 20 μ m absolute filtering accuracy, β ₂₀ ≥ 200

Filter material: Multi layer composite fiberglass material (high-efficiency fiberglass specifically designed for low-voltage systems)

Working temperature: -30 ℃~+110 ℃

Medium adaptation: mineral hydraulic oil, gear lubricating oil, water ethylene glycol flame retardant fluid

Why choose HYFILTRATE?

1. High quality filtration materials: We strictly select high-quality materials such as glass fiber and stainless steel metal mesh to ensure filtration efficiency and long service life.

2. Compliant with industry standards: The product meets user needs, is compatible with most hydraulic systems, and has excellent quality.

3. Customizable: We can provide customized solutions based on your various models and brands, as well as replacement requirements under different working conditions.

4. Cost effectiveness: The factory directly supplies, crosses intermediaries, and reduces procurement costs while maintaining excellent quality.
