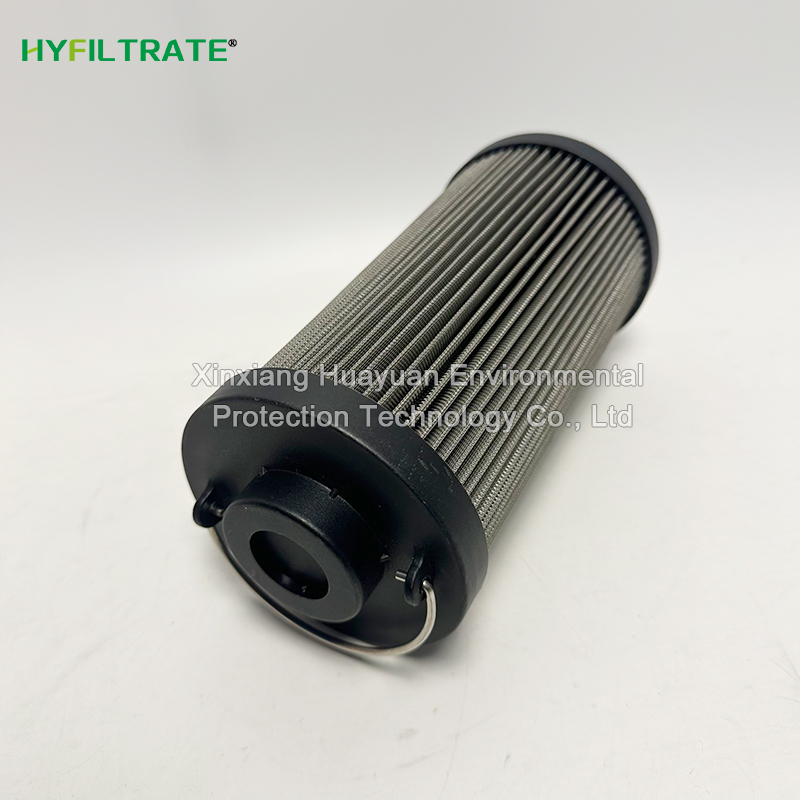

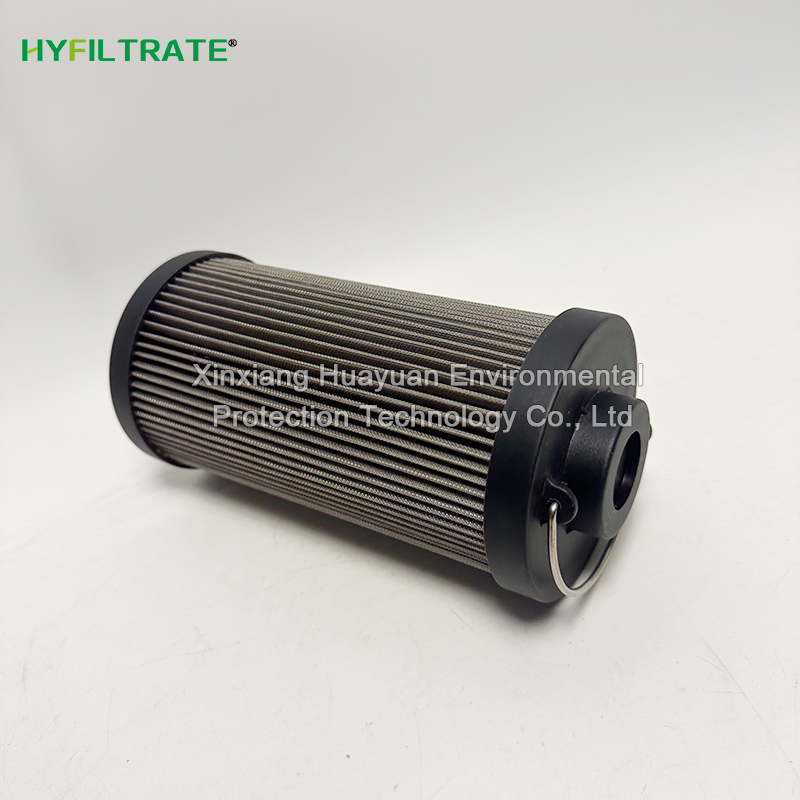

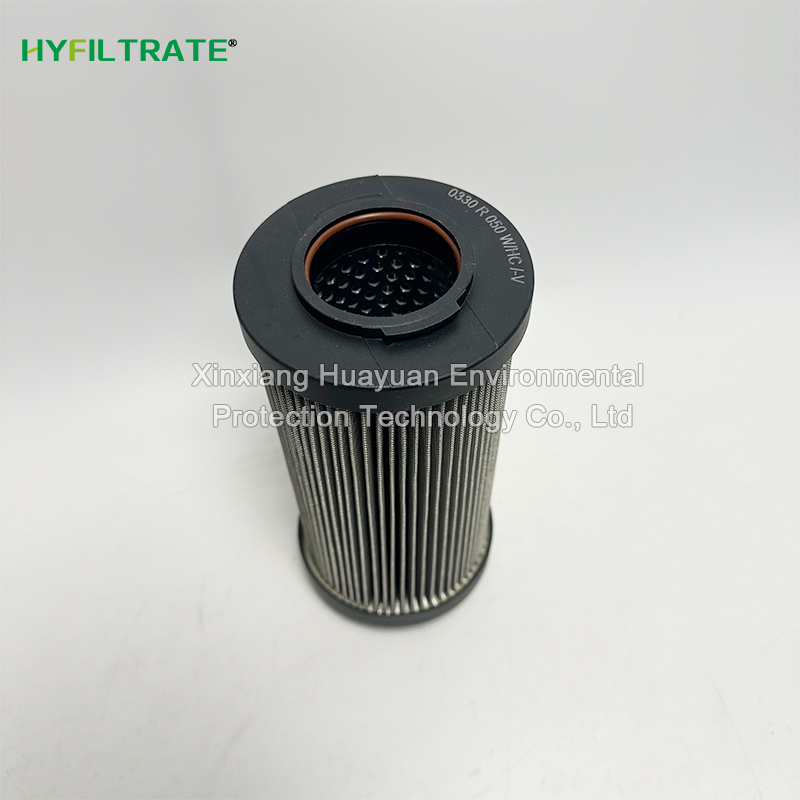

Replace HYDAC 1278341 0330 R 050 W/HC/- V hydraulic oil filter element-Huayuan Environmental Protection Technology Co., Ltd.

The stainless steel braided filter mesh of Replace HYDAC 1278341 0330 R 050 W/HC/- V Hydraulic oil filter element has excellent permeability and can intercept large pollutants such as welding slag and rust hard blocks, providing pre protection for downstream Precision filter components. After cleaning, the filter can be reused multiple times, continuously reducing long-term consumables investment. The cylinder structure has sufficient rigidity and can adapt to the continuous fluctuation of fluid impact in the return oil pipeline. The overall appearance is neat and compact, which facilitates the internal layout of the fuel tank, maintains smooth oil flow, and reduces sudden failures such as oil pump scratches caused by large impurities.

Applicable locations:

In the field of construction machinery: hydraulic return systems for mining equipment and large mobile equipment

Energy industry: hydraulic circuits for wind turbines, lubricating oil pretreatment units

General manufacturing: large hydraulic workstations, die-casting equipment, heavy-duty machine tool circulating oil circuits

Metallurgical industry: auxiliary lubrication circuit for steel rolling equipment, pre coarse filtration of circulating oil

Other scenarios include ship lubrication systems, industrial fluid circulation crude purification devices

Same shell universal filter element:

0330 R 025 W/HC/-V、0330 R 100 W/HC/-V、0330 R 010 ON/-V、0330 R 020 BN4HC/-V

Tip: W/HC Metal Filter supports cleaning and reuse; ON and BN4HC are disposable fiberglass filter materials with significant differences in filtration capacity and pressure difference performance, and cannot be interchanged arbitrarily.

Packaging and Transportation:

Packaging: Internally packaged in plastic bags, externally packaged in cardboard boxes

Transportation: pallets or wooden boxes

Specific requirements can be based on the customer's specific needs

Related models:

0330 R 050 W/HC/-V、0330 R 025 W/HC/-V、0330 R 100 W/HC/-V、0330 R 010 W/HC/-V、0330 R 020 W/HC/-V

0330 R 010 ON/-V、0330 R 005 BN4HC/-V、0330 R 010 BN4HC/-V、0330 R 020 BN4HC/-V、0330 R 040 BN4HC/-V

0240 R 050 W/HC/-V、0240 R 025 W/HC/-V、0240 R 010 ON/-V、0450 R 050 W/HC/-V、0450 R 010 BN4HC/-V

Technical data

Replace HYDAC 1278341 0330 R 050 W/HC/- V hydraulic oil filter element

Product Type: Stainless Steel Braided Mesh Hydraulic Filter Cartridge for Oil Return Pipeline

Filter material configuration: multi-layer stainless steel woven filter media, fluid is filtered from the outside to the inside

Filtering accuracy: 50 μ m, intercepting coarse and hard solid impurities in the fluid

Capable of withstanding a maximum pressure difference of 10 bar to prevent the filter screen from being compressed, twisted, or damaged

Sealing material: FPM fluororubber sealing ring, resistant to various chemical industrial fluids

Suitable working range: -25 ℃ to+110 ℃

Supporting structure: Galvanized steel punched inner and outer sleeves, buffering continuous fluid impact

Suitable fluids: mineral hydraulic oil, circulating lubricating oil, and some synthetic flame retardant media

Why choose HYFILTRATE?

1. High quality filtration materials: We strictly select high-quality materials such as glass fiber and stainless steel metal mesh to ensure filtration efficiency and long service life.

2. Compliant with industry standards: The product meets user needs, is compatible with most hydraulic systems, and has excellent quality.

3. Customizable: We can provide customized solutions based on your various models and brands, as well as replacement requirements under different working conditions.

4. Cost effectiveness: The factory directly supplies, crosses intermediaries, and reduces procurement costs while maintaining excellent quality.
