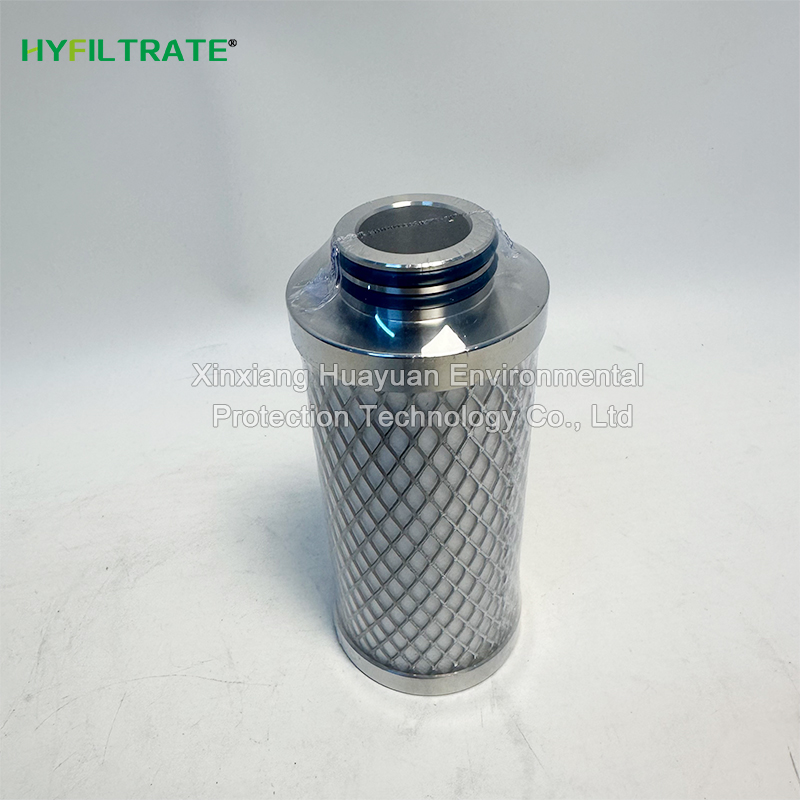

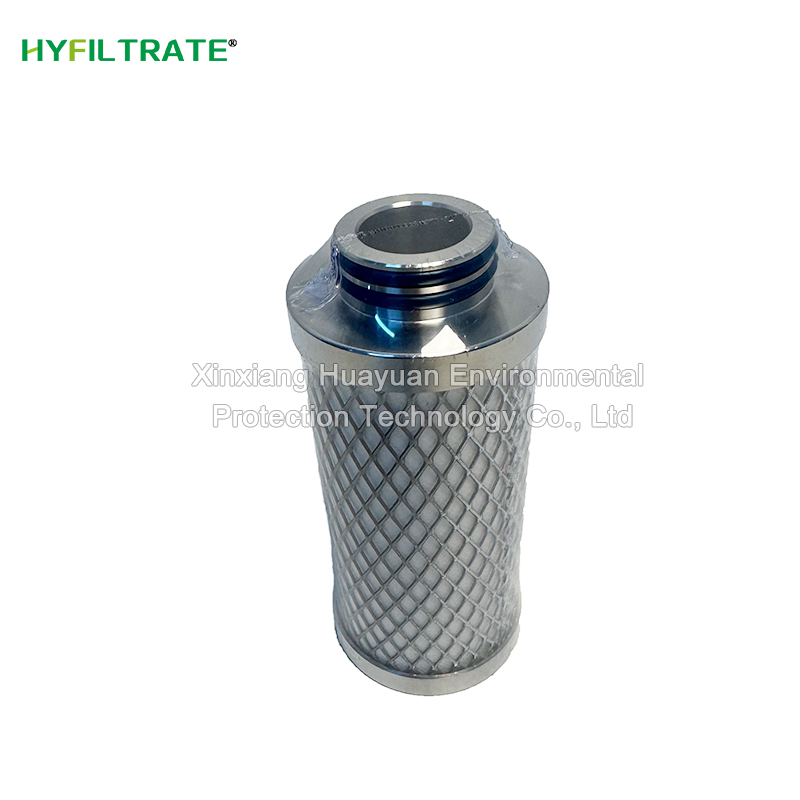

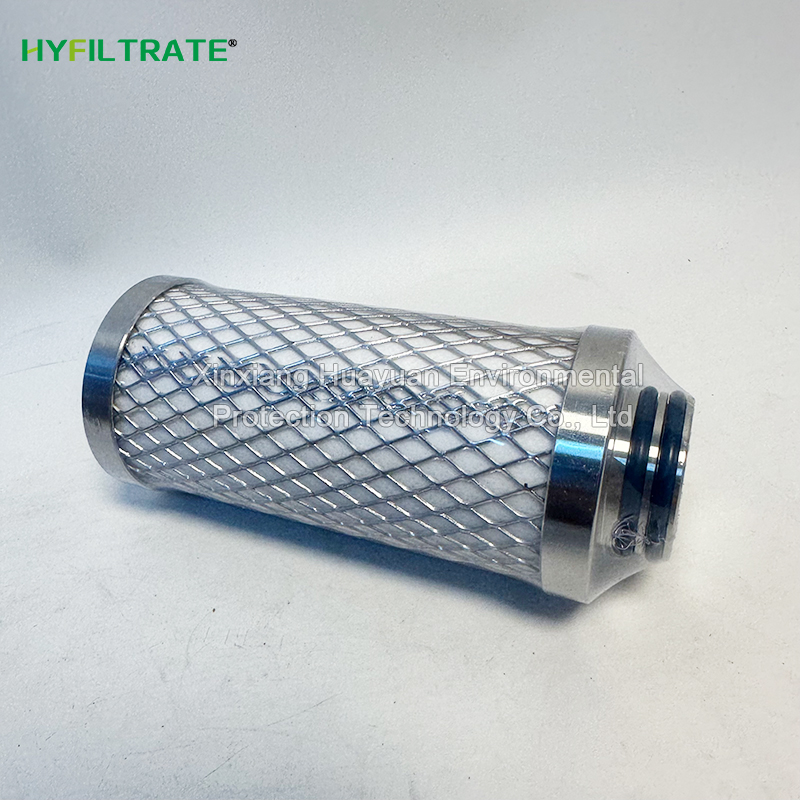

Replace Donaldson P-SRF II 05/25 air compressor filter element

Description:

Replace Donaldson P-SRF II 05/25 air compressor filter element using non adhesiv

Model: P-SRF II 05/25

Brand: HYFILTRATE

Filtration accuracy: 0.2μm

Size: standard size

Share With:

Replace Donaldson P-SRF II 05/25 Air Compressor Filter element using non adhesive borosilicate deep layer filter material, with a 0.2 μ m sterilization accuracy that can efficiently retain bacteria, viruses, and submicron particles. The logarithmic attenuation value (LRV) of bacterial retention is greater than 7, which can stably ensure the cleanliness of process gases; The 304 stainless steel skeleton has a temperature resistance of up to 150 ℃ and can withstand multiple steam sterilization and hydrogen peroxide disinfection conditions. It has excellent mechanical strength and no risk of fiber shedding; The material meets the food and pharmaceutical grade compliance standards, with a foldable structure that has low flow resistance and large dirt holding capacity. When combined with a plug-in interface, it is easy to disassemble and assemble, effectively reducing production pollution risks and long-term operation and maintenance costs.

Technical data

Replace Donaldson P-SRF II 05/25 air compressor filter element

Filter material: Adhesive free borosilicate deep layer filter material, PTFE reinforced support

Filtration accuracy: 0.2 μ m sterilization grade, bacterial retention logarithmic decay value LRV>7

Maximum operating temperature: 150 ℃

Maximum withstand pressure difference: 5 bar

Structure: 304 stainless steel internal and external support skeleton

Applicable media: compressed air, process gas, sterile protective gas
