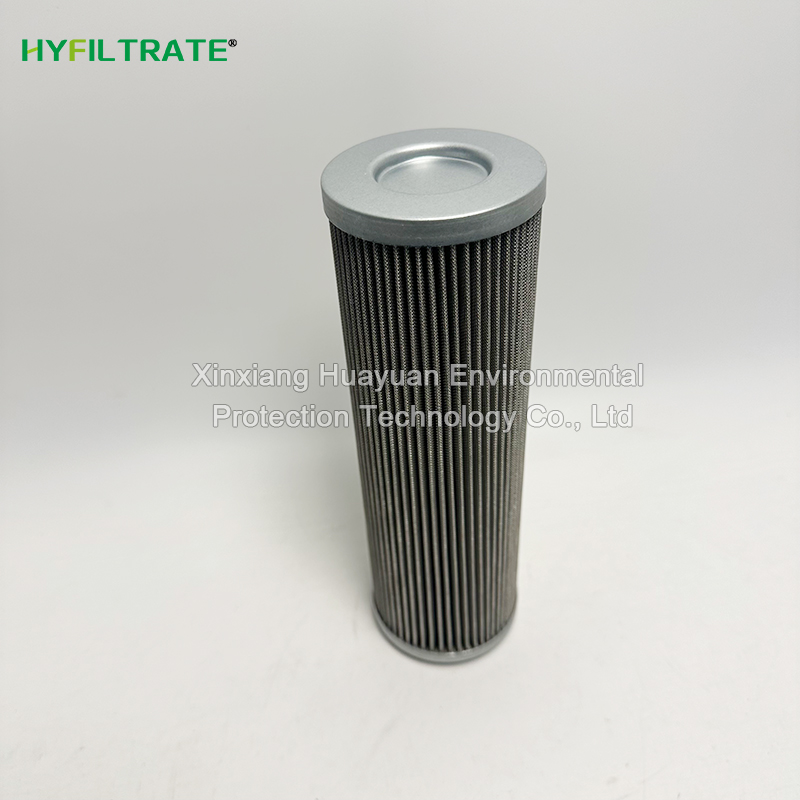

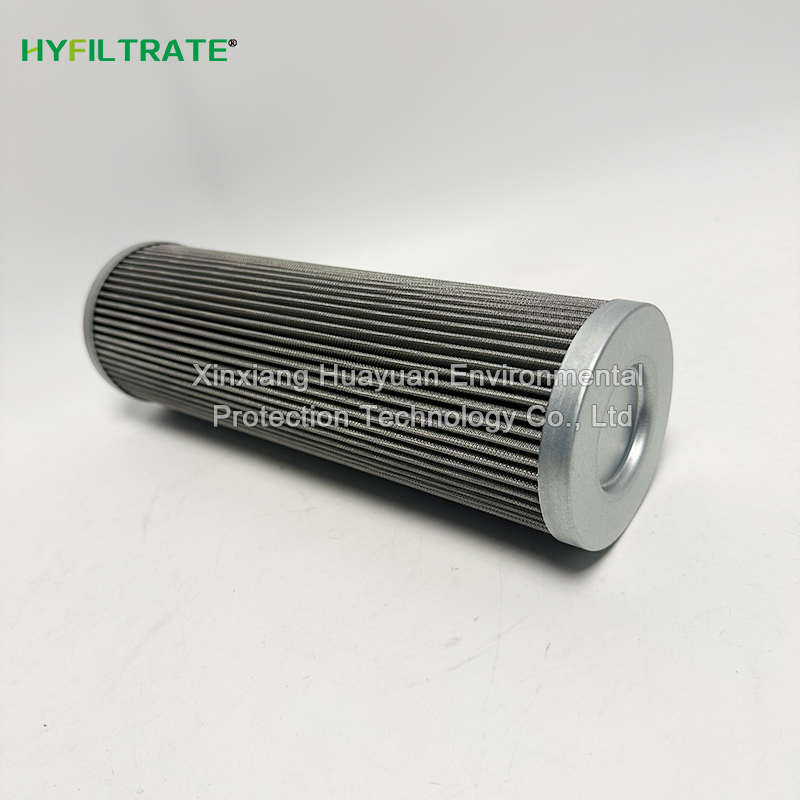

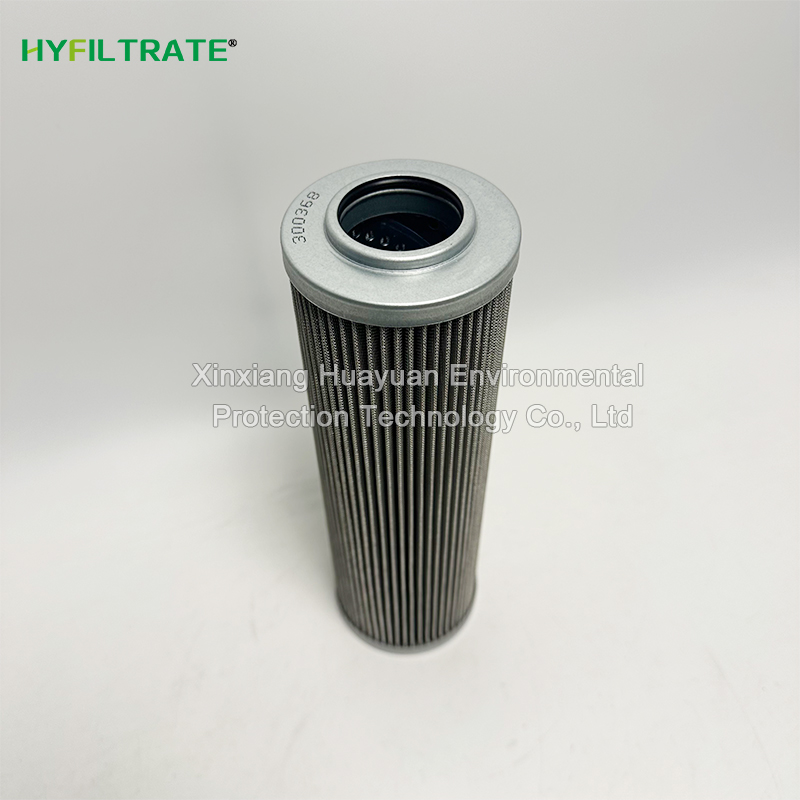

Replace EATON 300368 01.NL 250.25VG. 30. E.P hydraulic oil filter element-Huayuan Environmental Protection Technology Co., Ltd.

The multi-layer pleated filter layer of Replace EATON 300368 01 NL 250.25VG. 30. E.P Hydraulic oil filter element has sufficient space for dirt containment, continuously blocking hard particles and rust impurities inside the fluid, reducing the risk of downstream precision components being hit and scratched. The stainless steel support cylinder enhances the overall structural strength and can withstand long-term load changes caused by pressure fluctuations. The sealed end cap structure is tight, reducing the risk of medium leakage. Abundant flow area and stable fluid resistance help prolong the service life of the filter element and ensure the stable and continuous operation of the entire fluid power system.

Applicable locations:

Energy sector: hydraulic drive unit for wind turbines, lubricating oil circulation purification device

Metallurgical industry: Hot rolling production line, continuous casting equipment auxiliary hydraulic circulation pipeline

Engineering equipment: shield tunneling equipment, mining machinery, large lifting equipment oil circuit

Intelligent manufacturing: medium-sized hydraulic workstations, heavy-duty presses, universal machine tool hydraulic systems

Other scenarios include ship auxiliary hydraulic devices, industrial lubrication cycle pre-processing units

Same shell universal filter element:

01.NL 250.10VG.30.E.P、01.NL 250.6VG.30.E.P、01.NL 250.25G.30.E.P、01.NL 250.16VG.30.E.P

Tip: VG series is a disposable fiberglass Precision filter element; The G model belongs to the washable Metal Filter screen, and there is a significant difference in capturing ability and pressure difference performance, so it cannot be used interchangeably.

Packaging and Transportation:

Packaging: Internally packaged in plastic bags, externally packaged in cardboard boxes

Transportation: pallets or wooden boxes

Specific requirements can be based on the customer's specific needs

Related models:

01.NL 250.25VG.30.E.P、01.NL 250.10VG.30.E.P、01.NL 250.6VG.30.E.P、01.NL 250.16VG.30.E.P、01.NL 250.25G.30.E.P

01.NL 160.25VG.30.E.P、01.NL 160.10VG.30.E.P、01.NL 160.6VG.30.E.P、01.NL 160.16VG.30.E.P、01.NL 160.25G.30.E.P

01.NL 400.25VG.30.E.P、01.NL 400.10VG.30.E.P、01.NL 400.6VG.30.E.P、01.NL 400.16VG.30.E.P、01.NL 400.25G.30.E.P

Technical data

Replace EATON 300368 01.NL 250.25VG. 30. E.P hydraulic oil filter element

Product Type: Folding Fiberglass Hydraulic Filter Cartridge for Medium Pressure Pipeline

Filter material configuration: Multi layer gradient pore glass fiber composite medium, fluid is filtered from the outside to the center

Filtration accuracy: 25 μ m, intercepting medium-sized solid pollutants in the fluid

Capable of withstanding maximum pressure difference: 30bar, effectively resisting compression deformation, tearing and damage of the filter layer

Sealing material: NBR nitrile rubber sealing ring, suitable for various industrial hydraulic media

Suitable working range: -30 ℃ to+110 ℃

Supporting structure: perforated stainless steel inner and outer protective sleeves, buffering system for frequent pressure shocks

Suitable fluids: mineral hydraulic oil, industrial circulating lubricating oil, water ethylene glycol flame retardant medium

Why choose HYFILTRATE?

1. High quality filtration materials: We strictly select high-quality materials such as glass fiber and stainless steel metal mesh to ensure filtration efficiency and long service life.

2. Compliant with industry standards: The product meets user needs, is compatible with most hydraulic systems, and has excellent quality.

3. Customizable: We can provide customized solutions based on your various models and brands, as well as replacement requirements under different working conditions.

4. Cost effectiveness: The factory directly supplies, crosses intermediaries, and reduces procurement costs while maintaining excellent quality.
