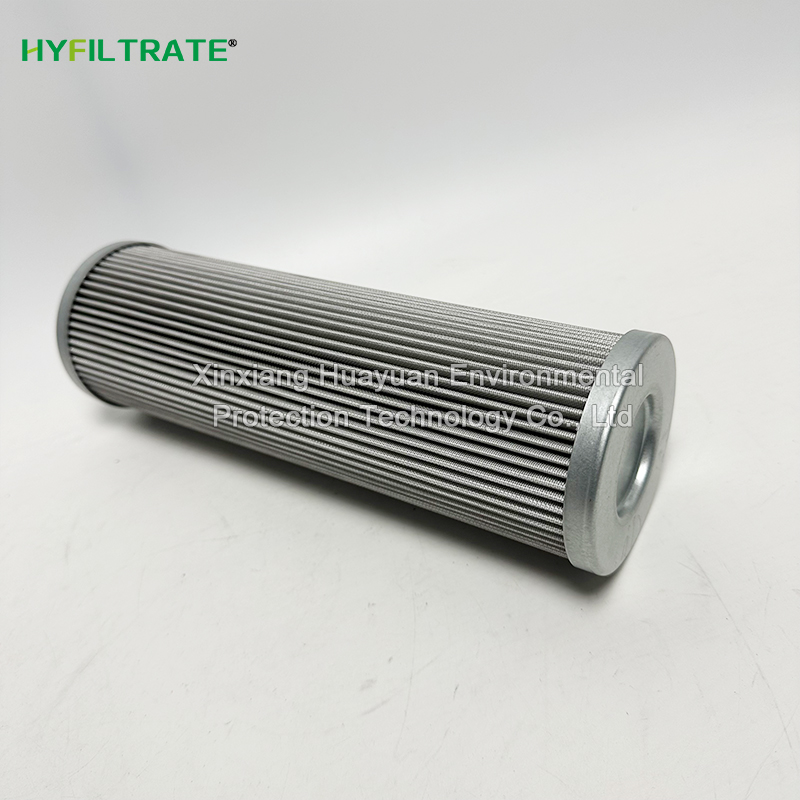

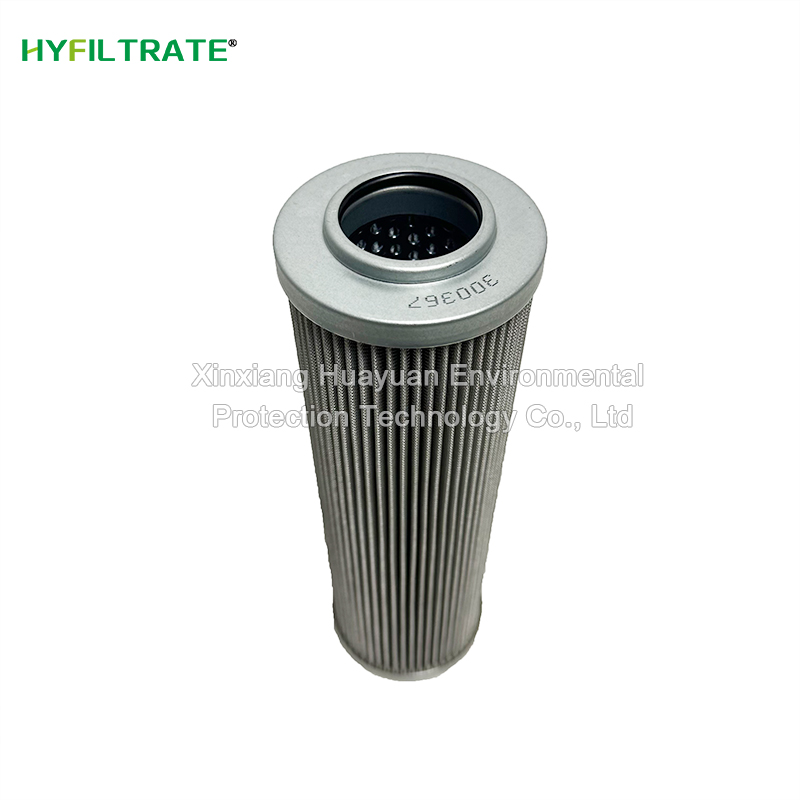

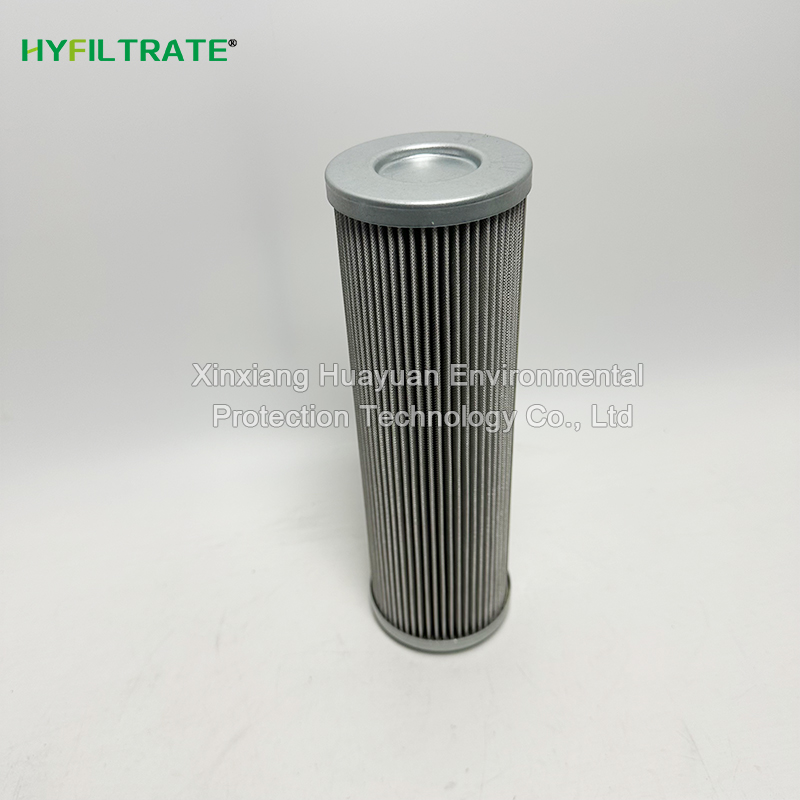

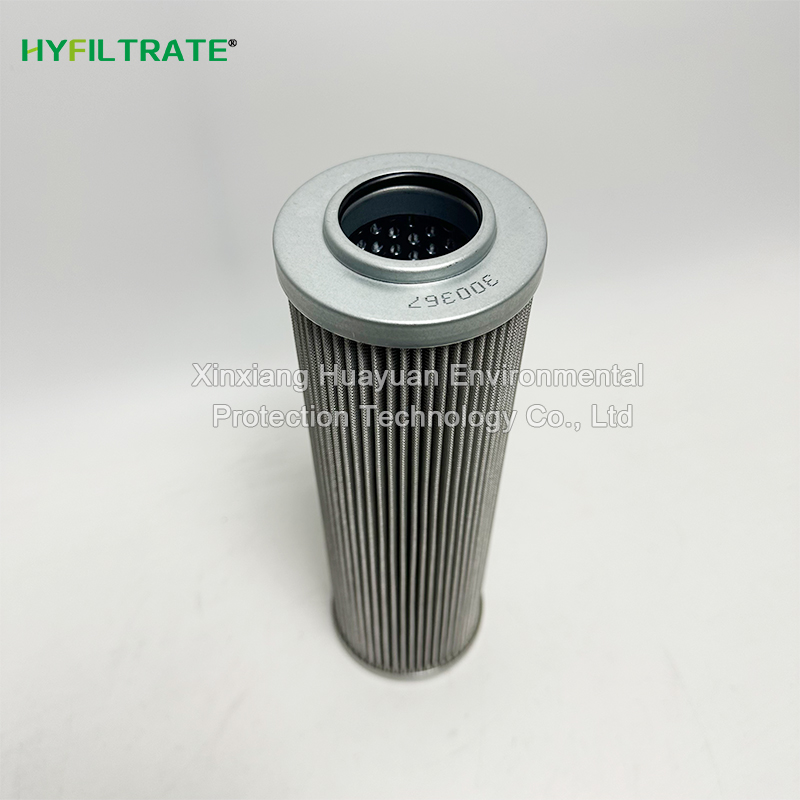

Replace EATON 300367 01.NL 250.10VG.30.E.P hydraulic oil filter element-Huayuan Environmental Protection Technology Co., Ltd.

Replace EATON 300367 01. NL 250.10VG.30. E.P Hydraulic oil filter element has sufficient dirt holding capacity, continuously capturing metal debris, rust deposits, and gum impurities inside the fluid, stabilizing the cleanliness level of the oil circuit, and reducing the probability of wear and jamming of various precision hydraulic components. The double-layer stainless steel support cylinder strengthens the structural strength of the filter element and maintains stable shape under continuous alternating pressure conditions. The integrated sealed end cap reduces the risk of medium leakage, and the compact and flexible cylinder layout effectively extends the operation and maintenance interval, ensuring the long-term stable operation of the entire fluid power system.

Applicable locations:

Energy sector: Hydraulic control system for wind turbines, lubricating oil purification device

Metallurgical industry: High pressure hydraulic circulation circuit in hot rolling production lines and continuous casting units

Engineering equipment: shield tunneling equipment, mining machinery, main control oil circuit of large lifting machinery

Intelligent manufacturing: centralized hydraulic workstation, die-casting unit, high-precision CNC machining equipment

Other scenarios include ship auxiliary hydraulic systems and mobile industrial fluid lubrication circulation devices

Packaging and Transportation:

Packaging: Internally packaged in plastic bags, externally packaged in cardboard boxes

Transportation: pallets or wooden boxes

Specific requirements can be based on the customer's specific needs

Related models:

01.NL 250.10VG.30.E.P、01.NL 250.6VG.30.E.P、01.NL 250.16VG.30.E.P、01.NL 250.25VG.30.E.P、01.NL 250.25G.30.E.P

01.NL 160.10VG.30.E.P、01.NL 160.6VG.30.E.P、01.NL 160.16VG.30.E.P、01.NL 160.25VG.30.E.P、01.NL 160.25G.30.E.P

01.NL 400.10VG.30.E.P、01.NL 400.6VG.30.E.P、01.NL 400.16VG.30.E.P、01.NL 400.25VG.30.E.P、01.NL 400.25G.30.E.P

Technical data

Replace EATON 300367 01.NL 250.10VG.30.E.P hydraulic oil filter element

Product Type: Folding Fiberglass Hydraulic Filter Cartridge for Medium Pressure Pipeline

Filter material configuration: multi-layer gradient porous borosilicate glass fiber composite medium, fluid flow direction from outside to inside

Filtering accuracy: 10 μ m, deeply capturing fine solid particles in oil

Capable of withstanding maximum pressure difference: 30bar, effectively resisting deformation and tearing of the filter layer under compression

Sealing material: NBR nitrile rubber sealing ring, suitable for various conventional hydraulic media

Suitable working range: -30 ℃ to+110 ℃

Supporting structure: perforated stainless steel inner and outer protective sleeves, buffering system pressure fluctuations frequently

Suitable fluids: mineral hydraulic oil, industrial circulating lubricating oil, water ethylene glycol flame retardant medium

Why choose HYFILTRATE?

1. High quality filtration materials: We strictly select high-quality materials such as glass fiber and stainless steel metal mesh to ensure filtration efficiency and long service life.

2. Compliant with industry standards: The product meets user needs, is compatible with most hydraulic systems, and has excellent quality.

3. Customizable: We can provide customized solutions based on your various models and brands, as well as replacement requirements under different working conditions.

4. Cost effectiveness: The factory directly supplies, crosses intermediaries, and reduces procurement costs while maintaining excellent quality.
