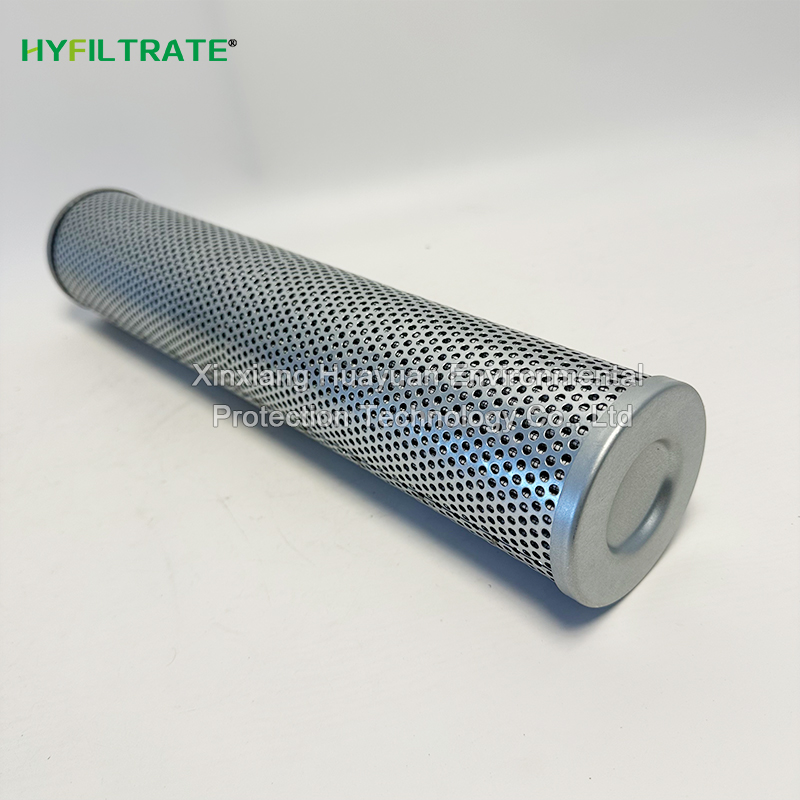

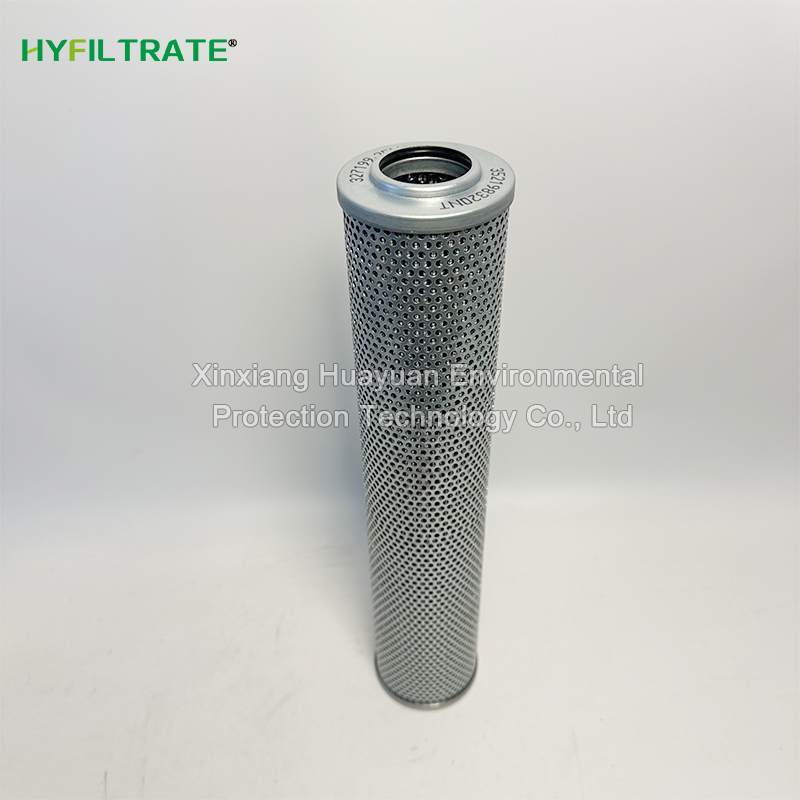

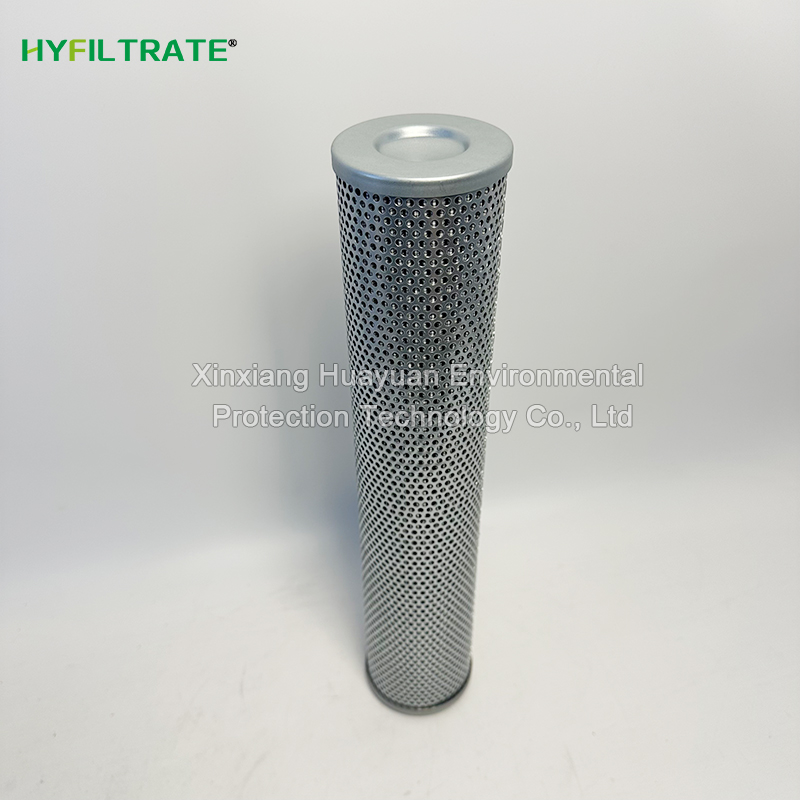

Replace EATON 32702-40G 01NL.400.34420.40G.30.E.HNBR.ISO9 hydraulic oil filter e
Model: 32702-40G
Filtration Accuracy: 40μm
Brand: HYFILTRATE
Material: stainless steel
Outer diameter: 112mm
High: 344mm
Replace EATON 32702-40G 01NL.400.34420.40G.30.E.HNBR.ISO9 Hydraulic oil filter element is suitable for pre-protection filtration in hydraulic systems, effectively intercepting welding slag, rust particles, and hard impurities, reducing the load on downstream high-precision fiberglass filter cartridges. The Metal Filter screen has high mechanical strength and is not easily damaged under flow pulsation conditions, eliminating fiber shedding and oil path contamination. The HNBR seal is suitable for water-containing and synthetic medium conditions, providing a wider range of applicable scenarios. The filter screen can be cleaned and reused multiple times, reducing long-term consumable investment. It is widely used in metallurgy, large hydraulic stations, shield equipment, and wind power oil circuits, protecting servo valves and piston pumps, and extending the maintenance cycle of the entire filtration system.
Power industry: wind power hydraulic system, steam turbine lubrication station
Metallurgical industry: high-pressure hydraulic circulation system in rolling mills and continuous casting units
Construction machinery: shield machine, large mining machine, main control hydraulic system of lifting equipment
General industry: large hydraulic stations, die-casting equipment, CNC machine tools
Other scenarios include ship hydraulic systems, lubricating oil stations, and hydraulic test benches
Packaging: Internally packaged in plastic bags, externally packaged in cardboard boxes
Transportation: pallets or wooden boxes
Specific requirements can be based on the customer's specific needs
32702-40G, 319183, 312266, 319179, 312262
319172, 312257, 319167, 327055, 312270
319188, 312274, 319175, 312260, 319185
Replace EATON 32702-40G 01NL.400.34420.40G.30.E.HNBR.ISO9 hydraulic oil filter element
Filter material: multi-layer folded stainless steel woven filter mesh; flow direction: from outside to inside
Filtration accuracy: 40μm; no fiber shedding, supports low-pressure cleaning and regeneration
Collapse resistance pressure difference: 30 bar
Seal: HNBR (hydrogenated nitrile butadiene rubber), compatible with aqueous media and synthetic hydraulic oil
Operating temperature: -20℃～+100℃
Support structure: galvanized steel punching reinforced frame
Compatible medium: mineral hydraulic oil, lubricating oil, water-glycol, fire-resistant hydraulic medium
1. High quality filtration materials: We strictly select high-quality materials such as glass fiber and stainless steel metal mesh to ensure filtration efficiency and long service life.
2. Compliant with industry standards: The product meets user needs, is compatible with most hydraulic systems, and has excellent quality.
3. Customizable: We can provide customized solutions based on your various models and brands, as well as replacement requirements under different working conditions.
4. Cost effectiveness: The factory directly supplies, crosses intermediaries, and reduces procurement costs while maintaining excellent quality.
