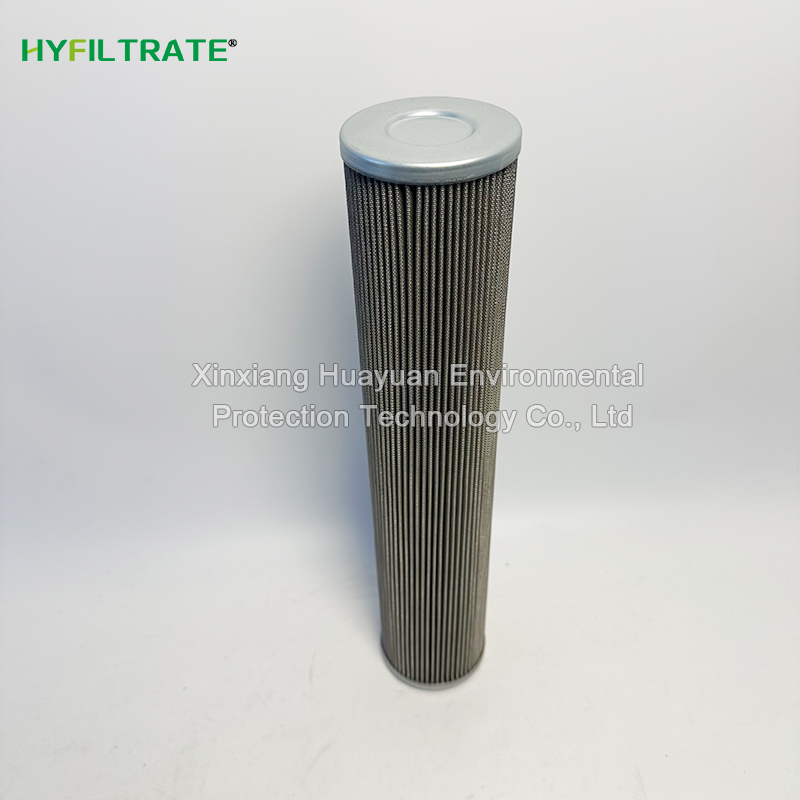

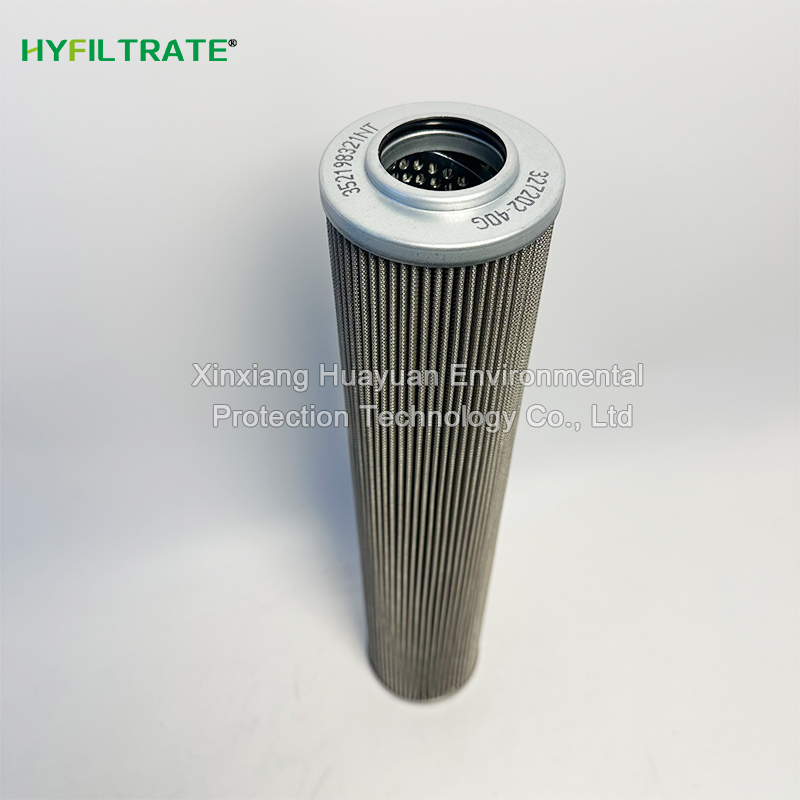

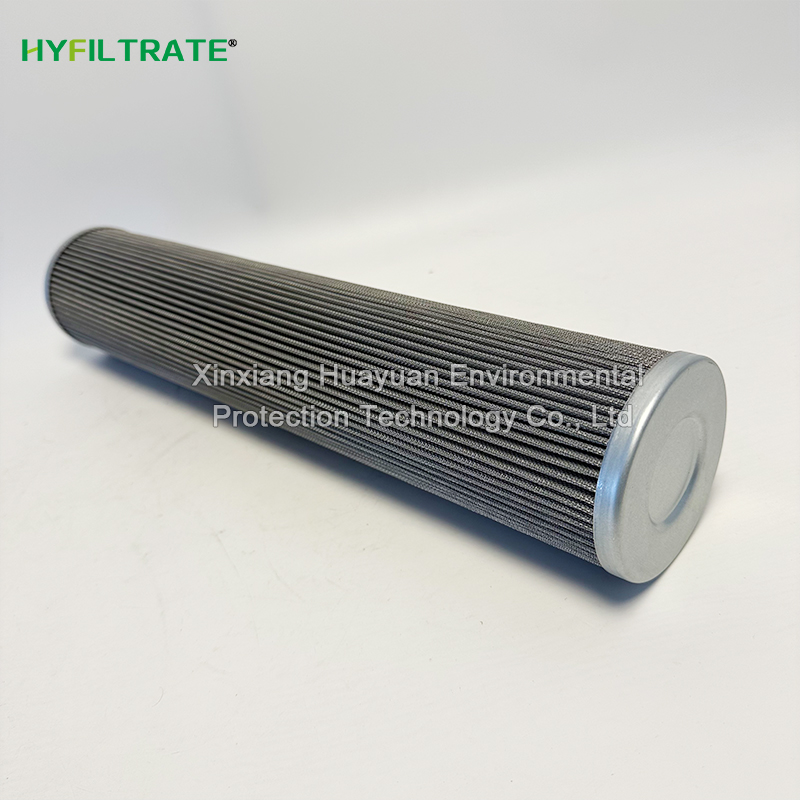

Replace EATON 327199-25VG 01NL.400.34419.25VG.30E.HNBR.ISO9 hydraulic oil filter element

Description:: Replace EATON 327199-25VG 01NL.400.34419.25VG.30E.HNBR.ISO9 hydraulic oil filter

Share With:

Replace EATON 327199-25VG 01NL.400.34419.25VG.30E.HNBR.ISO9 Hydraulic oil filter element. This element utilizes a gradient glass fiber structure to efficiently capture micro-metal debris, rust particles, and colloidal contaminants within the hydraulic oil, ensuring the cleanliness of the hydraulic system fluid and effectively protecting precision hydraulic components such as servo valves and piston pumps. The steel reinforced frame accommodates frequent pressure fluctuations, while the filter material boasts a large dirt holding capacity, a gradual pressure drop increase, and a stable service life. The HNBR seal is suitable for hydraulic media containing water and is flame-resistant, offering strong versatility. It is widely used in hydraulic circuits in metallurgy, wind power, shield tunneling, and CNC machine tools, reducing valve core sticking, component wear, and the risk of equipment downtime due to malfunctions.

Applicable places:

Power industry: wind power hydraulic system, steam turbine lubrication station

Metallurgical industry: high-pressure hydraulic circulation system in rolling mills and continuous casting units

Engineering machinery: shield machine, large mining machine, main control oil circuit of lifting equipment

General industry: large hydraulic stations, die-casting equipment, precision CNC machine tools

Other scenarios include ship hydraulic systems, lubricating oil stations, and hydraulic test benches

Packaging and Transportation:

Packaging: Internally packaged in plastic bags, externally packaged in cardboard boxes

Transportation: pallets or wooden boxes

Specific requirements can be based on the customer's specific needs

Related models:

327199-25VG, 312266, 312262, 312257, 312270

312274, 312260, 327197-10VG, 327195-6VG, 312254

312268, 312272, 312259, 312264, 327201-16VG

Technical data

Replace EATON 327199-25VG 01NL.400.34419.25VG.30E.HNBR.ISO9 hydraulic oil filter element

Filter material: multi-layer folded borosilicate fiberglass; flow direction: from outside to inside

Filtration accuracy: 25μm

Collapse resistance pressure difference: 30 bar

Seal: HNBR (hydrogenated nitrile butadiene rubber)

Operating temperature: -20℃～+100℃

Support structure: Galvanized steel punching reinforced frame, capable of withstanding continuous pressure fluctuations

Compatible medium: mineral hydraulic oil, lubricating oil, water-glycol, non-flammable hydraulic medium
