Replace EATON 01.54950. N VERSION 016 OELFEINABSCHEIDERPATRION 337315 hydraulic oil filter element-Huayuan Environmental Protection Technology Co., Ltd.

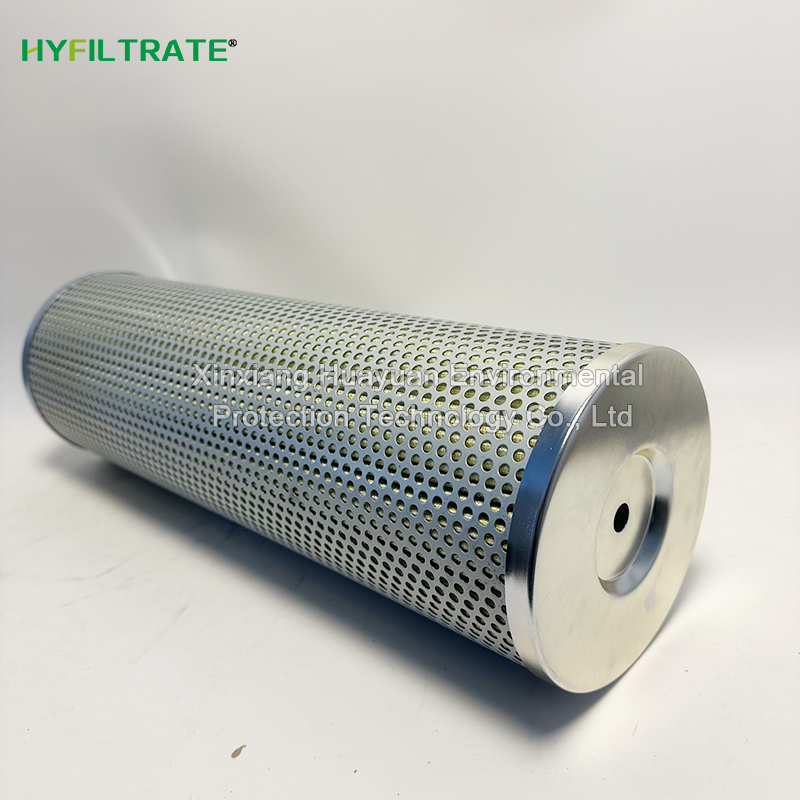

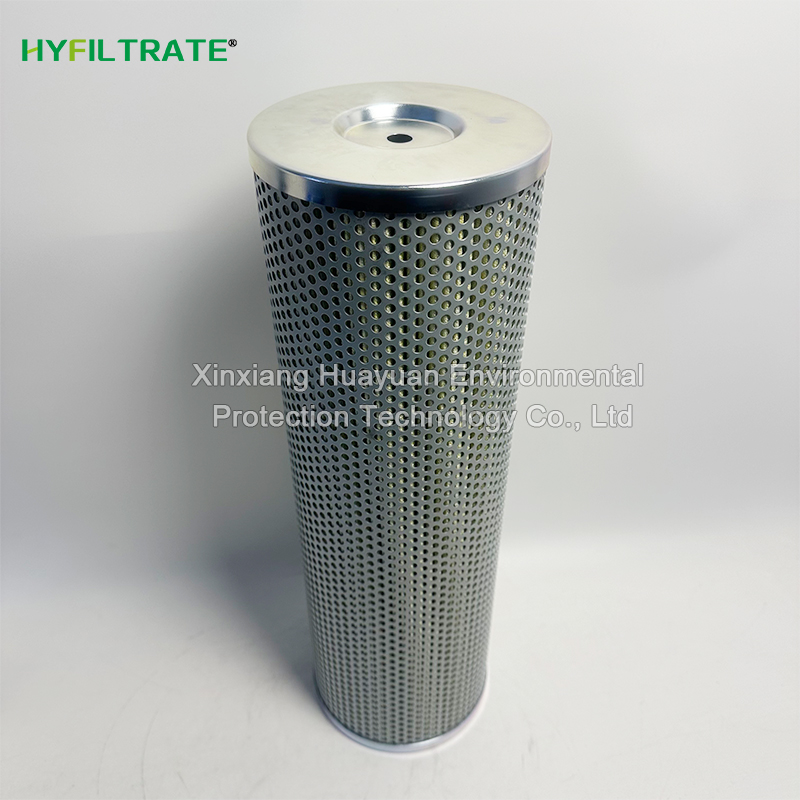

Replace EATON 01.54950. N VERSION 016 Hydraulic oil filter element adopts multi-layer gradient fiberglass filter material, with a precision of 16 μ m, which can stably intercept metal debris, oxidized sludge and gum impurities in the oil, continuously improve the cleanliness of the oil, and effectively protect core components such as gearbox, hydraulic pump, control valve, etc; The high-density folding structure provides a large filtering area and pollutant holding capacity, with a gentle increase in pressure difference and a longer service life; The reinforced metal skeleton can withstand high pressure differential impact, adapt to high pressure lubrication and hydraulic circuits, and has strong working stability; Compatible with multiple types of industrial fluids, standard size compatible with original filter housings, easy maintenance and replacement, can significantly reduce equipment wear and long-term maintenance costs.

Applicable locations:

Spray Processing Industry: Automated Spray Production Line Air Source Oil Removal and Purification Unit

Food and pharmaceutical industry: Process compressed air oil removal pipeline

In the field of electronic manufacturing: clean room gas supply, component blowing system

Laser processing industry: laser cutting, welding equipment, gas source treatment device

Post processing of air compression stations in other scenarios, precision air source systems in laboratories

Instructions for replacing filter element:

1) Same shell universal filter element (completely universal in external dimensions): 01.54940. N, 01.54960. N

Tip: Different types of filter materials and separation indicators have differences and cannot be interchanged arbitrarily.

2) Alternative model: ET54950N, with consistent external dimensions, structural parameters, and filtration indicators, available for selection reference.

3) Important reminder for replacement selection: The outer diameter, total length, and bottom end structure must match; Agglomeration filter material cannot be cleaned or regenerated; Regularly monitor the pressure difference and replace it promptly if the working conditions deteriorate.

Packaging and Transportation:

Packaging: Internally packaged in plastic bags, externally packaged in cardboard boxes

Transportation: pallets or wooden boxes

Specific requirements can be based on the customer's specific needs

Related models:

01.54950.N VERSION 016、01.54940.N、01.54960.N、01.54930.N、01.54970.N

337315, 337314, 337316, 337313, 337317

01.55010.N、01.55020.N、01.55030.N、01.55040.N、01.55050.N

Technical data

Replace EATON 01.54950. N VERSION 016 hydraulic oil filter element

Filter material: deep folded borosilicate glass fiber

Filtering accuracy: 16 μ m, β ₁₆ ≥ 100

Anti collapse pressure difference: 210 bar

Working temperature: -30 ℃~+110 ℃

Sealing material: Standard NBR nitrile rubber, optional fluororubber

Structure: Metal supported internal skeleton, oil flow direction from outside to inside

Suitable media: mineral oil, lubricating oil, phosphate ester fire-resistant oil, water ethylene glycol

Why choose HYFILTRATE?

1. High quality filtration materials: We strictly select high-quality materials such as glass fiber and stainless steel metal mesh to ensure filtration efficiency and long service life.

2. Compliant with industry standards: The product meets user needs, is compatible with most hydraulic systems, and has excellent quality.

3. Customizable: We can provide customized solutions based on your various models and brands, as well as replacement requirements under different working conditions.

4. Cost effectiveness: The factory directly supplies, crosses intermediaries, and reduces procurement costs while maintaining excellent quality.
