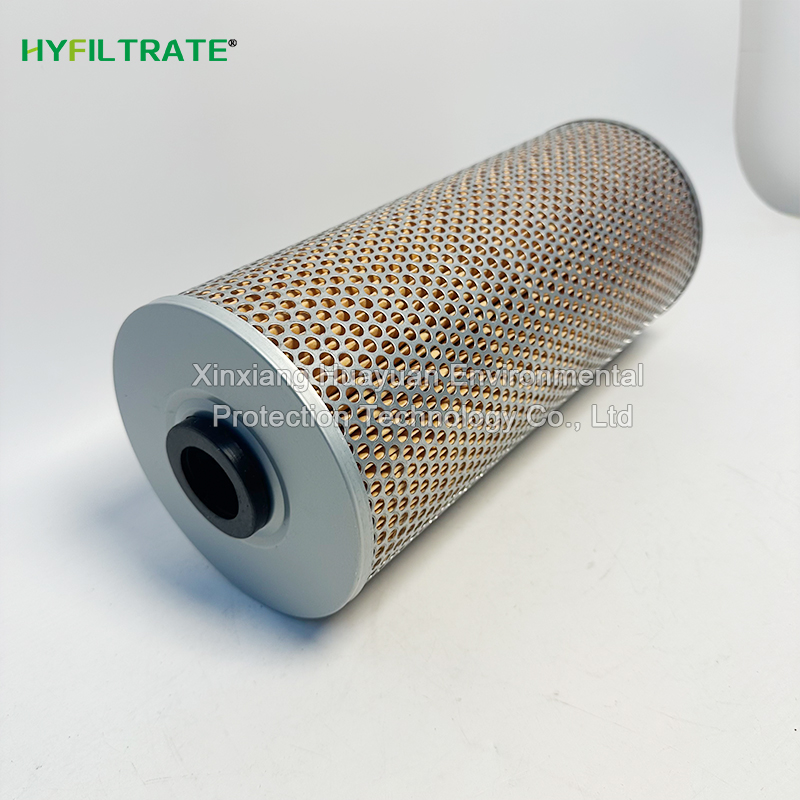

The paper gradient filter layer of Replace MAHLE 852 275 MIC 10 7.767.590.3 hydr
Model: 852 275 MIC 10 7.767.590.3
Filtration Accuracy: 10μm
Brand: HYFILTRATE
Material: fiberglass
Outer diameter: 150mm
High: 355mm
The paper gradient filter layer of Replace MAHLE 852 275 MIC 10 7.767.590.3 Hydraulic oil filter element has sufficient space for dirt containment, continuously capturing metal debris and rust deposits in the fluid, stabilizing the cleanliness of the oil, and reducing the risk of hydraulic component wear and jamming. The steel support sleeve reinforces the filter structure and can withstand conventional pressure fluctuations in the system. The integrated end cap ensures sealing effect and reduces medium leakage. The compact cylinder structure is suitable for various standard filter housings, effectively extending the operation and maintenance cycle, and ensuring the smooth and continuous operation of the entire fluid power system.
Energy sector: Hydraulic control system for wind turbines, lubricating oil purification device
Metallurgical industry: hydraulic circulation pipelines for hot rolling production lines and continuous casting units
Engineering equipment: shield tunneling equipment, mining machinery, large lifting machinery oil circuit
Intelligent Manufacturing: Hydraulic Workstation, Die Casting Unit, General Machine Tool Hydraulic System
Other scenarios include mobile hydraulic equipment, industrial lubrication circulation filtration units
1) Same shell universal filter element (completely universal in external dimensions): 852 275 MIC 25, 852 275 SMX10, 852 275 SMX25, 852 275 DRG25
Tip: Different types of filter materials and precision may vary and cannot be interchanged arbitrarily.
2) Alternative model: 852 275 MIC 10, with consistent external dimensions and structural parameters, available for selection reference.
3) Important reminder for replacement selection: The outer diameter, total length, and positioning inner hole size must match; Paper filter materials cannot be cleaned or regenerated; Regularly monitor the pressure difference and investigate the system pollution source when the pressure difference suddenly rises.
Packaging: Internally packaged in plastic bags, externally packaged in cardboard boxes
Transportation: pallets or wooden boxes
Specific requirements can be based on the customer's specific needs
852 275 MIC10、852 275 MIC25、852 275 SMX10、852 275 SMX25、852 275 DRG25
852 243 MIC10、852 243 MIC25、852 243 SMX10、852 243 SMX25、852 243 DRG25
852 286 MIC10、852 286 MIC25、852 286 SMX10、852 286 SMX25、852 286 DRG25

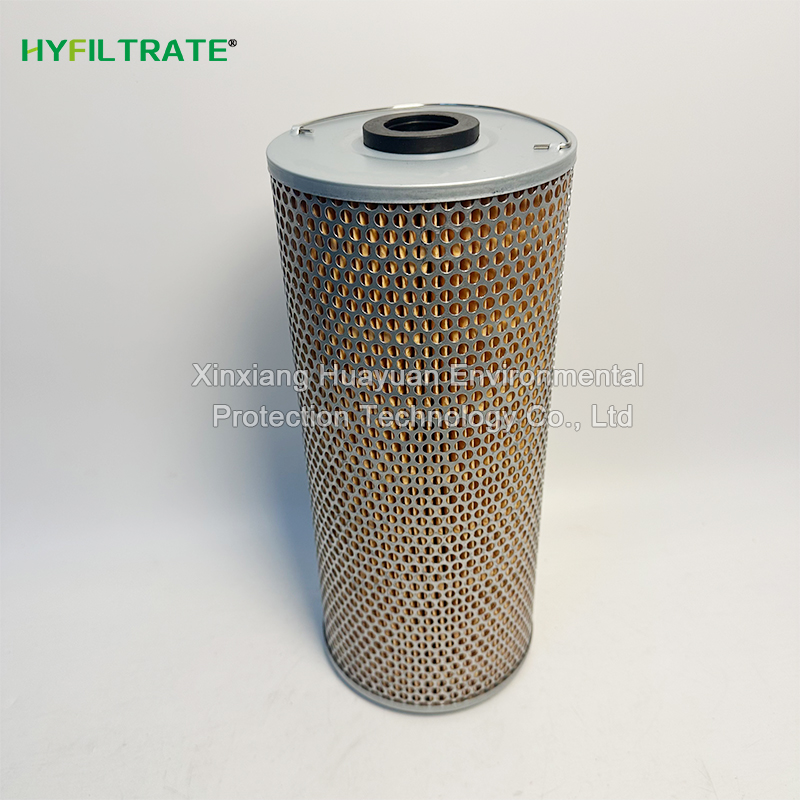

Replace MAHLE 852 275 MIC 10 7.767.590.3 hydraulic oil filter element
Product Type: Folding Paper Hydraulic Filter Cartridge for Pipeline
Filter material configuration: multi-layer paper deep filtration media, fluid is filtered from the outside to the inside
Filtering accuracy: 10 μ m, capturing solid particulate pollutants inside the oil circuit
Can withstand a maximum pressure difference of 21 bar to prevent deformation and damage to the filter layer under pressure
Sealing material: NBR nitrile rubber sealing ring, suitable for various industrial hydraulic fluids
Suitable working range: -25 ℃ to+110 ℃
Supporting structure: Galvanized punched steel inner and outer sleeves, buffering system for alternating pressure impact
Suitable fluids: mineral hydraulic oil, circulating lubricating oil, water ethylene glycol flame retardant medium
1. High quality filtration materials: We strictly select high-quality materials such as glass fiber and stainless steel metal mesh to ensure filtration efficiency and long service life.
2. Compliant with industry standards: The product meets user needs, is compatible with most hydraulic systems, and has excellent quality.
3. Customizable: We can provide customized solutions based on your various models and brands, as well as replacement requirements under different working conditions.
4. Cost effectiveness: The factory directly supplies, crosses intermediaries, and reduces procurement costs while maintaining excellent quality.
