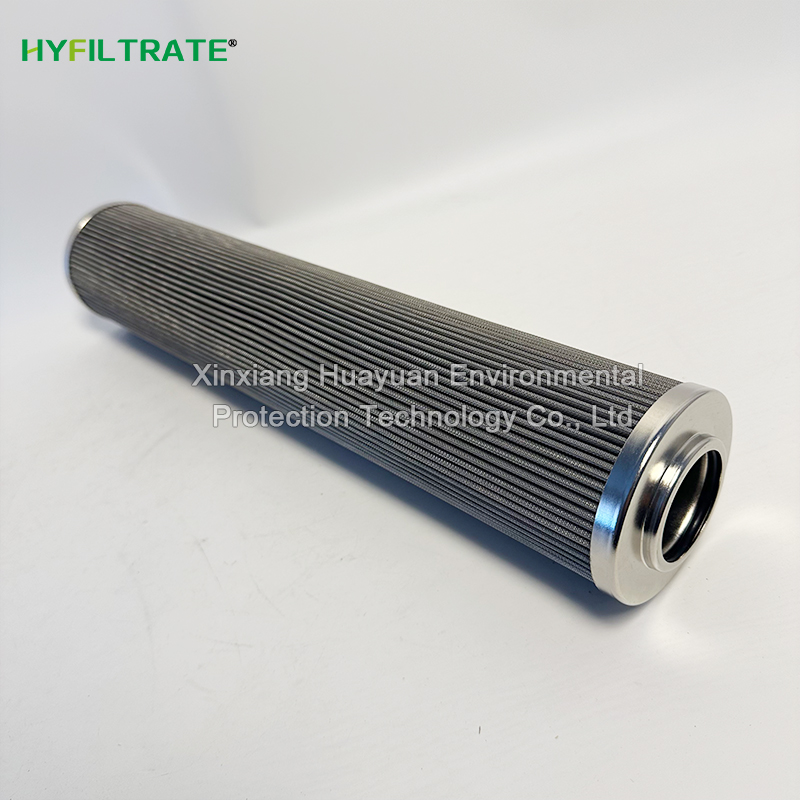

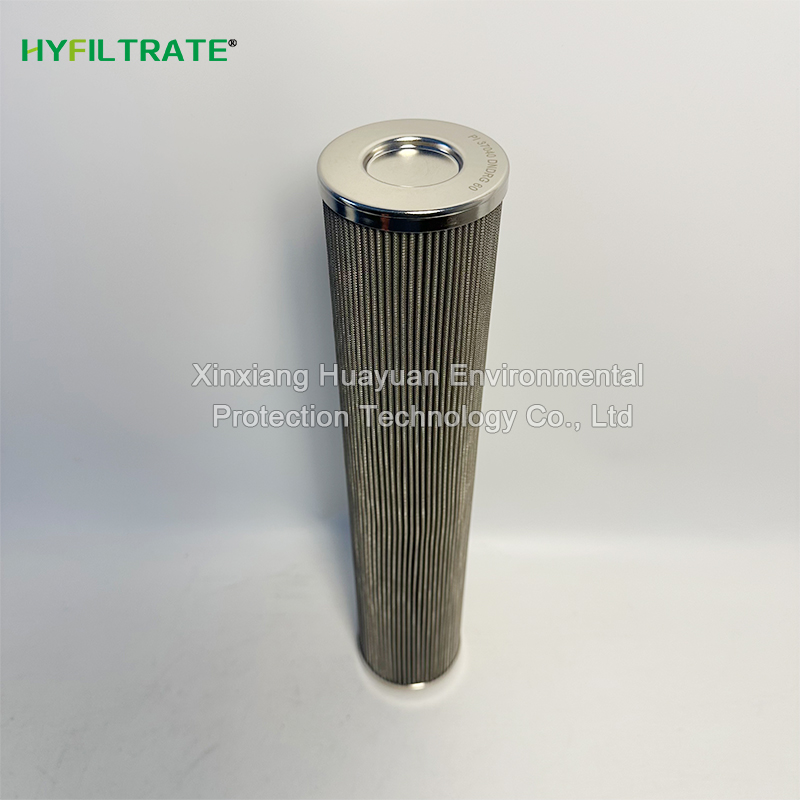

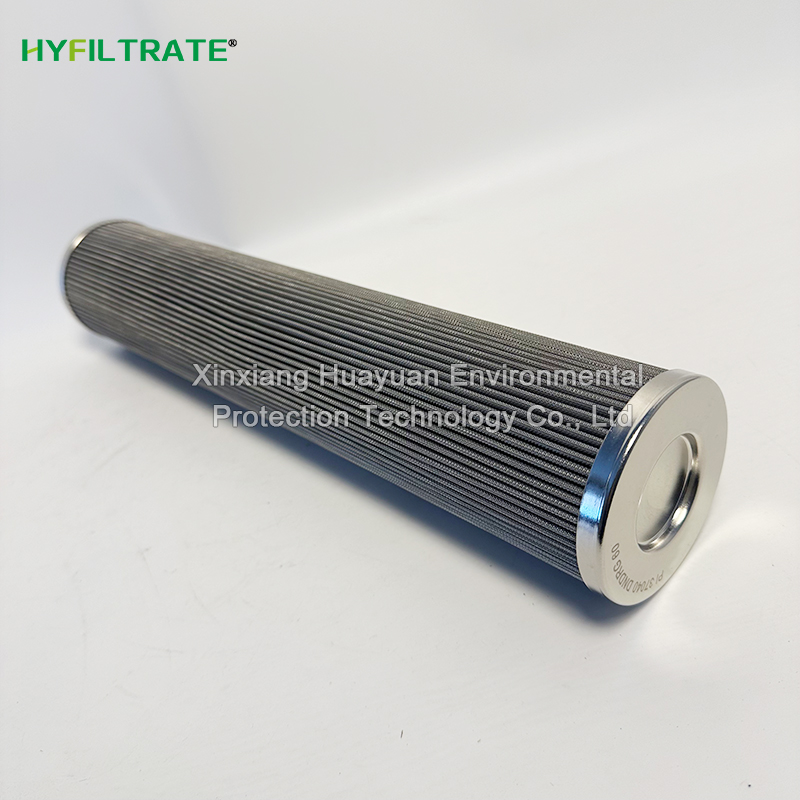

Replace MAHLE PI 37040 DN DRG 60 7.611.436.7 hydraulic oil filter element Having
Model: PI 37040 DN DRG 60 7.611.436.7
Filtration Accuracy: 60μm
Brand: HYFILTRATE
Material: stainless steel
Outer diameter: 78 mm
High: 400 mm
Replace MAHLE PI 37040 DN DRG 60 7.611.436.7 Hydraulic oil filter element Having excellent structural strength, it can block large pollutants such as welding slag and rust hard blocks, and share the load of downstream filter materials. The transparent mesh structure has low flow resistance and is not easy to quickly form blockages. The filter can be cleaned by blowing to remove accumulated impurities, and can be reused multiple times, effectively reducing long-term consumables expenses. The compact cylinder structure is convenient for small space layout, continuously protecting the oil pump and various valve components from solid particle impact damage, ensuring stable and continuous operation of the hydraulic system.
Metallurgical industry: Pre protection filtration unit for hydraulic oil circuit in steel rolling and continuous casting
Construction machinery: shield tunneling equipment, mining machinery, large lifting equipment circulating oil circuit
General manufacturing: small and medium-sized hydraulic workstations, die-casting equipment, injection molding production lines
Energy sector: Hydraulic system for wind turbine auxiliary equipment, lubricating oil circulation pipeline
Other scenarios include mobile power equipment and industrial fluid lubrication circulation systems
Packaging: Internally packaged in plastic bags, externally packaged in cardboard boxes
Transportation: pallets or wooden boxes
Specific requirements can be based on the customer's specific needs
PI 37040 DN DRG 60、PI 37040 DN DRG 25、PI 37040 DN DRG 10、PI 37040 DN DR 10、PI 37040 DN DR 6
PI 36040 DN DRG 60、PI 36040 DN DRG 25、PI 36040 DN DRG 10、PI 36040 DN DR 10、PI 36040 DN DR 6
PI 38040 DN DRG 60、PI 38040 DN DRG 25、PI 38040 DN DRG 10、PI 38040 DN DR 10、PI 38040 DN DR 6
Replace MAHLE PI 37040 DN DRG 60 7.611.436.7 hydraulic oil filter element
Product type: Plug in metal mesh coarse filter hydraulic filter cartridge
Filter material configuration: multi-layer stainless steel woven filter screen, fluid is filtered from the outside to the inside
Filtering accuracy: 60 μ m, intercepting large particles and hard impurities in the oil circuit
Can withstand maximum pressure difference: 21 bar, the filter screen is not easily deformed or torn
Sealing material: NBR nitrile rubber sealing ring, compatible with conventional industrial hydraulic media
Suitable working range: -25 ℃ to+110 ℃
Supporting structure: perforated steel inner and outer casing, buffering pressure fluctuations and impacts under working conditions
Suitable fluids: mineral hydraulic oil, industrial lubricating oil, water ethylene glycol working medium
1. High quality filtration materials: We strictly select high-quality materials such as glass fiber and stainless steel metal mesh to ensure filtration efficiency and long service life.
2. Compliant with industry standards: The product meets user needs, is compatible with most hydraulic systems, and has excellent quality.
3. Customizable: We can provide customized solutions based on your various models and brands, as well as replacement requirements under different working conditions.
4. Cost effectiveness: The factory directly supplies, crosses intermediaries, and reduces procurement costs while maintaining excellent quality.
