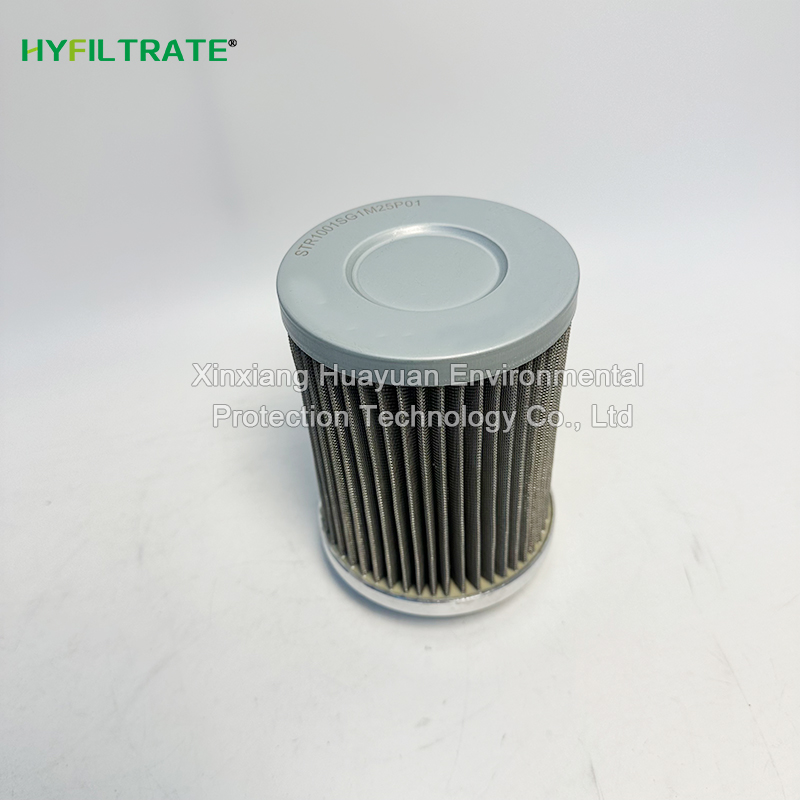

Replace MP STR1001SG1M25P01 hydraulic oil filter element

Description:: Replace MP STR1001SG1M25P01 hydraulic oil filter element is arranged at the fron

Share With:

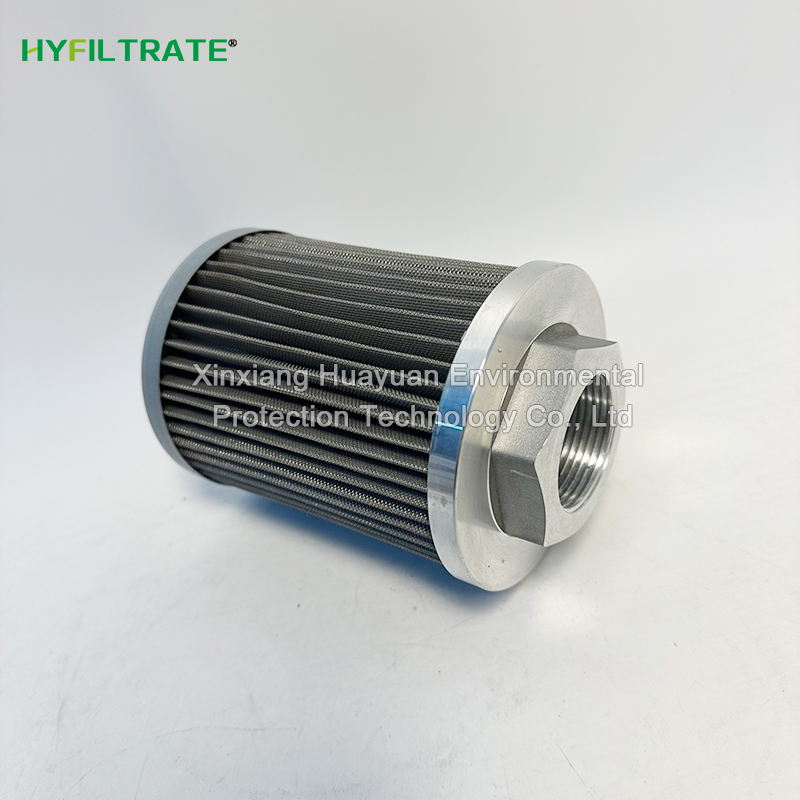

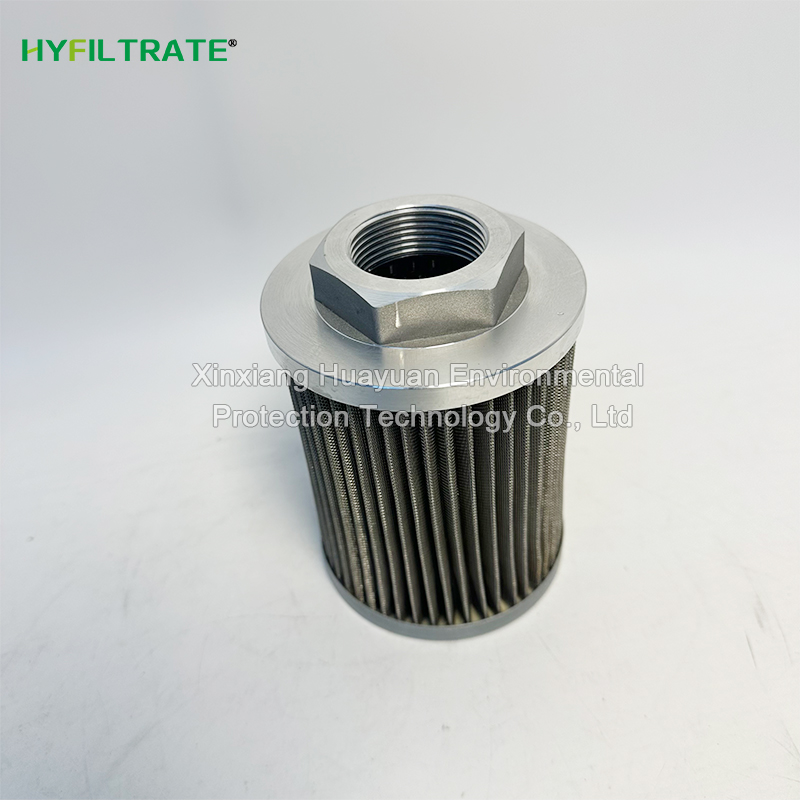

Replace MP STR1001SG1M25P01 Hydraulic oil filter element is arranged at the front end of the oil pump suction, effectively intercepting large particles, rust impurities, and solid debris in the oil, and pre protecting the hydraulic oil pump from particle impact damage. Low flow resistance, less likely to cause oil pump suction and cavitation problems; The Metal Filter has a sturdy and corrosion-resistant structure, and can be disassembled, cleaned, and reused. The standard threaded interface is easy to disassemble and maintain, with excellent medium compatibility. Continuously and stably ensuring smooth oil suction circuit, reducing the risk of pump body wear, minimizing sudden shutdown failures, and saving long-term spare parts procurement and equipment maintenance costs.

Applicable locations:

Construction machinery: lifting machinery, road equipment, mining mobile machinery, hydraulic oil tank, oil suction and filtration

General industry: injection molding machines, die-casting machines, CNC machining centers, large and medium-sized hydraulic stations

Energy industry: Wind turbine hydraulic unit, thin oil lubrication system for wind turbine gearbox

Metallurgical industry: rolling mill auxiliary lubrication system, smelting supporting hydraulic power device

Other scenarios: Ship hydraulic system, hydraulic test bench, rubber molding equipment oil supply circuit

Related models:

HP0371A06NA、HP0372M10AN、HP0372A25AV、HP0502A10ANP01、HP0504A10ANP01

HP0651A03AN、HP0651A06NA、HP0651P03VN、HP0652A03HA、HP0652A10ANP01

HP0653P10AN、HP1351A10HA、HP1352A10ANP01、HP3201M10HA、HP3201A10ANP01

Technical data

Replace MP STR1001SG1M25P01 hydraulic oil filter element

Filter material: 304 stainless steel woven filter screen (can be cleaned by ultrasonic waves and reused)

Accuracy: nominal filtration accuracy of 25 μ m, only intercepting large particle impurities

Without a bypass structure, blockage can directly cause the oil pump to suction, cavitation, and abnormal noise. Regular inspection and cleaning are required

Temperature range: -25 ℃ to+100 ℃

Suitable media: mineral hydraulic oil, gear lubricating oil, water ethylene glycol
