Your position: Home > Products > Hydraulic Filter Element > MP-Filtri Filter

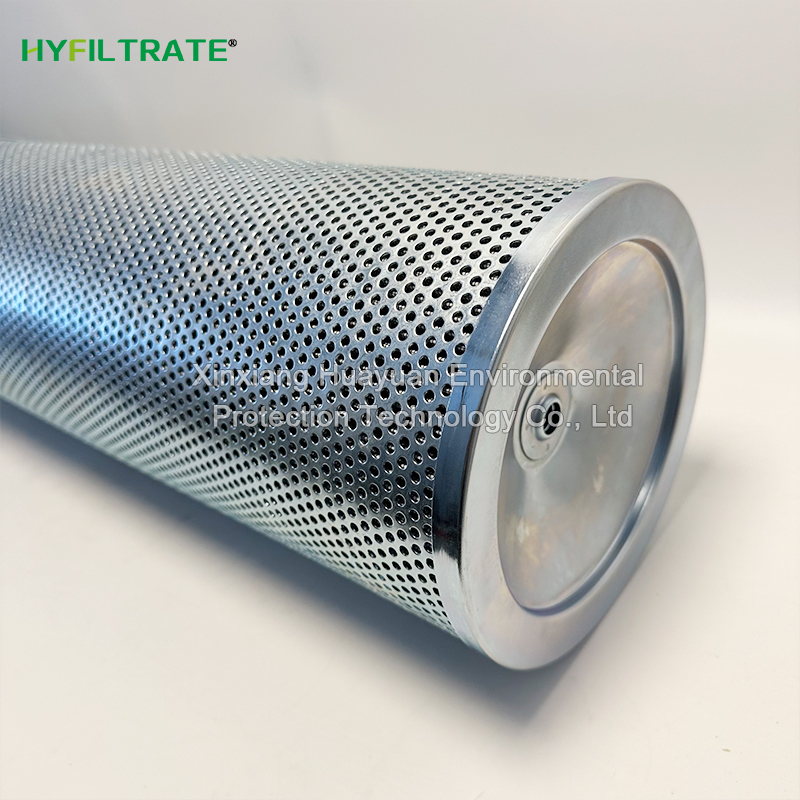

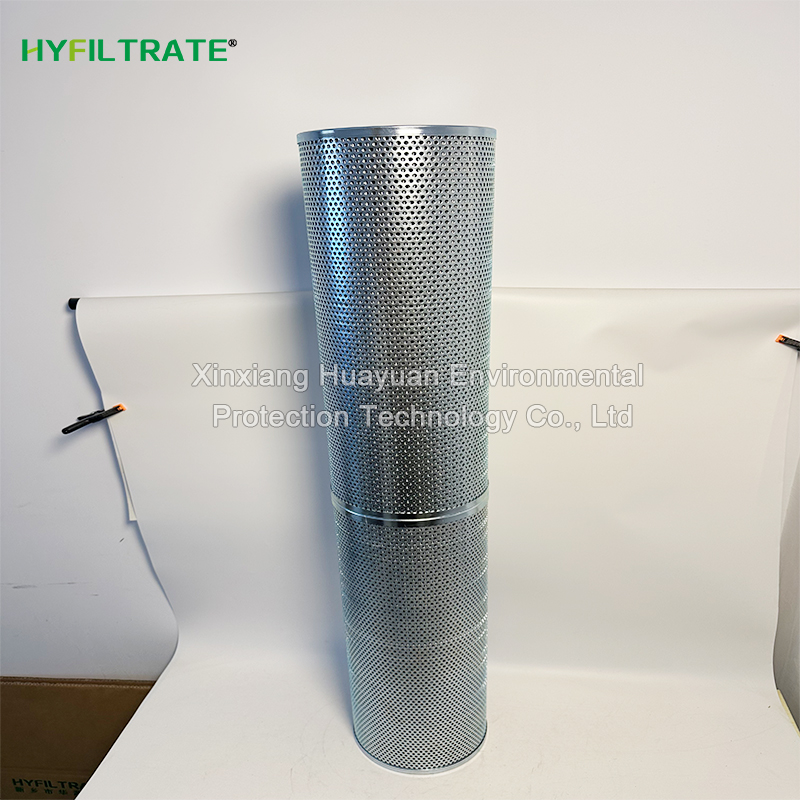

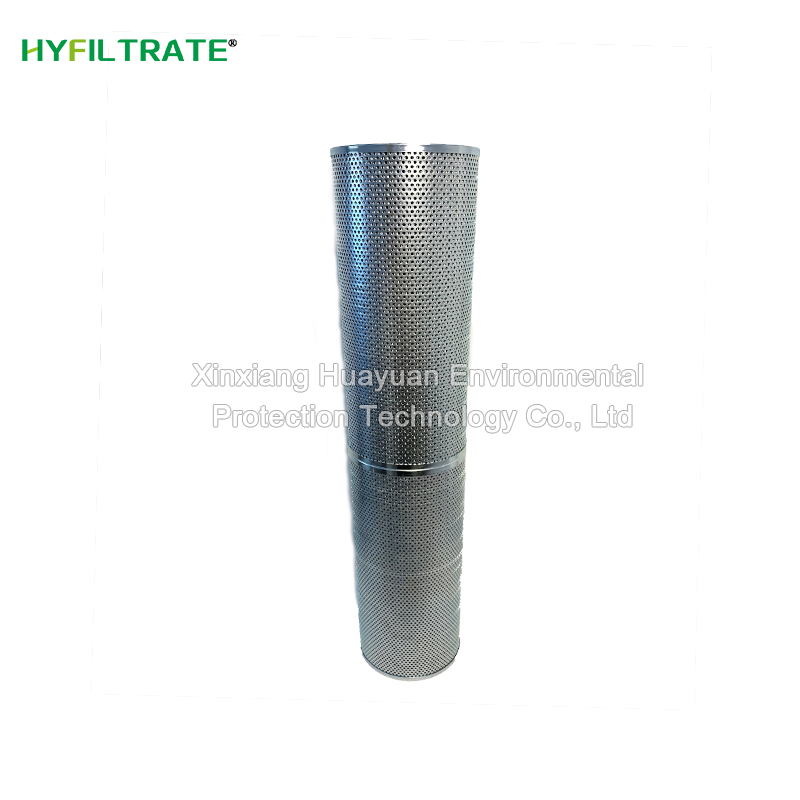

Replace MP MR8504A10AP01 hydraulic oil filter element

Description:: Replacing the MP MR8504A10AP01 hydraulic oil filter element can capture all wear

Share With:

Replacing the MP MR8504A10AP01 Hydraulic oil filter element can capture all wear particles, rust, oil seal debris, and sludge colloids in the system, serving as the last barrier to continuously purify all return oil and significantly reduce the probability of pump body and valve wear; Anti static treatment of filter material reduces static adsorption and accumulation of oil sludge, resulting in a smooth increase in pressure difference. The extended cylinder body combined with high-density pleats has a large effective filtration area. Under 24-hour continuous operation conditions of steel mills, power plants, and construction machinery, it has a large capacity for dirt and stains, low replacement frequency, and saves labor and consumables costs. Epoxy edge sealing is firm, and long-term immersion in water containing and aged oil products will not cause delamination or fiber loss, without secondary oil pollution.

Applicable locations:

Power industry: wind power gearbox, turbine oil lubrication station, auxiliary oil pressure circuit

Metallurgical industry: hydraulic return oil circulation system for rolling mills and continuous casting equipment

General industry: large hydraulic stations, injection molding and die-casting equipment, CNC machine tools

Construction machinery: mining equipment, lifting machinery, mobile hydraulic units

Other scenarios: Ship hydraulic system, hydraulic test bench, rubber and plastic machinery return oil filtration

Packaging and Transportation:

Packaging: Internally packaged in plastic bags, externally packaged in cardboard boxes

Transportation: pallets or wooden boxes

Specific requirements can be based on the customer's specific needs

Related models:

MR8504A10AP01、MR8504A06AP01、MR8504A25AP01、MR2504A10AP01、MR2504A25AP01

CU2102M90ANP01、HP0652P25ANP01、MF1802P10HBP01、STR1001SG1M60P01、SF532M90

FMP080BAG2、MPM075G1M90P01、CSG100A25、MPSG150M60、CU3203M25ANP01

Technical data

Replace MP MR8504A10AP01 hydraulic oil filter element

Filter material: multi-layer folded composite micro glass fiber; Flow direction: from outside to inside

Filtering accuracy: 10 μ m absolute accuracy

Anti collapse pressure difference: 21 bar

Sealing element: NBR nitrile rubber, optional FPM fluororubber

Working temperature: -25 ℃~+110 ℃

Supporting structure: Galvanized steel internal and external punching support skeleton, resistant to pressure pulsation

Suitable media: mineral hydraulic oil, lubricating oil, water ethylene glycol medium

Why choose HYFILTRATE?

1. High quality filtration materials: We strictly select high-quality materials such as glass fiber and stainless steel metal mesh to ensure filtration efficiency and long service life.

2. Compliant with industry standards: The product meets user needs, is compatible with most hydraulic systems, and has excellent quality.

3. Customizable: We can provide customized solutions based on your various models and brands, as well as replacement requirements under different working conditions.

4. Cost effectiveness: The factory directly supplies, crosses intermediaries, and reduces procurement costs while maintaining excellent quality.
