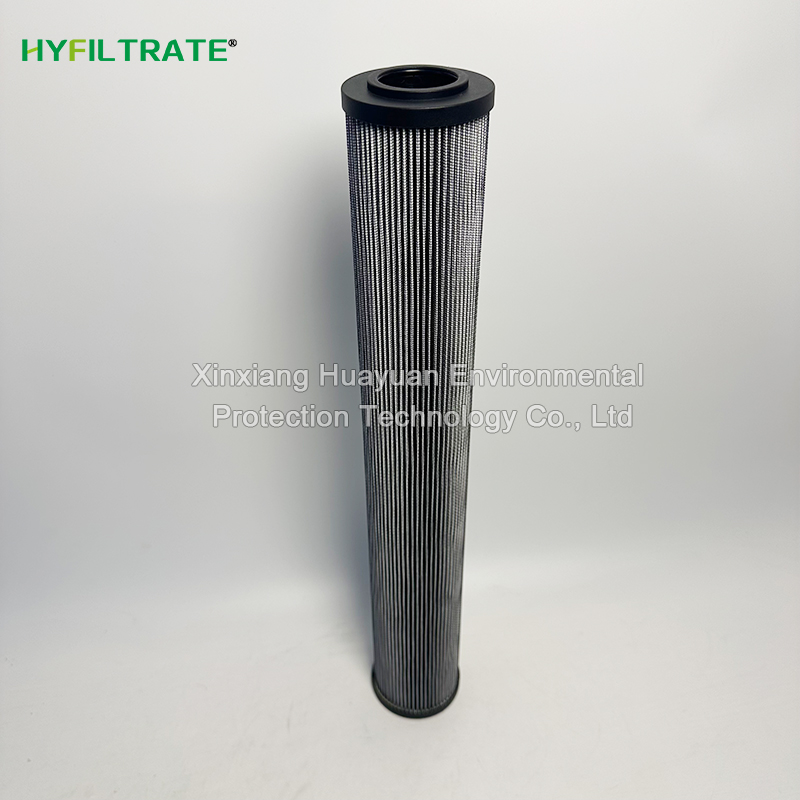

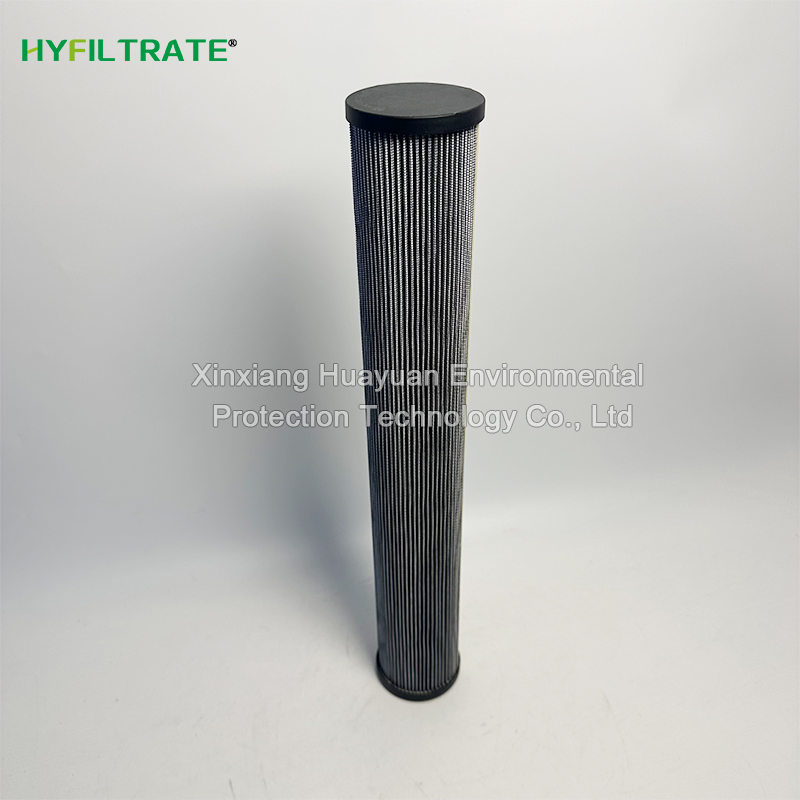

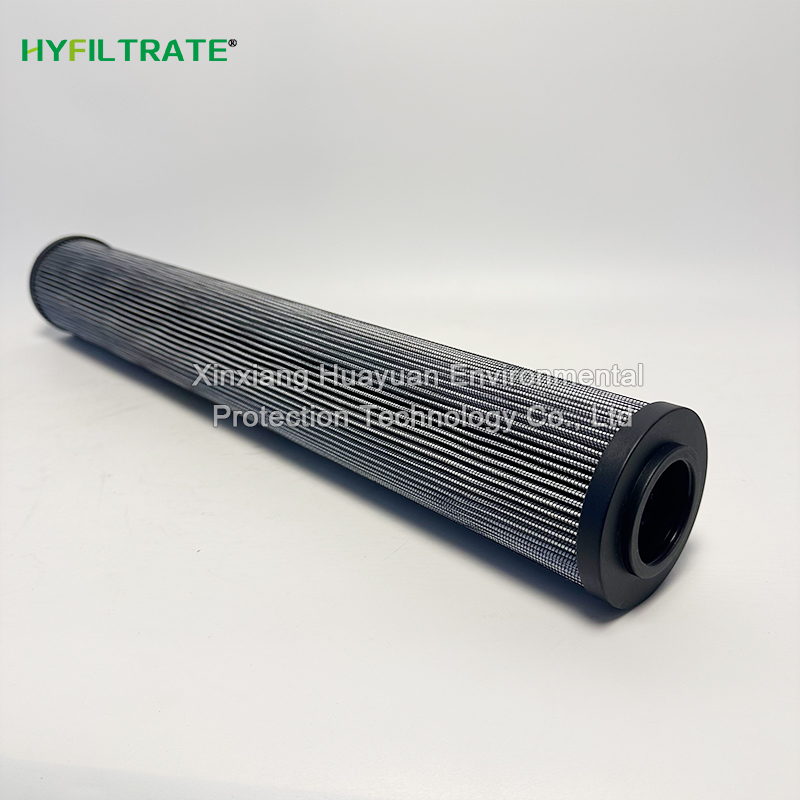

The replacement of MP CU2103A10ANP01 hydraulic oil filter element can efficientl
Model: CU2103A10ANP01
Filtration Accuracy: 10μm
Brand: HYFILTRATE
Material: fiberglass
Outer diameter: 72 mm
High: 270 mm
The replacement of MP CU2103A10ANP01 Hydraulic oil filter element can efficiently capture fine metal debris, rust particles, and colloidal impurities in the oil, stably ensuring the cleanliness of the high-pressure hydraulic circuit oil and effectively protecting precision components such as piston pumps and servo valves. The steel support frame buffers frequent pressure fluctuations, making the filter layer less prone to collapse and deformation; the optimized pleat layout provides good contaminant holding capacity, with a gradual increase in pressure drop, extending the replacement cycle. The universal plug-in structure is simple to disassemble and assemble, with a wide range of medium adaptability, continuously reducing wear on hydraulic components, lowering the risk of downtime due to malfunctions, and saving long-term maintenance costs for the hydraulic system.
Power industry: wind power hydraulic control circuit, high-pressure oil circuit of auxiliary equipment of steam turbine
Metallurgical industry: High-pressure hydraulic circulation system in rolling mills and continuous casting equipment
General industry: small and medium-sized hydraulic stations, injection molding machines, CNC machine tools
Construction machinery: mining equipment, mobile hydraulic units for lifting machinery
Other scenarios: high-pressure hydraulic test bench, main control oil circuit of rubber and plastic molding equipment
Packaging: Internally packaged in plastic bags, externally packaged in cardboard boxes
Transportation: pallets or wooden boxes
Specific requirements can be based on the customer's specific needs
CU2103A10ANP01, CU2103A06ANP01, CU2103A25ANP01, MR8504A10AP01, CU630A10ANP01
HP0652P25ANP01, CU1003A10ANP01, STR1003SG1M60P01, CU4103A10ANP01, CU1603A06ANP01
SF504M60, FMP080BAG2, MPM075G1M90P01, CU2503A25ANP01, CU4003A10ANP01
Replace MP CU2103A10ANP01 hydraulic oil filter element
Filter material: multi-layer folded composite micro-glass fiber; flow direction: from outside to inside
Filtration accuracy: 10μm absolute accuracy
Collapse resistance pressure difference: 21 bar
Seal: NBR (Nitrile Butadiene Rubber), with FPM (Fluororubber) as an option
Operating temperature: -25℃～+110℃
Support structure: Galvanized steel internal and external punching support framework, capable of withstanding high-pressure pulsating impact
Compatible medium: mineral hydraulic oil, lubricating oil, water-glycol medium
1. High quality filtration materials: We strictly select high-quality materials such as glass fiber and stainless steel metal mesh to ensure filtration efficiency and long service life.
2. Compliant with industry standards: The product meets user needs, is compatible with most hydraulic systems, and has excellent quality.
3. Customizable: We can provide customized solutions based on your various models and brands, as well as replacement requirements under different working conditions.
4. Cost effectiveness: The factory directly supplies, crosses intermediaries, and reduces procurement costs while maintaining excellent quality.
