Replace OMT CHP423F06YN hydraulic oil filter element1. Using 6 μ m high-precisio
Model: CHP423F06YN
Filtration Accuracy: 6μm
Brand: HYFILTRATE
Material: fiberglass
Outer diameter: 53 mm
High: 116 mm

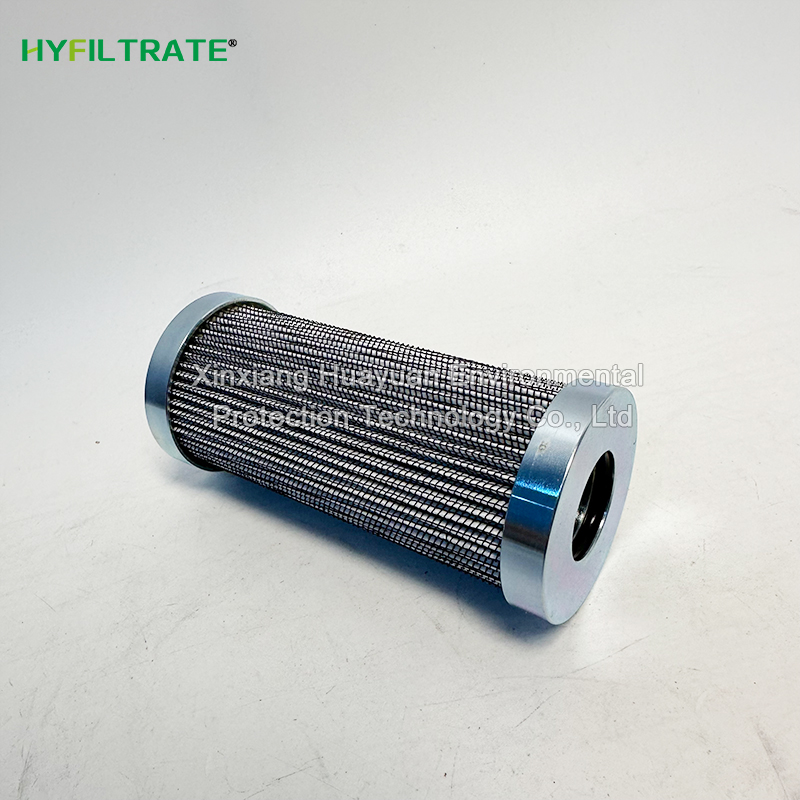

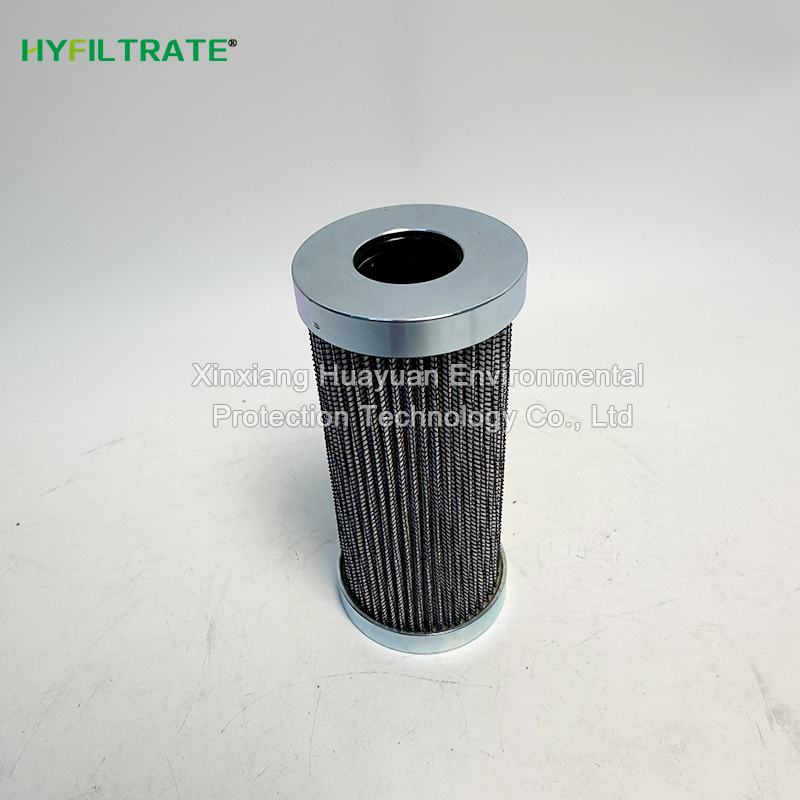

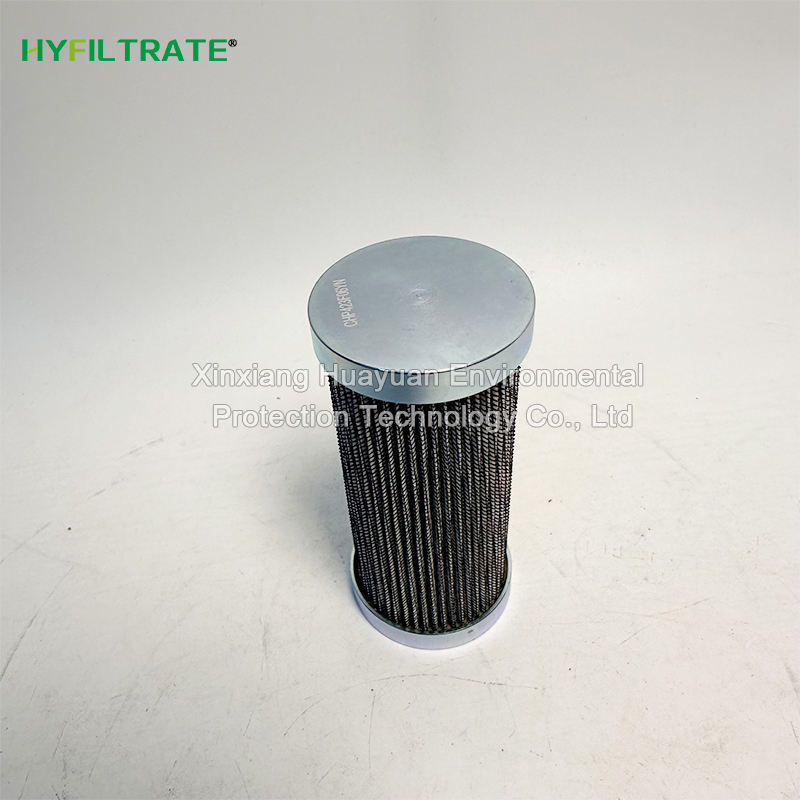

Replace OMT CHP423F06YN Hydraulic oil filter element
1. Using 6 μ m high-precision deep glass fiber filter material, it efficiently intercepts metal debris, oil sludge, and gum impurities.
Continuously improve oil cleanliness and protect precision hydraulic components.
2. The anti collapse pressure difference can reach 210bar, far higher than the standard pressure resistance level.
It can withstand severe pressure pulsation and cold start impact in high-pressure pipelines, and the filter layer is not easily collapsed, damaged, leaked or failed.
3. The high-density folding filter layer design has sufficient dirt holding capacity, and the pressure difference rises smoothly, effectively extending the filter element replacement cycle.
The initial flow resistance is low and does not increase the system pressure loss, making it suitable for continuous filtration needs in high-pressure circuits.
Replace OMT CHP423F06YN hydraulic oil filter element
Filter material: deep folded micro glass fiber
Filtering accuracy: 6 μ m, β ₆ (c) ≥ 200
Anti collapse pressure difference: 210 bar
Working temperature: -25 ℃~+110 ℃
Sealing material: NBR nitrile rubber
Structure: Metal supported internal skeleton, no built-in bypass valve, flow direction from outside to inside
Suitable media: mineral hydraulic oil, synthetic lubricating oil, water ethylene glycol
Suitable flow rate: 120 L/min high-pressure hydraulic circuit
Filter material: deep folded micro glass fiber
Filtering accuracy: 6 μ m, β ₆ (c) ≥ 200
Anti collapse pressure difference: 210 bar
Working temperature: -25 ℃~+110 ℃
Sealing material: NBR nitrile rubber
Structure: Metal supported internal skeleton, no built-in bypass valve, flow direction from outside to inside
Suitable media: mineral hydraulic oil, synthetic lubricating oil, water ethylene glycol
Suitable flow rate: 120 L/min high-pressure hydraulic circuit
