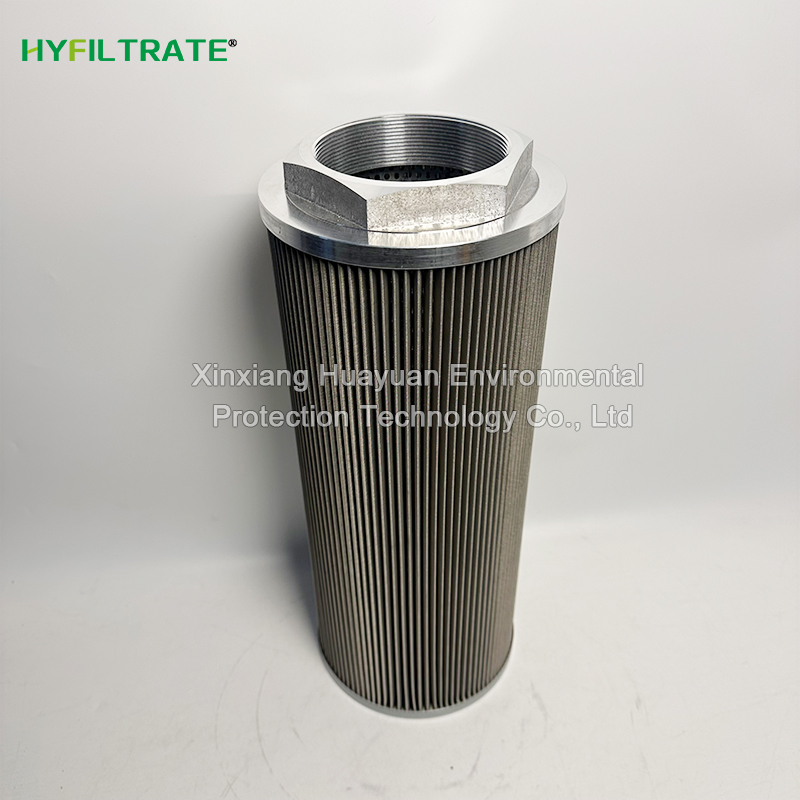

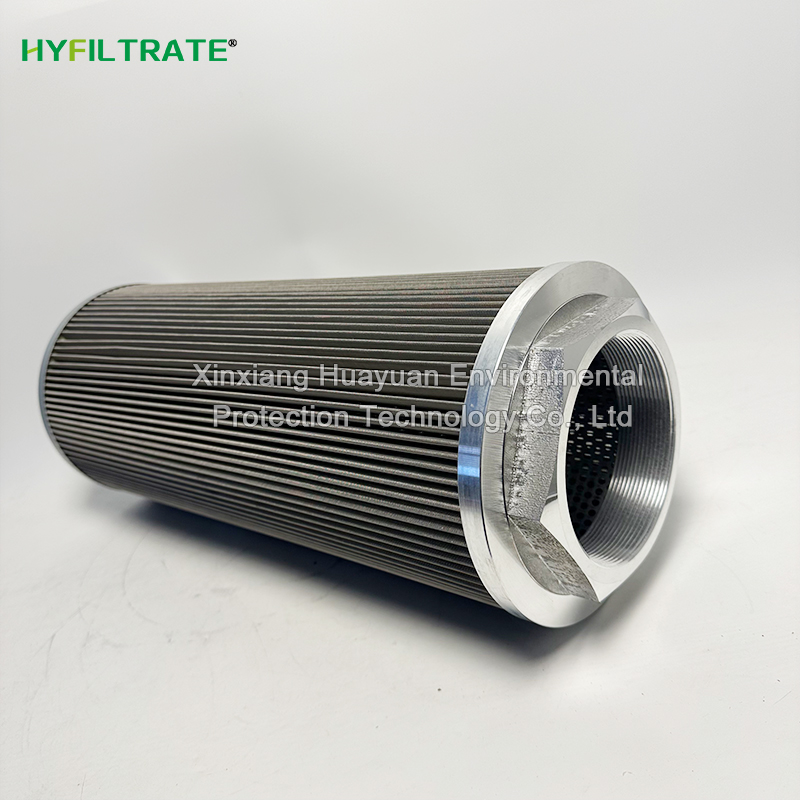

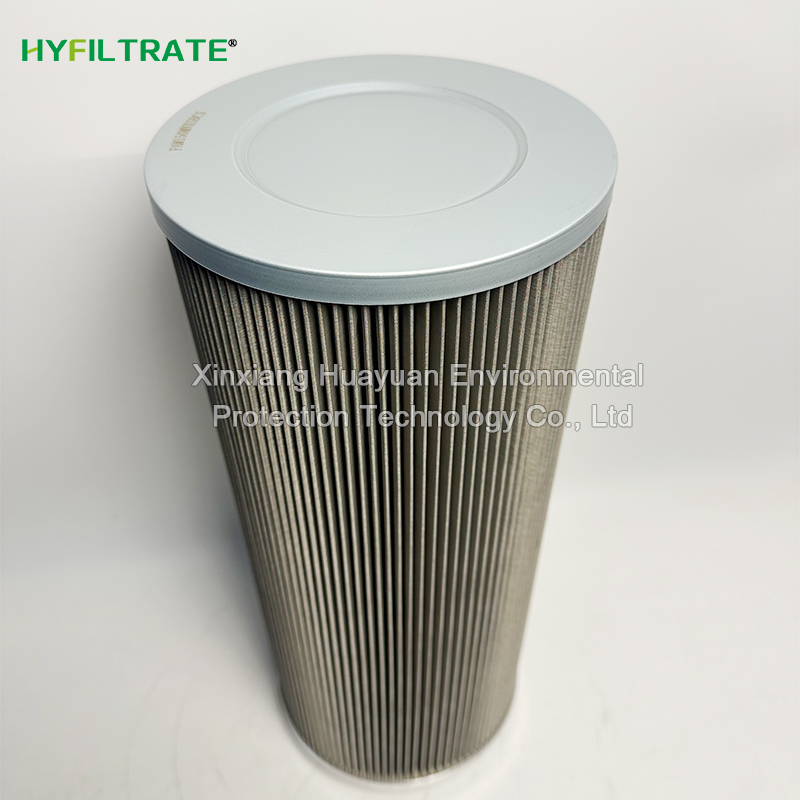

Replace SOFIMA FAM150MNXSBCS hydraulic oil filter element

Description:

The Replace SOFIMA FAM150MNXSBCS hydraulic oil filter element relies on a multi-

Model: FAM150MNXSBCS

Filtration Accuracy: 90μm

Brand: HYFILTRATE

Material: stainless steel

Outer diameter: 190mm

High: 580mm

Share With:

The Replace SOFIMA FAM150MNXSBCS Hydraulic oil filter element relies on a multi-layer gradient folded glass fiber structure to efficiently intercept dust, rust particles, and solid impurities inside the oil, purify the medium from the oil suction source, and reduce abrasive wear on the pump body, valve group, and oil cylinder. The steel skeleton structure has reliable strength, can withstand the impact of oil flow, and the filter layer is not easily deformed or damaged; Adequate sewage capacity, gradual increase in pressure difference, and longer replacement cycle. Adapting to a wide temperature working environment, easy to operate and disassemble, effectively stabilizing the operation status of the hydraulic system, reducing equipment maintenance frequency and later maintenance expenses.



Related models:

FAM003、FAM004、FAM006、FAM008、FAM011、

FAM013、FAM015、FAM020、FAM025、FAM030、



Related products:

oil filter element.jpg


Technical data

Replace SOFIMA FAM150MNXSBCS hydraulic oil filter element

Filter material: multi-layer folded fiberglass material, nominal filtration accuracy of 20 μ m

Rated adaptive flow rate: 150L/min

Anti collapse pressure difference: 1 bar

Working temperature: -25 ℃~+110 ℃

Skeleton: Galvanized steel internal support skeleton, sealed with oil resistant rubber

Suitable media: conventional mineral hydraulic oil, HL/HM hydraulic oil

Structure: No built-in bypass valve, suitable for oil tank inlet suction and filtration conditions



Why choose HYFILTRATE?

1. High quality filtration materials: We strictly select high-quality materials such as glass fiber and stainless steel metal mesh to ensure filtration efficiency and long service life.
2. Compliant with industry standards: The product meets user needs, is compatible with most hydraulic systems, and has excellent quality.
3. Customizable: We can provide customized solutions based on your various models and brands, as well as replacement requirements under different working conditions.
4. Cost effectiveness: The factory directly supplies, crosses intermediaries, and reduces procurement costs while maintaining excellent quality.
