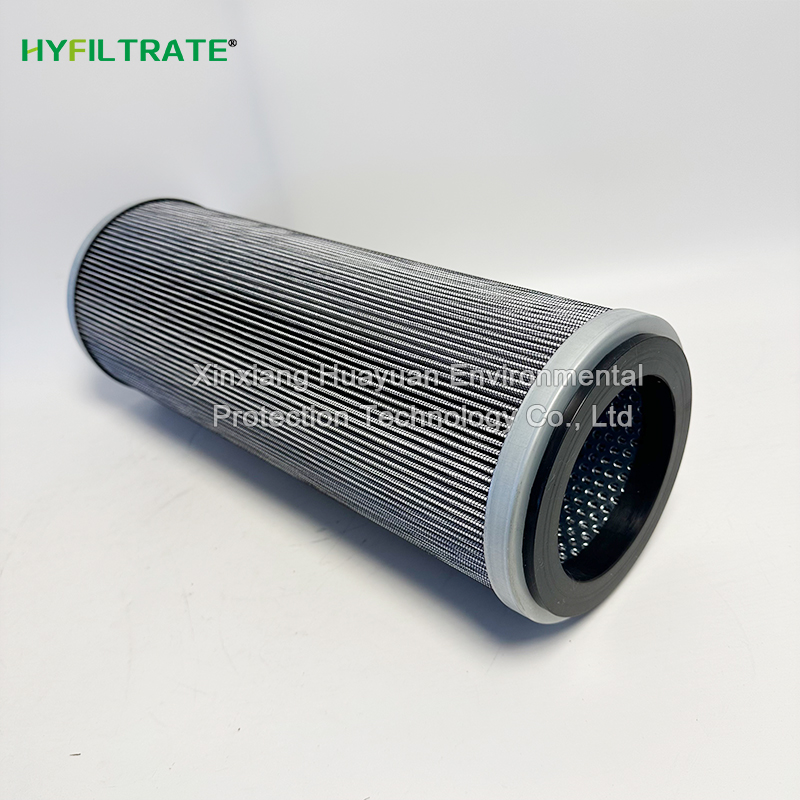

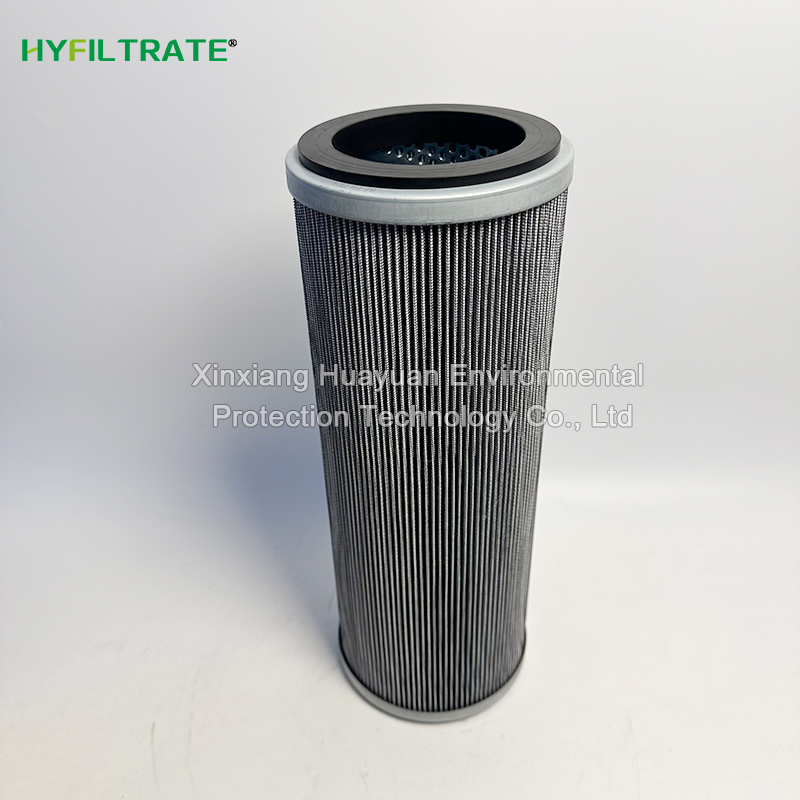

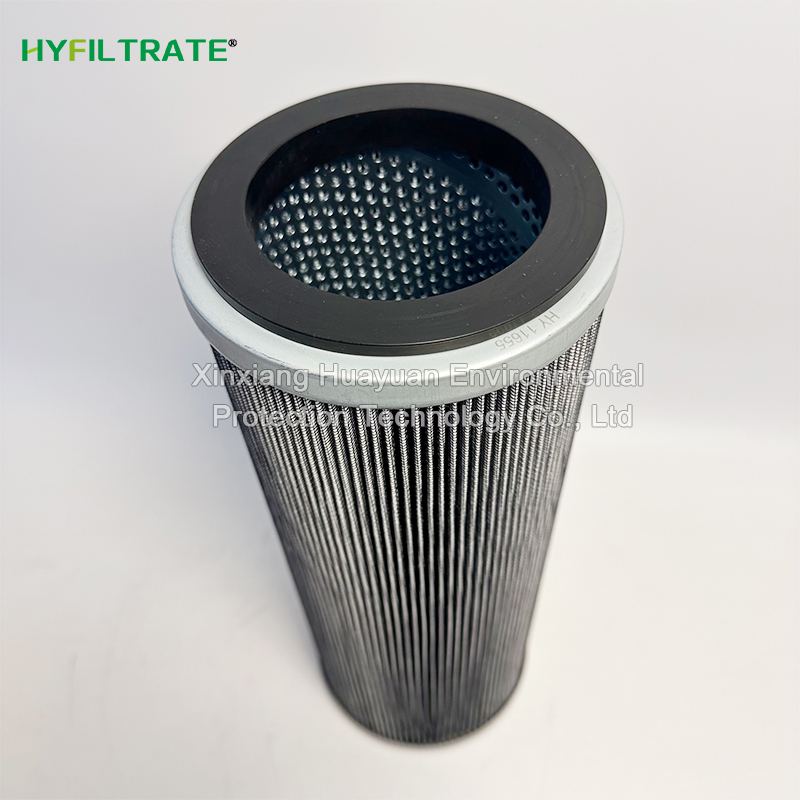

Replace SF-Filter HY11655 hydraulic oil filter element

Description:: Replace SF Filter HY11655 hydraulic oil filter element relies on gradient glass

Share With:

Replace SF Filter HY11655 Hydraulic oil filter element relies on gradient glass fiber filter layer to capture fine solid pollutants in oil, stably maintain the required oil cleanliness level of servo system, and reduce precision valve wear and jamming faults. The double-layer steel support cylinder strengthens the filter material structure and maintains stable performance under continuous pressure alternating conditions. Widely used in various medium and high pressure hydraulic systems, effectively reducing equipment maintenance frequency and extending the service life of hydraulic power components.

Applicable locations:

In the field of electricity: hydraulic drive unit for wind turbines, lubricating oil purification treatment device

Metallurgical industry: servo hydraulic control circuits for steel rolling production lines and continuous casting equipment

Engineering equipment: shield tunneling equipment, mining machinery, hydraulic oil circuits for large lifting machinery

General manufacturing: medium-sized hydraulic workstations, die-casting equipment, high-precision CNC machining equipment

Other applications: Ship hydraulic power systems, various industrial hydraulic servo test platforms

Packaging and Transportation:

Packaging: Internally packaged in plastic bags, externally packaged in cardboard boxes

Transportation: pallets or wooden boxes

Specific requirements can be based on the customer's specific needs

Related models:

HY11655、HY11656、HY11654、HY11658、HY11660

HY11862、HY11864、HY11104、HY11860、HY11858

HY11870、HY11846、HY11848、HY11852、HY11854

Technical data

Replace SF Filter HY11655 hydraulic oil filter element

Filter material structure: multi-layer gradient porous borosilicate glass fiber composite medium, fluid flows from the outside to the center for filtration

Filtering accuracy: 6 μ m, filtering beta value ≥ 200

Ultimate pressure differential: 21 bar, effectively resisting deformation and cracking of the filter layer under compression

Sealing component: NBR nitrile rubber sealing ring, suitable for conventional hydraulic medium working conditions

Allowable working temperature range: -25 ℃ to+110 ℃

Supporting structure: double-layer perforated galvanized steel sleeve, buffering system for instantaneous pressure impact

Compatible working media: mineral hydraulic oil, circulating lubricating oil, water ethylene glycol flame retardant hydraulic fluid

Why choose HYFILTRATE?

1. High quality filtration materials: We strictly select high-quality materials such as glass fiber and stainless steel metal mesh to ensure filtration efficiency and long service life.

2. Compliant with industry standards: The product meets user needs, is compatible with most hydraulic systems, and has excellent quality.

3. Customizable: We can provide customized solutions based on your various models and brands, as well as replacement requirements under different working conditions.

4. Cost effectiveness: The factory directly supplies, crosses intermediaries, and reduces procurement costs while maintaining excellent quality.
