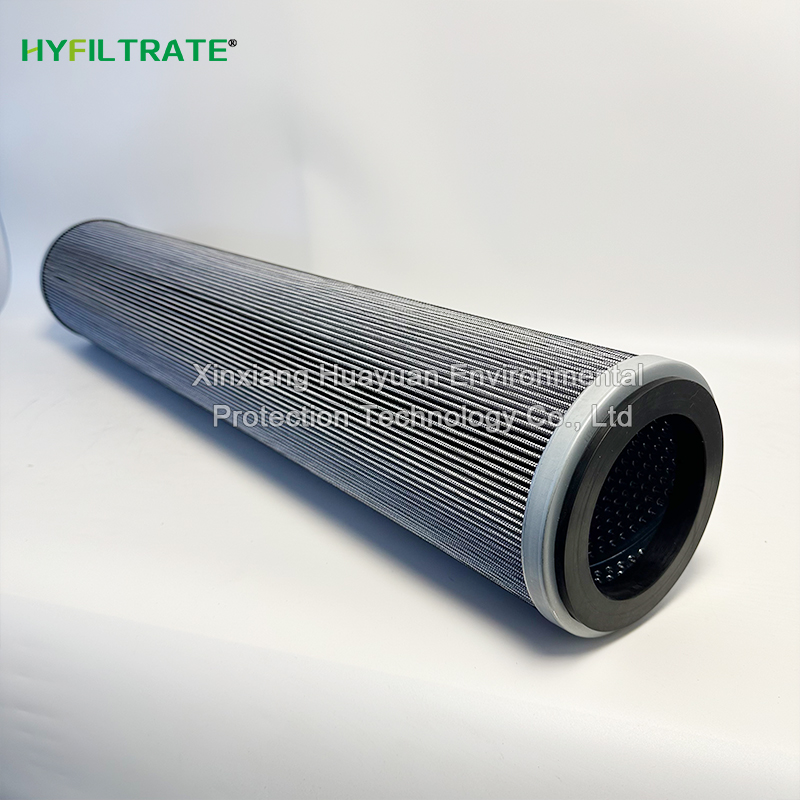

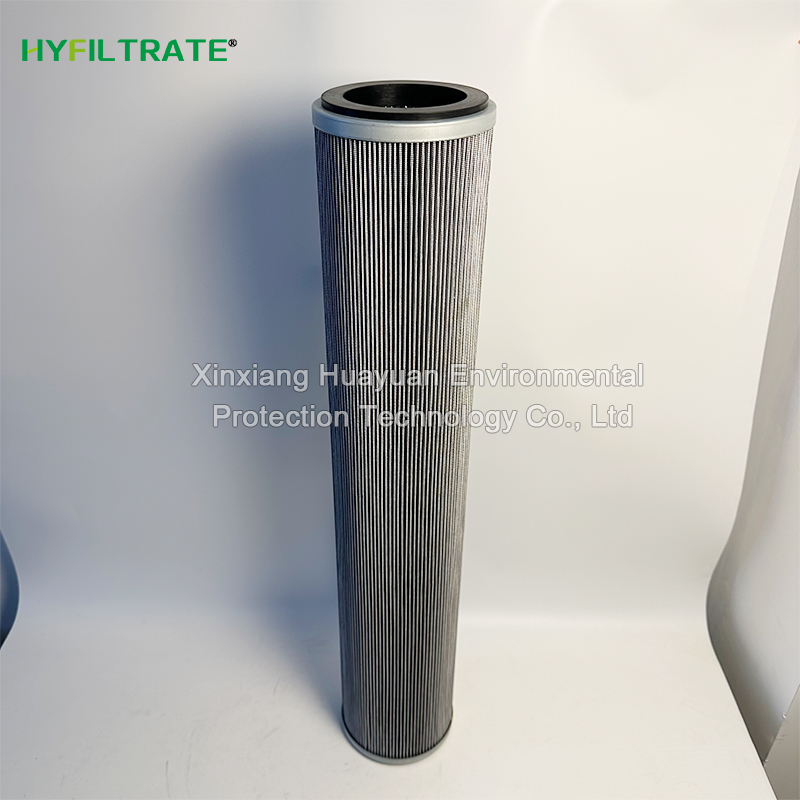

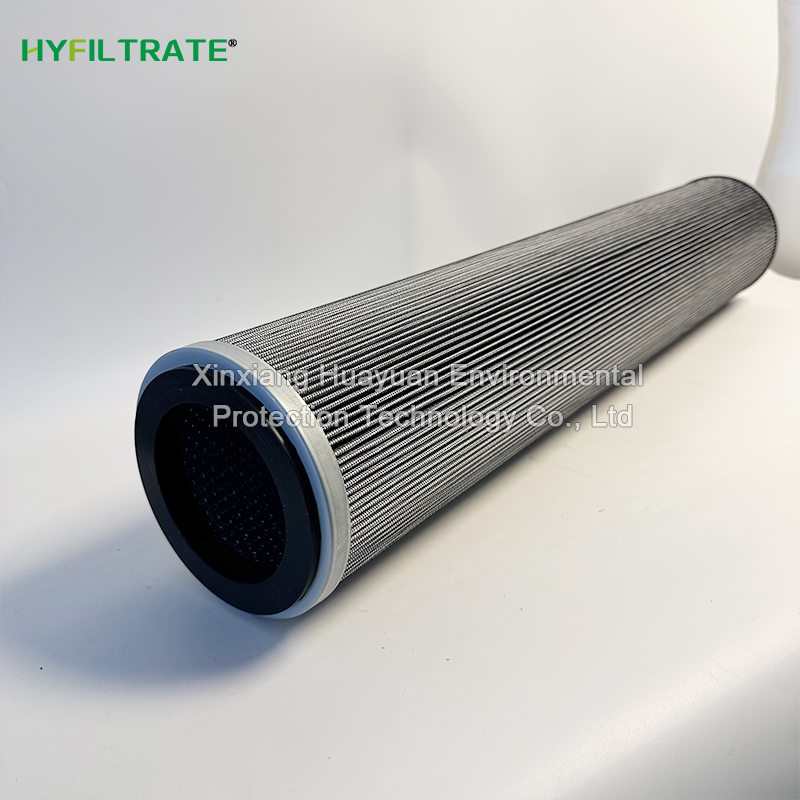

Replace SF-Filter HY11862 hydraulic oil filter element

Description:: The Replace SF Filter HY11862 hydraulic oil filter element adopts a gradient den

Share With:

The Replace SF Filter HY11862 Hydraulic oil filter element adopts a gradient density glass fiber structure, which efficiently captures metal debris, rust particles, and colloidal impurities in the oil, stabilizes the cleanliness of the hydraulic system oil, and effectively protects precision components such as servo valves and plunger pumps. The steel support frame enhances the impact resistance, has sufficient pollutant carrying capacity, and the pressure difference changes smoothly. Easy disassembly and assembly, widely used in metallurgy, wind power, shield tunneling, CNC machine tool hydraulic systems, effectively reducing valve core jamming faults and extending the service life of the entire hydraulic component set.

Applicable locations:

Power industry: wind power hydraulic system, lubricating oil purification device

Metallurgical industry: High pressure hydraulic circuits in rolling mills and continuous casting units

Engineering machinery: shield tunneling equipment, mining machines, large lifting equipment oil circuits

General industry: large hydraulic stations, die-casting equipment, precision CNC machine tools

Other scenarios include ship hydraulic systems and industrial hydraulic test benches

Packaging and Transportation:

Packaging: Internally packaged in plastic bags, externally packaged in cardboard boxes

Transportation: pallets or wooden boxes

Specific requirements can be based on the customer's specific needs

Related models:

HY11862、HY11860、HY11864、HY11858、HY11870

HY11846、HY11848、HY11852、HY11854、HY11872

HY11874、HY11836、HY11838、HY11842、HY11844

Technical data

Replace SF-Filter HY11862 hydraulic oil filter element

Filter material: multi-layer folded borosilicate glass fiber; Fluid flow direction: from outside to inside

Filtering accuracy: 10 μ m

Anti collapse pressure difference: 21 bar

Sealing element: NBR nitrile rubber

Working temperature: -25 ℃~+110 ℃

Supporting structure: Galvanized steel perforated inner and outer protective skeleton, resistant to pressure pulsation

Suitable media: mineral hydraulic oil, lubricating oil, water ethylene glycol medium

Why choose HYFILTRATE?

1. High quality filtration materials: We strictly select high-quality materials such as glass fiber and stainless steel metal mesh to ensure filtration efficiency and long service life.

2. Compliant with industry standards: The product meets user needs, is compatible with most hydraulic systems, and has excellent quality.

3. Customizable: We can provide customized solutions based on your various models and brands, as well as replacement requirements under different working conditions.

4. Cost effectiveness: The factory directly supplies, crosses intermediaries, and reduces procurement costs while maintaining excellent quality.
