The gradient arrangement of multiple layers in the SEL001700 Hydraulic Oil Filte
Model: SEL001700
Filtration Accuracy: 7μm
Brand: HYFILTRATE
Material: fiberglass
Outer diameter: 76 mm
High: 420 mm
The gradient arrangement of multiple layers in the SEL001700 Hydraulic oil filter Cartridge provides ample space for dirt containment, continuously capturing metal debris, oxide deposits, and colloidal impurities in the fluid, maintaining a stable level of cleanliness in the oil circuit, and reducing wear and sticking of various hydraulic components. The steel support sleeve stabilizes the shape of the filter material and maintains structural stability in frequent pressure fluctuations. The integrated sealed end cap reduces the risk of medium leakage, and the compact and flexible cylinder layout effectively extends the operation and maintenance cycle, ensuring the smooth operation of the entire fluid power system.
Energy sector: Hydraulic control system for wind turbines, lubricating oil purification device
Metallurgical industry: High pressure hydraulic circulation circuit in hot rolling production lines and continuous casting equipment
Engineering equipment: shield tunneling equipment, mining machinery, large lifting machinery oil circuit
Intelligent manufacturing: centralized hydraulic workstation, die-casting unit, CNC machining equipment
Other industrial mobile hydraulic devices, lubrication circulation filtration systems
SEL001698、SEL001699、SEL001701、SEL001702
Tip: All fiberglass models in the series belong to disposable Precision filter cartridges and cannot be cleaned or regenerated; Different numbers correspond to different filtering accuracies and cannot be interchanged arbitrarily
Packaging: Internally packaged in plastic bags, externally packaged in cardboard boxes
Transportation: pallets or wooden boxes
Specific requirements can be based on the customer's specific needs
SEL001700、SEL001698、SEL001699、SEL001701、SEL001702
SEL001695、SEL001696、SEL001697、SEL001703、SEL001704
SEL001705、SEL001706、SEL001707、SEL001708、SEL001709

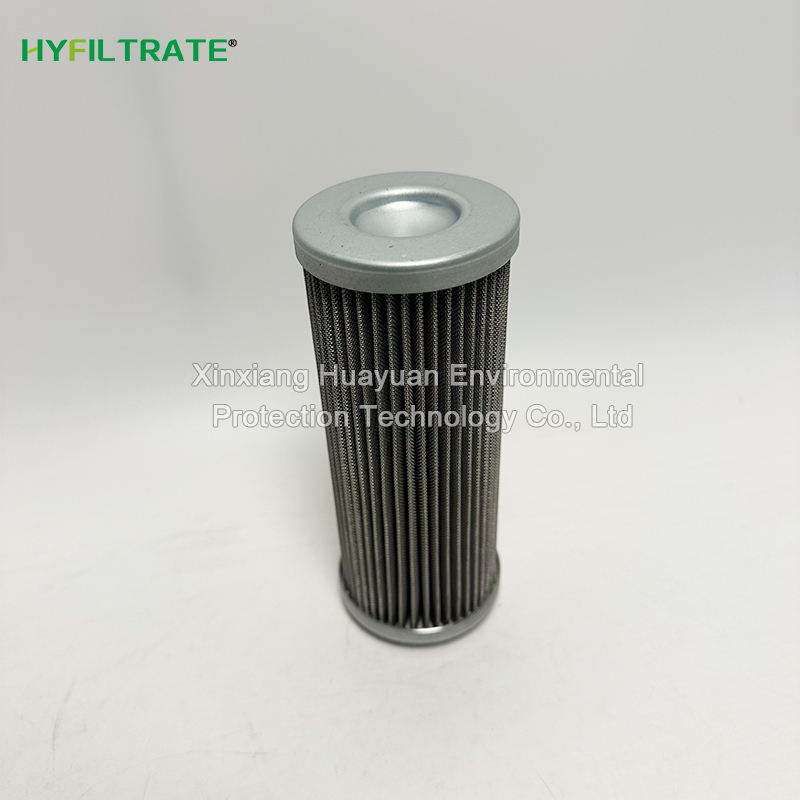

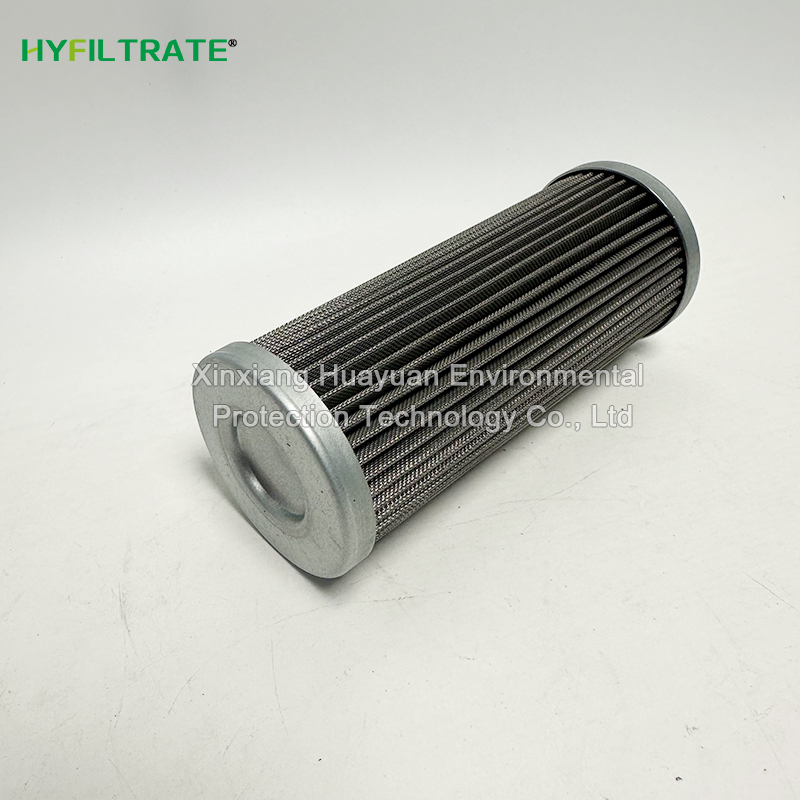

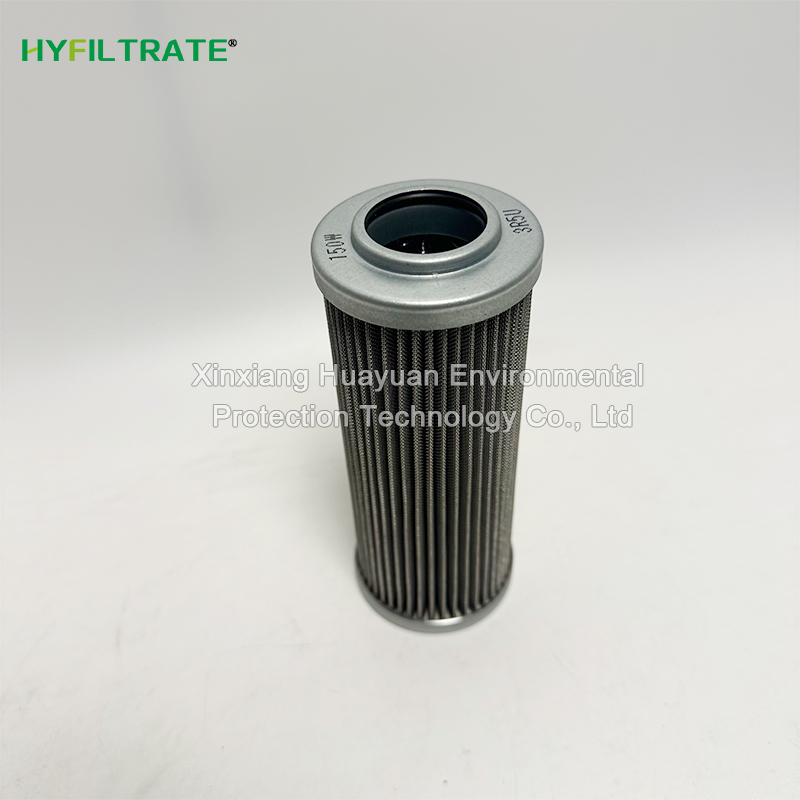

SEL001700 Hydraulic Oil Filter Cartridge
Product Type: Folding Fiberglass Hydraulic Filter Cartridge for Pipeline
Filter material configuration: Multi layer gradient porous micro glass fiber medium, fluid flows from outside to inside for filtration
Filtering accuracy: 10 μ m, capturing fine solid particle pollutants in the fluid
Capable of withstanding a maximum pressure difference of 21 bar to prevent the filter layer from being compressed, wrinkled, torn, or damaged
Sealing material: NBR nitrile rubber sealing ring, suitable for various industrial hydraulic fluids
Suitable working range: -25 ℃ to+110 ℃
Supporting structure: Galvanized punched steel inner and outer sleeves, buffering system for alternating pressure impact
Suitable fluids: mineral hydraulic oil, circulating lubricating oil, water ethylene glycol flame retardant medium
1. High quality filtration materials: We strictly select high-quality materials such as glass fiber and stainless steel metal mesh to ensure filtration efficiency and long service life.
2. Compliant with industry standards: The product meets user needs, is compatible with most hydraulic systems, and has excellent quality.
3. Customizable: We can provide customized solutions based on your various models and brands, as well as replacement requirements under different working conditions.
4. Cost effectiveness: The factory directly supplies, crosses intermediaries, and reduces procurement costs while maintaining excellent quality.
