The multi-layer fiberglass pleated filter material of Replace DMG MORI 30607881 Hydraulic oil filter element has sufficient dirt holding capacity, continuously purifies hydraulic oil, effectively intercepts metal particles generated by the spindle and servo valve, ensures the cleanliness of the hydraulic system oil in the machining center, and reduces valve and plunger pump jamming faults. The metal skeleton maintains the shape of the filter layer for a long time and can withstand continuous pressure fluctuations during the start stop of the machine tool. Fluororubber seals are resistant to medium erosion and have a low risk of leakage. Easy disassembly and maintenance, extending the maintenance cycle of CNC machine tools, ensuring continuous and stable processing of precision equipment.

Applicable locations:

CNC machining industry: DMG MORI vertical and five axis linkage machining center hydraulic pipeline filtering unit

Mold manufacturing field: precision CNC machine tool lubrication, pressure oil purification device

Intelligent Manufacturing: Automated Production Line, CNC Equipment, Hydraulic Power Station

Aviation component processing: high-precision machine tool hydraulic system

Other scenarios: Precision grinding machines, automated machine tool lubrication and filtration systems

Instructions for replacing filter element:

1) Same shell universal filter element (completely universal in external dimensions): 30607882, 30607880

Tip: There are differences in filtering accuracy among different models, and they cannot be interchanged arbitrarily.

2) Alternative model: DMF306088, with consistent external dimensions, structural parameters, and filtration indicators, available for selection reference.

3) Important reminder for replacement selection: The outer diameter, total length, and positioning inner hole size must match; Fiberglass filter cartridge cannot be cleaned or regenerated; Regularly monitor the pressure difference and investigate the system pollution source when the pressure difference suddenly rises.

Packaging and Transportation:

Packaging: Internally packaged in plastic bags, externally packaged in cardboard boxes

Transportation: pallets or wooden boxes

Specific requirements can be based on the customer's specific needs

Related models:

30607881, 30607880, 30607882, 30607883

7066428, 7066429, 30607861, 30607862

30607890, 30607891, 30607892, 30607893

Technical data

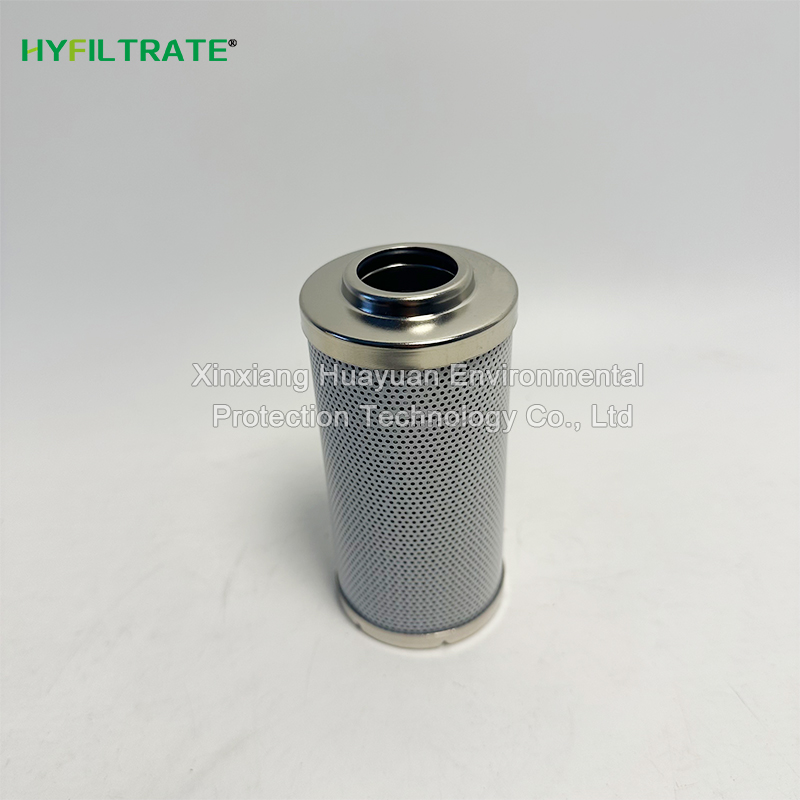

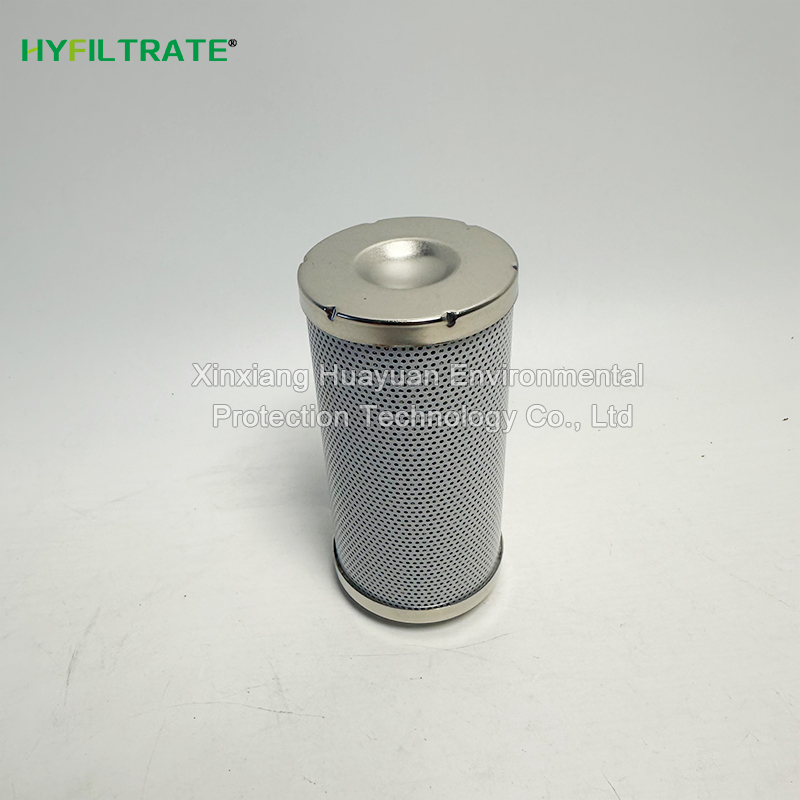

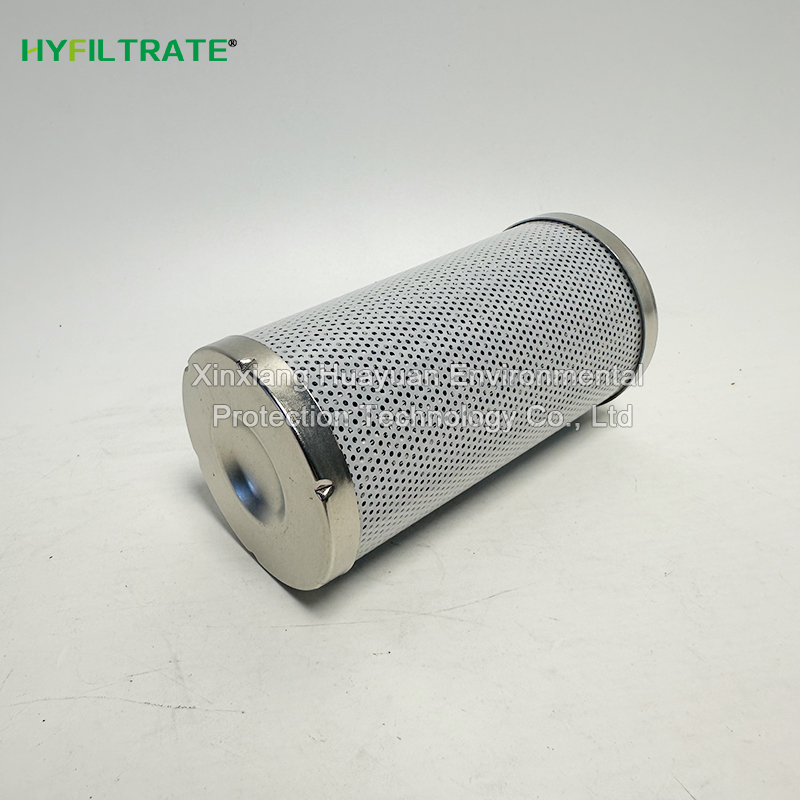

Replace DMG MORI 30607881 hydraulic oil filter element

Product Type: Fiberglass Hydraulic Filter Cartridge for Pressure Pipeline

Filter material configuration: multi-layer gradient porous micro glass fiber medium, fluid flows from outside to inside

Filtering accuracy: 5 μ m, capturing metal debris and fine solid particle pollutants inside the oil circuit

Can withstand maximum pressure difference: 21 bar, resist pipeline alternating pressure impact, prevent filter layer damage

Sealing material: FPM fluororubber sealing ring, suitable for cutting fluid and various hydraulic media

Suitable working range: -20 ℃ to+110 ℃

Supporting structure: Epoxy coated metal punched inner and outer sleeves, stable and corrosion-resistant structure

Suitable fluids: mineral hydraulic oil, circulating lubricating oil
