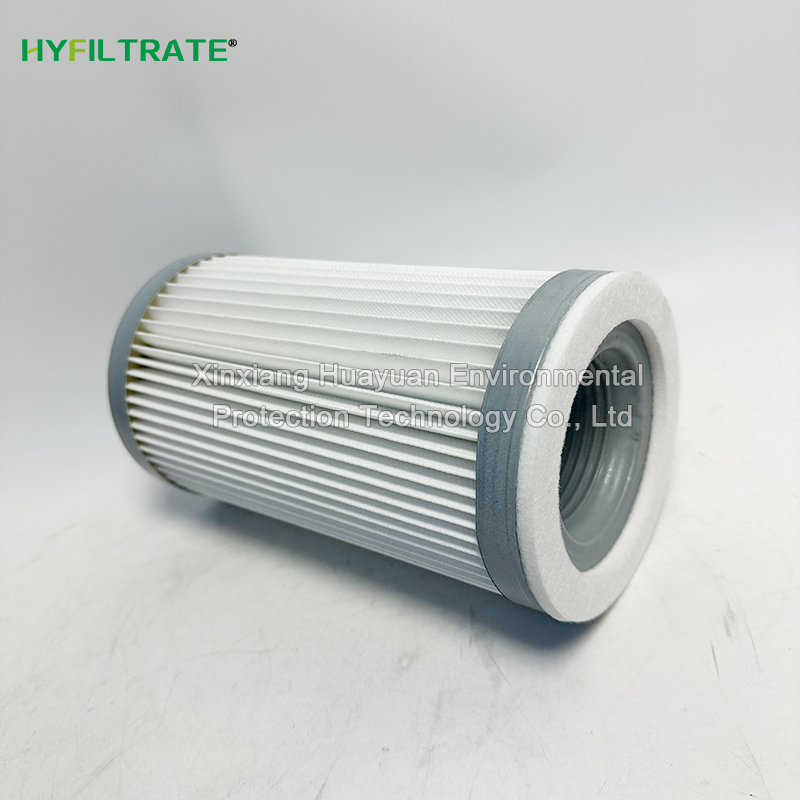

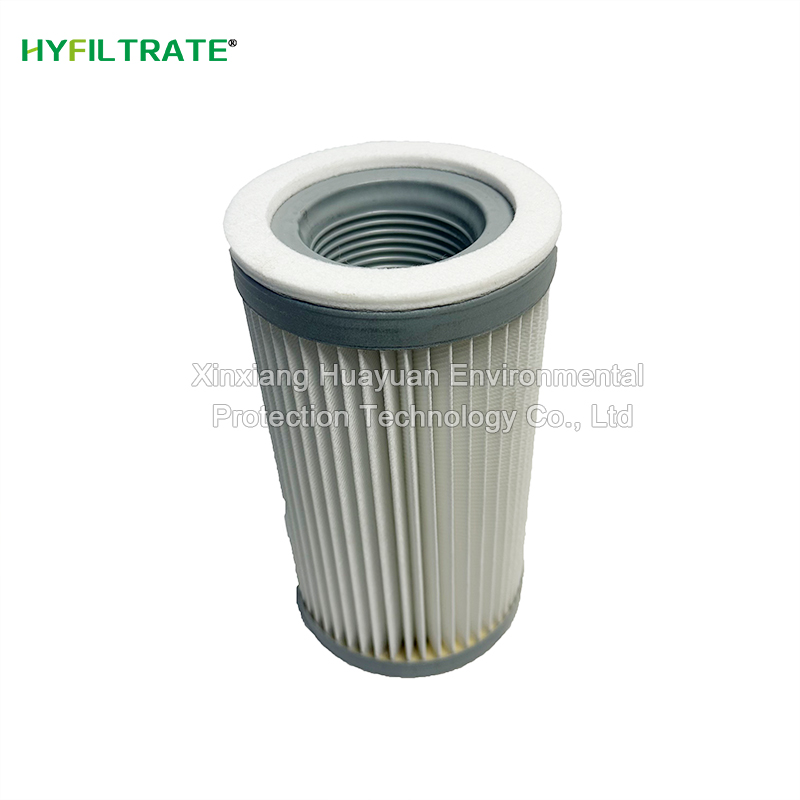

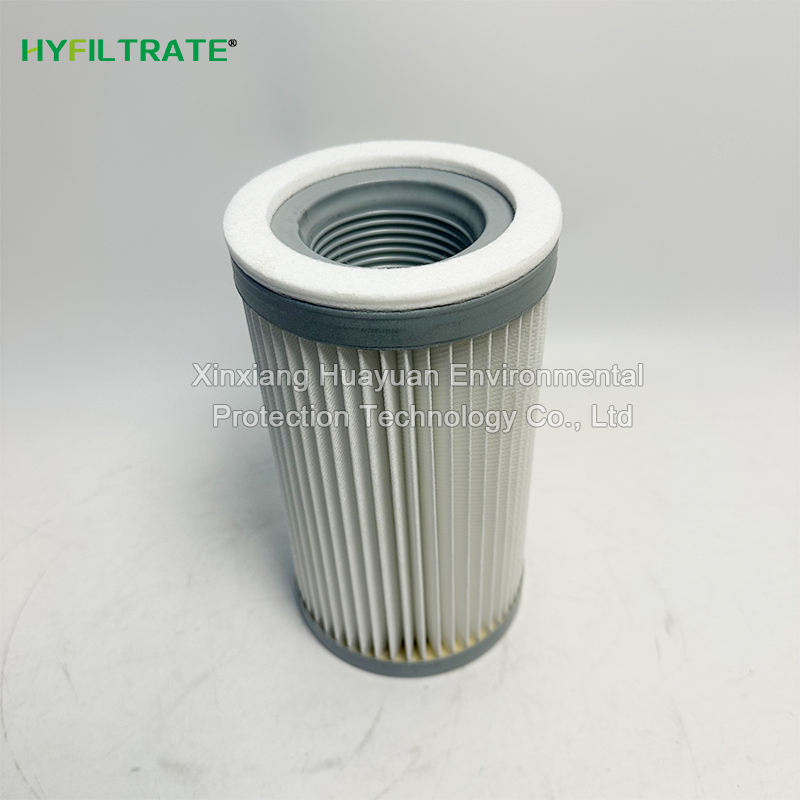

Replace Filtration Group 852656 Ti 15-0.25 V4A air filter cartridge

Description:: Replace Filtration Group 852656 Ti 15-0.25 V4A air filter cartridge adopts a fix

Share With:

Replace Filtration Group 852656 Ti 15-0.25 V4A Air filter cartridge adopts a fixed star shaped wrinkled structure, combined with 0.25 μ m high-precision polyester filter material, which can efficiently capture ultrafine dust and oil fume particles. The stainless steel end cover is corrosion-resistant and not easily corroded or damaged. The filter material has sufficient dust holding capacity, and the operating pressure difference rises smoothly. When combined with pulse blowing, it can be reused for a long time, greatly reducing the frequency of consumable replacement. The overall mechanical strength is excellent, which can resist the impact of airflow and high-temperature smoke erosion. It is easy to disassemble and adapt to standard filter cartridge assemblies, stably protecting exhaust equipment and fan units from dust wear, reducing equipment maintenance costs, and ensuring long-term stable operation of dust removal systems.

Related models:

852656 Ti15-0.25 V4A、852623 Ti15-0.4 V4A、852032 Ti15-15 BAND、852761 PS6、852688 Ti2011-0.25 V4A

852541 Ti07/1-1.0 V4A、852472 Ti09-3.0 V4A、852396 PS10、852714 PS3、852605 Ti12-5.0 V4A

852448 Ti08-2.0 V4A、852583 PS15、852736 Ti18-0.8 V4A、852419 Ti10-4.0 V4A、852697 PS20

Technical data

Replace Filtration Group 852656 Ti 15-0.25 V4A air filter cartridge

Product type: Star pleated industrial dust removal filter cartridge (gas dust filtration)

Filter material: Polyester filter material, with a filtration accuracy of 0.25 μ m

Shell/End Cap: V4A stainless steel metal end cap, threaded installation specification Rd60 × 4

Air intake method: outer dust intake, inner exhaust, compatible with pulse back blowing dust cleaning system

Net weight: 0.788kg, able to withstand working temperatures ranging from -20 ℃ to 120 ℃

Structure: Fixed and reinforced folded structure with anti-static properties, supporting repeated blowing and regeneration

Suitable working conditions: dry dust, oily smoke and dust, fine dust removal of process exhaust gas
