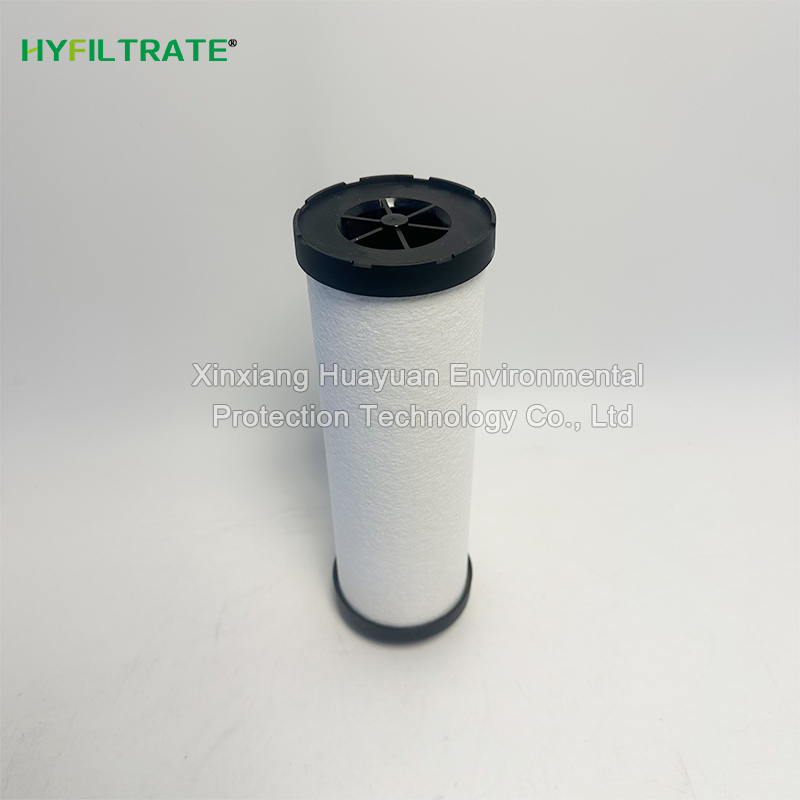

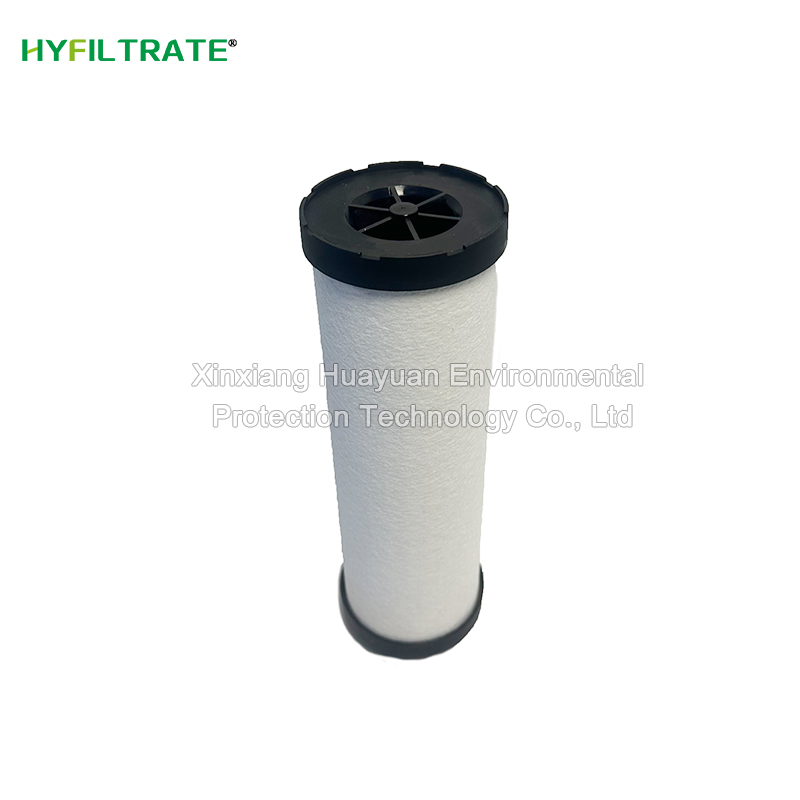

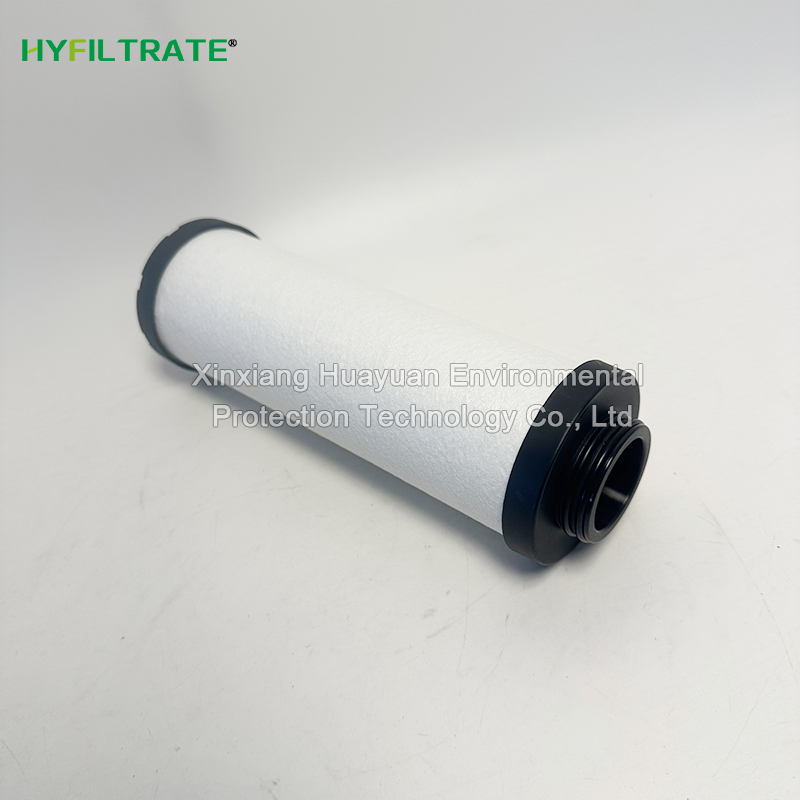

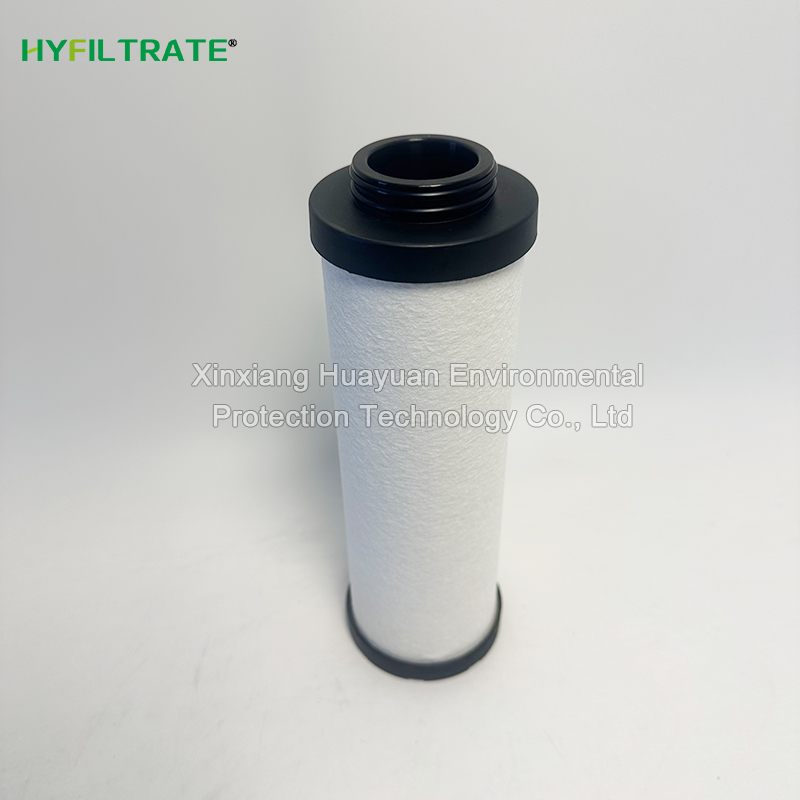

Replace Friulair TS055 15000TS055 air compressor precision filter element-Huayuan Environmental Protection Technology Co., Ltd.

Replacing Friulair TS055 15000TS055 air compressor Precision filter element with multi-layer structure, the outer layer intercepts pipeline rust and solid dust; The fiberglass layer condenses fine oil and water mist, forming droplets that sink and are discharged by their own weight. Protect the backend dryer, solenoid valve, cylinder, spraying equipment, and laser gas source to prevent oil and water corrosion of pipelines and product defects. The original fiberglass is treated without silicon, suitable for spraying and precision instrument gas scenarios.

Applicable locations:

Spray painting processing industry: Automated spray painting production line air source water and oil removal unit

Laser processing industry: laser cutting and welding equipment, process gas source purification device

Electronic manufacturing field: cleanroom, component blowing and gas supply system

General Machinery Industry: Air Compressor Aftertreatment, CNC Equipment Pneumatic Air Source Device

Other scenarios include packaging machinery, laboratory precision instruments, and air source processing units

Instructions for replacing filter element:

1) Same shell universal filter element (completely universal in external dimensions): TP055, TX055, TZ055

Reminder: Different types of filter materials, precision, and functions have differences and cannot be interchanged arbitrarily.

2) Alternative model: FRU055S, with consistent external dimensions, structural parameters, and filtration indicators, available for selection reference.

3) Important reminder for replacement selection: The outer diameter, total length, and end structure must be matched; Fiberglass aggregated filter material cannot be cleaned or regenerated; It is recommended to configure a pre filter element in the front-end to extend its service life.

Packaging and Transportation:

Packaging: Internally packaged in plastic bags, externally packaged in cardboard boxes

Transportation: pallets or wooden boxes

Specific requirements can be based on the customer's specific needs

Related models:

TS055（15000TS055）、TP055、TX055、TZ055、TS030

TS080、TP030、TX030、TZ030、TP080

TX080、TZ080、TS018、TP018、TX018

Technical data

Replace Friulair TS055 15000TS055 air compressor precision filter element

Product type: Compressed air condensing precision filter cartridge

Filter material configuration: multi-layer gradient glass fiber composite medium, airflow flows from outside to inside

Filtering accuracy: 1 μ m, capable of intercepting dust, condensed water, and suspended oil mist

Can withstand maximum pressure difference: 16 bar, resistant to continuous airflow erosion causing filter material damage

Sealing material: Polyurethane integrated end cap, resistant to oil and gas corrosion

Suitable working range: 1.5 ℃~+65 ℃

Supporting structure: High strength plastic support skeleton, stable pleated filter layer

Suitable fluids: compressed air, nitrogen and other industrial process gas sources
