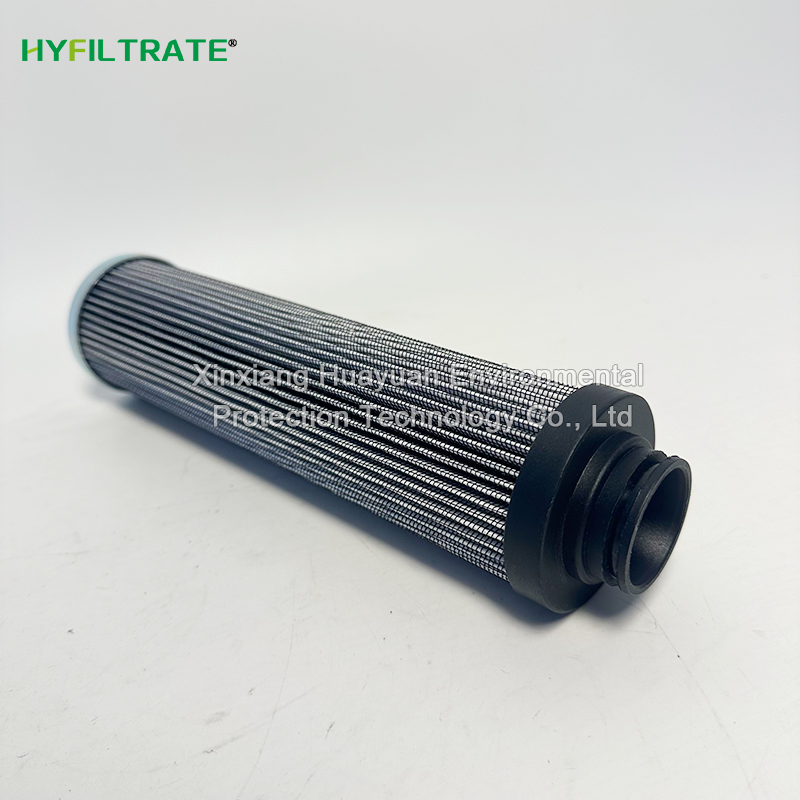

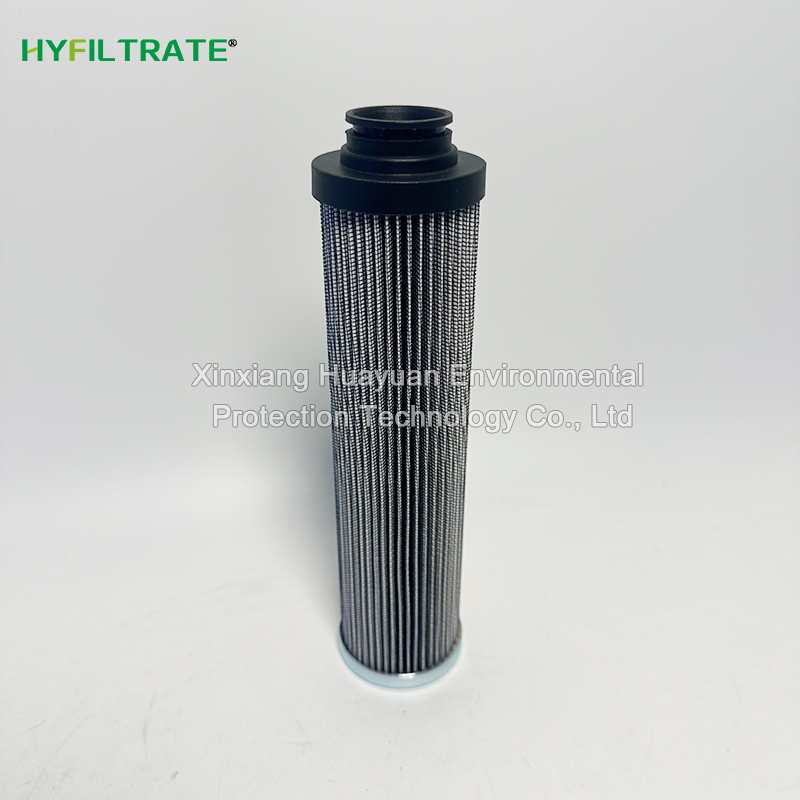

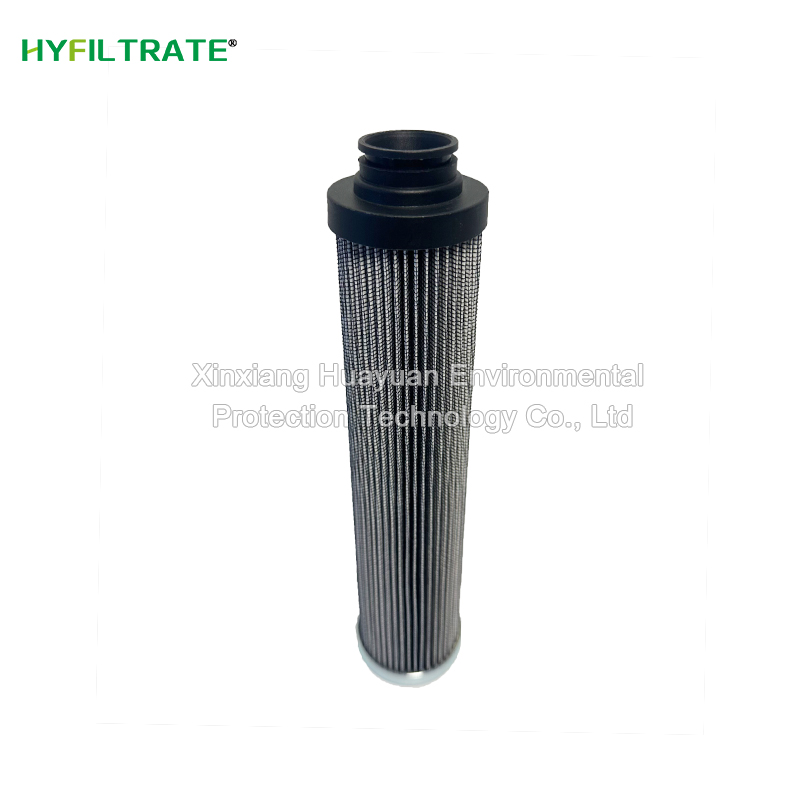

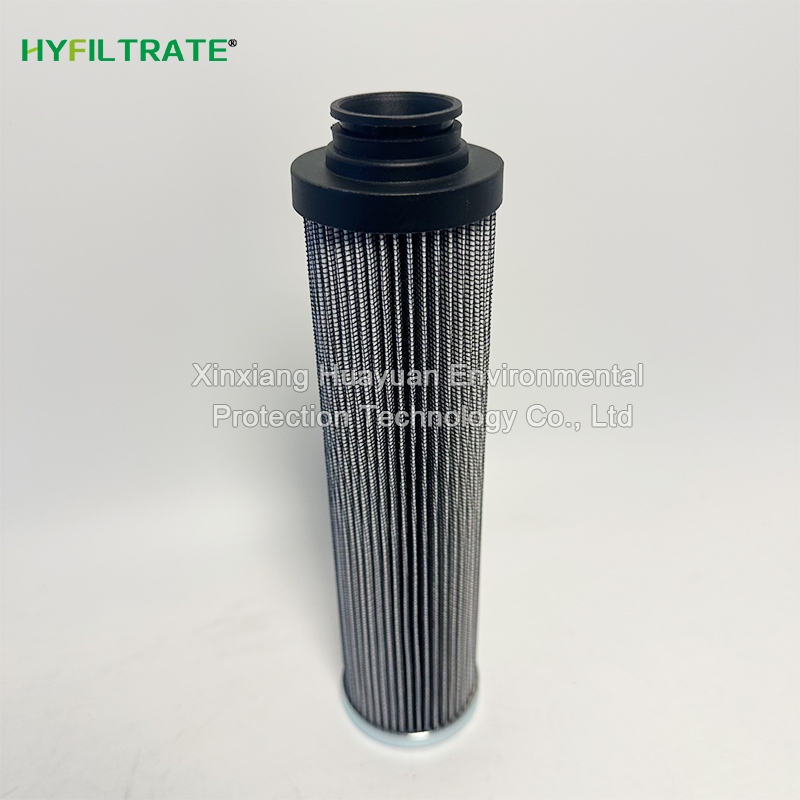

Replace Parker G02724Q hydraulic oil filter element-Huayuan Environmental Protection Technology Co., Ltd.

Replacing Parker G02724Q Hydraulic oil filter element, gradient glass fiber is used to trap micron level pollutants layer by layer, greatly reducing the failure rate of plunger pump, servo valve jamming, internal leakage, and wear, and adapting to closed-loop precision hydraulic control system. And the steel support frame is matched with an integrated epoxy pouring edge sealing. Under the pressure pulsation impact caused by system start stop and load fluctuations, the filter element will not peel off or tear even when it is filled with dirt, preventing dirty oil from flowing back and contaminating the entire oil tank; Epoxy bonding is firm, and there is no fiber shedding or end face leakage problem after long-term immersion and aging of water containing oil products.

Applicable locations:

Energy sector: Hydraulic control system for wind turbines, lubricating oil purification device

Metallurgical industry: High pressure hydraulic circulation circuit for hot rolling production lines and continuous casting equipment

Engineering equipment: shield tunneling equipment, main control oil circuit for mining heavy machinery

Intelligent Manufacturing: Hydraulic Workstation, Die Casting Unit, Heavy duty Press Hydraulic System

Other scenarios include industrial high-pressure lubrication pipelines, mobile hydraulic equipment filtration units

Instructions for replacing filter element:

1) Same shell universal filter element (completely universal in external dimensions): G02725Q, G02723Q, G02726Q

Tip: Different types of filter materials and precision may vary and cannot be interchanged arbitrarily.

2) Alternative model: PKG2724, with consistent external dimensions, structural parameters, and filtration indicators, available for selection reference.

3) Important reminder for replacement selection: The outer diameter, total length, and positioning inner hole size must match; Fiberglass filter cartridge cannot be cleaned or regenerated; Regularly monitor the pressure difference and investigate the system pollution source when the pressure difference suddenly rises.

Packaging and Transportation:

Packaging: Internally packaged in plastic bags, externally packaged in cardboard boxes

Transportation: pallets or wooden boxes

Specific requirements can be based on the customer's specific needs

Related models:

G02724Q、G02723Q、G02725Q、G02726Q、G02727Q

G02718Q、G02719Q、G02720Q、G02721Q、G02722Q

G04242Q、G04244Q、G04247Q、G04248Q、G04250Q

Technical data

Replace Parker G02724Q hydraulic oil filter element

Product type: High pressure pipeline folding fiberglass hydraulic filter cartridge

Filter material configuration: multi-layer gradient porous micro glass fiber medium, fluid flows from outside to inside

Filtration accuracy: 5 μ m, capturing fine solid particle pollutants inside the oil circuit

Can withstand maximum pressure difference: 20 bar, preventing the filter layer from being compressed, wrinkled, torn or damaged

Sealing material: NBR nitrile rubber sealing ring, suitable for various industrial hydraulic fluids

Suitable working range: -40 ℃ to+100 ℃

Supporting structure: Epoxy coated metal inner and outer skeleton, resistant to alternating pressure impact

Suitable fluids: mineral hydraulic oil, circulating lubricating oil, water ethylene glycol flame retardant medium

Why choose HYFILTRATE?

1. High quality filtration materials: We strictly select high-quality materials such as glass fiber and stainless steel metal mesh to ensure filtration efficiency and long service life.

2. Compliant with industry standards: The product meets user needs, is compatible with most hydraulic systems, and has excellent quality.

3. Customizable: We can provide customized solutions based on your various models and brands, as well as replacement requirements under different working conditions.

4. Cost effectiveness: The factory directly supplies, crosses intermediaries, and reduces procurement costs while maintaining excellent quality.
