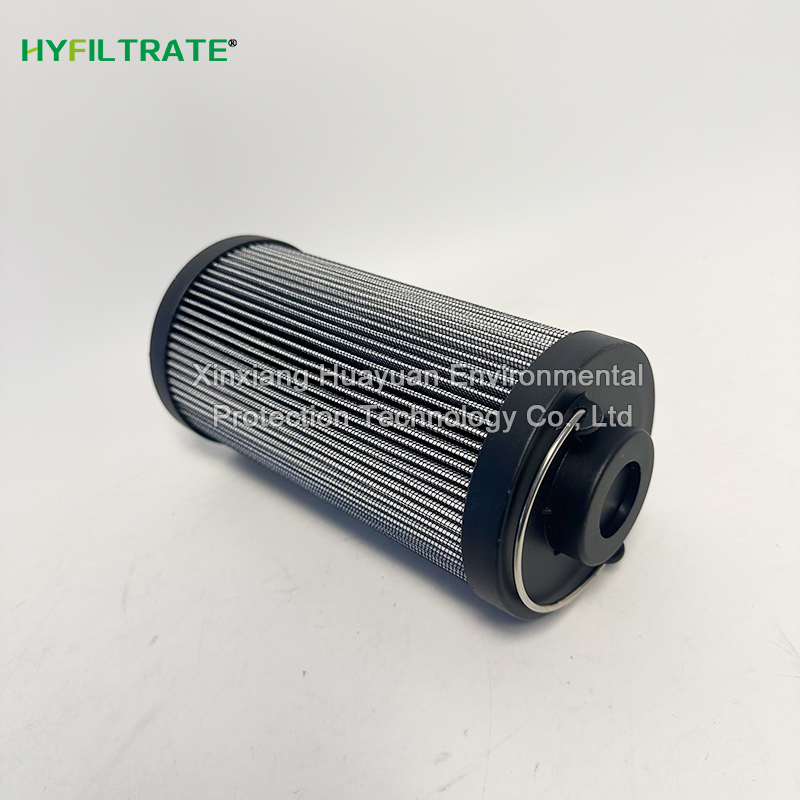

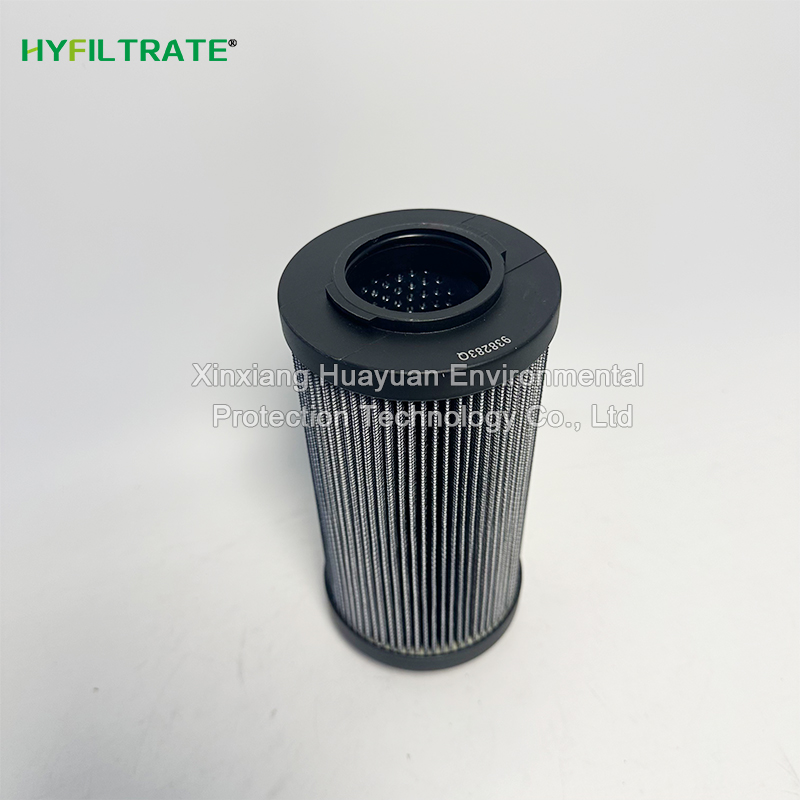

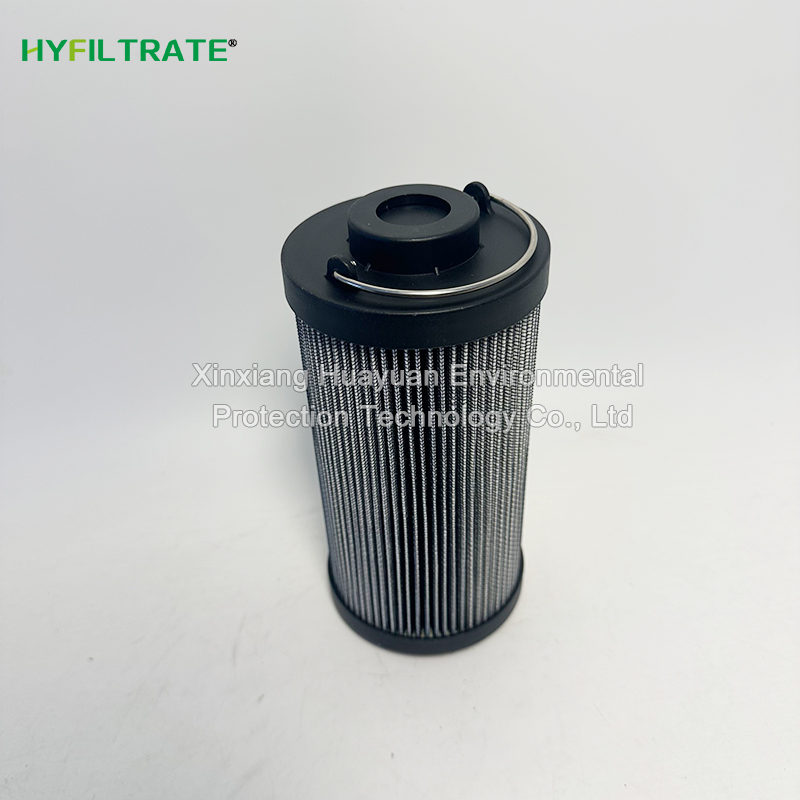

The gradient multi-layer fiberglass filter layer of the Replace Parker 938283Q h
Model: 938283Q
Filtration Accuracy: 10μm
Brand: HYFILTRATE
Material: fiberglass
Outer diameter: 95 mm
High: 194mm
The gradient multi-layer fiberglass filter layer of the Replace Parker 938283Q Hydraulic oil filter element has sufficient space for dirt containment, continuously capturing metal debris and oxide deposits in the fluid, maintaining stable oil cleanliness standards, and reducing the risk of hydraulic component wear and jamming. The steel support sleeve maintains the stability of the filter layer structure for a long time and can withstand continuous pressure fluctuations in the pipeline. Fluororubber seals are resistant to medium erosion and effectively reduce leakage. The compact structure of the cylinder body is compatible with standard filter housings, extending the operation and maintenance cycle, and ensuring the smooth operation of the entire fluid power system.
Energy sector: Hydraulic control system for wind turbines, lubricating oil purification device
Metallurgical industry: High pressure hydraulic circulation circuit for hot rolling production lines and continuous casting equipment
Engineering equipment: shield tunneling equipment, mining machinery, heavy-duty lifting machinery oil circuit
Intelligent manufacturing: hydraulic workstations, die-casting units, heavy-duty machine tool hydraulic systems
Other scenarios include mobile hydraulic devices, industrial lubrication circulation filtration units
1) Same shell universal filter element (completely universal in external dimensions): 938282Q, 938284Q, 938285Q
Tip: Different types of filter materials and precision may vary and cannot be interchanged arbitrarily.
2) Alternative model: PKL938283, with consistent external dimensions, structural parameters, and filtration indicators, available for selection reference.
3) Important reminder for replacement selection: The outer diameter, total length, and positioning inner hole size must match; Fiberglass filter cartridge cannot be cleaned or regenerated; Regularly monitor the pressure difference and investigate the system pollution source when the pressure difference suddenly rises.
Packaging: Internally packaged in plastic bags, externally packaged in cardboard boxes
Transportation: pallets or wooden boxes
Specific requirements can be based on the customer's specific needs
938283Q、938282Q、938284Q、938285Q、938281Q
937803Q、937804Q、937805Q、939054Q、939055Q
936740Q、936741Q、936742Q、936743Q、936744Q
Replace Parker 938283Q hydraulic oil filter element
Product Type: Folding Fiberglass Hydraulic Filter Cartridge for Pressure Pipeline
Filter material configuration: multi-layer gradient porous micro glass fiber medium, fluid flows from outside to inside
Filtering accuracy: 10 μ m, capturing fine solid particle pollutants inside the oil circuit
Capable of withstanding a maximum pressure difference of 21 bar, preventing the filter layer from being compressed, wrinkled, torn, or damaged
Sealing material: FPM fluororubber sealing ring, suitable for various industrial hydraulic fluids
Suitable working range: -25 ℃ to+110 ℃
Supporting structure: Tin plated steel punched inner and outer sleeves, buffering system for alternating pressure impact
Suitable fluids: mineral hydraulic oil, circulating lubricating oil, water ethylene glycol flame retardant medium
1. High quality filtration materials: We strictly select high-quality materials such as glass fiber and stainless steel metal mesh to ensure filtration efficiency and long service life.
2. Compliant with industry standards: The product meets user needs, is compatible with most hydraulic systems, and has excellent quality.
3. Customizable: We can provide customized solutions based on your various models and brands, as well as replacement requirements under different working conditions.
4. Cost effectiveness: The factory directly supplies, crosses intermediaries, and reduces procurement costs while maintaining excellent quality.
