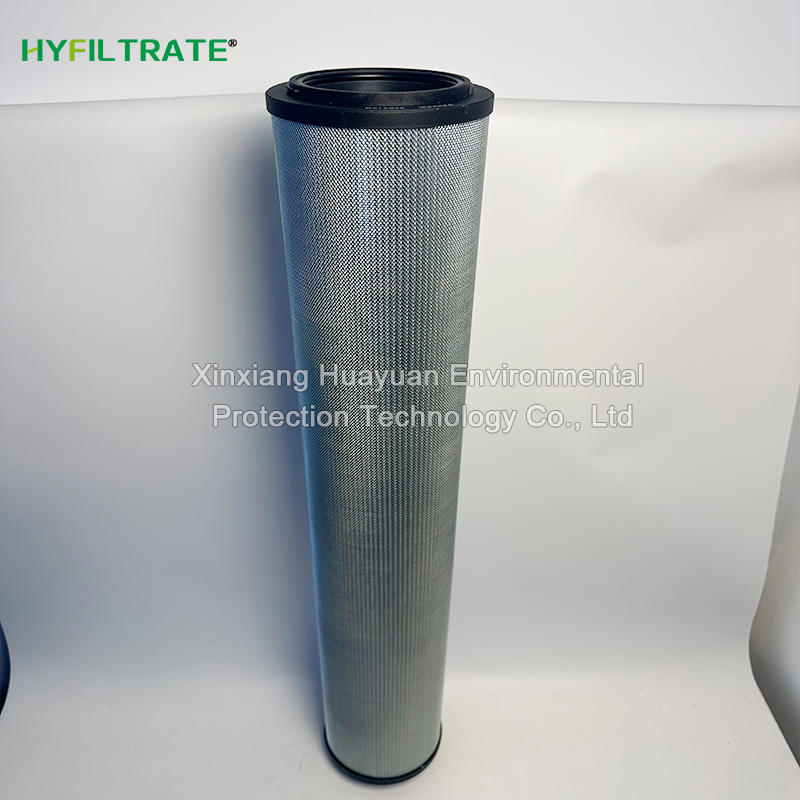

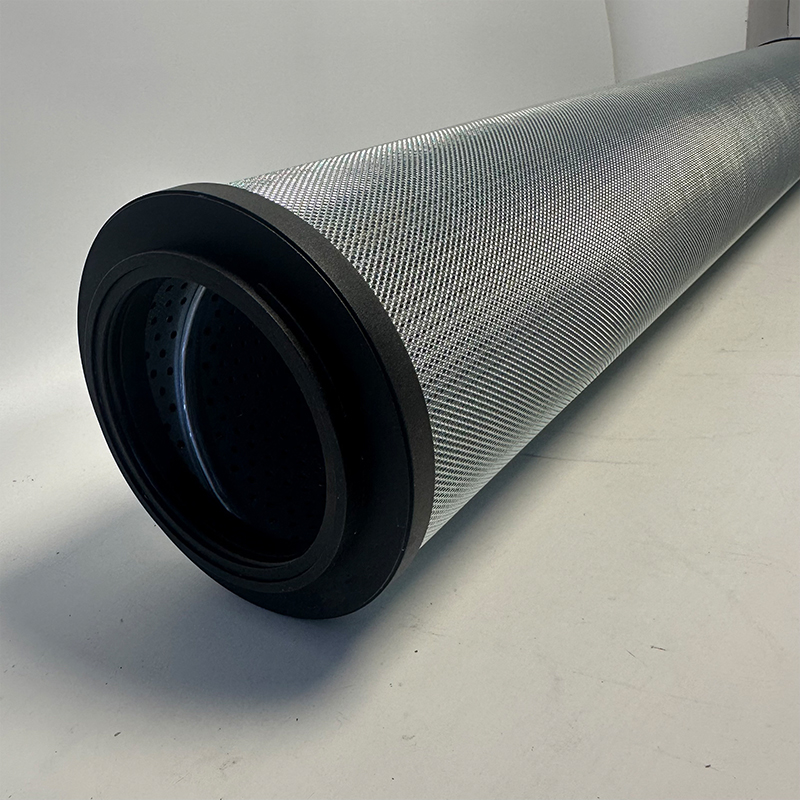

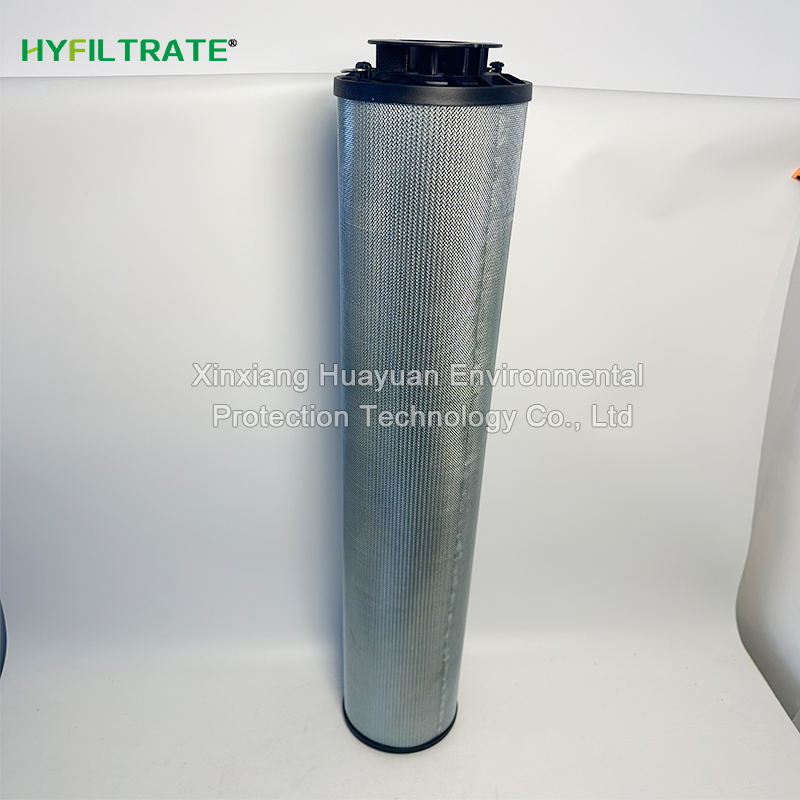

Replace Parker 938313Q hydraulic oil filter element-Huayuan Environmental Protection Technology Co., Ltd.

The multi-layer fiberglass pleated filter material of the Replace Parker 938313Q Hydraulic oil filter element has sufficient dirt holding capacity, continuously intercepting solid impurities in the oil circuit, stabilizing the cleanliness of the pipe control oil, and reducing hydraulic pump and control valve sticking and wear faults. Tin plated metal skeleton maintains the filter layer shape for a long time and can withstand frequent pressure fluctuations in medium pressure systems. The integrated end cap seal is reliable and reduces medium leakage. Easy disassembly and maintenance, effectively extending the maintenance cycle of hydraulic equipment, ensuring the continuous and stable operation of the entire fluid power system.

Applicable locations:

Energy sector: Hydraulic control system for wind turbines, lubricating oil purification device

Metallurgical industry: medium pressure hydraulic circulation circuit for hot rolling and continuous casting equipment

Engineering machinery: shield tunneling equipment, mining heavy machinery main control oil circuit

Intelligent manufacturing: hydraulic power station, die-casting unit, machine tool hydraulic filter

Other scenarios include industrial lubrication pipelines, mobile hydraulic equipment filtration units

Instructions for replacing filter element:

1) Same shell universal filter element (completely universal in external dimensions): 938312Q, 938314Q, 938315Q

Tip: Different types of filter materials and precision may vary and cannot be interchanged arbitrarily.

2) Alternative model: PK938313W, with consistent external dimensions, structural parameters, and filtration indicators, available for selection reference.

3) Important reminder for replacement selection: The outer diameter, total length, and positioning inner hole size must match; Fiberglass filter cartridge cannot be cleaned or regenerated; Regularly monitor the pressure difference and investigate the system pollution source when the pressure difference suddenly rises.

Packaging and Transportation:

Packaging: Internally packaged in plastic bags, externally packaged in cardboard boxes

Transportation: pallets or wooden boxes

Specific requirements can be based on the customer's specific needs

Related models:

938313Q、938312Q、938314Q、938315Q、938311Q

938308Q、938309Q、938310Q、938316Q、938317Q

937803Q、937804Q、937805Q、936743Q、936744Q

Technical data

Replace Parker 938313Q hydraulic oil filter element

Product Type: Folding Fiberglass Hydraulic Filter Cartridge for Pressure Pipeline

Filter material configuration: multi-layer gradient porous micro glass fiber medium, fluid flows from outside to inside

Filtering accuracy: 20 μ m, capturing metal particles, rust and hard pollutants inside the oil circuit

Can withstand maximum pressure difference: 25bar, resist pipeline alternating pressure impact, prevent filter layer tearing and damage

Sealing material: NBR nitrile rubber sealing ring, suitable for various industrial hydraulic media

Suitable working range: -25 ℃ to+110 ℃

Supporting structure: Tin plated steel punched inner and outer sleeves, corrosion-resistant and resistant to fluid impact

Suitable fluids: mineral hydraulic oil, circulating lubricating oil, water ethylene glycol flame retardant medium

Why choose HYFILTRATE?

1. High quality filtration materials: We strictly select high-quality materials such as glass fiber and stainless steel metal mesh to ensure filtration efficiency and long service life.

2. Compliant with industry standards: The product meets user needs, is compatible with most hydraulic systems, and has excellent quality.

3. Customizable: We can provide customized solutions based on your various models and brands, as well as replacement requirements under different working conditions.

4. Cost effectiveness: The factory directly supplies, crosses intermediaries, and reduces procurement costs while maintaining excellent quality.
