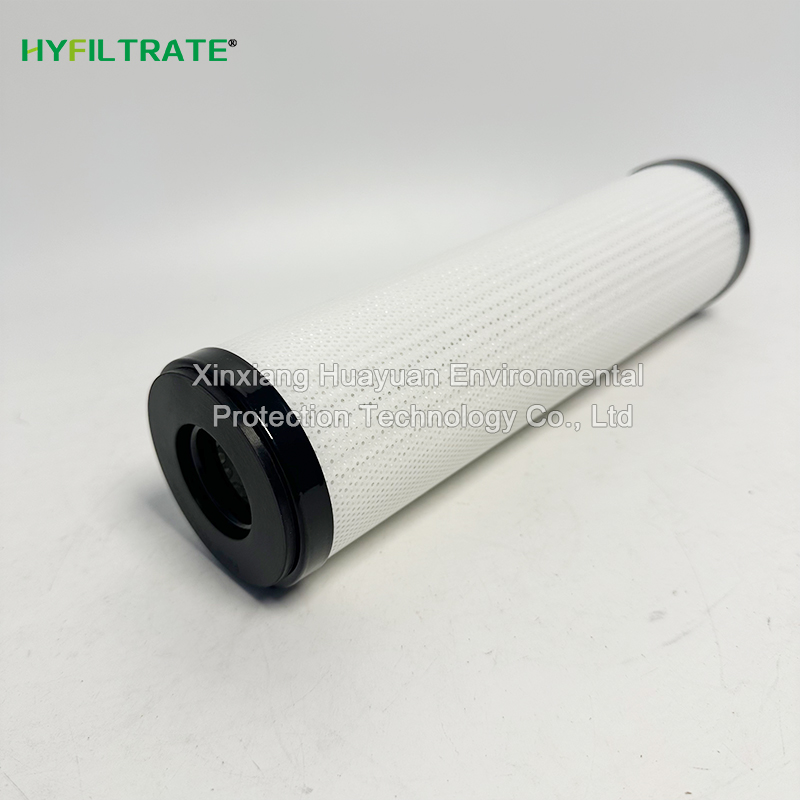

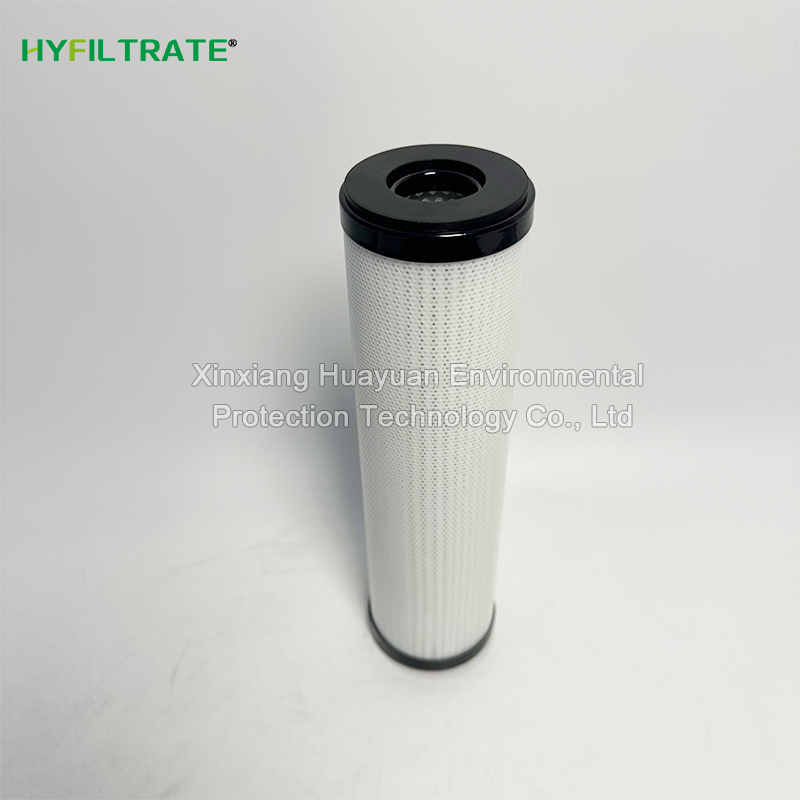

Replace Parker ACO-21001P oil filter element-Huayuan Environmental Protection Technology Co., Ltd.

Replacing Parker ACO-21001P oil filter element can capture free and emulsified moisture and lock in moisture, while the double-layer filtration structure intercepts solid particles such as rust and gum, effectively protecting downstream filling equipment. The folded structure has a larger filtering area and higher pollutant holding capacity; The increase in pressure difference provides an intuitive prompt for replacement, making operation and maintenance convenient. Widely used in airport refueling pipelines and refueling truck systems to prevent the risk of "water hammer" and ensure that the quality of aviation fuel meets the requirements of aviation fuel supply standards.

Applicable locations:

Aviation fuel supply field: airport apron refueling pipelines, aviation refueling vehicle filtration units

Oil storage and transportation industry: aviation kerosene storage tank export pipeline purification device

General fuel refueling stations: fuel delivery systems for general aviation airports and repair shops

Energy and chemical industry: hydrocarbon fuel oil-water separation system

Precision filtration device for small aviation fuel transfer pump stations in other scenarios

Instructions for replacing filter element:

1) Same shell universal filter element (completely universal in external dimensions): ACO-21005P, ACO-21010P

Tip: Different models have different flow rates and water absorption capacities, and cannot be interchanged arbitrarily.

2) Alternative model: VEL2101, with consistent external dimensions, structural parameters, and filtering indicators, available for selection reference.

3) Important reminder for replacement selection: The outer diameter, total length, and inner diameter dimensions must match; The water absorbing medium cannot regenerate after saturation; It is strictly prohibited to use it in fuel conditions containing FSII additives.

Packaging and Transportation:

Packaging: Internally packaged in plastic bags, externally packaged in cardboard boxes

Transportation: pallets or wooden boxes

Specific requirements can be based on the customer's specific needs

Related models:

ACO-21001P、ACO-21005P、ACO-21010P

ACO-31001P、ACO-51201P、ACO-11001P

ACO-21001R、ACO-31005P、ACO-51205P

Technical data

Replace Parker ACO-21001P oil filter element

Product type: Aviation fuel oil-water separation monitoring filter cartridge

Filter material configuration: multi-layer water absorbing composite medium+particle filter layer, fluid flows from outside to inside

Separation index: effluent content ≤ 5ppm, solid particle filtration accuracy 0.5 μ m (efficiency ≥ 98%)

Ultimate pressure difference: 1.72 bar. It is recommended to replace the pressure difference when it reaches the recommended level

Tolerant working temperature: up to 71.1 ℃

End cover form: single opening open structure

Supporting structure: High strength punched skeleton, wrinkles increase dirt holding capacity

Suitable fluids: Jet-A1 aviation coal, aviation gasoline (prohibited for use in premixed FSII anti icing additive fuel)

Why choose HYFILTRATE?

1. High quality filtration materials: We strictly select high-quality materials such as glass fiber and stainless steel metal mesh to ensure filtration efficiency and long service life.

2. Compliant with industry standards: The product meets user needs, is compatible with most hydraulic systems, and has excellent quality.

3. Customizable: We can provide customized solutions based on your various models and brands, as well as replacement requirements under different working conditions.

4. Cost effectiveness: The factory directly supplies, crosses intermediaries, and reduces procurement costs while maintaining excellent quality.
