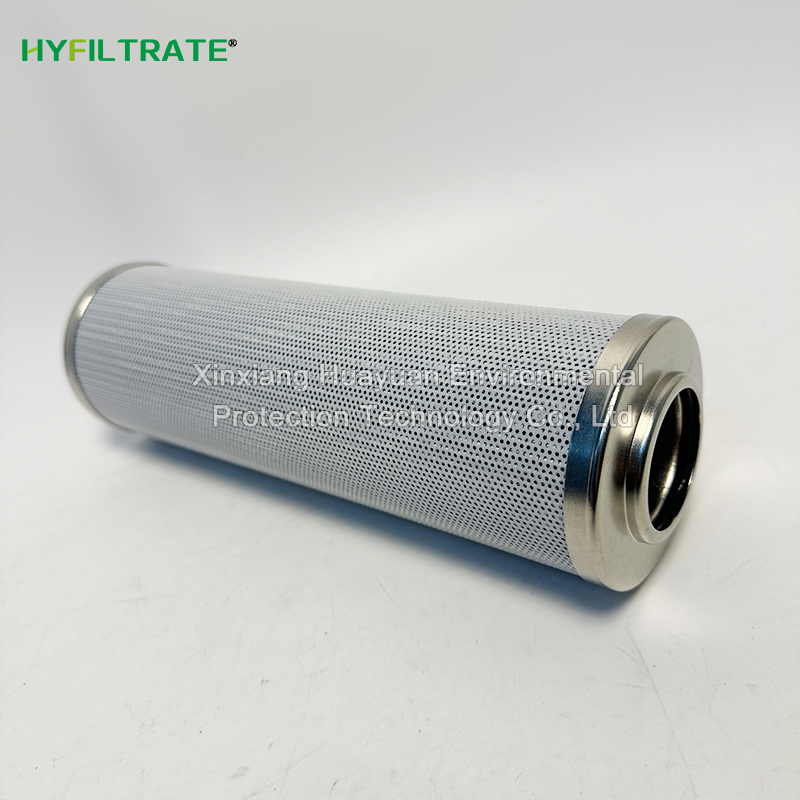

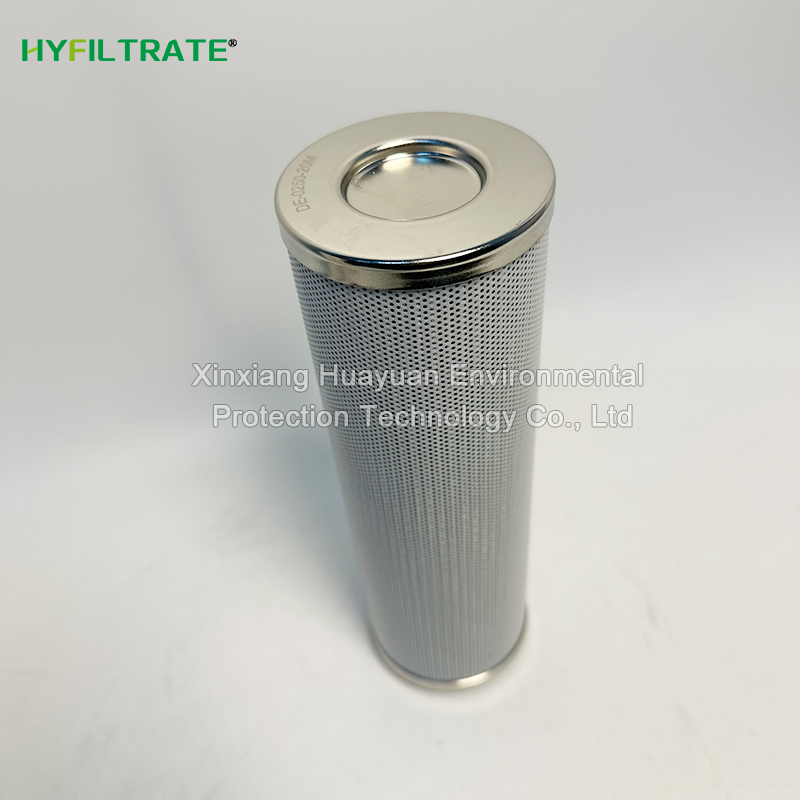

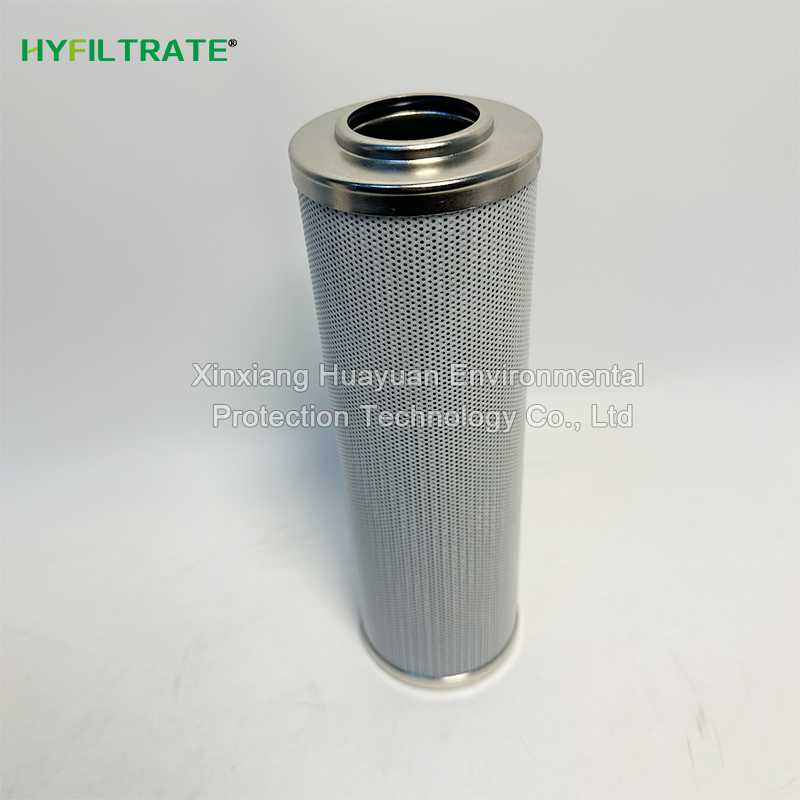

The replacement Parker DE-0250-20M hydraulic oil filter element has sufficient d
Model: DE-0250-20M
Filtration Accuracy: 20μm
Brand: HYFILTRATE
Material: fiberglass
Outer diameter: 78mm
High: 365mm
The replacement Parker DE-0250-20M Hydraulic oil filter element has sufficient dirt holding capacity, continuously capturing small solid pollutants in the oil circuit, avoiding jamming of precision valve components, and reducing internal wear of the hydraulic pump. Large area wrinkling design optimizes flow capacity and ensures stable pressure difference under normal operating conditions. The double-layer metal casing enhances the compressive performance of the filter layer and reduces the probability of damage caused by high-pressure impact. The sealing end face fits tightly, effectively reducing the bypass of the medium, maintaining the cleanliness level of the oil continuously and stably, reducing sudden equipment failures, and extending the uninterrupted operation time of the hydraulic device.
Metallurgical equipment industry: High pressure oil purification unit for rolling mills and sheet extrusion production lines
In the field of construction machinery: shield tunneling equipment, main control hydraulic pipeline protection device for heavy-duty vehicles
Automation equipment: Large hydraulic station, injection molding machine pressure circuit filtration
New Energy Equipment: Precision Purification Unit for Hydraulic Transmission System of Wind Turbine
Other scenarios include hydraulic oil circuit protection for port cranes and mining equipment
1) Same shell universal filter element (universal external dimensions): DE-0250-10M, DE-0250-30M
Tip: There is a difference between filtration accuracy and pollutant holding capacity, and they cannot be interchanged at will.
2) Alternative model: PKDE025020M, with consistent external dimensions, structural parameters, and filtration indicators, available for selection reference.
3) Important reminder for replacement selection: The outer diameter, total length, and positioning inner hole size must match; Fiberglass filter material cannot be washed and regenerated; Promptly investigate external sources of pollution when there is an abnormal increase in pressure difference.
Packaging: Internally packaged in plastic bags, externally packaged in cardboard boxes
Transportation: pallets or wooden boxes
Specific requirements can be based on the customer's specific needs
DE-0250-20M、DE-0250-10M、DE-0250-30M、DE-0250-05M、DE-0250-40M
DE-0160-20M、DE-0400-20M、DE-0250-20P、DE-0250-20V、DE-0250-20B
DE-0100-20M、DE-0630-20M、DE-0250-16M、DE-0250-03M、DE-0250-20S
Replace Parker DE-0250-20M hydraulic oil filter element
Product Type: Fiberglass Precision Filter Cartridge for High Pressure Pipelines in Hydraulic Systems
Filter material configuration: multi-layer gradient glass fiber deep filtration medium, fluid flow direction from outside to inside
Filtering accuracy: 20 μ m, capturing component wear particles, gelatinous sludge, and fine hard particles
Allowable maximum pressure difference: 21 bar, suitable for frequent alternating pressure shocks in pipelines
Sealing material: NBR nitrile rubber sealing ring, compatible with various hydraulic transmission media
Working temperature range: -30 ℃ to+110 ℃
Supporting structure: Galvanized steel punched inner and outer sleeves, resistant to continuous high-speed liquid flow erosion
Suitable fluids: mineral hydraulic oil, circulating lubricating oil, water ethylene glycol flame retardant medium
1. High quality filtration materials: We strictly select high-quality materials such as glass fiber and stainless steel metal mesh to ensure filtration efficiency and long service life.
2. Compliant with industry standards: The product meets user needs, is compatible with most hydraulic systems, and has excellent quality.
3. Customizable: We can provide customized solutions based on your various models and brands, as well as replacement requirements under different working conditions.
4. Cost effectiveness: The factory directly supplies, crosses intermediaries, and reduces procurement costs while maintaining excellent quality.
