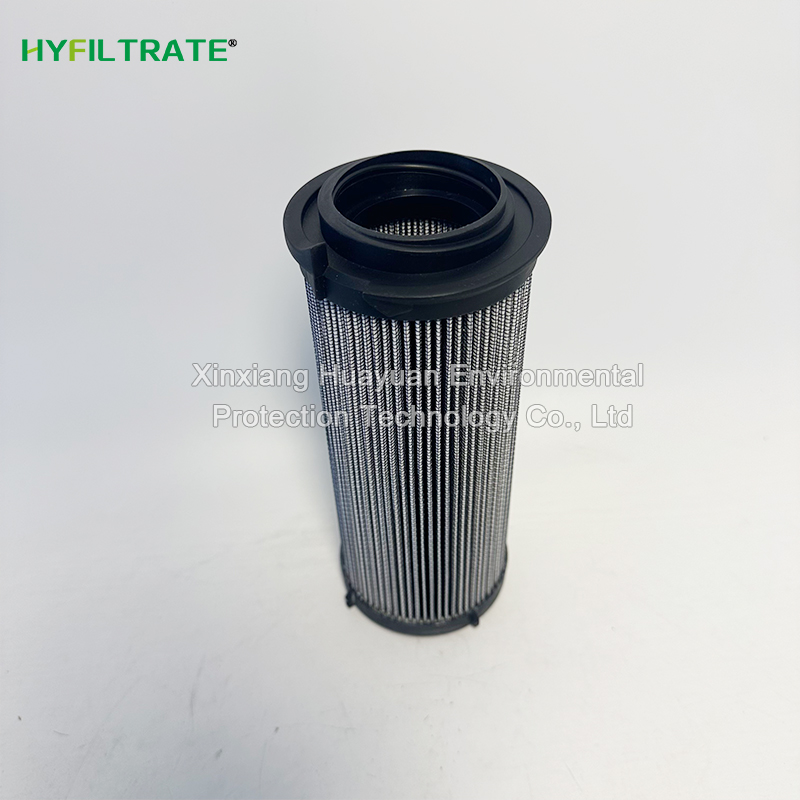

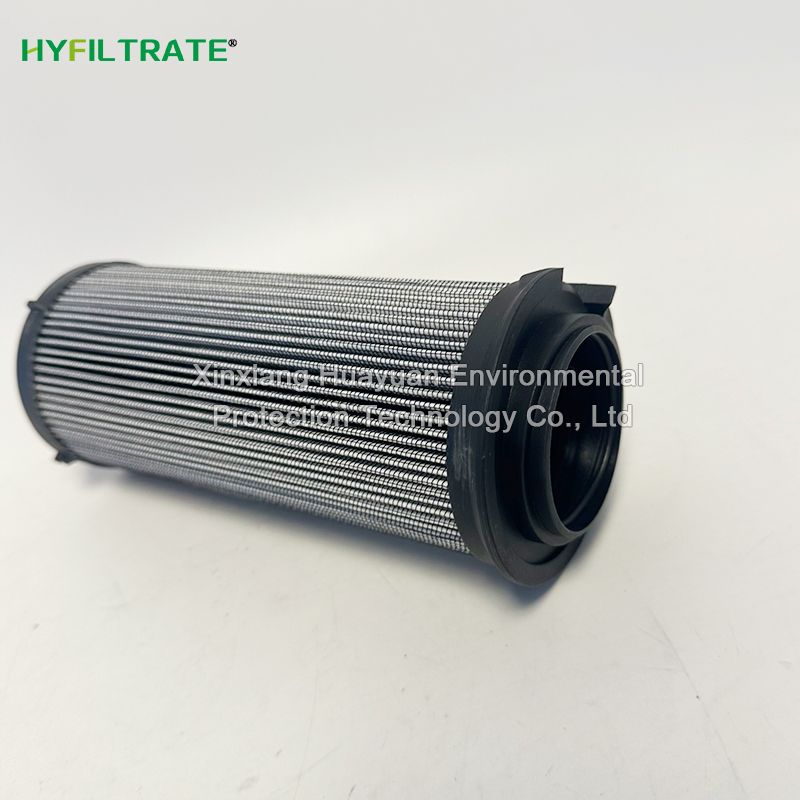

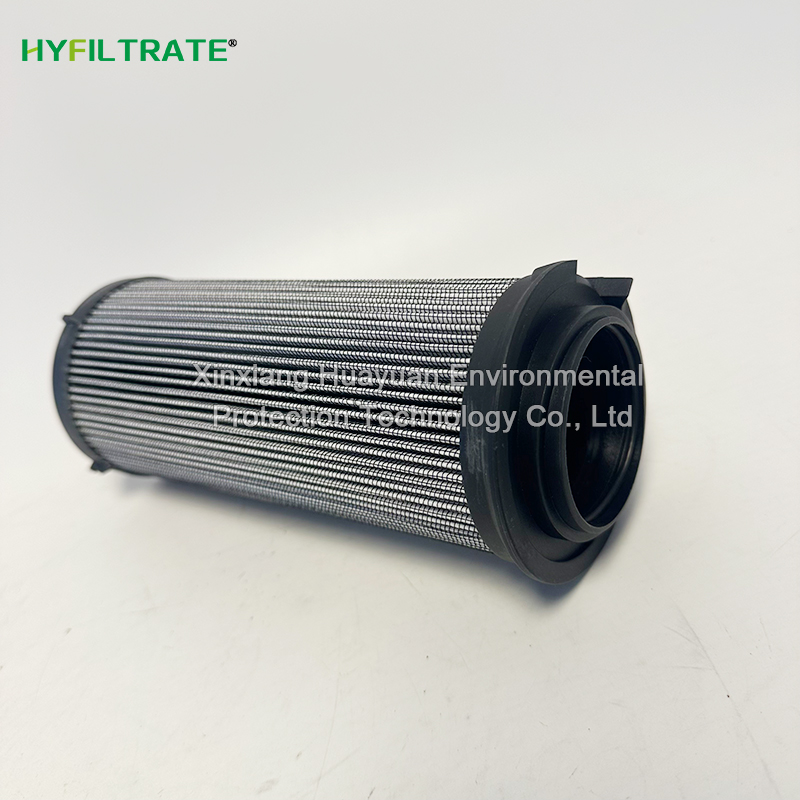

Replace Parker 010GMF3202QI-EM-RUF air compressor precision filter element-Huayuan Environmental Protection Technology Co., Ltd.

The 0.01 μ m Precision filter, which replaces the Parker 010GMF3202QI-EM-Ruf air compressor precision filter, can deeply remove fine dust, emulsified oil mist, and condensed water from compressed air. It is suitable for laser cutting, electrostatic spraying, laboratory instruments, pharmaceutical production, and semiconductor gas source protection, avoiding workpiece scrap caused by oil pollution and corrosion damage to precision components. The filter material has no silicon precipitation and will not produce silicon scale to contaminate pipelines and products.

Applicable locations:

Spray painting processing industry: Automated spray painting production line air source water and oil removal unit

In the field of electronic manufacturing: clean room gas supply, component blowing and purification system

Laser processing industry: laser cutting and welding equipment, process gas source purification device

General Machinery Industry: Air Compressor Aftertreatment, CNC Equipment Pneumatic Air Source Device

Other scene packaging equipment gas supply, laboratory process gas source treatment system

Instructions for replacing filter element:

1) Same shell universal filter element (completely universal in external dimensions): 010GMF3205QI-EM-Ruf, 010GMF3210AC-EM-RUF

Tip: Different types of filter materials, functions, and accuracies have differences and cannot be interchanged arbitrarily.

2) Alternative model: PKGMF010, with consistent external dimensions, structural parameters, and filtration indicators, available for selection reference.

3) Important reminder for replacement selection: The outer diameter, total length, and bottom end structure must match; Fiberglass aggregated filter material cannot be cleaned and regenerated; Suggest configuring a pre filter element in the front-end to extend its service life.

Packaging and Transportation:

Packaging: Internally packaged in plastic bags, externally packaged in cardboard boxes

Transportation: pallets or wooden boxes

Specific requirements can be based on the customer's specific needs

Related models:

010GMF3202QI-EM-RUF、010GMF3205QI-EM-RUF、010GMF3210AC-EM-RUF、020GMF3202QI-EM-RUF、020GMF3205QI-EM-RUF

005GMF3202QI-EM-RUF、030GMF3202QI-EM-RUF、030GMF3205QI-EM-RUF、045GMF3202QI-EM-RUF、045GMF3205QI-EM-RUF

010GMF3202GP-EM-RUF、010GMF3202HE-EM-RUF、020GMF3210AC-EM-RUF、030GMF3210AC-EM-RUF、045GMF3210AC-EM-RUF

Technical data

Replace Parker 010GMF3202QI-EM-Ruf air compressor precision filter element

Product type: Compressed air condensing precision filter cartridge

Filter material configuration: multi-layer gradient porous glass fiber composite medium, with airflow flowing from the outside to the inside

Filtering accuracy: 0.01 μ m, capturing solid particles, oil mist, and condensed water mist

Can withstand maximum pressure difference: 16 bar, resistant to deformation and damage of filter materials caused by high-speed airflow erosion

Sealing material: Oil resistant rubber sealing ring, resistant to oil and gas corrosion

Suitable working range: 1.5 ℃~+66 ℃

Supporting structure: Reinforced plastic support frame to stabilize the pleated filter layer

Suitable fluids: industrial process gas sources such as compressed air and dry nitrogen

Why choose HYFILTRATE?

1. High quality filtration materials: We strictly select high-quality materials such as glass fiber and stainless steel metal mesh to ensure filtration efficiency and long service life.

2. Compliant with industry standards: The product meets user needs, is compatible with most hydraulic systems, and has excellent quality.

3. Customizable: We can provide customized solutions based on your various models and brands, as well as replacement requirements under different working conditions.

4. Cost effectiveness: The factory directly supplies, crosses intermediaries, and reduces procurement costs while maintaining excellent quality.
